NEW Holset HX60W Turbo J. I. Case Industrial Cummins ISX QSX QSX15 15.0L 2836723

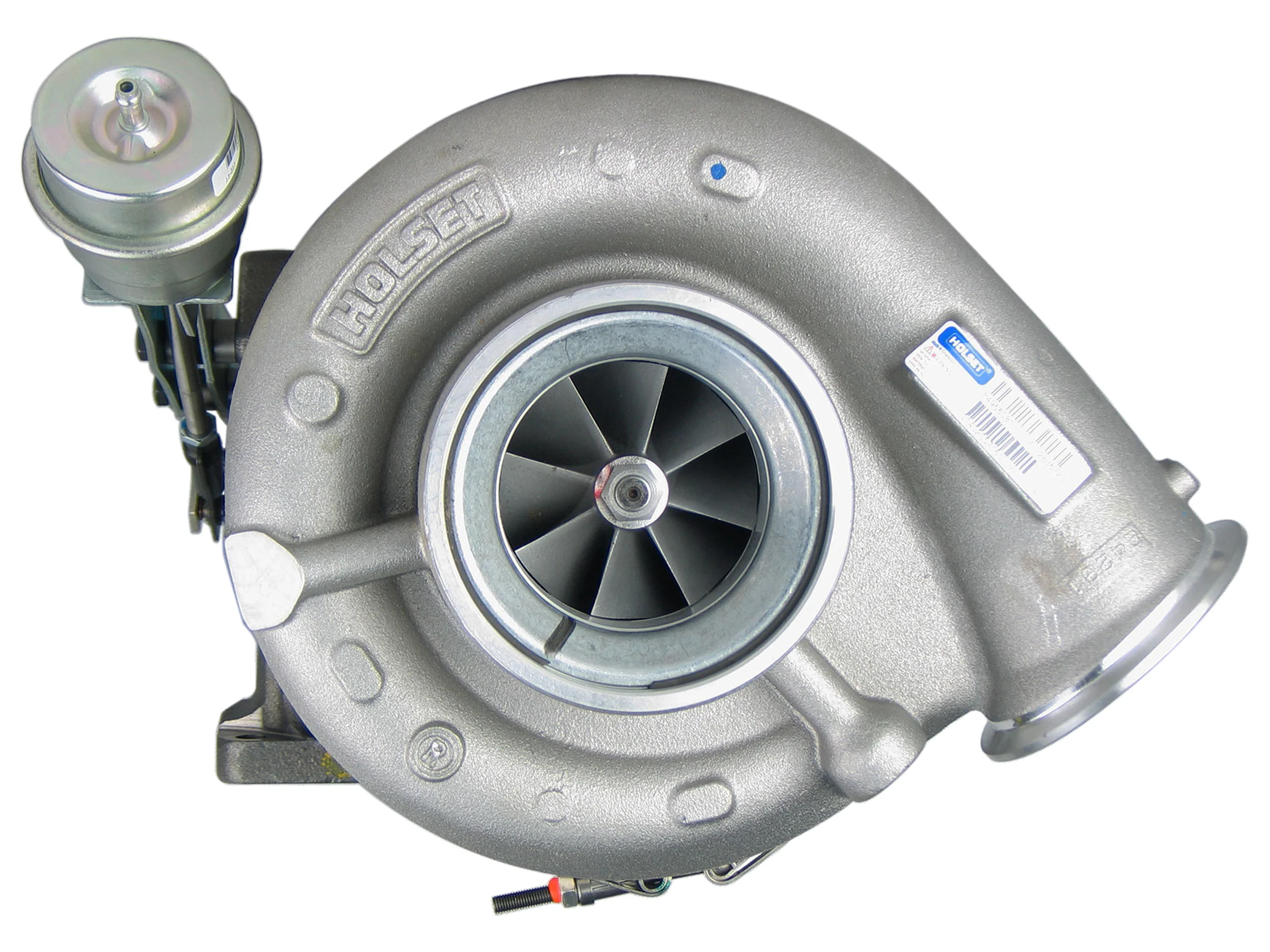

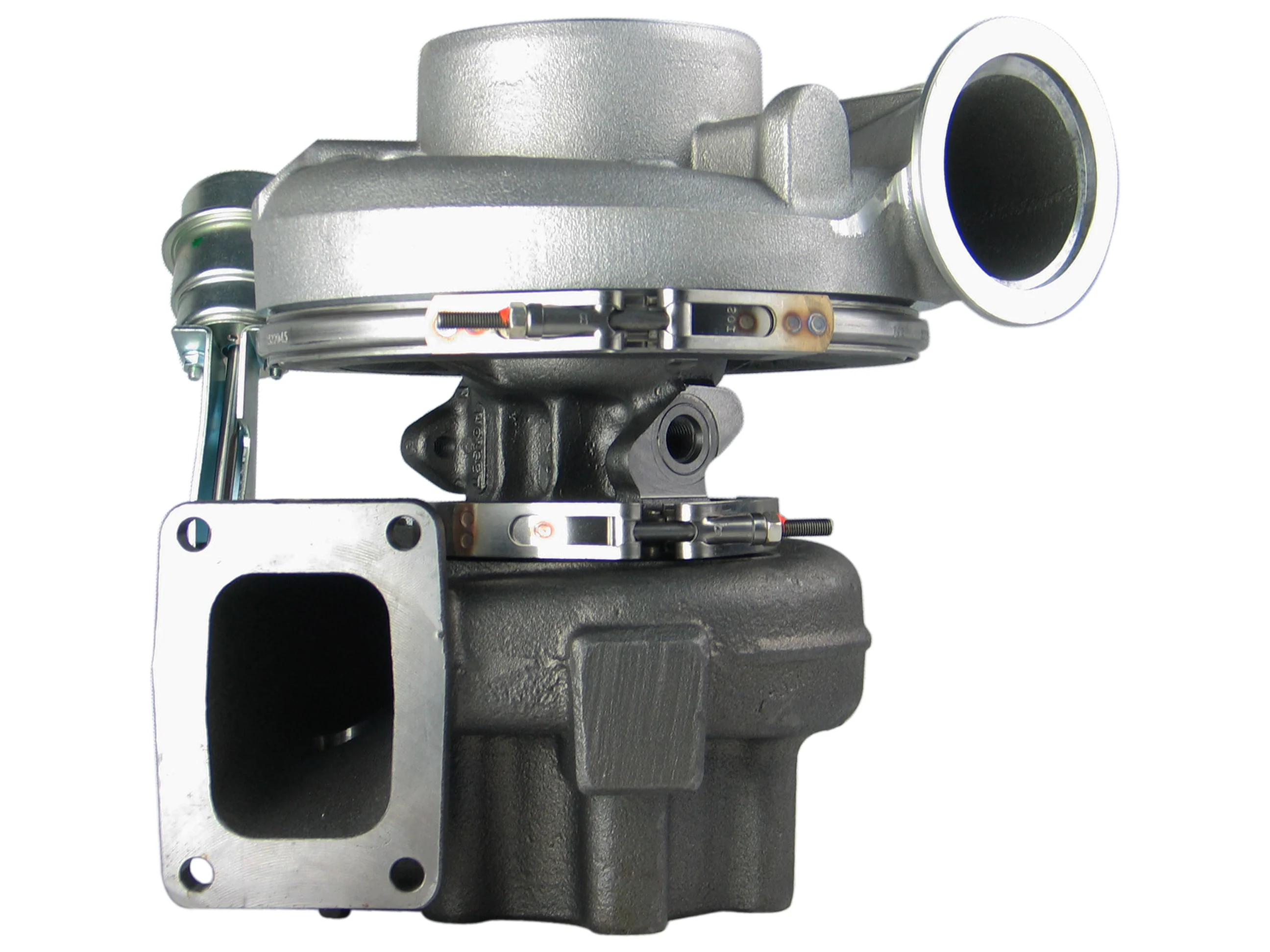

BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 2836723
Interchangeable Number: 2836725H, 2836760, 2836762H, 3593345, 3594488, 3595972, 3598762, 4024936, 4024937NX, 4024937RX, 4025272NX, 4025272RX, 4047148, 4047149, 4089298NX, 4089298RX, 4956082NX, 4956082RX
OEM Number: 2836725, 2836726, 2836727, 2836762, 3594490, 3594491, 3594492, 3595973, 3598763, 3598764, 3598765, 4024937, 4025272, 4089298, 4956081, 4956082
Turbo Model: HX60W
Manufacturer: Holset
Year: 2008-07
Engine: Apex, ISX, QSX, QSX15
Engine Manufacturer: Cummins
Displacement: 15.0L, 15000 ccm
Fuel: Diesel
Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90/137/270°
Actuator: 3593848
Back Plate: 3531917 (3531917H)(1250403300)
Bearing Housing: 3536802 (353680200, 3536802H, 4038724)(Oil Cooled)
CHRA: 3594608/3594608H (4027259, 4027259H)
Compressor Wheel: 3534650 (353465000)(Ind. 80 mm, Exd. 113 mm, Trim 9.25, 8+8 Blades, Super Back)
Gasket (Oil Outlet): 3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025)
Gasket Kit: 3545577 (468189-0000)(215082, 2090505397)
Heat Shield: 3519155 (3758538, 18373, 351915500)
Repair Kit: 4027881/4027881H (3545345, 3580568, 4027880)(1153060750)
Turbine Wheel: 3533025 (3533025H, 353302500)(Ind. 97 mm, Exd. 86.3 mm, Trim 16.9, 12 Blades)(1153060435)
Actuator Kit (Pneumatic): 4032304H
Compressor Housing: 4042570H
Turbine Housing: 4047157H
Turbocharger Kit (Wastegate): 2836725H
Application:
2008-07 Industrial with Cummins ISX, QSX, QSX15 Engine
J. I. Case Industrial with Cummins Apex Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 2836723
Interchangeable Number: 2836725H, 2836760, 2836762H, 3593345, 3594488, 3595972, 3598762, 4024936, 4024937NX, 4024937RX, 4025272NX, 4025272RX, 4047148, 4047149, 4089298NX, 4089298RX, 4956082NX, 4956082RX
OEM Number: 2836725, 2836726, 2836727, 2836762, 3594490, 3594491, 3594492, 3595973, 3598763, 3598764, 3598765, 4024937, 4025272, 4089298, 4956081, 4956082
Turbo Model: HX60W
Manufacturer: Holset
Year: 2008-07
Engine: Apex, ISX, QSX, QSX15
Engine Manufacturer: Cummins
Displacement: 15.0L, 15000 ccm
Fuel: Diesel
Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90/137/270°
Actuator: 3593848
Back Plate: 3531917 (3531917H)(1250403300)
Bearing Housing: 3536802 (353680200, 3536802H, 4038724)(Oil Cooled)
CHRA: 3594608/3594608H (4027259, 4027259H)
Compressor Wheel: 3534650 (353465000)(Ind. 80 mm, Exd. 113 mm, Trim 9.25, 8+8 Blades, Super Back)
Gasket (Oil Outlet): 3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025)
Gasket Kit: 3545577 (468189-0000)(215082, 2090505397)
Heat Shield: 3519155 (3758538, 18373, 351915500)
Repair Kit: 4027881/4027881H (3545345, 3580568, 4027880)(1153060750)
Turbine Wheel: 3533025 (3533025H, 353302500)(Ind. 97 mm, Exd. 86.3 mm, Trim 16.9, 12 Blades)(1153060435)
Actuator Kit (Pneumatic): 4032304H
Compressor Housing: 4042570H
Turbine Housing: 4047157H
Turbocharger Kit (Wastegate): 2836725H
Application:
2008-07 Industrial with Cummins ISX, QSX, QSX15 Engine
J. I. Case Industrial with Cummins Apex Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$2,849.00
NEW Holset HX60W Turbo J. I. Case Industrial Cummins ISX QSX QSX15 15.0L 2836723—
$2,849.00
