NEW Holset H2D Turbo Marine Daewoo D1146M Truck Fire Pump Cummins 6CTA 3529762

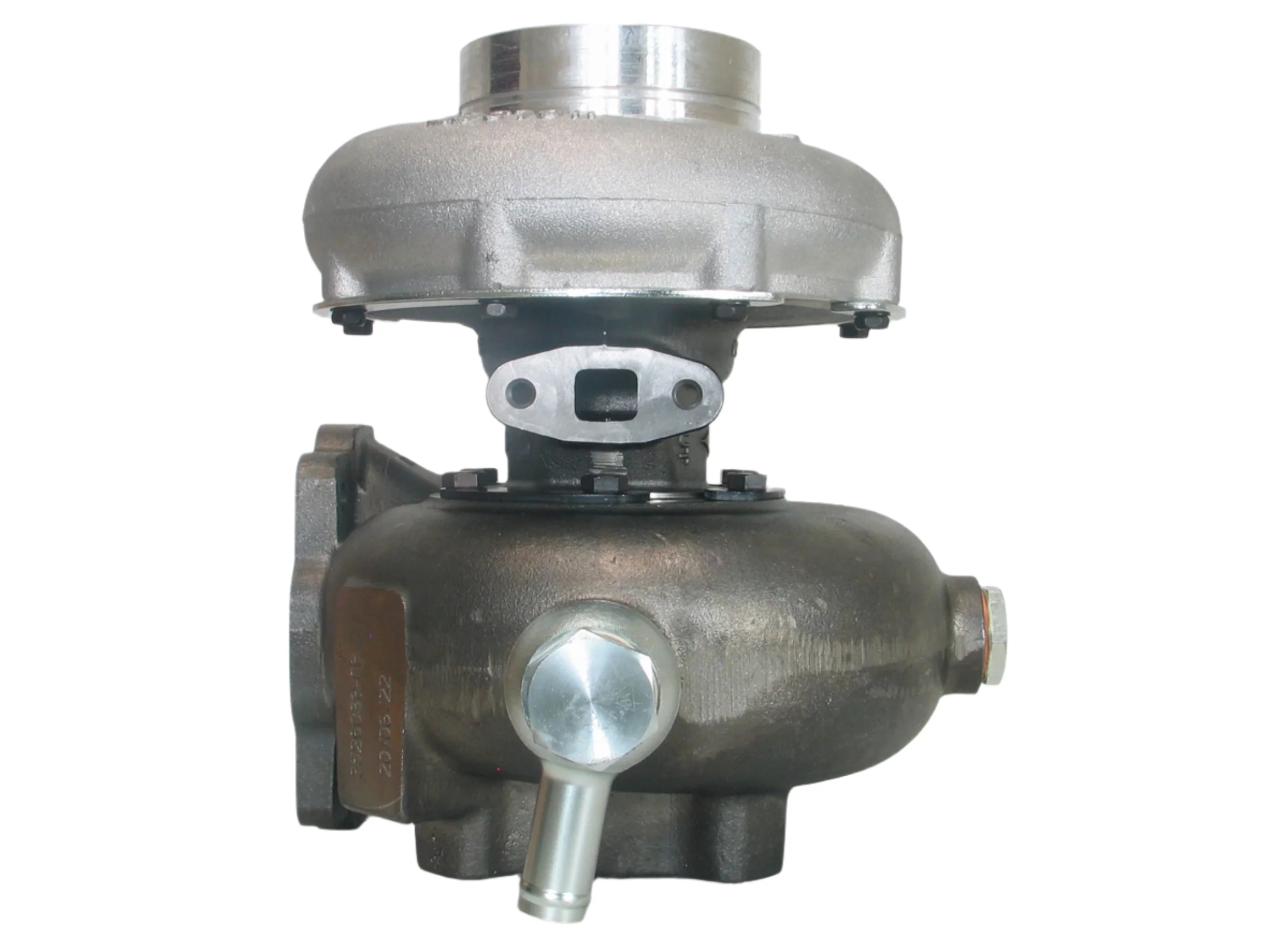

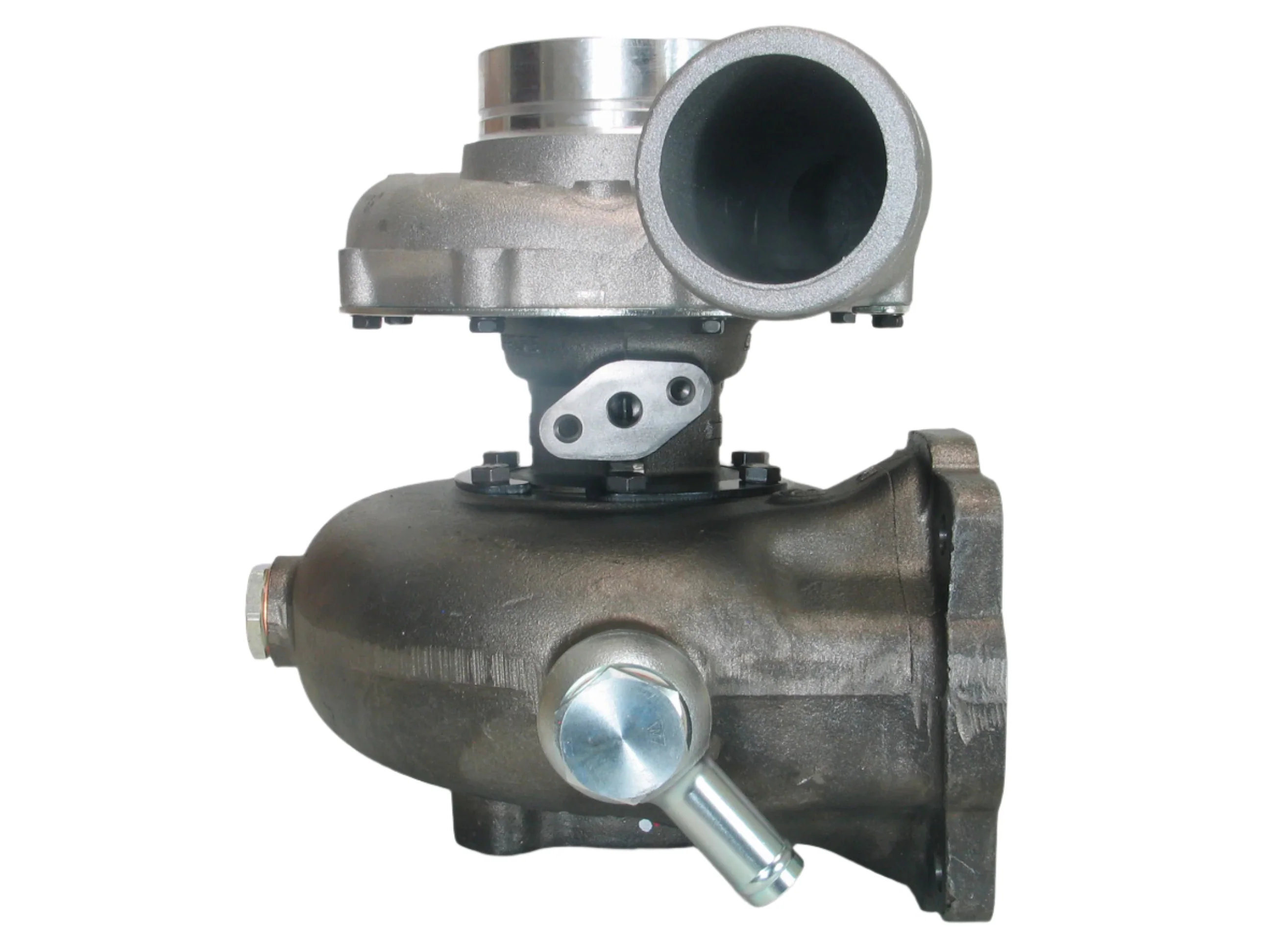

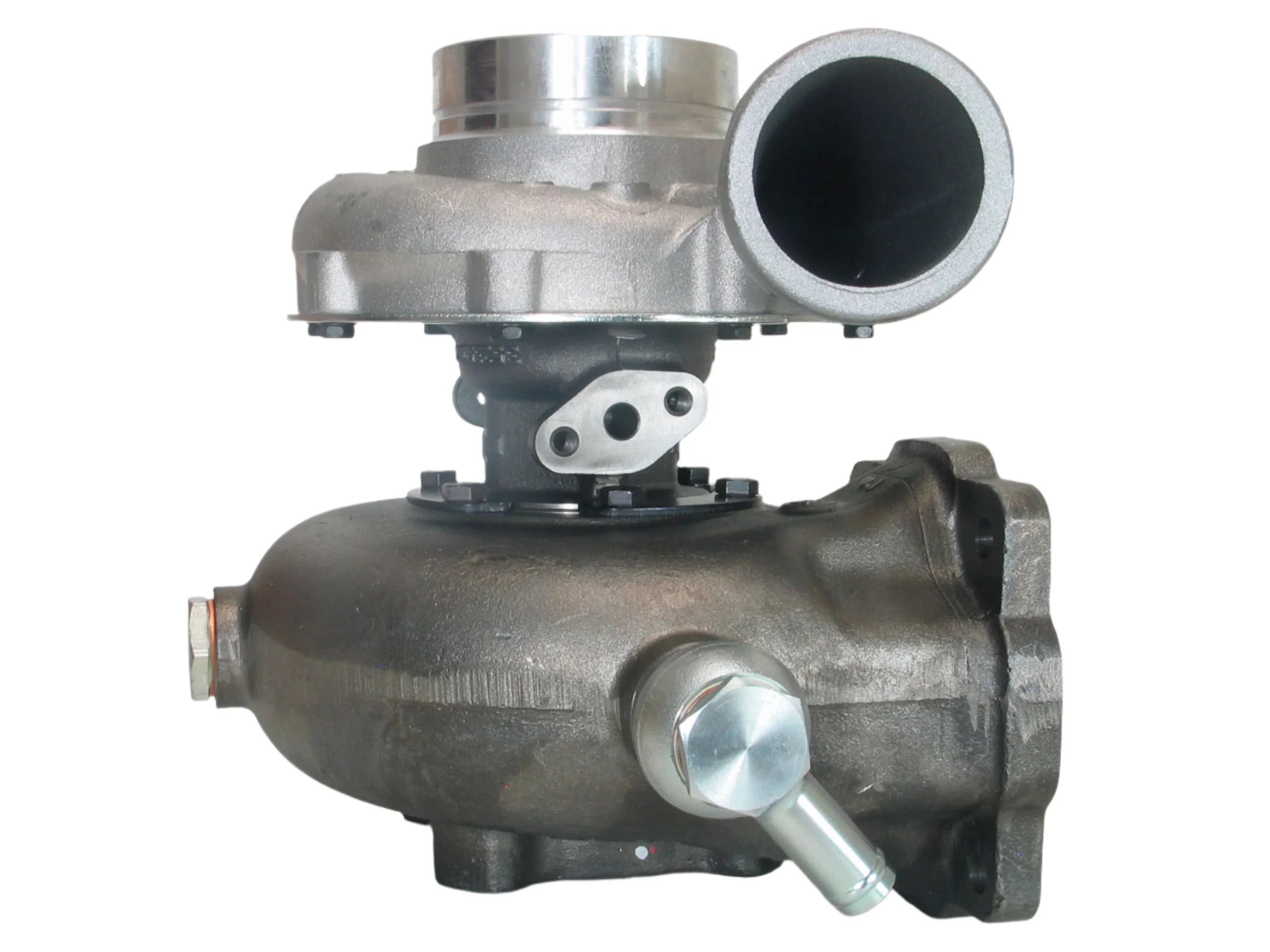

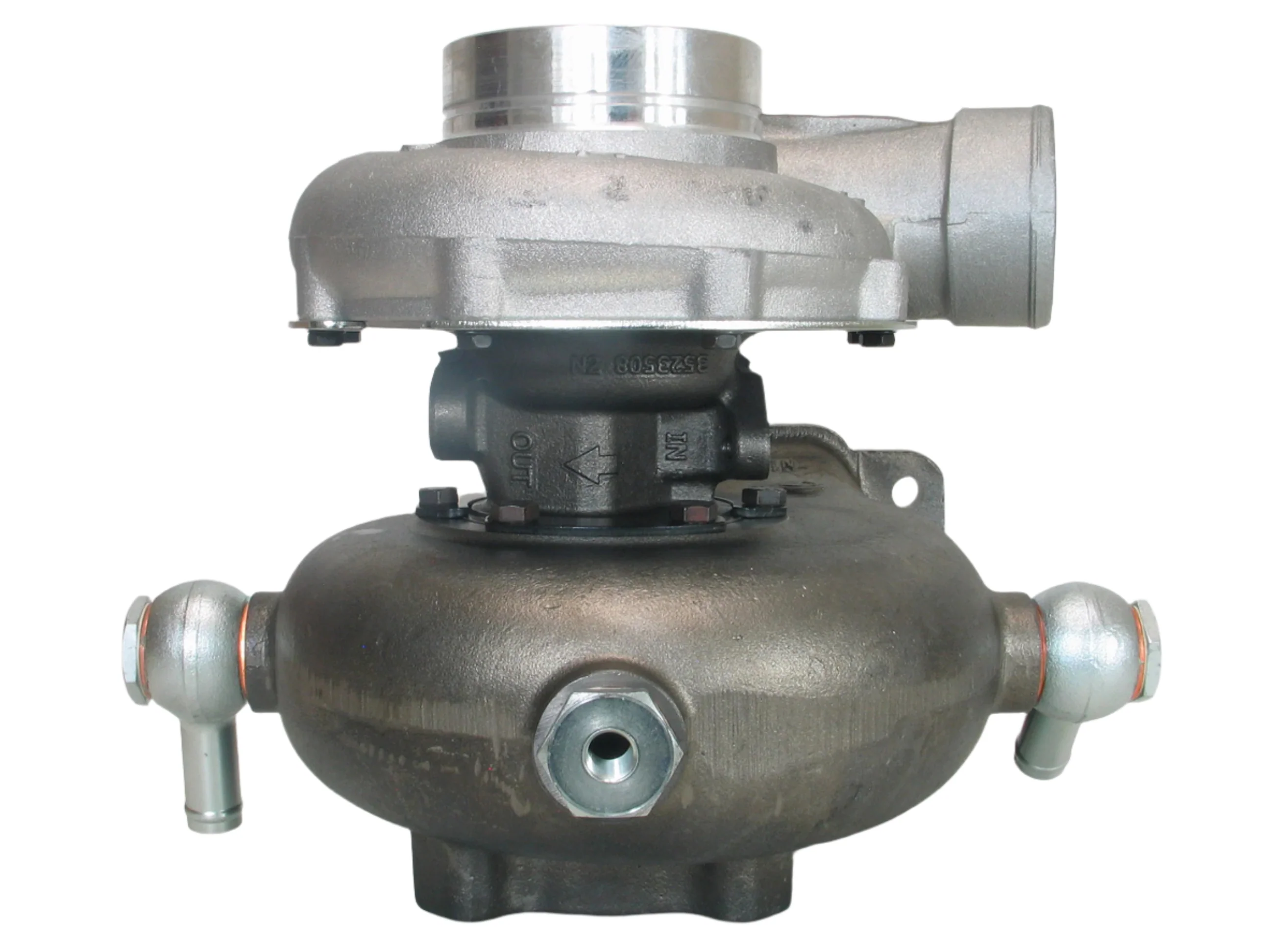

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3529761
Interchangeable Number: 3529762H, 3537939, 3537940H, 3590060, 3802359RX, 3802808, 3802808RX, 4033631H, 5457885
OEM Number: 3529762, 3537940, 3590061, 3802359, 4033631, 65.09100-7188, 65091007188
Turbo Model: H2D, H2D-9351N/HA20S3, H2DM
Manufacturer: Holset

Year: 1990-97
Engine: 6CTA, D1146M
Engine Manufacturer: Cummins, Daewoo
Fuel: Diesel

Angle α (Compressor Housing): 258°
Angle β (Turbine Housing): 270°
Back Plate: 62564 (3762564, 167543)(1253300300, 1800016038)
Bearing Housing: 3525199 (Oil Cooled)(1900011204)
CHRA: 3545694 (3545694H)
Compressor Cover: 3525003 (352500300)
Compressor Wheel: 3524808 (352480800)(Ind. 63.42 mm, Exd. 93.92 mm, Trim 12.54, 8+8 Blades, Super Back)(1200016361)
Gasket (Turbine Inlet): 3921926 (3921926H, 2485073, 3905033, 3916300, GKT6203)
Gasket (Turbine Outlet): 3921961 (GKT6204)
Gasket Kit: 3545769/3545653 (1152302750)
Heat Shield: 3529846 (3533038)(1153052340, 2030016003)
Installation Kit: 4032426 (4032412, 3921926H, 2485073, 3905033, 3916300, GKT6203)
Repair Kit: 3545653 (1152302750, 5000020017)
Rotor Assembly: 3545726
Turbine Housing (Water Cooled): 3526038 (3537938, 3537938H, 3538622)
Turbine Wheel: 3522232 (3528251)(Ind. 85.95 mm, Exd. 72 mm, Trim 12.37, 11 Blades)(1152302435, 1100016086)

Application:
1990-06 Marine, Truck, Fire Pump with Cummins 6CTA Engine
1997-06 Marine with Daewoo D1146M Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
