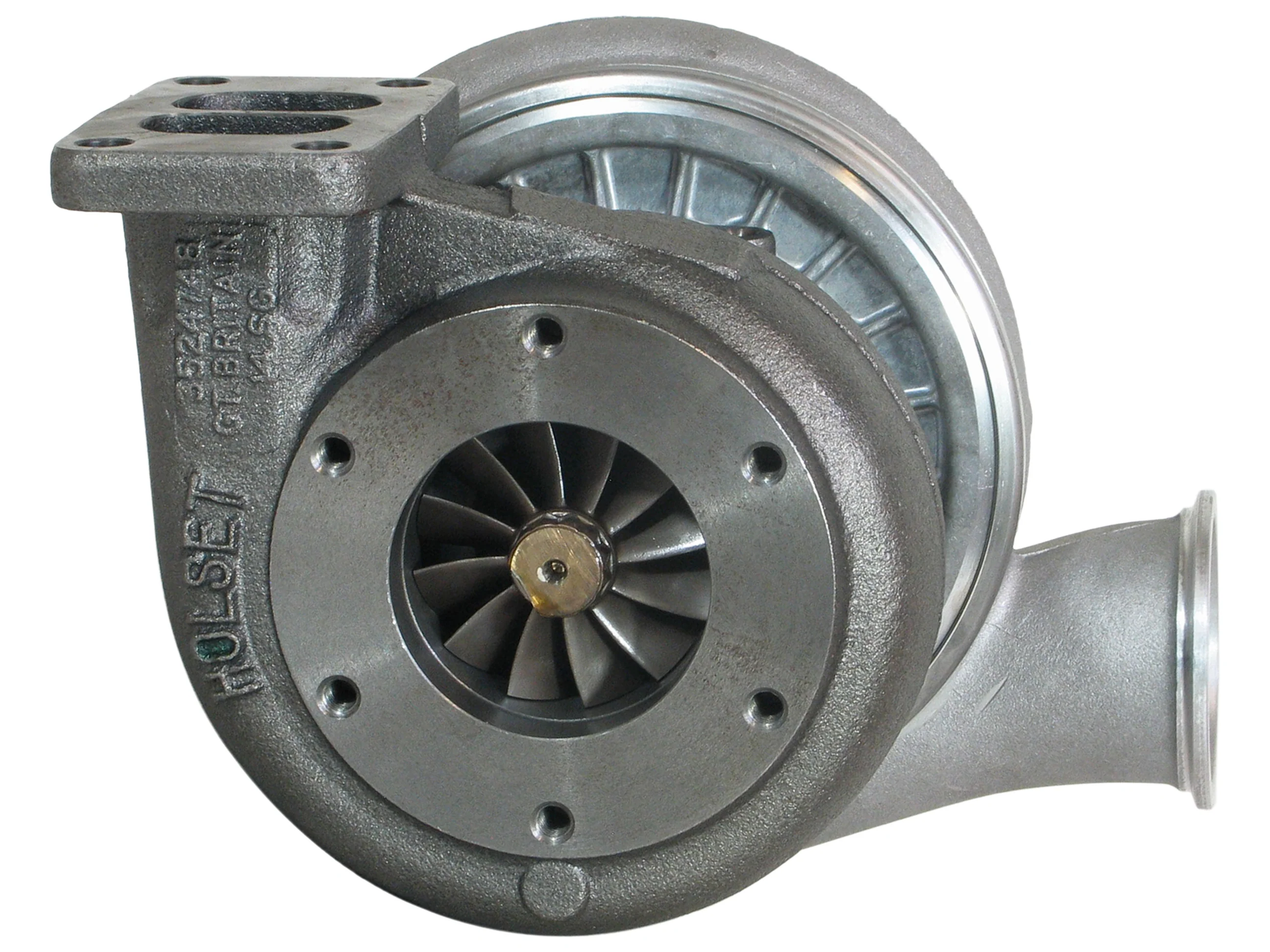

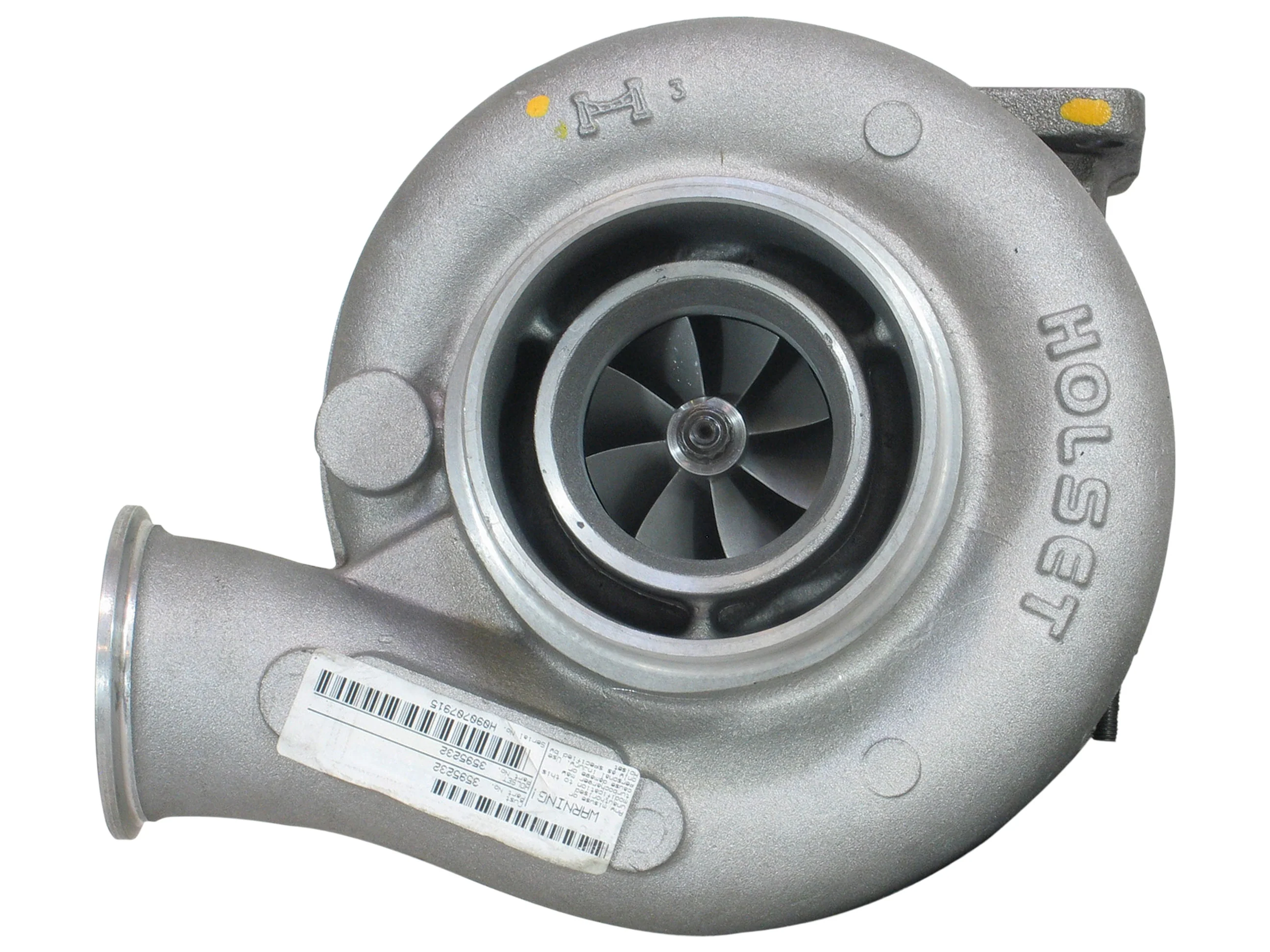

NEW OEM Holset H1E Turbo Volvo Truck TD71 TD73EB TD73ES Diesel Engine 3595232

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3595232
Interchangeable Number: 3529680, 3533595, 3533595-D, 3533595D, 4033341, 4033341H, 4033900, 4033900H
OEM Number: 20411831, 20411838, 3529346, 3534665, 3534666, 3595233 3595234 477452, 477580, 477581, 477834, 477865, 8112277, 8113920
Turbo Model: H1E-8264BV/H14JA8, H1E
Manufacturer: Holset

Year: 2000-05
Engine: B7R 4X2 Euro 2, TD71, TD73EB, TD73ES
Engine Manufacturer: Volvo
Fuel: Diesel
Power: 230 HP

Angle α (Compressor Housing): 2.5/115°
Angle β (Turbine Housing): 45/360°
Back Plate: 3522801
Bearing Housing: 3502500/3520574 (1152301450)
CHRA: 3545711 (3545731, 3575683, 3575683H)
Clamp Plate,(Turbine): 2839879H
Compressor Housing: 3529511H
Compressor Wheel: 3599646 (3599646H) (Ind. 54 mm, Exd. 83 mm, 8+8 Blades, Super Back)(1152301403)
Diffuser: 3522801H
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 147837 (210023)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 3545652/4027309 (1152301750)
Gasket (Turbine Outlet): 210226 (Stainless Steel)
Gasket Kit: 3545575H
Repair Kit (Major): 4027309H
Split Ring Seal (Compressor): 3758848H
Turbine Housing: 3532295H
Turbine Wheel: 3522879/3535359 (Ind. 76 mm, Exd. 64 mm, Trim 71, 6+6 Blades, LH)(1152301436)
Turbocharger Kit: 4033341H

Application:
2000-05 Volvo Truck with TD73ES Engine
Volvo Truck with TD71, TD73EB

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
