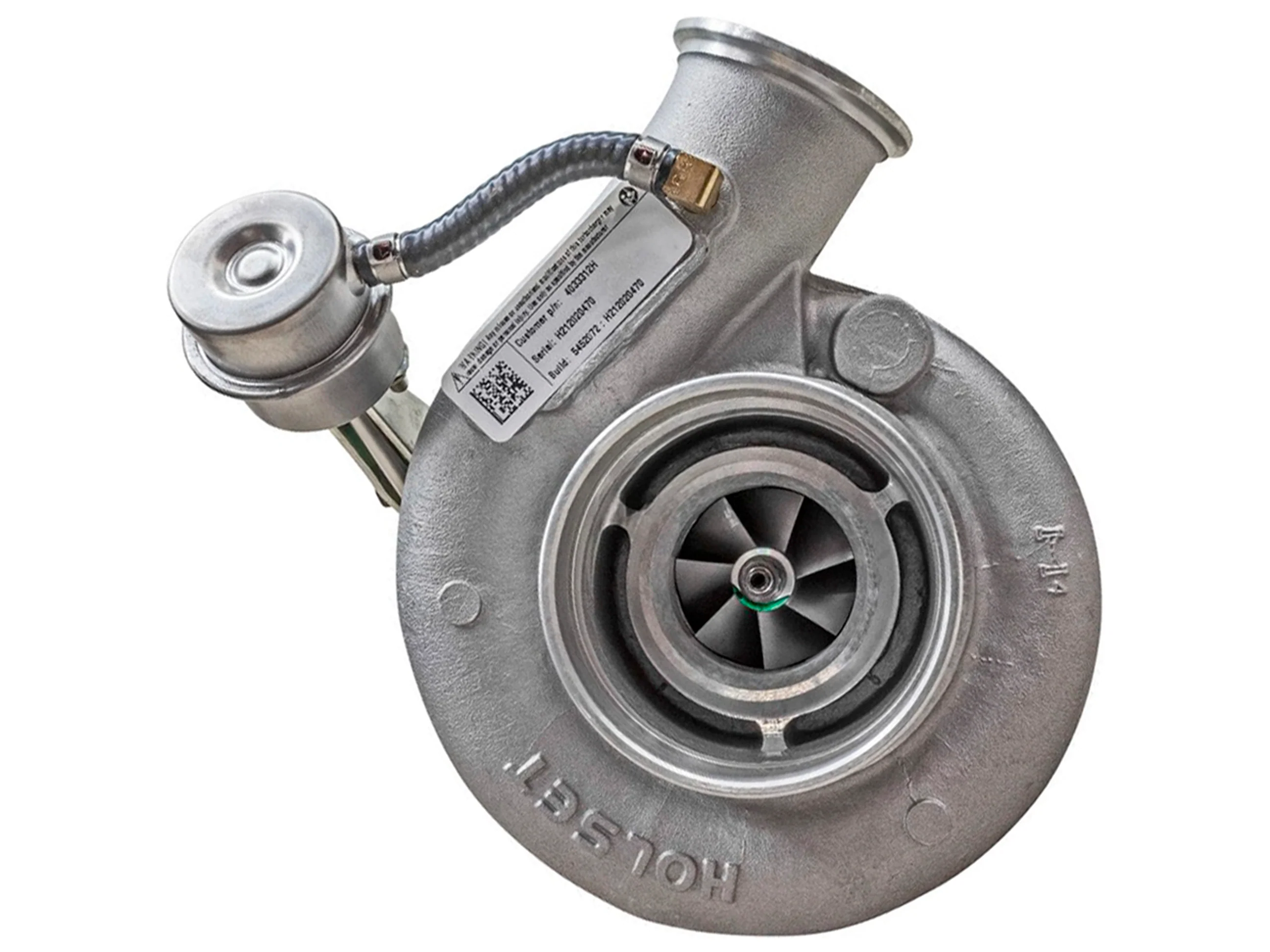

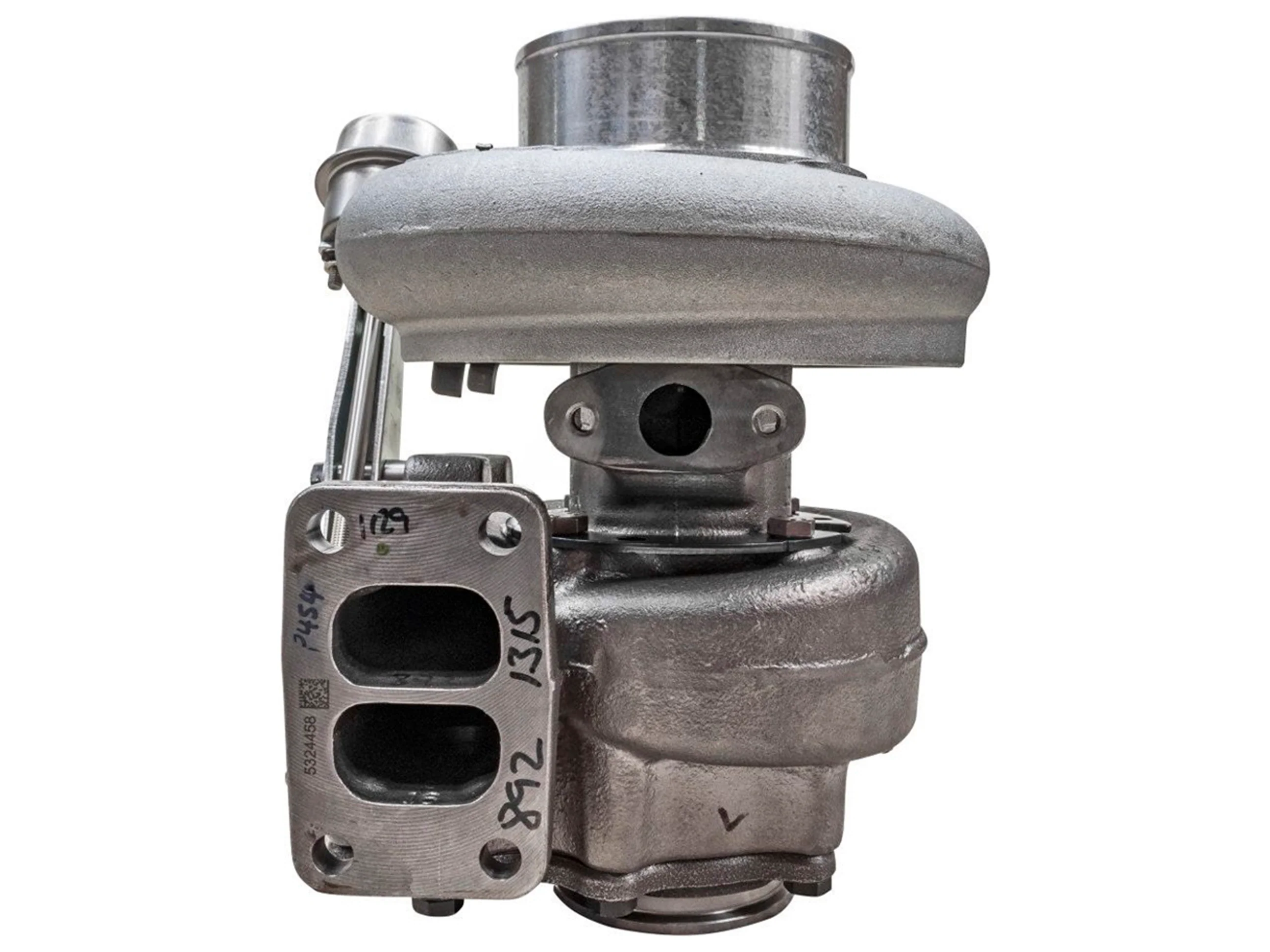

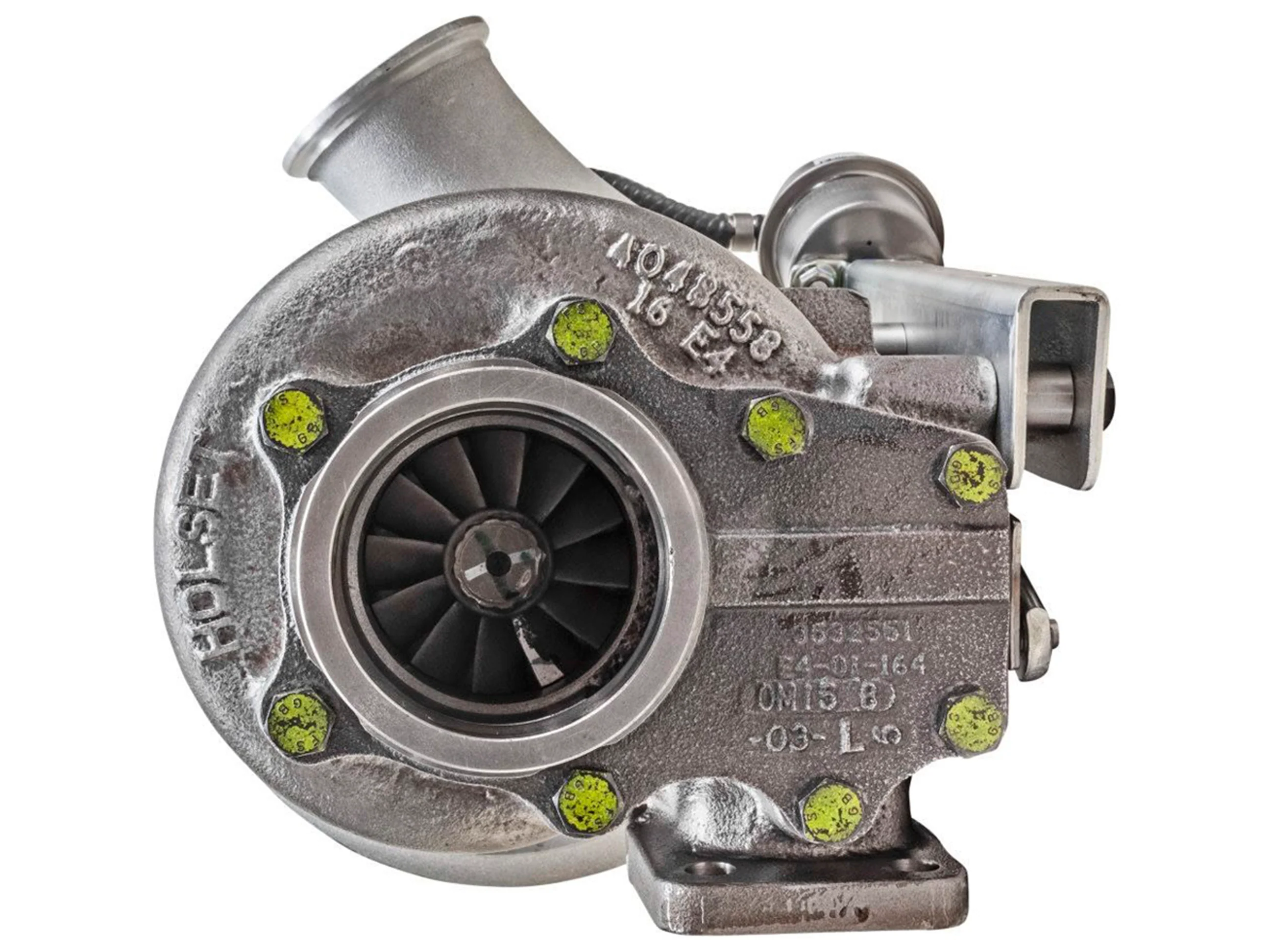

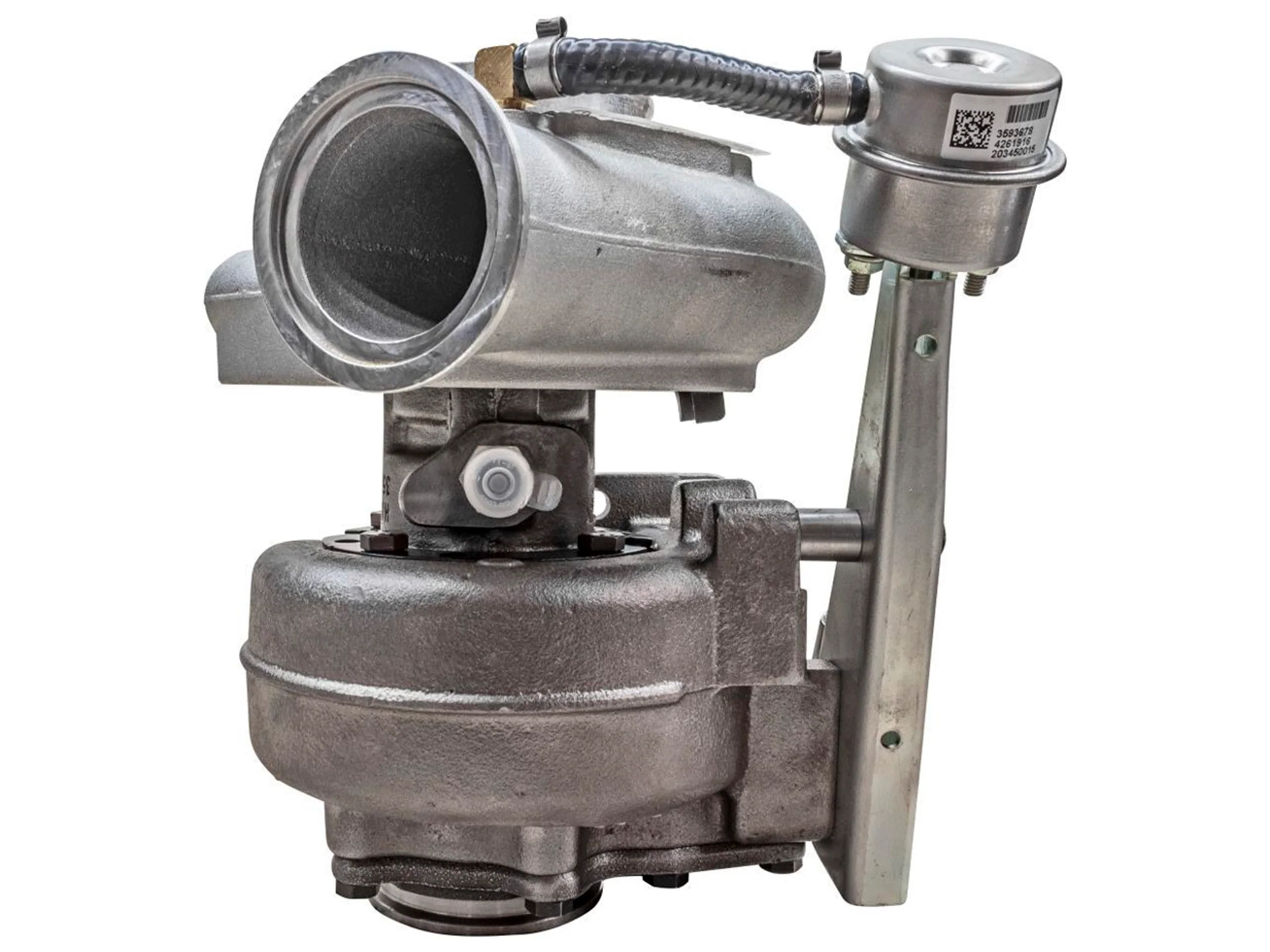

NEW Holset HX35W Turbo CDC Dozer Loader 2 Valve TAA 6 CYL Engine 4033312 3599317

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

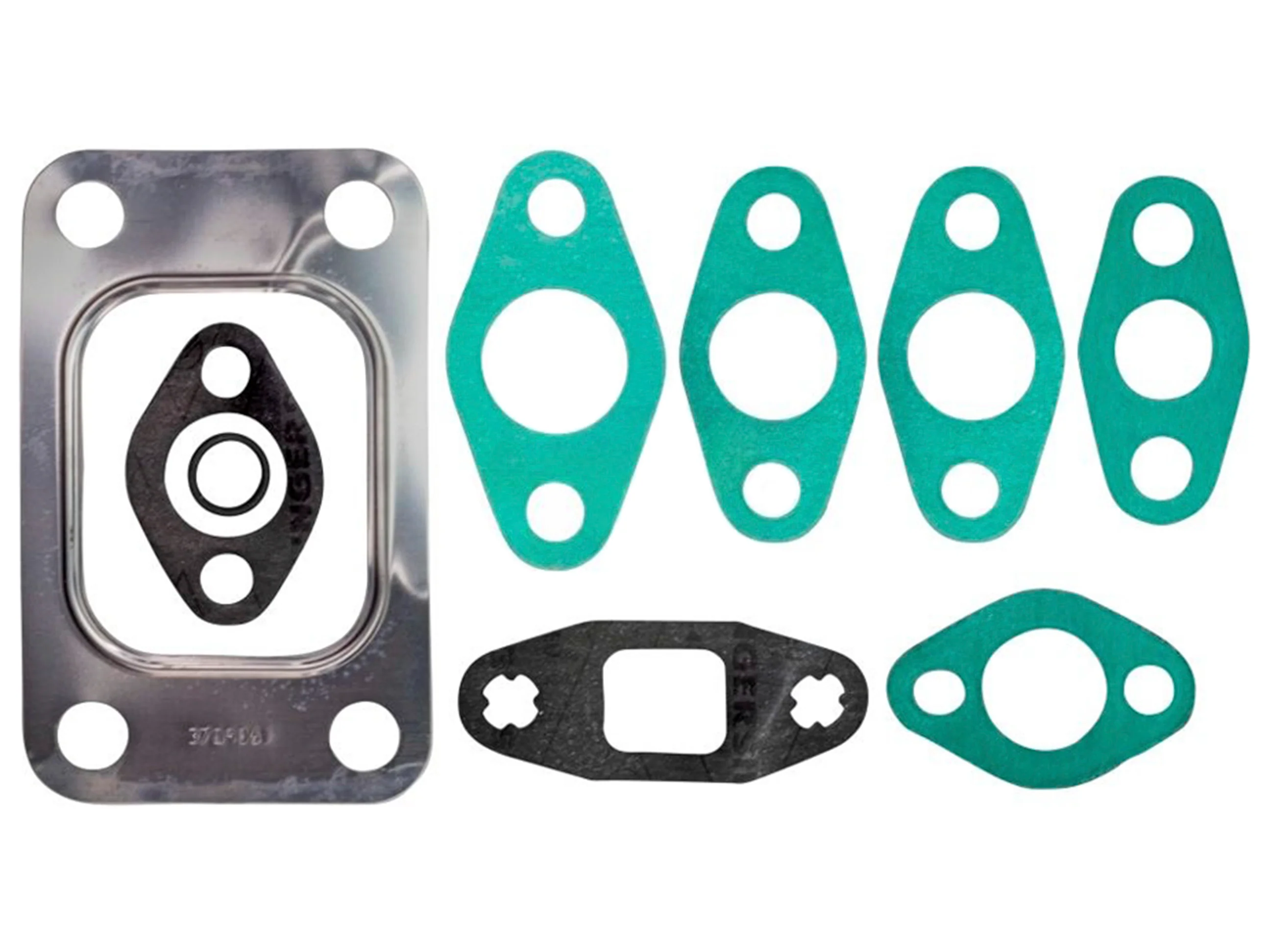

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3599317
Interchangeable Number: 2852375, 2852375R, 3599318, 4033312, 4033312H, 4042198, 504057402, 5452072, 5452072RX
OEM Number: 2852375, 504057402, 5452072, 5452072RX2
Turbo Model: HX35W, HX35W-E7735AG/E16XB11
Brand: Holset

Displacement: 4, 6 Cylinders
Fuel: Diesel
Power: 110 kW
Trim: TAA, TC

Angle α (Compressor Housing): 305°
Angle β (Turbine Housing): 360°
Bearing Housing: 4032032 (3599514, 4027443, 4032218)(84.50 mm)(Oil Cooled)(1900011016F)
Turbine Wheel: 3519336 (3595832)(351933600)(Ind. 70 mm, Exd. 60 mm, Trim 10.82, 12 Blades)(1152301435, 1100016442)
Compressor Wheel: 3599651 (3532312, 359965100)(Ind. 50 mm, Exd. 78 mm, Trim 9.77, 7+7 Blades, Super Back)(1200016661)
Back Plate: 3596448 (1800016009)
CHRA: 4027864 (4027864H)
Heat Shield: 3519302 (351930200)(1152301340)
Repair Kit: 4032129 (4027448)(1153035751, 2030016031)
Gasket Kit: 3545575 (1900100057, 5000020021)
Gasket Cover Plate: 4044912 (5 Bolt Gasket)(Inox Steel)

Application:
2005-12 CDC Dozer with 2 Valve TAA 6 Cylinders Engine
2002-12 Iveco Wheeled Loader with 2 Valve TC 4 Cylinders Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
