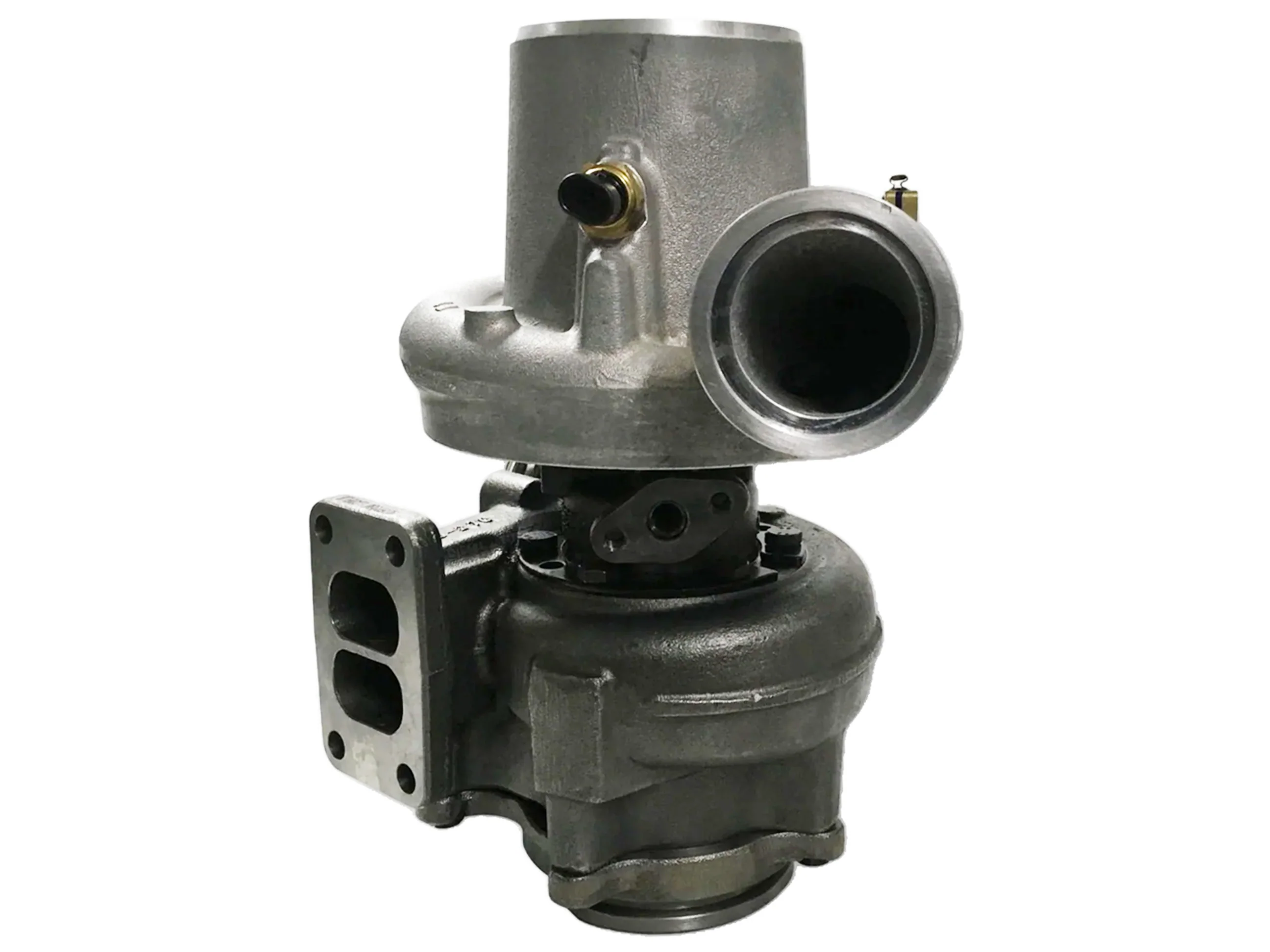

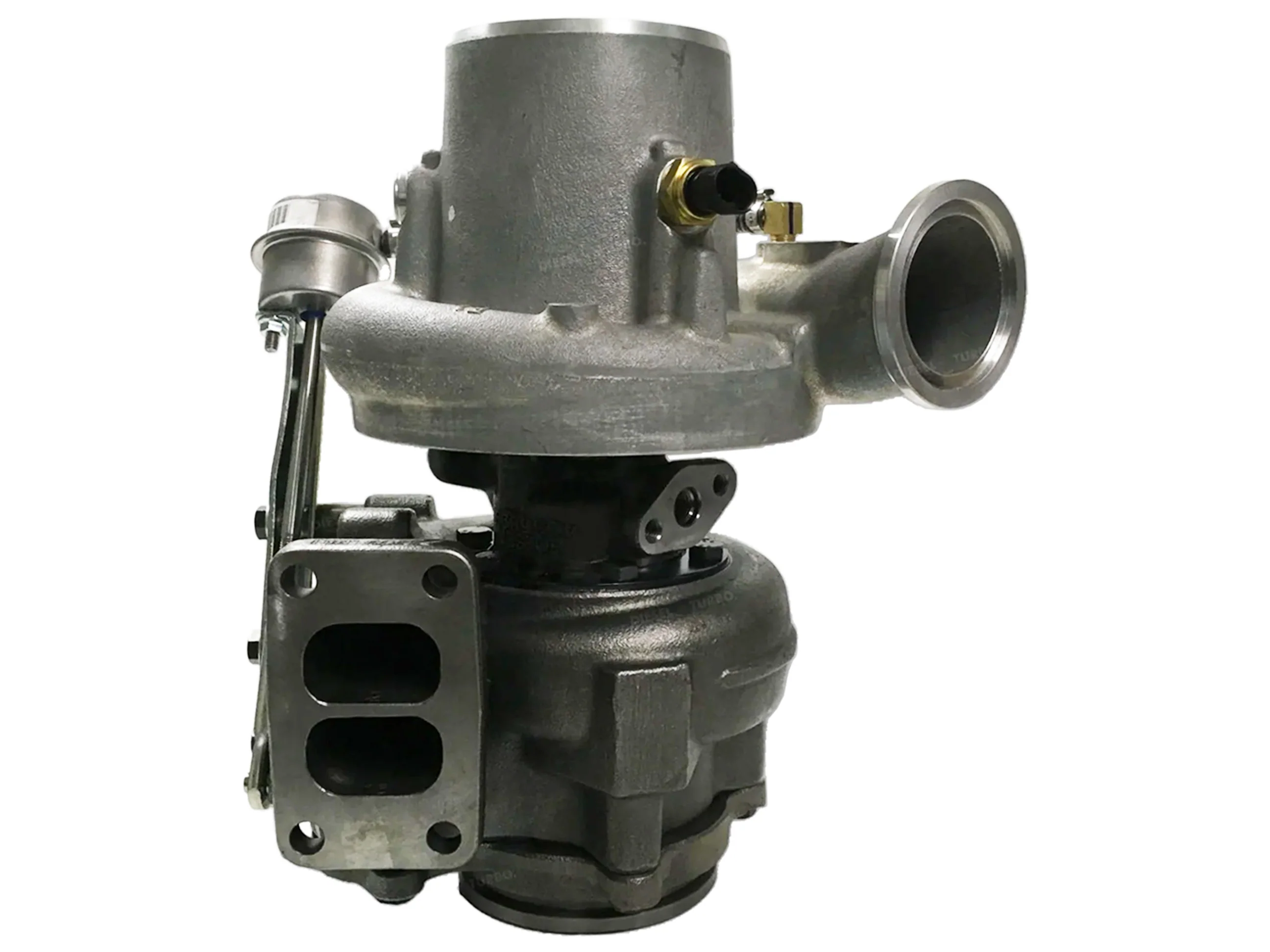

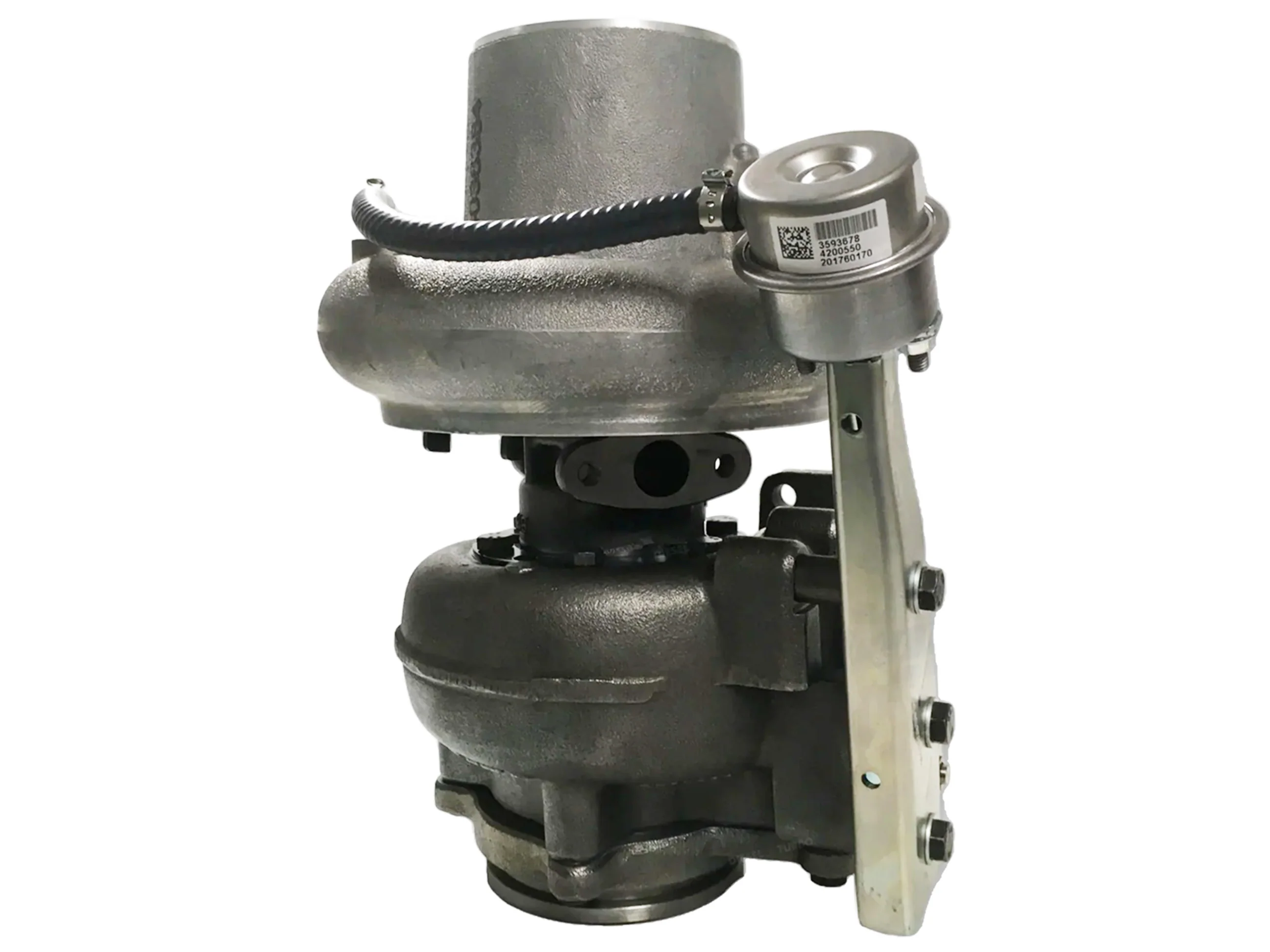

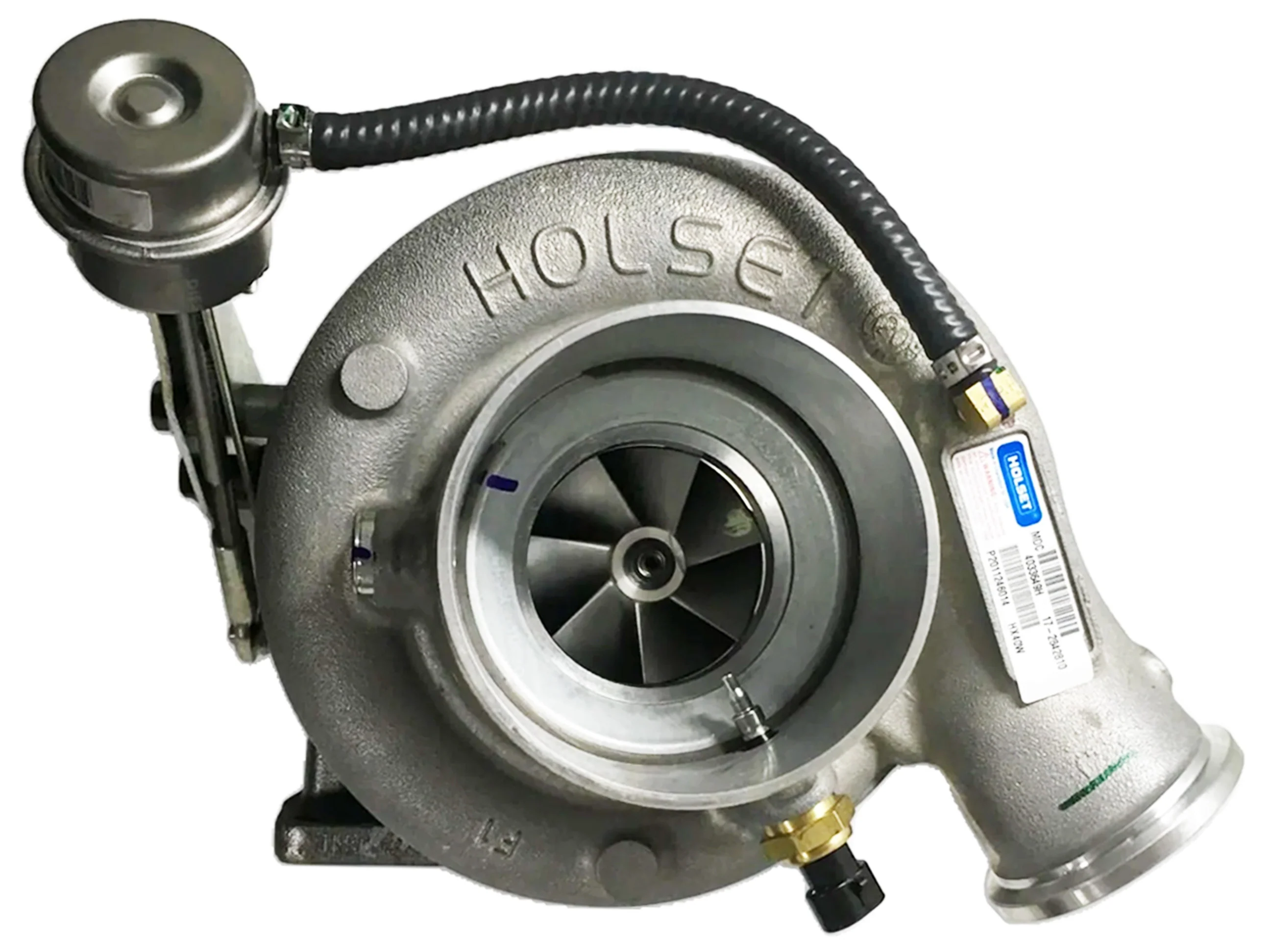

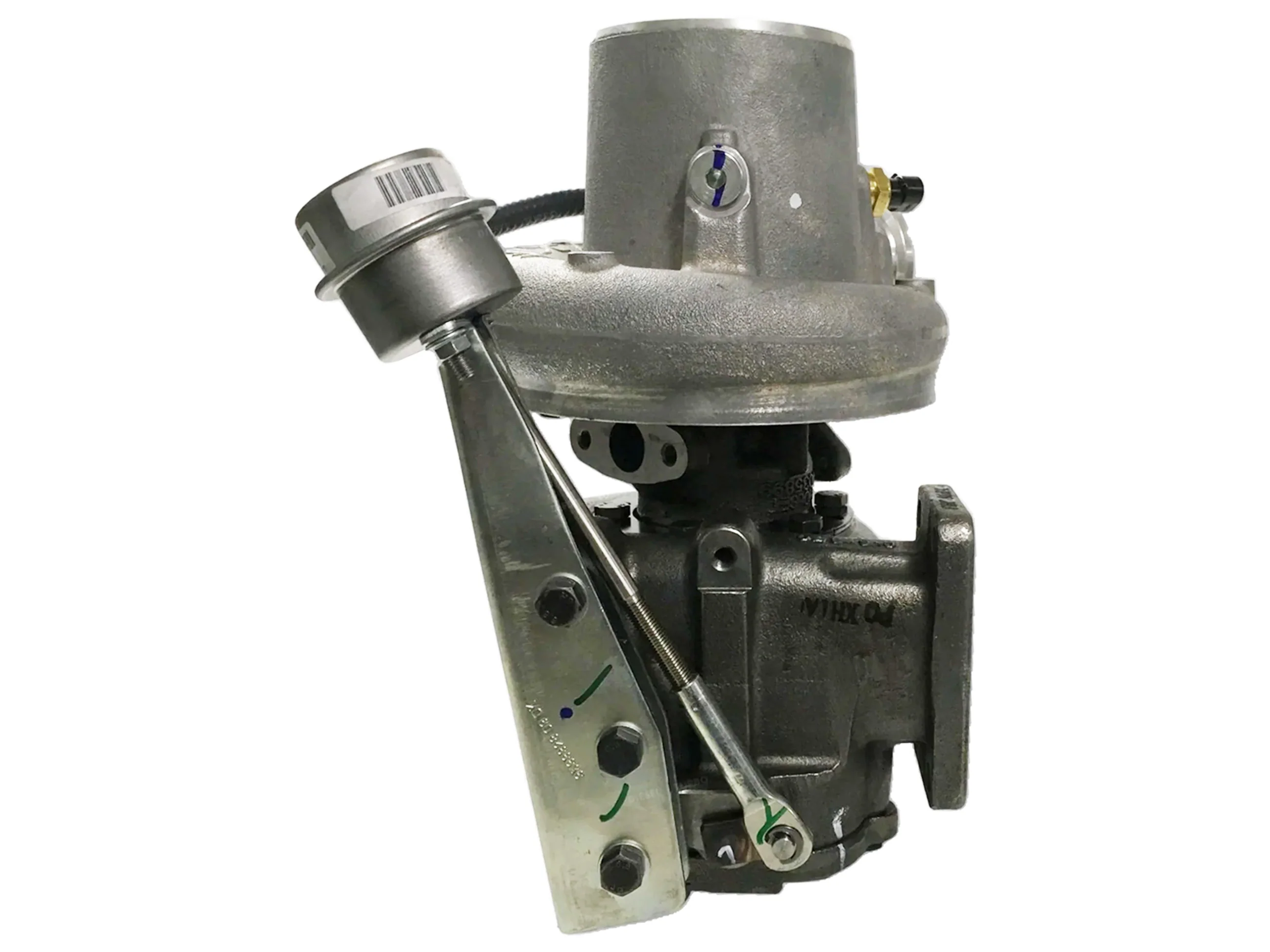

NEW OEM Holset HX40W Turbo Truck Class 3-8 Cummins ISC 8.3L 4033649 2842810
BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 2842810
Interchangeable Number: 2881887, 288188700, 2881887RX, 4033649H, 4033649HX, 4039915, 4046099, 4089930NX, 4089930RX
OEM Number: 4033649, 4039916, 4039917, 4089930
Turbo Model: HX40W
Manufacturer: Holset
Year: 2004-09
Engine: ISC, ISC CM850
Engine Manufacturer: Cummins
Displacement: 8.3L, 8300 ccm
Fuel: Diesel
Angle α (Compressor Housing): 252/275°
Angle β (Turbine Housing): 133°
Actuator Kit (Pneumatic): 4031327H
Actuator: 3593678 (3598471)
Bearing Housing: 4038197 (4038197H, 3537112, 3593878)(Oil Cooled)
Bracket Kit: 4027137H
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Cover: 4035405
Compressor Housing: 4036384H
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (3545575H, 1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 3575169 (3575169H, 4027448, 4027448H)(1153035750, 1153035751)(Minor)
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Seal Plate: 3596448 (3530923)
Split Ring Seal (Compressor): 3758848H
Turbine Housing (With Wastegate): 3539085
Turbine Housing: 4031328 (3591164H)
Turbine Wheel: 3596226 (3596226H, 4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4033649H/4033649HX
Application:
2004-09 Truck (Class 3-8) with Cummins ISC Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 2842810
Interchangeable Number: 2881887, 288188700, 2881887RX, 4033649H, 4033649HX, 4039915, 4046099, 4089930NX, 4089930RX
OEM Number: 4033649, 4039916, 4039917, 4089930
Turbo Model: HX40W
Manufacturer: Holset
Year: 2004-09
Engine: ISC, ISC CM850
Engine Manufacturer: Cummins
Displacement: 8.3L, 8300 ccm
Fuel: Diesel
Angle α (Compressor Housing): 252/275°
Angle β (Turbine Housing): 133°
Actuator Kit (Pneumatic): 4031327H
Actuator: 3593678 (3598471)
Bearing Housing: 4038197 (4038197H, 3537112, 3593878)(Oil Cooled)
Bracket Kit: 4027137H
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Cover: 4035405
Compressor Housing: 4036384H
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (3545575H, 1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 3575169 (3575169H, 4027448, 4027448H)(1153035750, 1153035751)(Minor)
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Seal Plate: 3596448 (3530923)
Split Ring Seal (Compressor): 3758848H
Turbine Housing (With Wastegate): 3539085
Turbine Housing: 4031328 (3591164H)
Turbine Wheel: 3596226 (3596226H, 4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4033649H/4033649HX
Application:
2004-09 Truck (Class 3-8) with Cummins ISC Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$768.25
Original: $2,195.00
-65%NEW OEM Holset HX40W Turbo Truck Class 3-8 Cummins ISC 8.3L 4033649 2842810—
$2,195.00
$768.25Product Information
