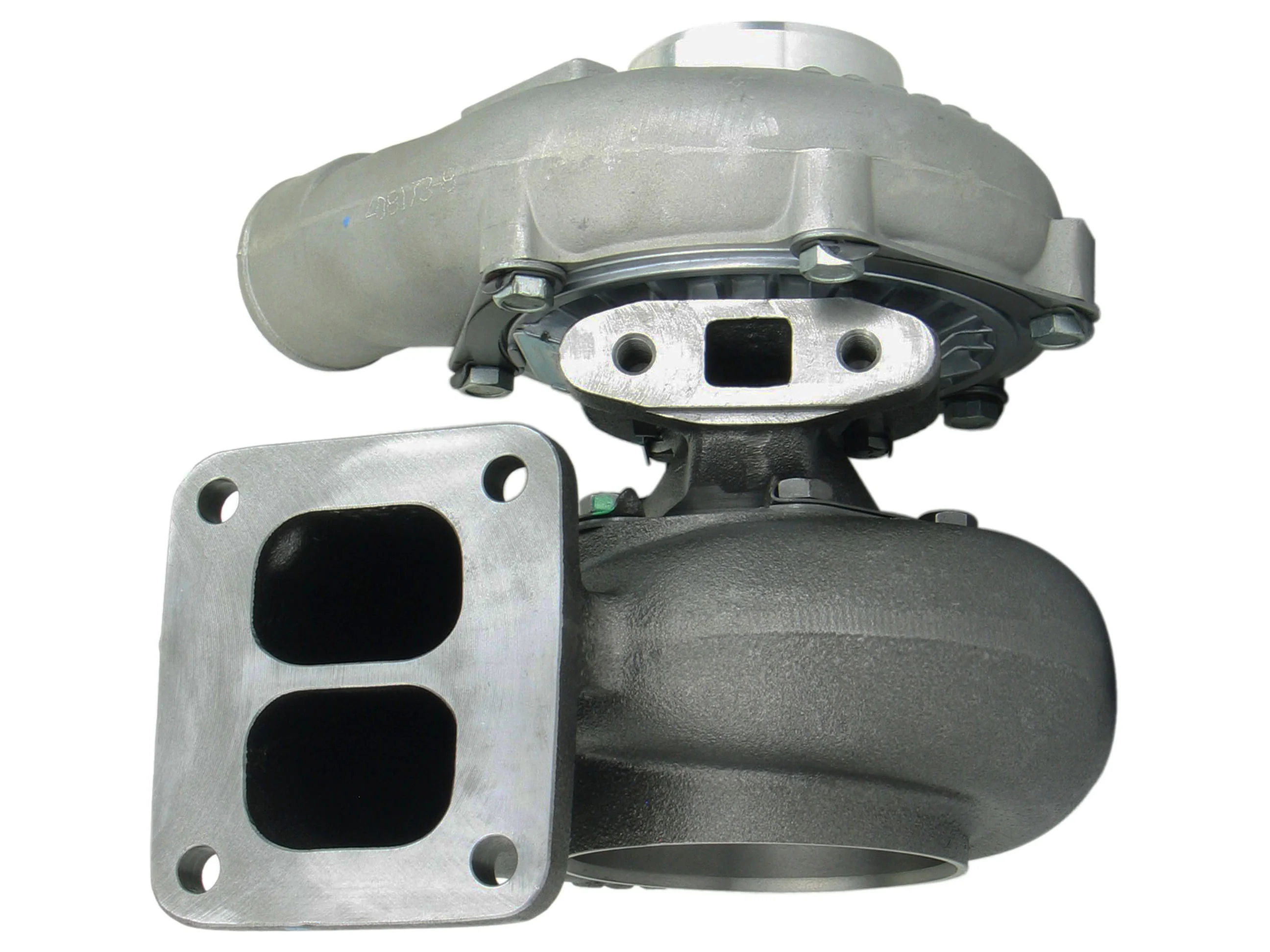

NEW OEM Garrett T04B91 Turbo Caterpillar 215D Excavator 3304 DIT 409410-5013

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 409410-5013
Interchangeable Number: 409410-0013, 409410-5013S, 409410-0011, 409410-5011, 409410-5011S
OEM Number: 7E-2601, 7E2601
Turbo Model: T04B91
Manufacturer: Garrett

Engine: 3304 DIT, 3304 DIT X151215D EX
Fuel: Diesel

Angle α (Compressor Housing): 150°
Angle β (Turbine Housing): 15°
Bearing: 410775-0001
Bolt (Back Plate): 444101-0202
Bolt (Compressor Side): 400975-0203
Bolt (Turbine Side): 400450-0001
CHRA: 408077-0102 (408077-5102S)
Clamp (Compressor Housing): 407875-0000
Clamp (Turbine Housing): 406908-0002
Compressor Wheel: 430027-0051
Conch Shell: 408173-0008
Gasket (Oil Inlet): 210023
Gasket (Oil Outlet): 210021
Gasket (Turbine Inlet): 407294-0001
Gasket Kit: 215079
Heat Shield: 409299-0001
O-Ring: 400424-0000
Piston Ring (Compressor Side): 403818-0009
Piston Ring (Turbine Side): 408049-0009
Plate: 408045-0051
Repair Kit: 468100-0000
Retaining Ring (Bearing): 400568-0000
Shaft Nut: 444205-0001
Thrust Bearing: 406907-0001
Thrust Collar: 444506-0001
Turbine Housing: 408667-0023
Turbine Wheel: 451309-0003

Application:
Caterpillar 215D Excavator, Earth Moving with 3304 DIT, 3304 DIT X151215D EX Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
