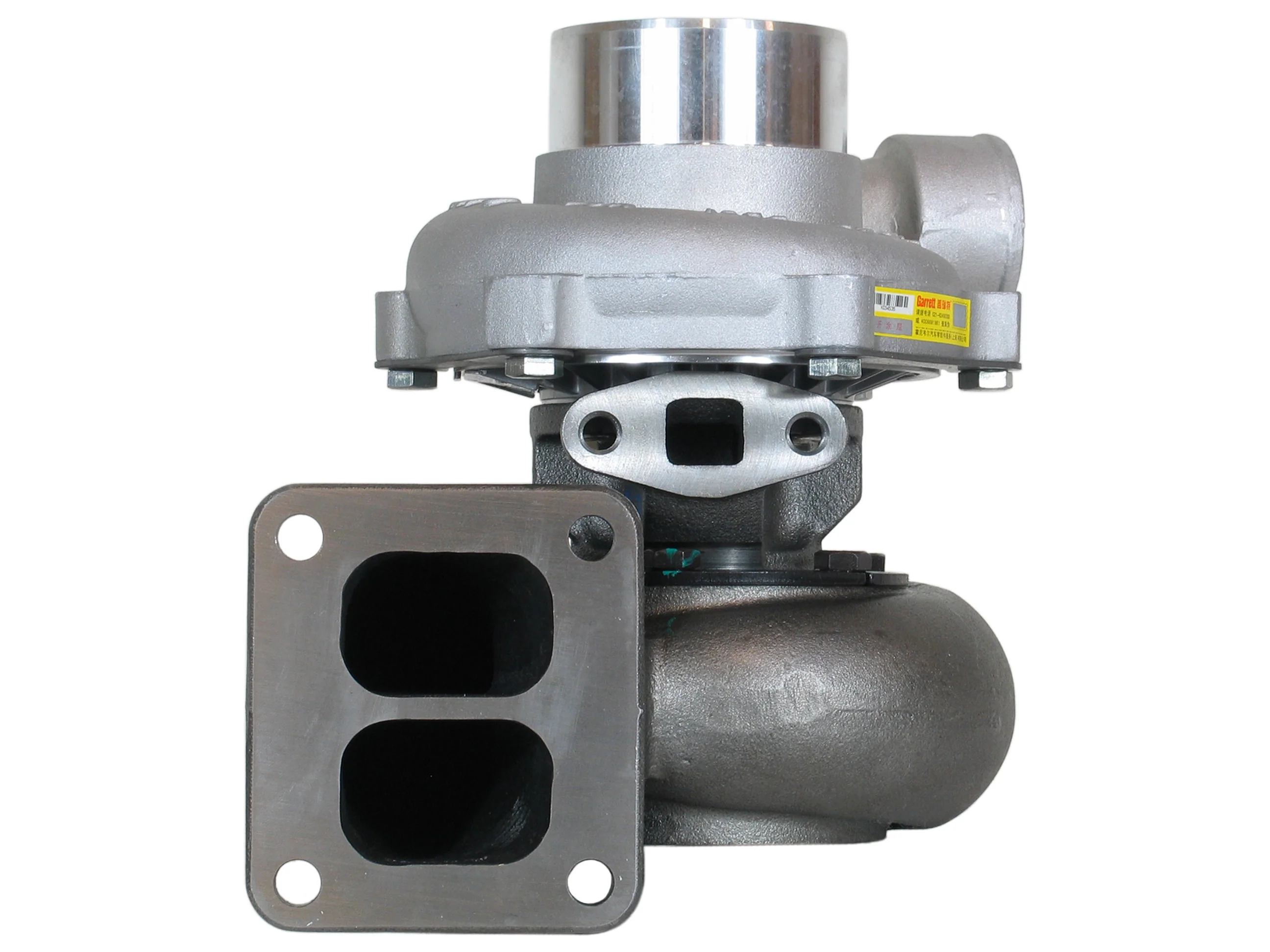

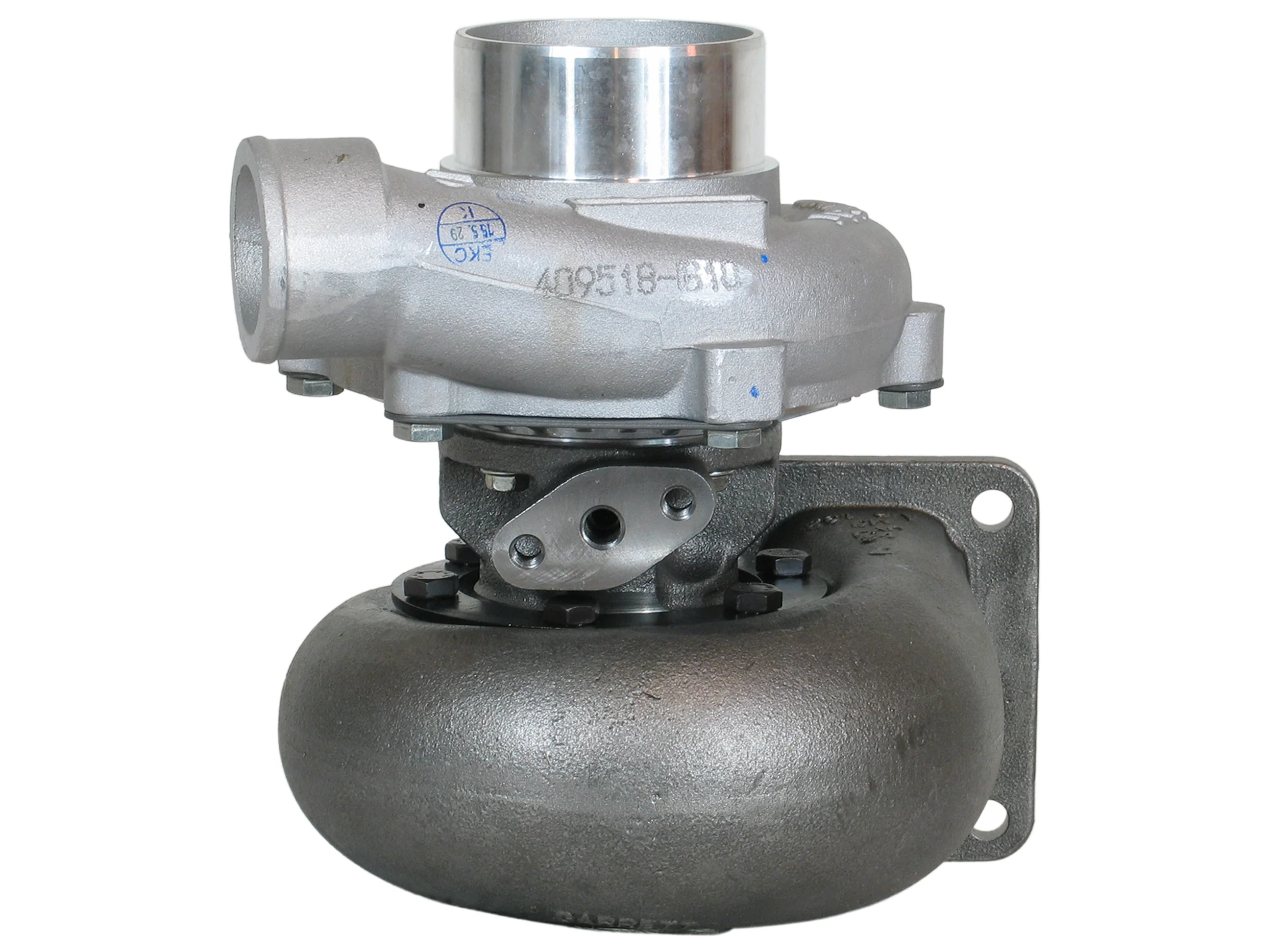

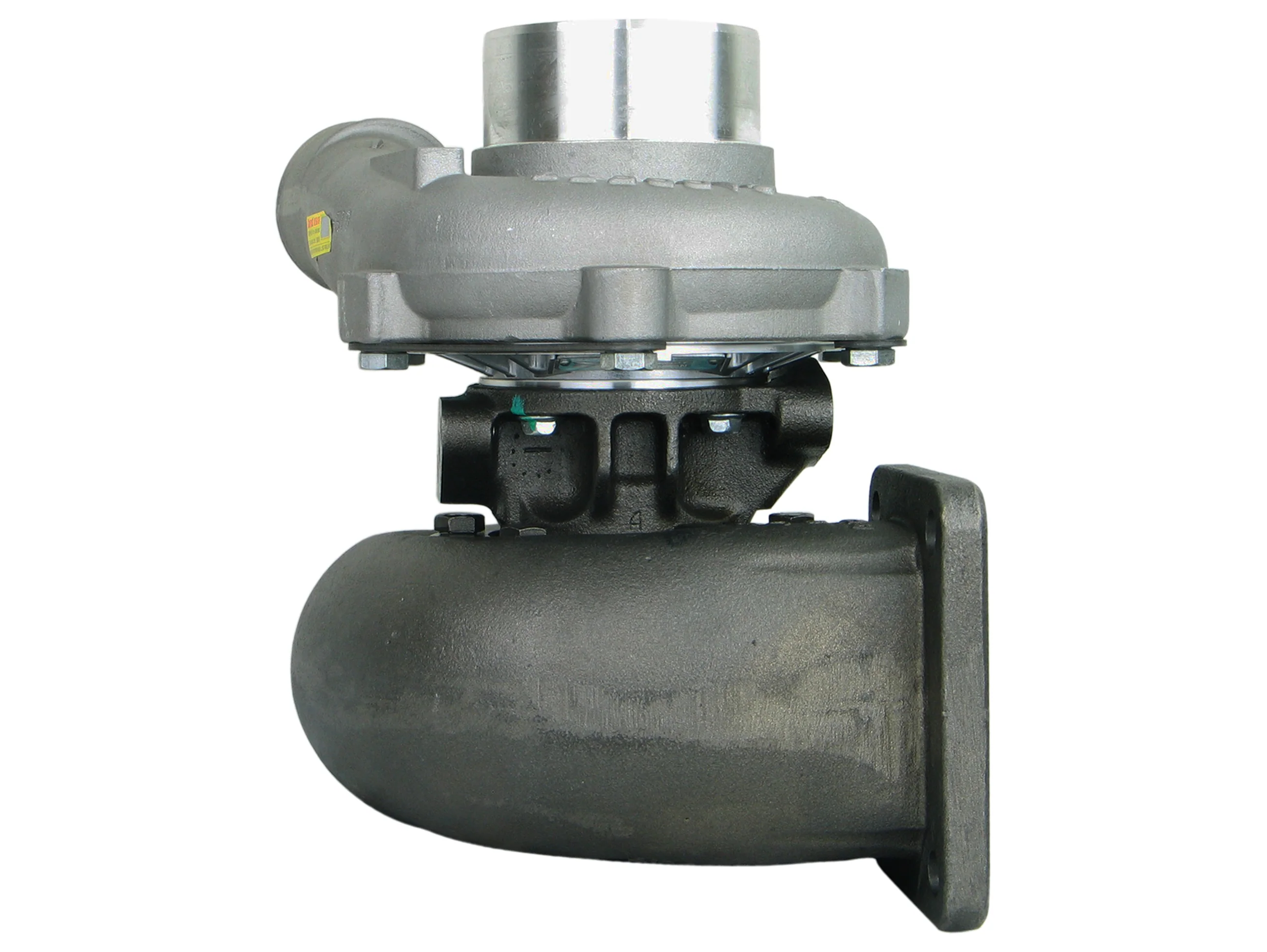

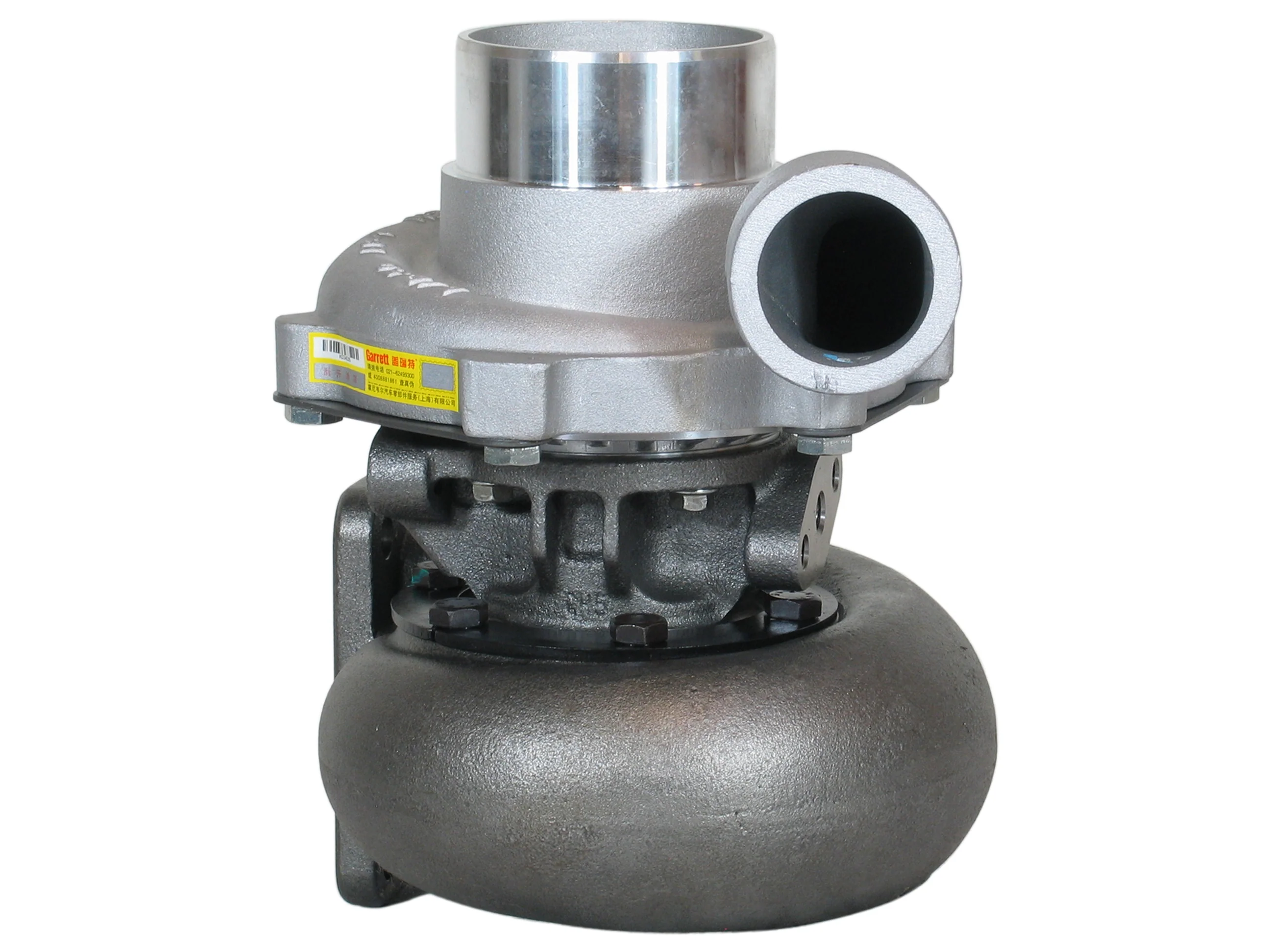

NEW OEM Garrett T04B59 Turbo Komatsu Marine D66S-1 SA6D110 S6D105 465044-5225

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 465044-5225
Interchangeable Number: 465044-0225, 465044-5225S, 465044-0006, 465044-5006, 465044-5006S, 465044-0007, 465044-5007, 465044-5007S, 465044-0011, 465044-5011, 465044-5011S, 465044-0025, 465044-5025, 465044-5025S, 465044-0026, 465044-5026, 465044-5026S, 465044-0125, 465044-5125, 465044-5125S
OEM Number: 6138-81-8101, 6138818101
Turbo Model: T04B59
Manufacturer: Honeywell-Garrett

Engine: S6D105, SA6D110, SA6D110-1
Engine Manufacturer: Komatsu
Displacement: 7.1L, 7100 ccm, 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 15°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0035
Bearing Housing: 430027-0058 (ME044066, 318137)
CHRA: 447450-0083 (447450-5083S)
Compressor Cover: 409518-0610
Compressor Wheel: 409826-0012 (Ind. 52.85 mm, Exd. 70 mm, Trim 57, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (312617, 303031063)
Gasket Kit: 215079
Heat Shield: 409299-0001 (409299-0000)(311943, 7N0012, 3524773B)
Repair Kit: 468100-0000
Turbine Housing A/R: 1.32
Turbine Housing: 410401-0035/410401-0038
Turbine Wheel: 451309-0003 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010)(1100040436)(Ind. 63.75 mm, Exd. 73 mm, Trim 76, 11 Blades)
Turbo Technology: Free Floating

Application:
Komatsu Construction Equipment with SA6D110, SA6D110-1 Engine
Komatsu D66S-1 Crawler Loader with SA6D110-1 Engine
Komatsu Marine with S6D105 Engine
Komatsu Truck with SA6D110-1 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
