NEW OEM Garrett TV7804 Turbo CAT Truck Industrial 3406 3406B 3406C 465305-5001

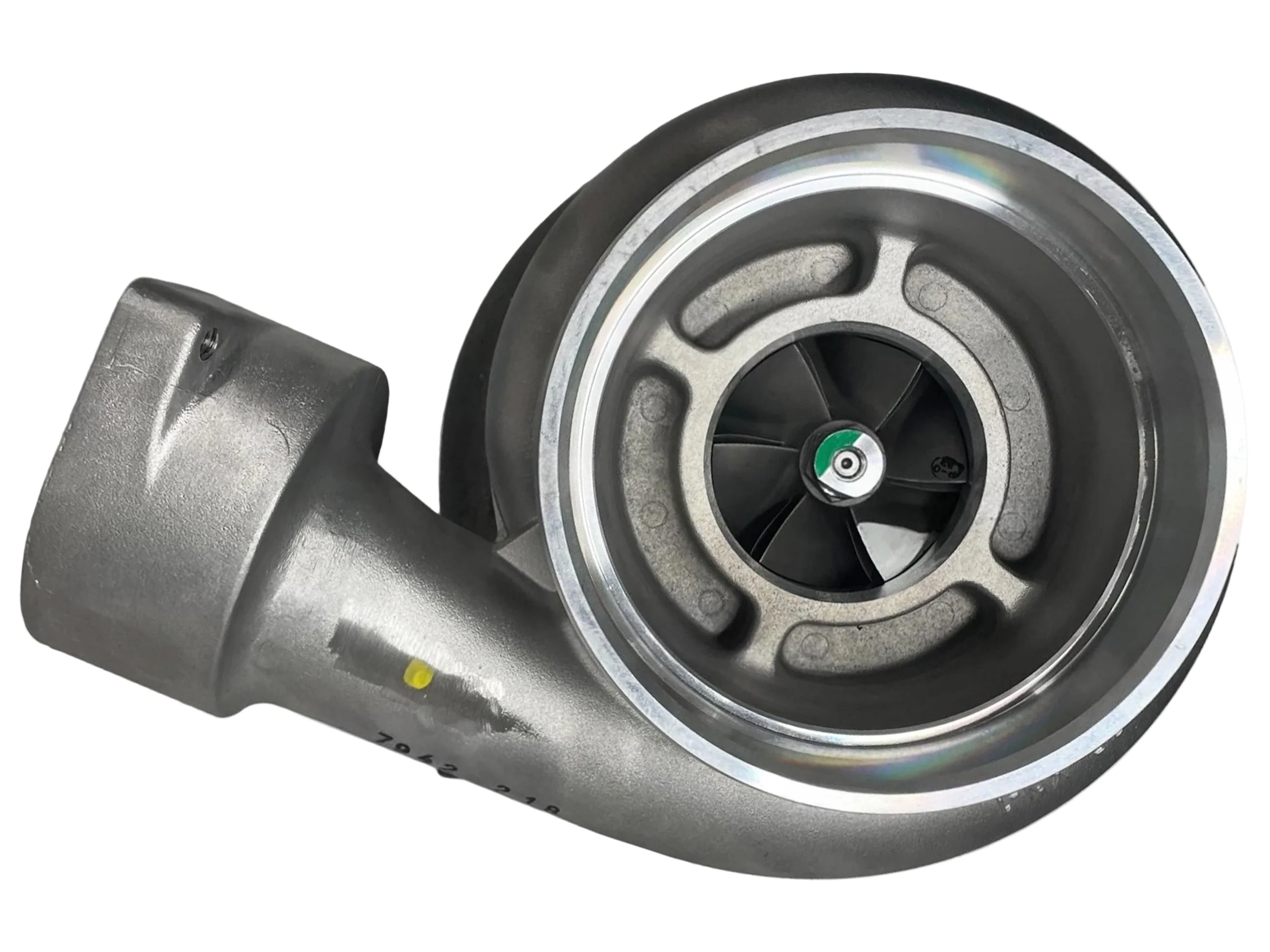

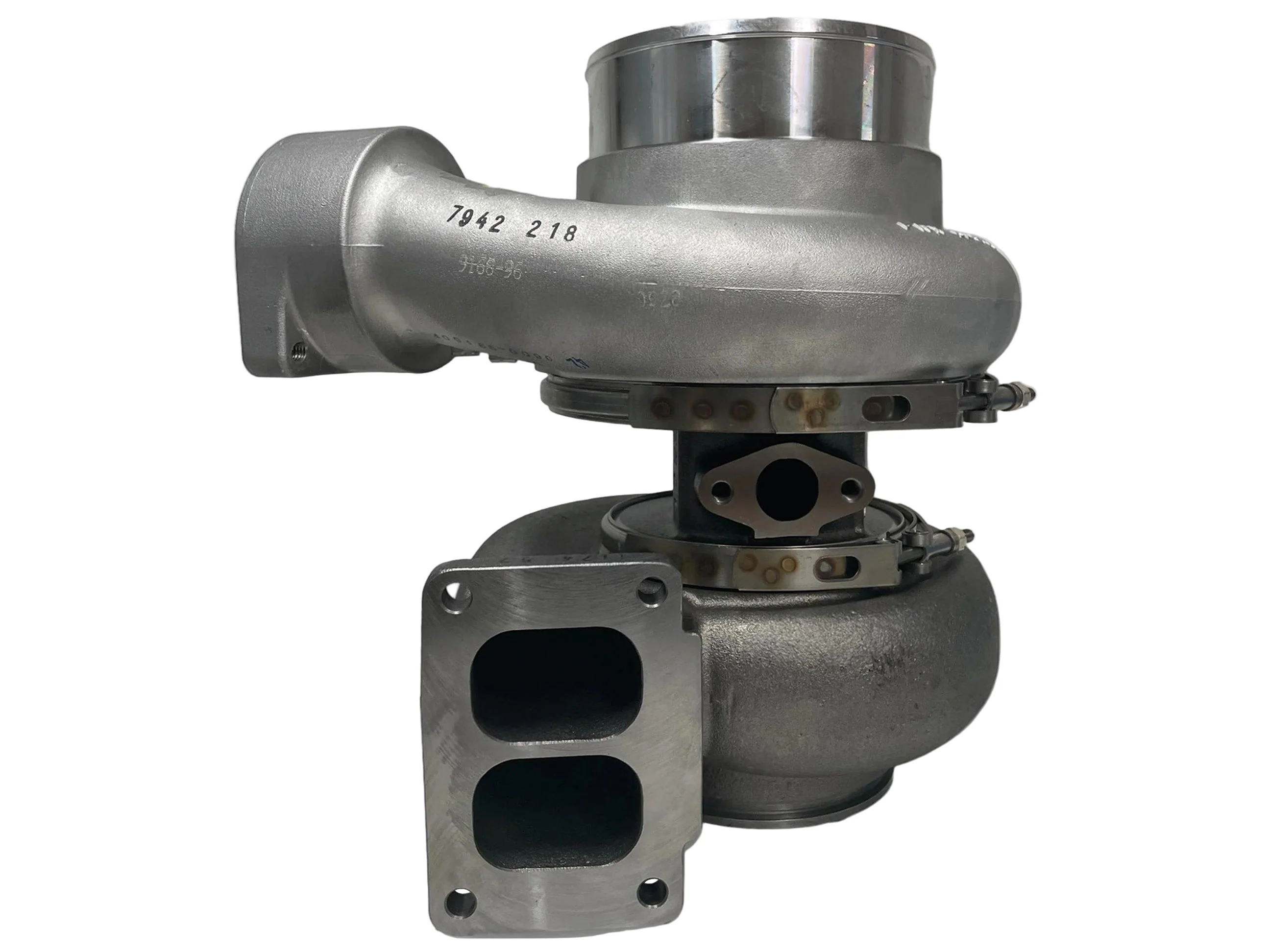

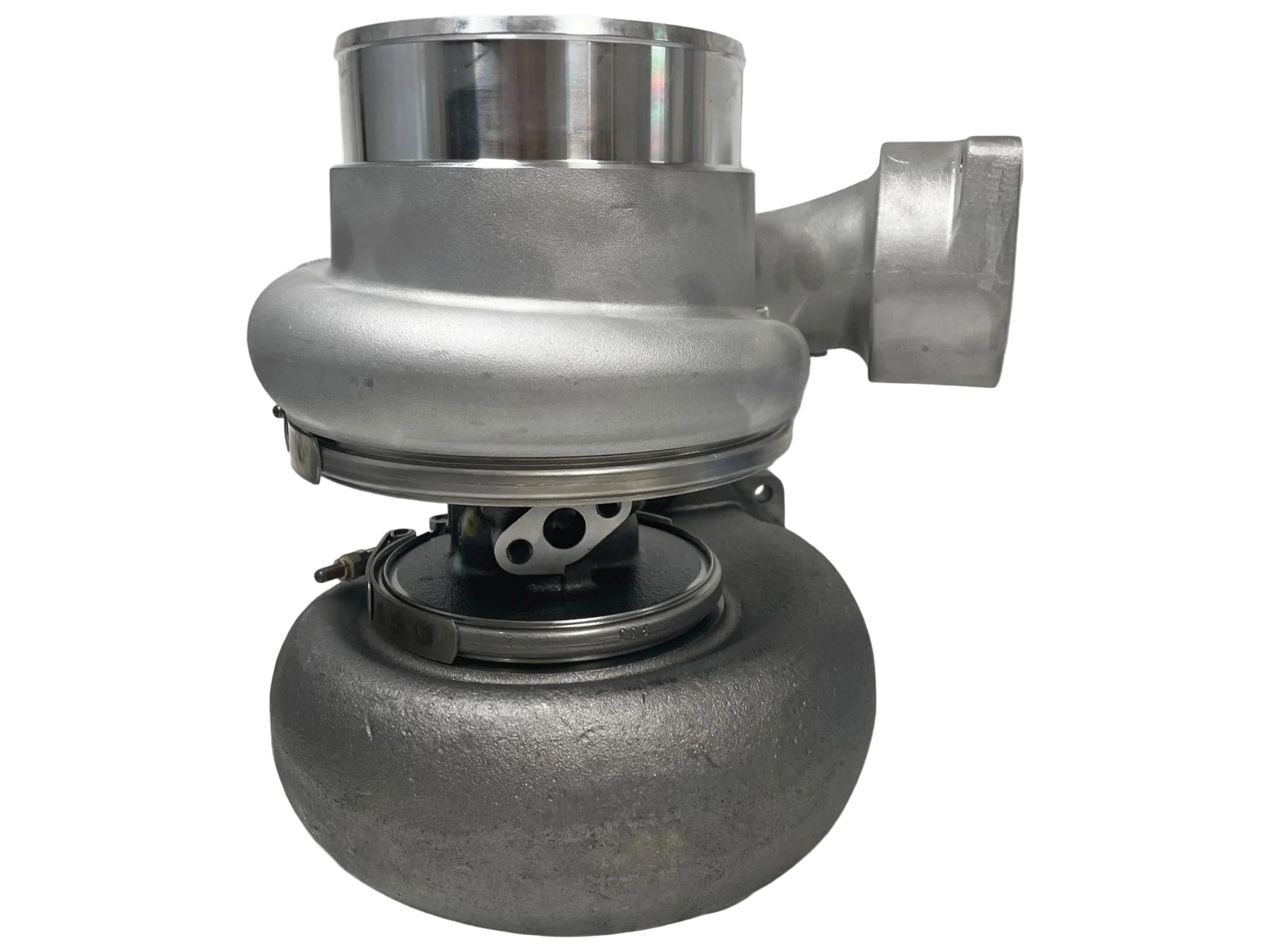

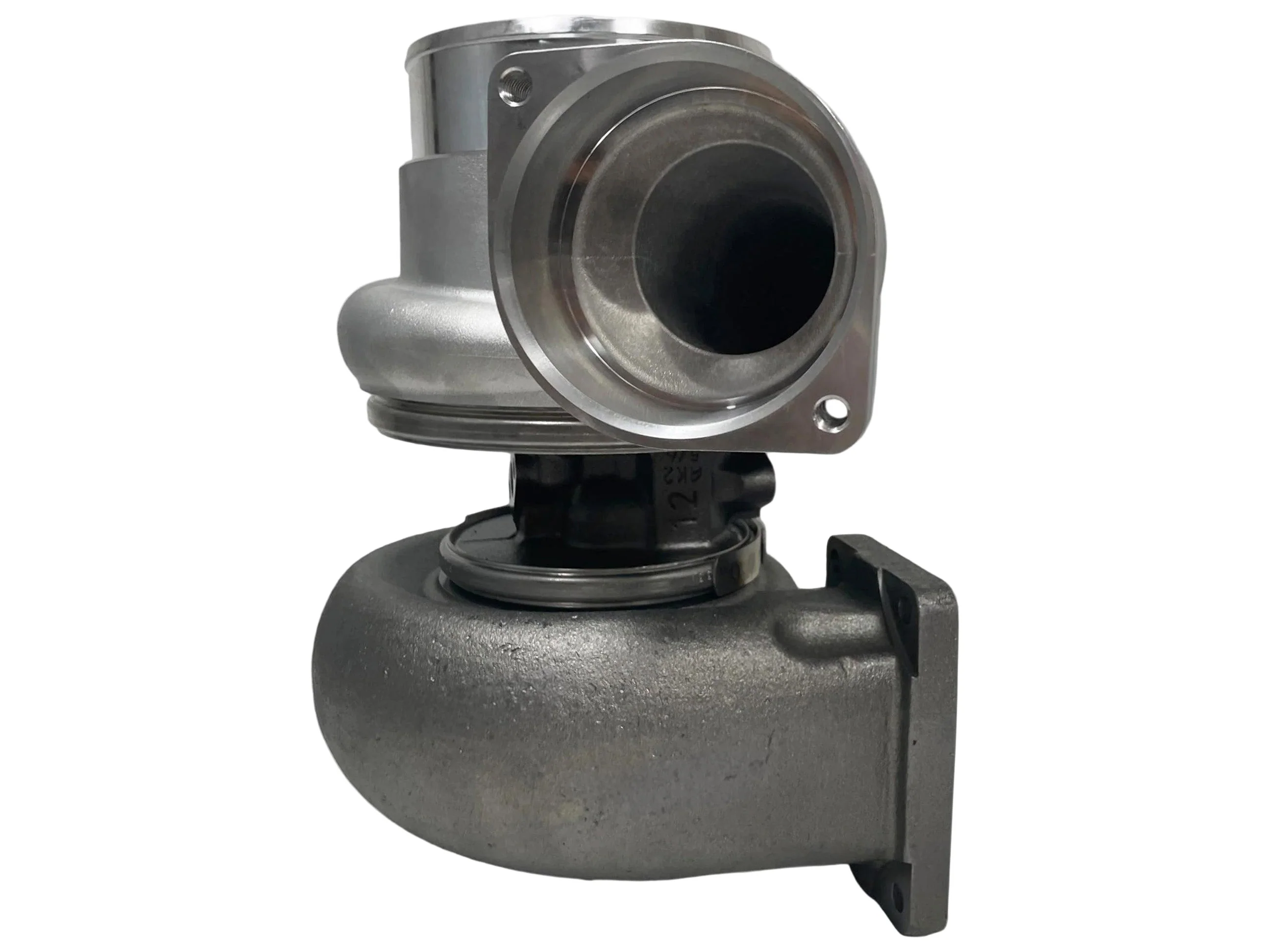

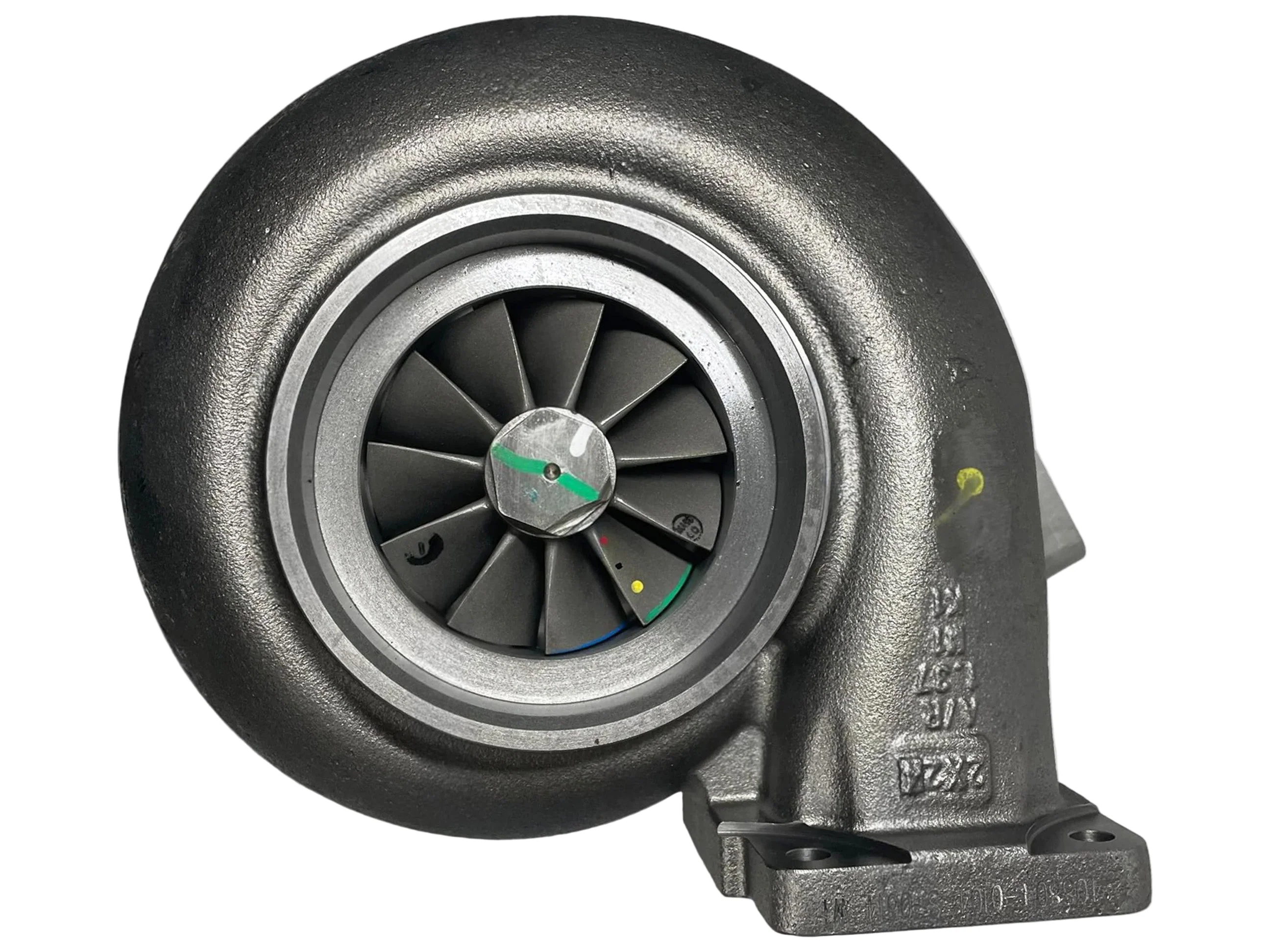

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 465305-5001
Interchangeable Number: 465305-0001, 465305-5001S, 466905-0001, 466905-5001, 466905-5001S
OEM Number: 10R-8241, 10R8241, 7C-6615, 7C6615
Serial Number: 11N7828-99999, 11N7919-99999, 6TB3714-UP
Turbo Model: TV7804
Manufacturer: Honeywell-Garrett

Year: 1989-90
Engine: 3406, 3406 DITAJWAC, 3406B, 3406C
Fuel: Diesel

Back Plate: 447241-0008 (430108-0004, 408487-0022)(4P8736, 7C6612, RE11590)
Bearing Housing: 449072-0001 (408495-0009, 408495-0010, 408495-0028)(0R5404, 160025, 9N2035)(Oil Cooled)(1101672450)
CHRA: 451190-0003 (451190-5003S, 442480-0012, 442480-5012S, 442480-0005, 442480-5005S, 7C6610, 119-8516, 0R5732, 0R6952)
Compressor Wheel: 451405-0004 (445241-0003)(4W5193, 6I0849)
Gasket (Oil Outlet): 210018 (409267-0002, 201048, 1S4810, 3709738, 3500682, 3519763, 9738, 9988, 210018-0000)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 3500683, 205396, 202873, 1S4295, 9749, 210017-0000)(1900000003)
Gasket Kit: 468190-0000
Heat Shield: 407657-0009 (409794-0002, 407657-0008)(4P6527)
Repair Kit: 468267-0010 (468103-0000, 3545824)(1101085750)
Turbine Housing A/R: 1.40
Turbine Wheel: 451403-0001 (442479-0002)(4W5196)(Ind. 104.87 mm, Exd. 92.81 mm, Trim 15.87, 11 Blades)(1101078435)

Application:
1989-90 Caterpillar Industrial with 3406, 3406B, 3406C Engine
Caterpillar D400D, D40D Articulated Dump Truck
Caterpillar RM-350, RR-250, SM-350, SS-250 Road Reclaimer
Caterpillar Truck with 3406B, 3406C Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
