NEW OEM Garrett TV7705 Turbo Komatsu FD400 D90/65-8 Dozer SA6D125 466152-5003

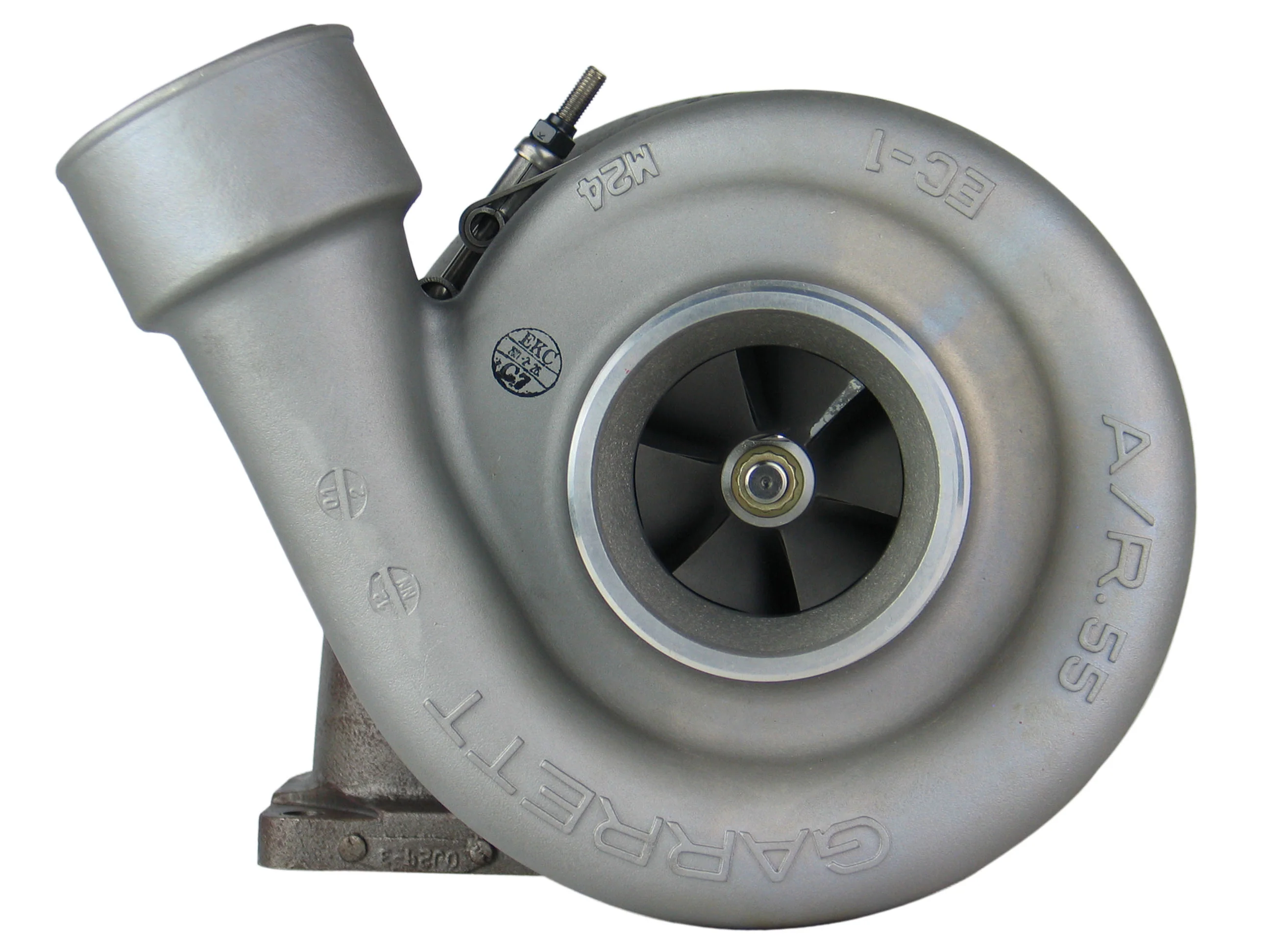

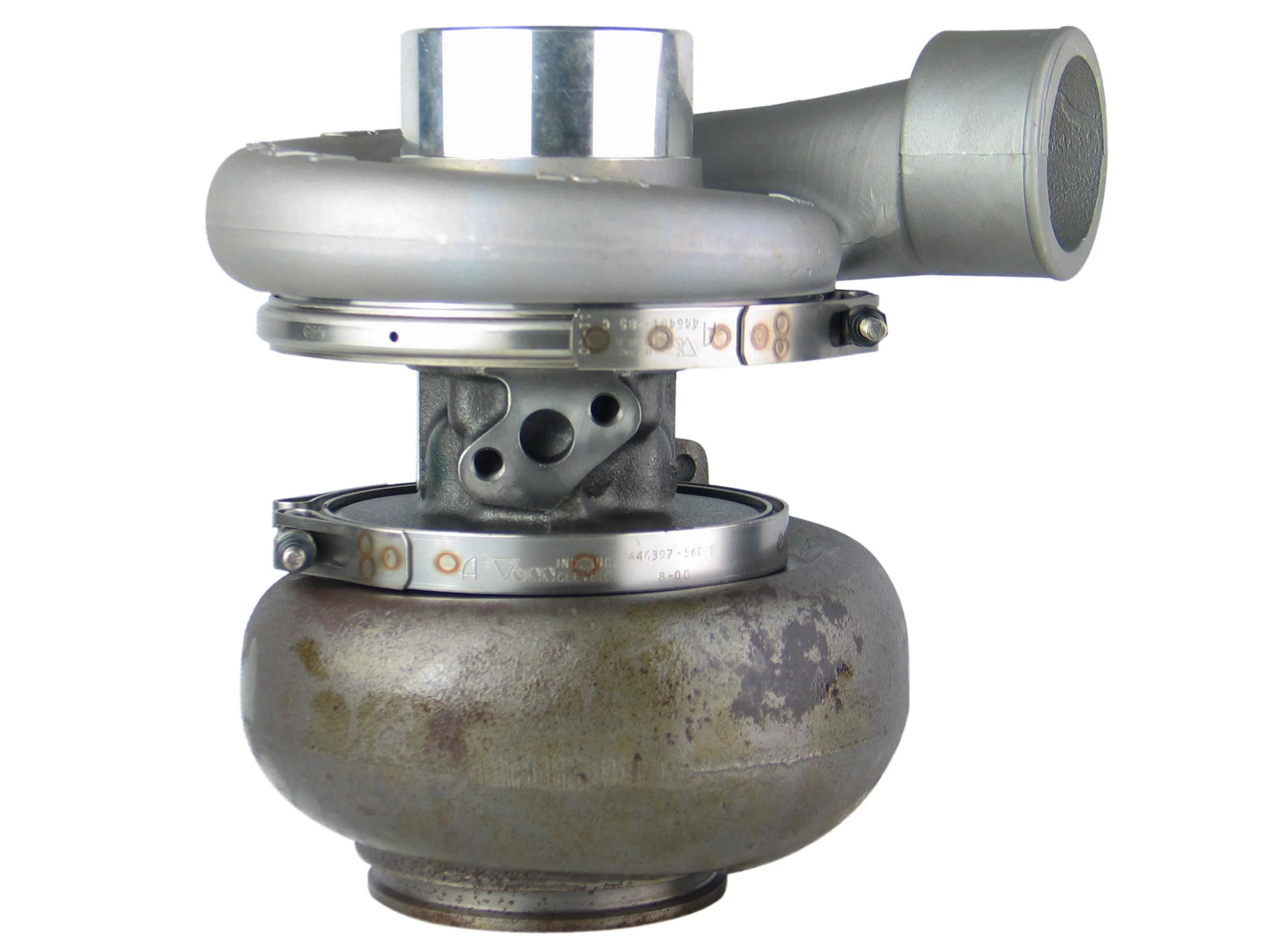

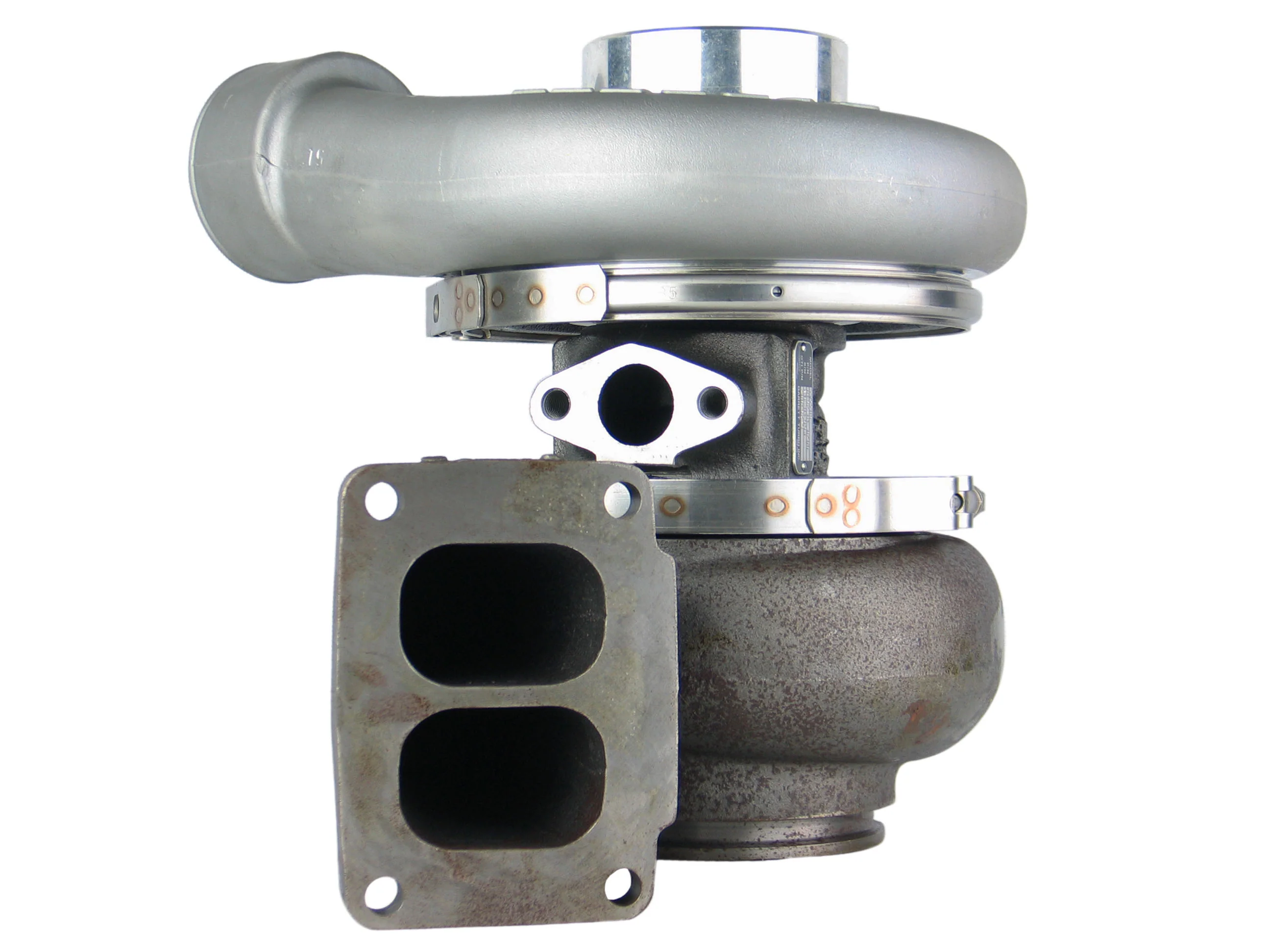

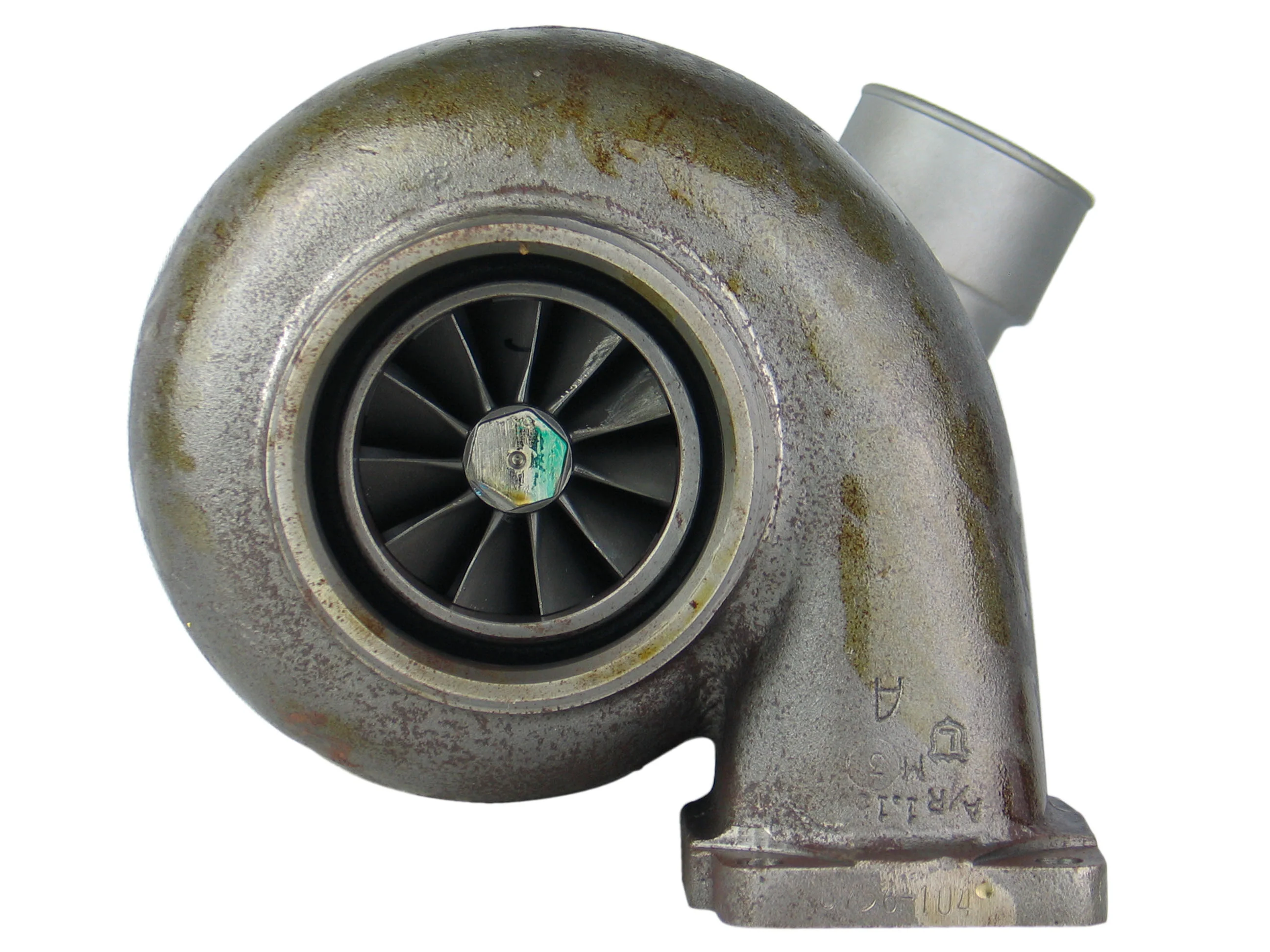

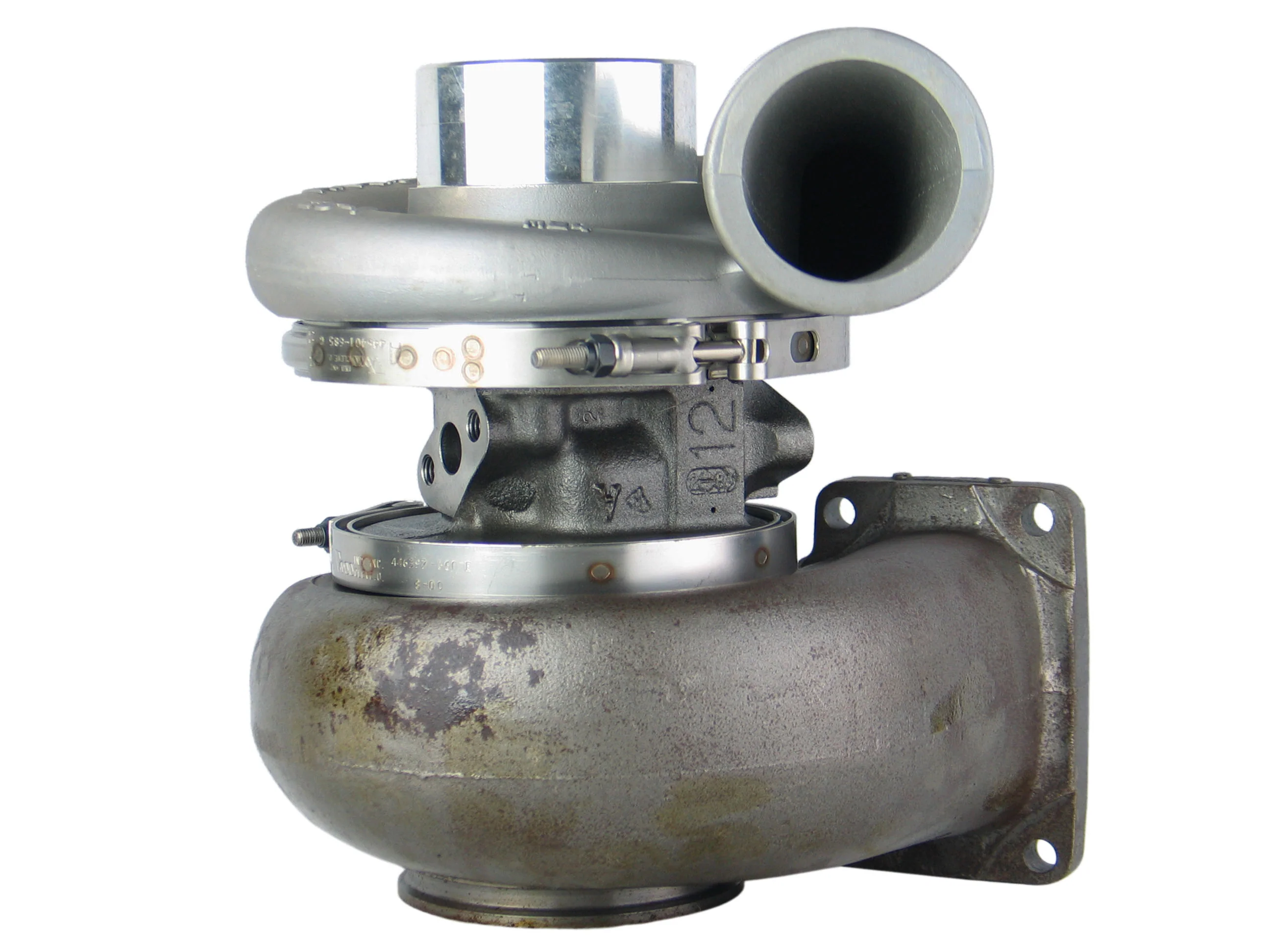

BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466152-5003S
Interchangeable Number: 466152-0003, 466152-5003, 466152-0001, 466152-5001, 466152-5001S, 466152-0002, 466152-0002, 466152-0002S, 466152-0005, 466152-0005, 466152-0005S
OEM Number: 6152-81-8300, 6152818300, 6152-81-8400, 6152818400
Turbo Model: TV7705
Manufacturer: Honeywell-Garrett
Engine: P096, SA6D125, S6D125
Displacement: 11.0L, 11046 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 342.5°
Back Plate: 408487-0025
Bearing Housing: 408495-0027 (Oil Cooled)
CHRA: 410382-0007 (410382-5007S)
Compressor Wheel: 441266-0003 (Ind. 63.5 mm, Exd. 97.8 mm, Trim 42-52, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper)
Gasket (Oil Outlet): 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Heat Shield: 409368-0001 (407778-0001)(7N3760, 33164077781)
Repair Kit: 468103-0000 (468211-0000)(3545836, 188002-0000, 3545824, 2W0175)(3316468211)(1101678750/1
Turbine Housing A/R: 1.15
Turbine Wheel: 410383-0002 (33164103832)(Ind. 89. mm, Exd. 77.5 mm, 11 Blades)
Application:
Komatsu D90/65-8 Dozer with S6D125 Engine
Komatsu FD400 Forklift, Dozer with P096, SA6D125, S6D125 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466152-5003S
Interchangeable Number: 466152-0003, 466152-5003, 466152-0001, 466152-5001, 466152-5001S, 466152-0002, 466152-0002, 466152-0002S, 466152-0005, 466152-0005, 466152-0005S
OEM Number: 6152-81-8300, 6152818300, 6152-81-8400, 6152818400
Turbo Model: TV7705
Manufacturer: Honeywell-Garrett
Engine: P096, SA6D125, S6D125
Displacement: 11.0L, 11046 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 342.5°
Back Plate: 408487-0025
Bearing Housing: 408495-0027 (Oil Cooled)
CHRA: 410382-0007 (410382-5007S)
Compressor Wheel: 441266-0003 (Ind. 63.5 mm, Exd. 97.8 mm, Trim 42-52, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper)
Gasket (Oil Outlet): 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Heat Shield: 409368-0001 (407778-0001)(7N3760, 33164077781)
Repair Kit: 468103-0000 (468211-0000)(3545836, 188002-0000, 3545824, 2W0175)(3316468211)(1101678750/1
Turbine Housing A/R: 1.15
Turbine Wheel: 410383-0002 (33164103832)(Ind. 89. mm, Exd. 77.5 mm, 11 Blades)
Application:
Komatsu D90/65-8 Dozer with S6D125 Engine
Komatsu FD400 Forklift, Dozer with P096, SA6D125, S6D125 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
$593.25
Original: $1,695.00
-65%NEW OEM Garrett TV7705 Turbo Komatsu FD400 D90/65-8 Dozer SA6D125 466152-5003—
$1,695.00
$593.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466152-5003S
Interchangeable Number: 466152-0003, 466152-5003, 466152-0001, 466152-5001, 466152-5001S, 466152-0002, 466152-0002, 466152-0002S, 466152-0005, 466152-0005, 466152-0005S
OEM Number: 6152-81-8300, 6152818300, 6152-81-8400, 6152818400
Turbo Model: TV7705
Manufacturer: Honeywell-Garrett
Engine: P096, SA6D125, S6D125
Displacement: 11.0L, 11046 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 342.5°
Back Plate: 408487-0025
Bearing Housing: 408495-0027 (Oil Cooled)
CHRA: 410382-0007 (410382-5007S)
Compressor Wheel: 441266-0003 (Ind. 63.5 mm, Exd. 97.8 mm, Trim 42-52, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper)
Gasket (Oil Outlet): 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Heat Shield: 409368-0001 (407778-0001)(7N3760, 33164077781)
Repair Kit: 468103-0000 (468211-0000)(3545836, 188002-0000, 3545824, 2W0175)(3316468211)(1101678750/1
Turbine Housing A/R: 1.15
Turbine Wheel: 410383-0002 (33164103832)(Ind. 89. mm, Exd. 77.5 mm, 11 Blades)
Application:
Komatsu D90/65-8 Dozer with S6D125 Engine
Komatsu FD400 Forklift, Dozer with P096, SA6D125, S6D125 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466152-5003S
Interchangeable Number: 466152-0003, 466152-5003, 466152-0001, 466152-5001, 466152-5001S, 466152-0002, 466152-0002, 466152-0002S, 466152-0005, 466152-0005, 466152-0005S
OEM Number: 6152-81-8300, 6152818300, 6152-81-8400, 6152818400
Turbo Model: TV7705
Manufacturer: Honeywell-Garrett
Engine: P096, SA6D125, S6D125
Displacement: 11.0L, 11046 ccm, 6 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 134°
Angle β (Turbine Housing): 342.5°
Back Plate: 408487-0025
Bearing Housing: 408495-0027 (Oil Cooled)
CHRA: 410382-0007 (410382-5007S)
Compressor Wheel: 441266-0003 (Ind. 63.5 mm, Exd. 97.8 mm, Trim 42-52, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper)
Gasket (Oil Outlet): 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Heat Shield: 409368-0001 (407778-0001)(7N3760, 33164077781)
Repair Kit: 468103-0000 (468211-0000)(3545836, 188002-0000, 3545824, 2W0175)(3316468211)(1101678750/1
Turbine Housing A/R: 1.15
Turbine Wheel: 410383-0002 (33164103832)(Ind. 89. mm, Exd. 77.5 mm, 11 Blades)
Application:
Komatsu D90/65-8 Dozer with S6D125 Engine
Komatsu FD400 Forklift, Dozer with P096, SA6D125, S6D125 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
