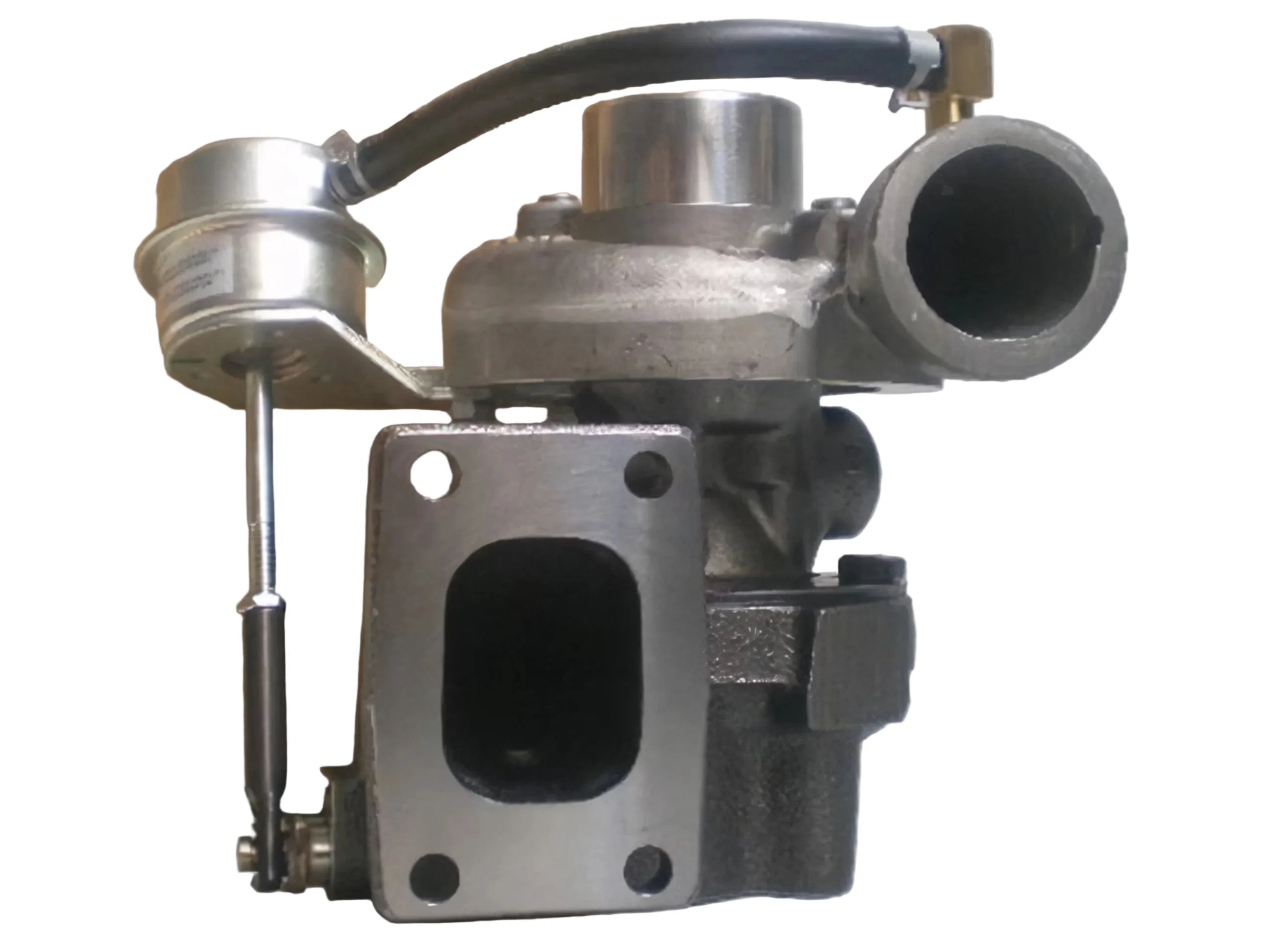

NEW Garrett TB0223 Turbo Volvo Penta Marine Ship TAMD22 P-B 2.0L 466770-5008

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 466770-5008
Interchangeable Number: 466770-0008, 466770-8
OEM Number: 861407, 3581150, 2674A088, 2674A088P
Turbo Model: TB0223
Brand: Honeywell-Garrett

Engine: TAMD22 P-B, T4.20-L4
Displacement: 2.0L, 1994 ccm, 4 Cylinders, SOHC
Fuel: Diesel
Power: 105 HP

Actuator: 430819-0316
Back Plate: 432280-0001 (430612-0003)(1100025300, 1800016012)
Bearing Housing: 432257-0009 (430936-0008)(Oil Cooled)(1900011121B)
CHRA: 443854-0028 (443854-5028S)
Compressor Cover: 409589-0147
Compressor Wheel: 410450-0014 (410450-0001)(Ind. 37.18 mm, Exd. 48 mm, Trim 60, 8+8 Blades)(1200016498)
Gasket (Turbine Inlet): 210218 (2445051, 2445334)(Stainless Steel)
Gasket (Turbine Outlet): 210217 (2445284)(Stainless Steel)
Heat Shield: 430871-0002 (431055-0001, 431055-0003)
Repair Kit: 709143-0001 (707903-0002, 200423-0000)(dynamic seal)(1100025761, 5000010106)
Turbine Housing A/R: 0.35
Turbine Housing: 430609-0130
Turbine Wheel: 435243-0004 (435243-0001, 435243-0002, 435259-0001, 435243-0005, 435737-0001, 435737-0006, 443850-0001)(Ind. 35.5 mm, Exd. 47 mm, Trim 56, 11 Blades)(1100020435)

Application:
1995-03 Volvo Penta Marine, Ship with TAMD22 P-B Engine
Perkins Marine with T4.20-L4 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
