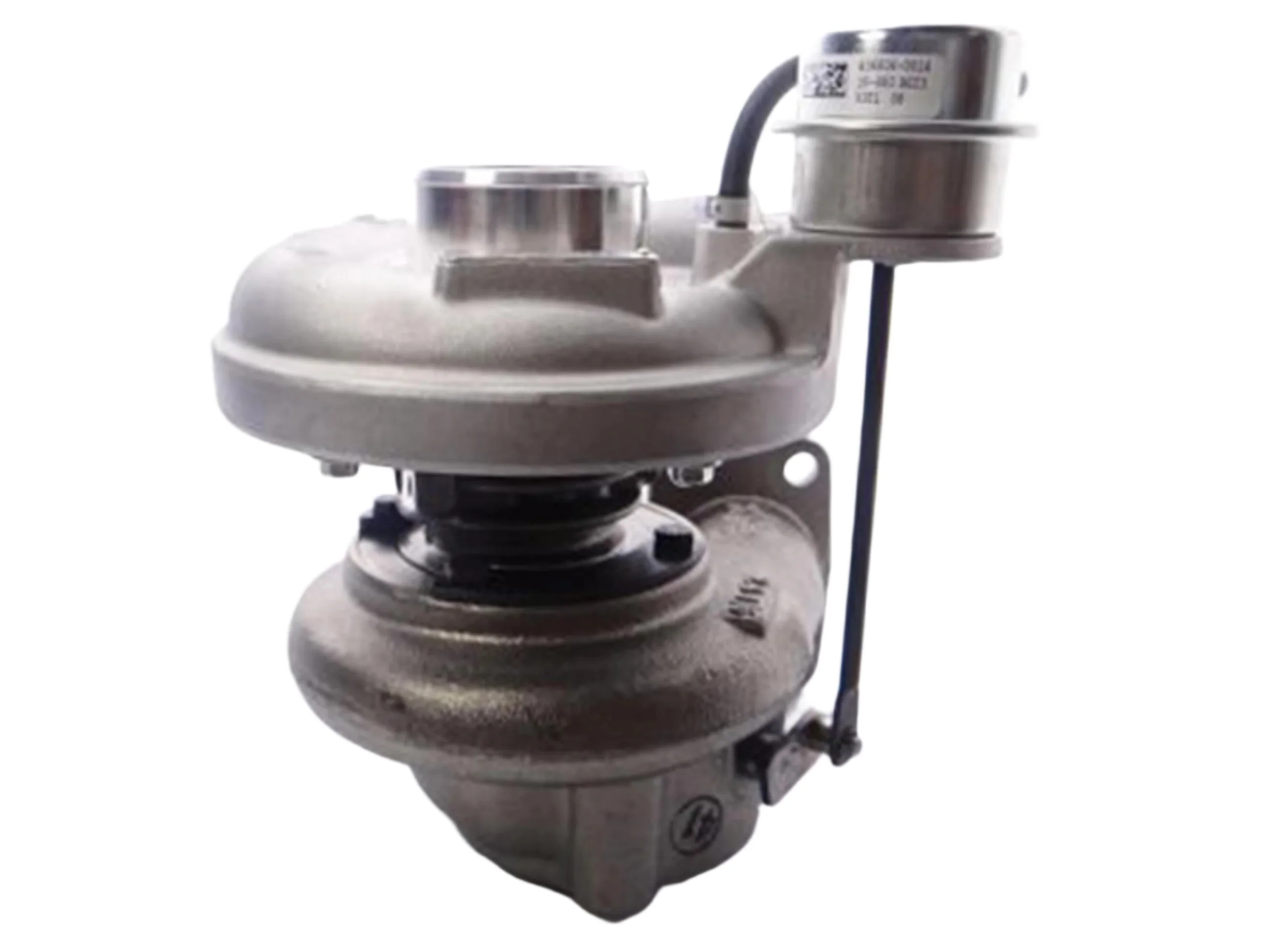

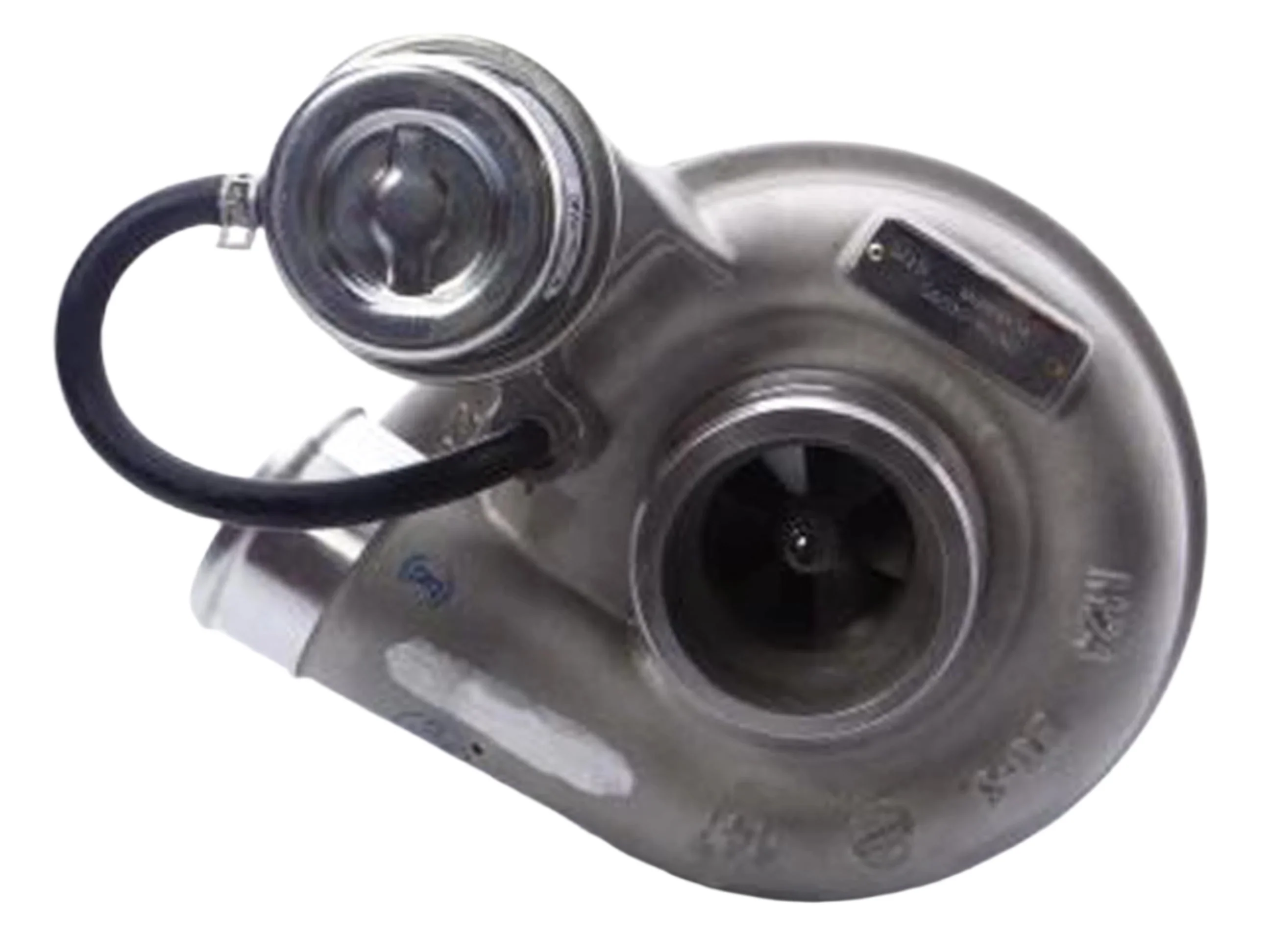

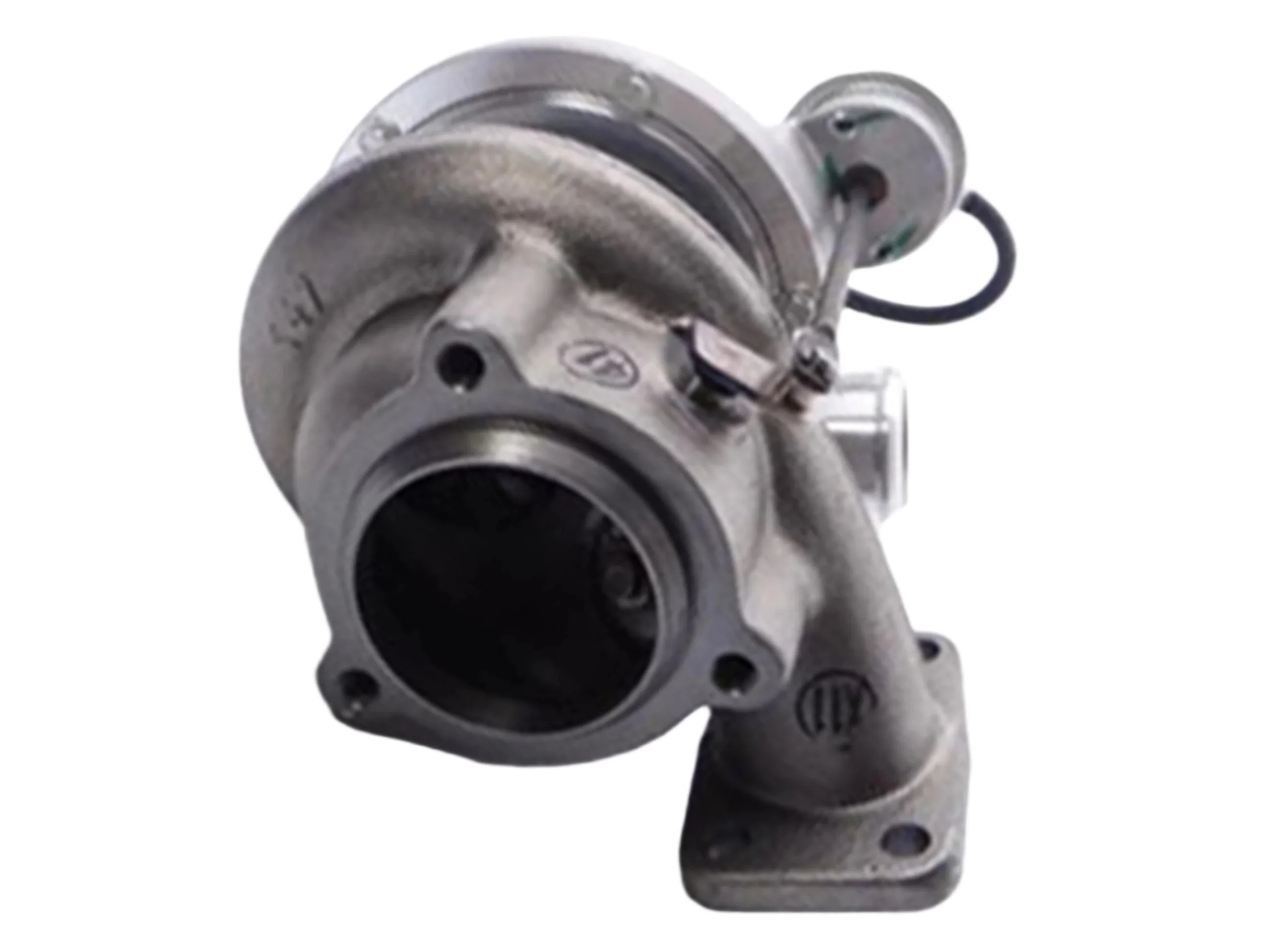

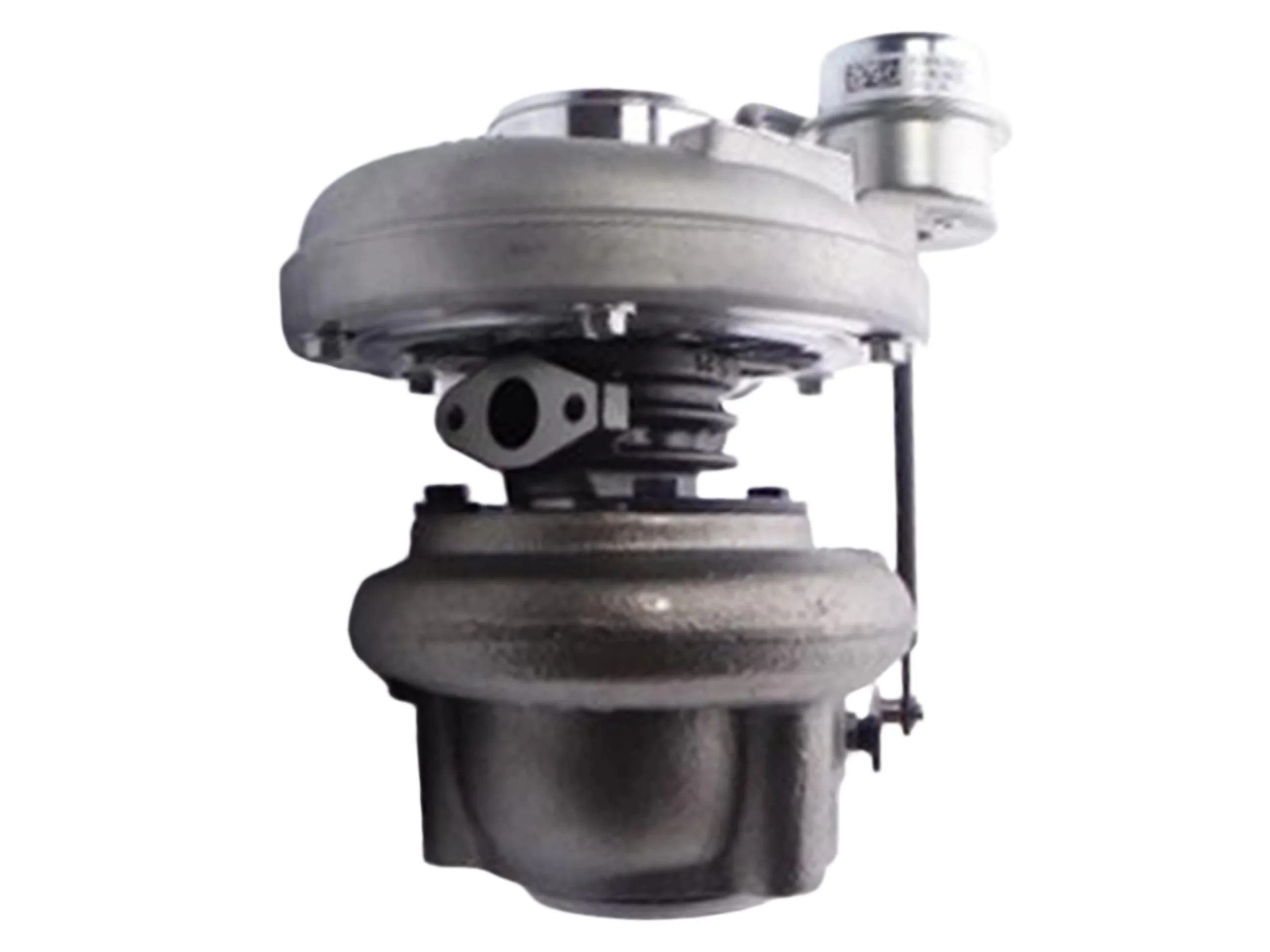

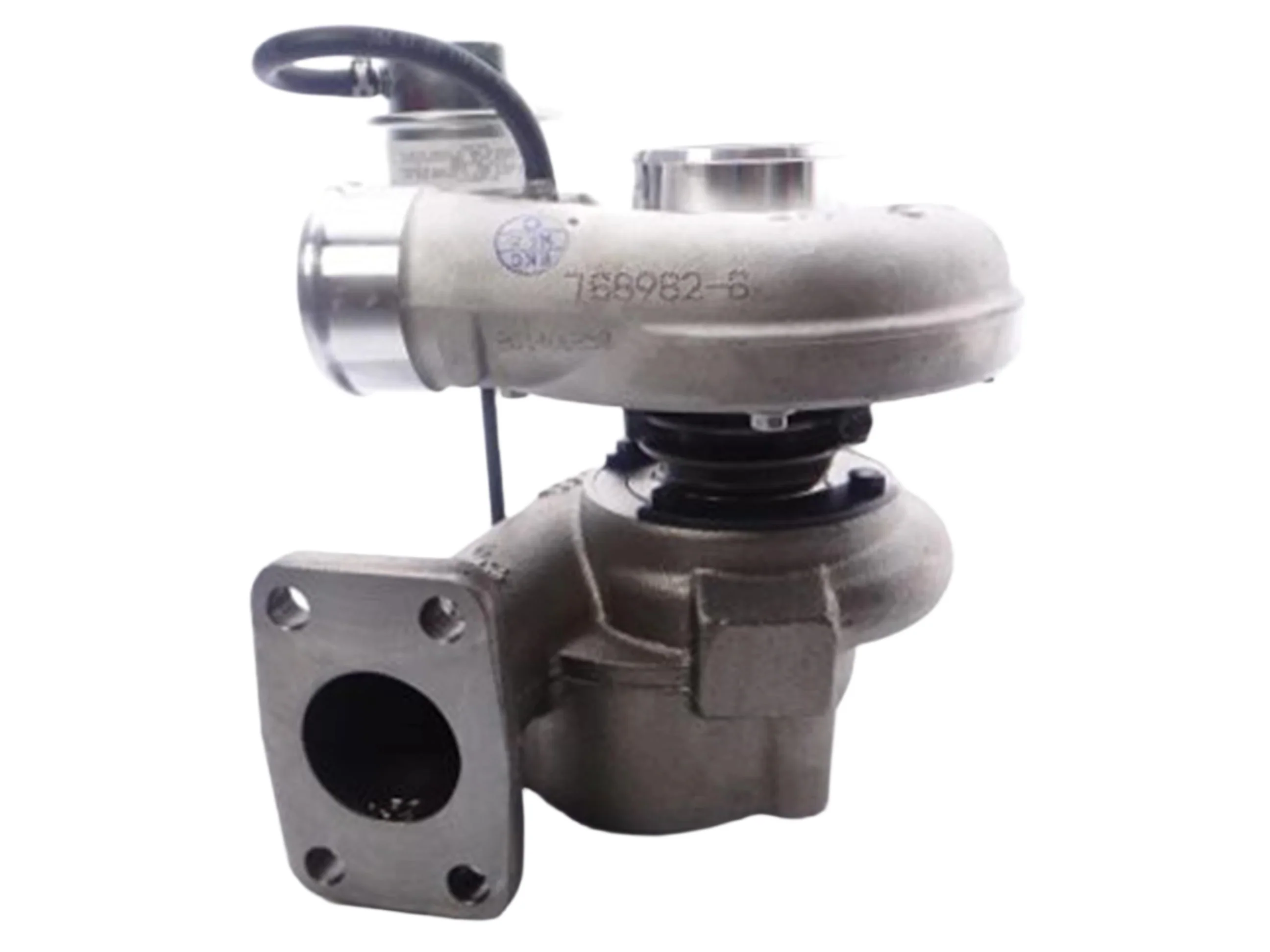

NEW Garrett GT2556S Turbo Perkins Vista 4 T4.40 4.4L Diesel Engine 711736-5029

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 711736-5029
Interchangeable Number: 711736-0029, 711736-5029S, 711736-0023, 711736-5023, 711736-5023S
OEM Number: 2674A229, 2674A231
Turbo Model: GT2556S
Manufacturer: Honeywell-Garrett

Year: 2003-
Engine: Vista 4, T4.40
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Emission Standard: Tier 3
Fuel: Diesel
Power: 114 HP
Speed: 2200 RPM

Angle α (Compressor Housing): 185°
Angle β (Turbine Housing): 105°
Actuation: Pressure
Back Plate: 721086-0001 (703682-0083)(1300011026)
Bearing Housing: 433275-0002 (433275-0005, 435793-0002, 706490-0002, 713782-0002, 713782-0010)(Oil Cooling)(1102015450, 1900011012)
CHRA: 433289-0195 (433289-5195S, 433289-0223)
Compressor Cover: 721261-0014
Compressor Wheel: 436336-0019 (436336-0012, 436563-0002)(Ind. 39.62 mm, Exd. 56 mm, Trim 4.31, 6+6 Blades, Super Back)(1102022408, 1200016456, 11200020034)
Gasket (Oil Outlet): 210553 (210243)(Non Metallic)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket Kit: (2090505360)
Gasket Kit: 215024
Heat Shield: 434686-0001 (2030016149)
Repair Kit: 732252-0001 (1102015756, 1102015768, 5000010098B)
Turbine Housing A/R: 0.52
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0013 (Ind. 54 mm, Exd. 45.72 mm, Trim 7.21, 12 Blades)(1102025437, 1100016211, 100016036)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 1.190-1.250 bar

Application:
2003- Perkins Various with Vista 4, T4.40 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
