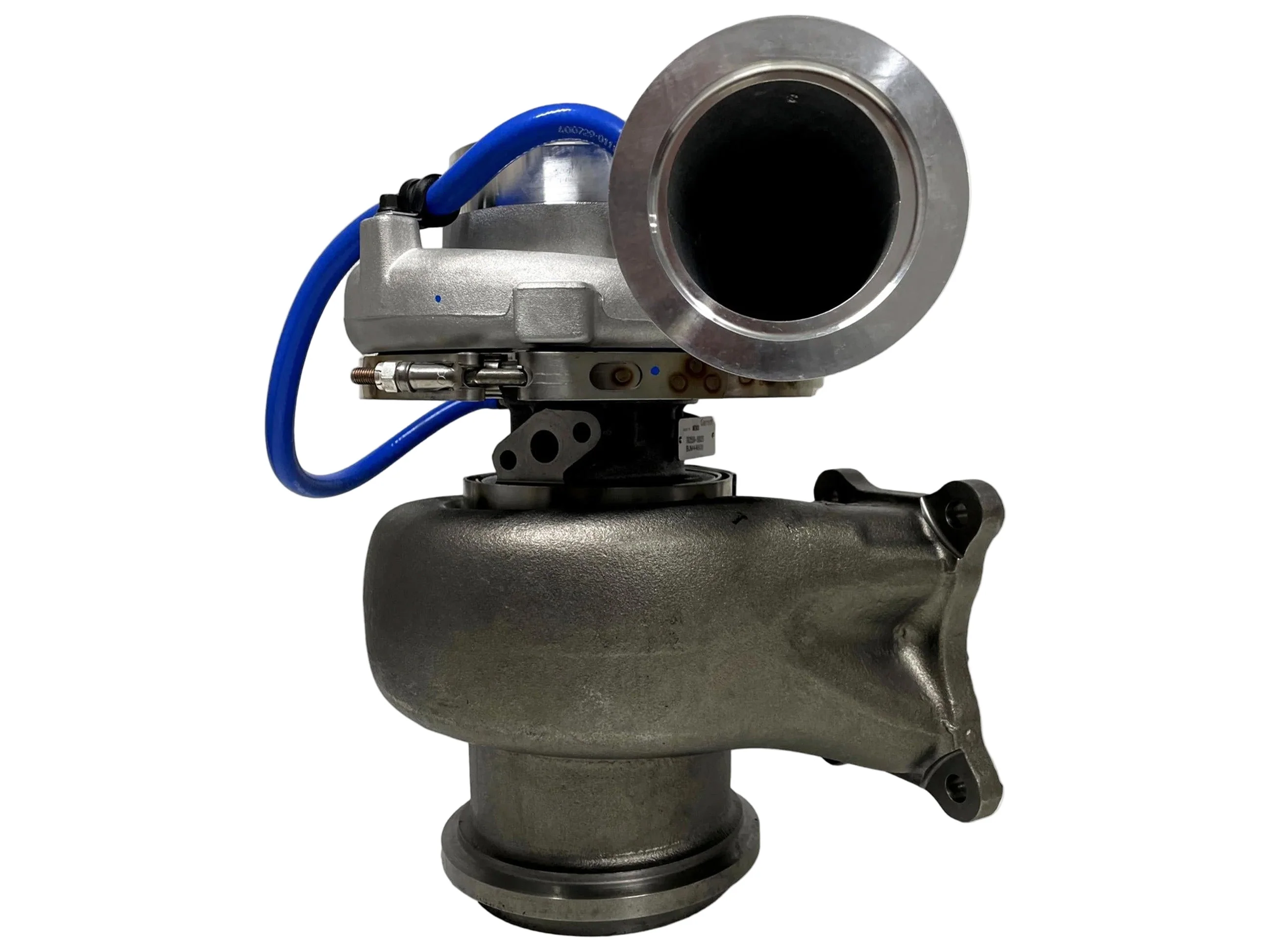

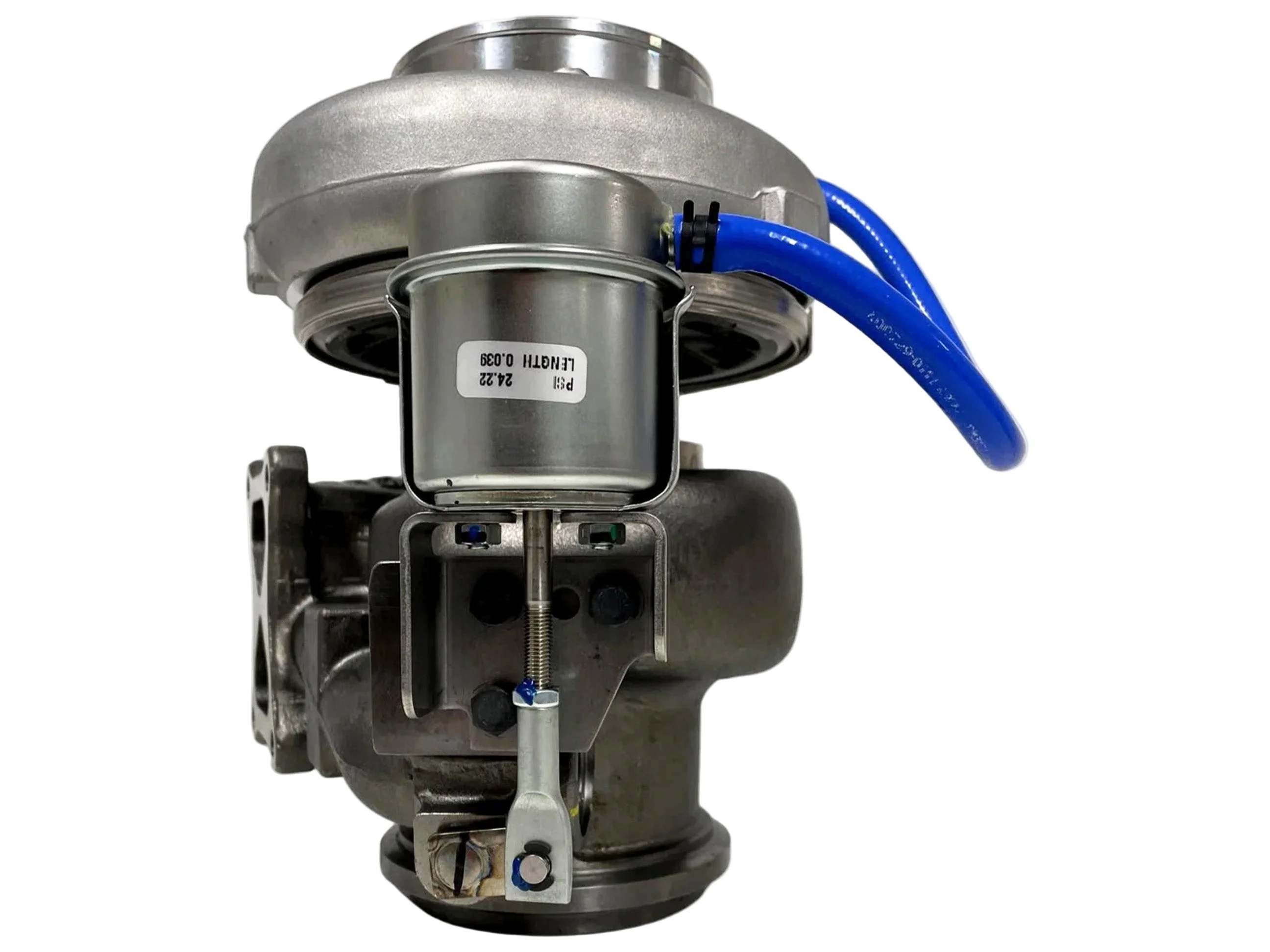

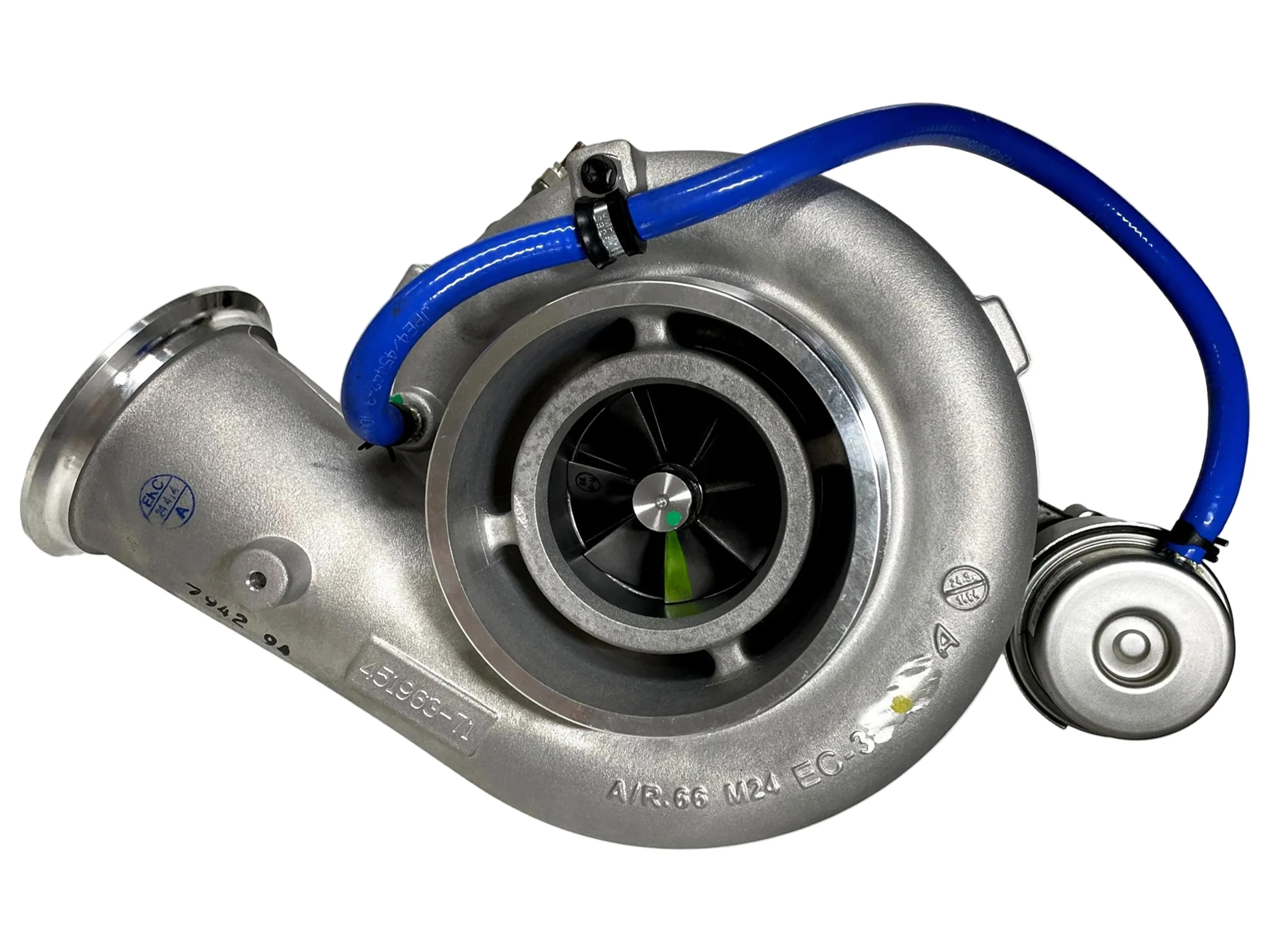

NEW OEM Garrett GT4502BS Turbo CAT Earth Moving Gen Set C13 12.5L 762550-5003

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 762550-5003
Interchangeable Number: 762550-0003, 762550-5003S, 762550-0001, 762550-5001, 762550-5001S, 762550-0002, 762550-5002, 762550-5002S, 762550-0004, 762550-5004, 762550-5004S, 762550-0005, 762550-5005, 762550-5005S
OEM Number: 10R-2800, 10R2800, 10R-3603, 10R3603, 10R-7290, 10R7290, 10R-7297, 10R7297, 10R-8957, 10R8957, 10R-8970, 10R8970, 20R-2916, 20R2916, 247-2962, 2472962, 247-2964, 2472964, 247-2965, 2472965, 247-2967, 2472967, 255-8862, 2558862, 256-7737, 2567737, 275-1294, 2751294, 331-5888, 3315888
Serial Number: LGK878-UP
Turbo Model: GT4502BS, GTA4502S
Manufacturer: Honeywell-Garrett

Year: 2003-
Engine: C13, CX31-C13I, CX31-P600, RM-300, TH35, TH35-C13I, TH35-E81
Engine Manufacturer: Caterpillar
Displacement: 12.5L, 6 Cylinders
Emission Standard: Tier 4
Fuel: Diesel
Power: 441 HP
Speed: 2100 RPM
Prefix: A5K, A5Z, B5K, B5Z, BWR, GLS, HRA, LGK, PBY, PDN, PWF, RRA, RRA, TRN, TZM

Actuation: Pressure
Actuator: 451764-0015
Back Plate: 712339-0001 (712339-0002)
Bearing Housing: 712342-0015 (712342-0004, 712342-0016)(Oil Cooled)(1900011222)
CHRA: 712402-0038 (712402-5038S)(274-7104, 2747104)(1000010540)
Compressor Cover: 452616-0042
Compressor Wheel: 735657-0011 (722356-0010)(Ind. 70.58 mm, Exd. 102.61 mm, Trim 20.83, 7+7 Blades, Super Back)(1200016671)
Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Heat Shield: 410366-0007 (7C7058)(410366-0003, 410366-0004)
Repair Kit: 468262-0002 (709153-0012, 23514027)(1102045750, 5000010193)
Turbine Housing: 723864-0022
Turbine Wheel: 729838-0002 (Ind. 87.27 mm, Exd. 79.9 mm, 12 Blades)(1100016463)
Turbo Technology: Wastegate

Application:
2003- Caterpillar Earth Moving, Gen Set, Industrial, Off Highway with C13 Engine
2003- Caterpillar Petroleum Products with C13, CX31-C13I, CX31-P600, TH35-C13I, TH35-E81 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
