NEW Garrett GTA4594S Turbo CAT Industrial Genset Wheel Loader C11 762552-5001

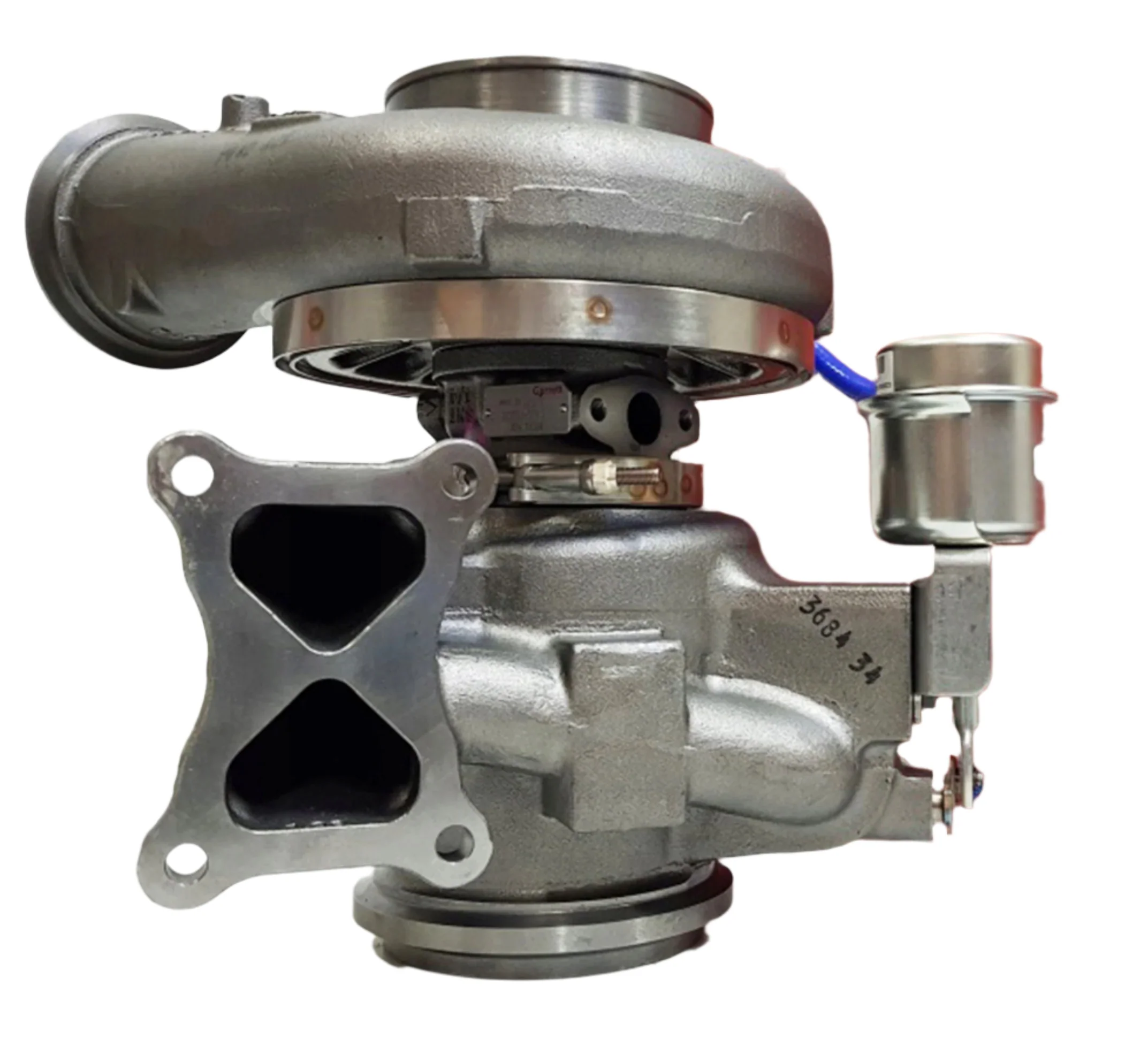

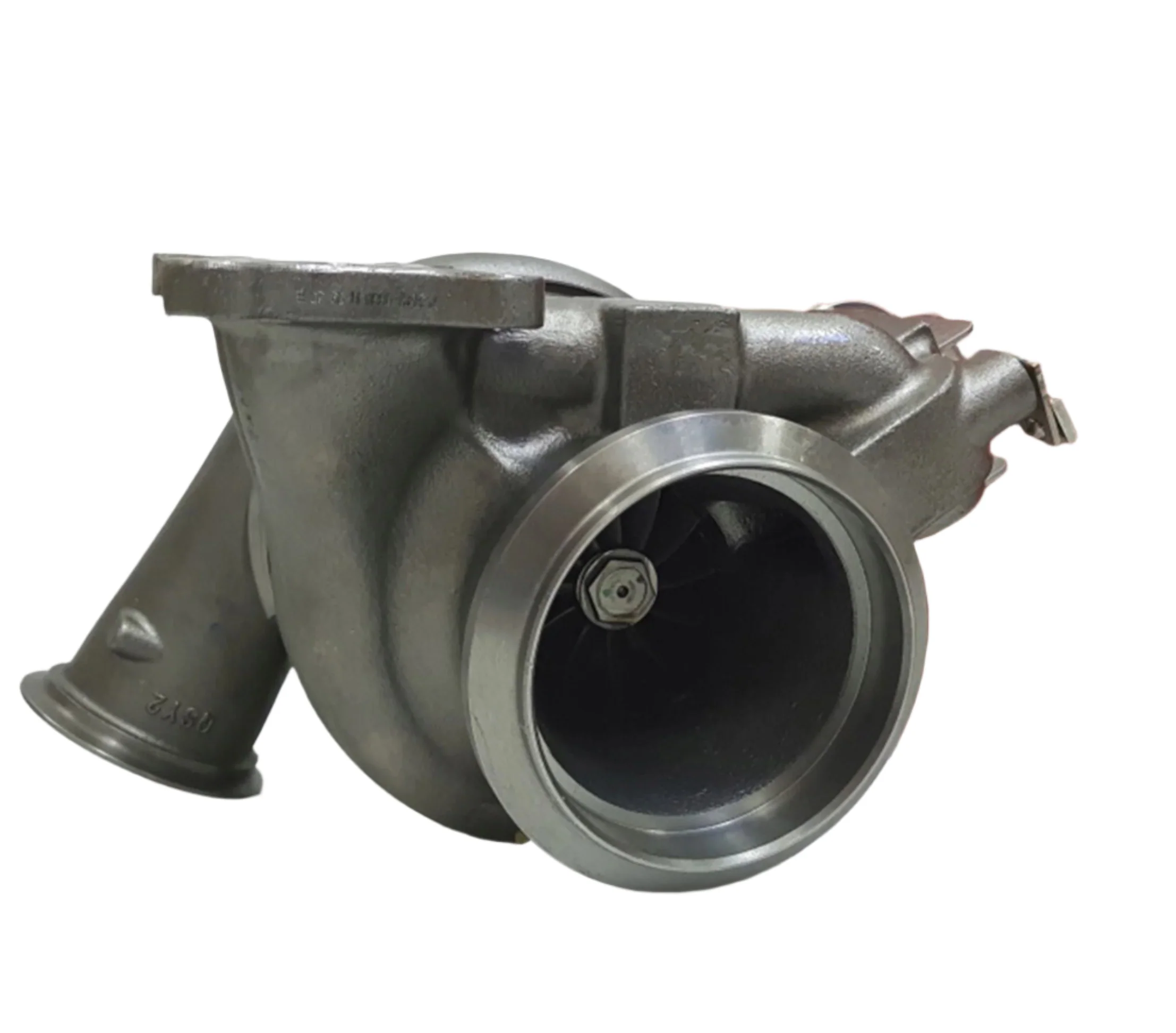

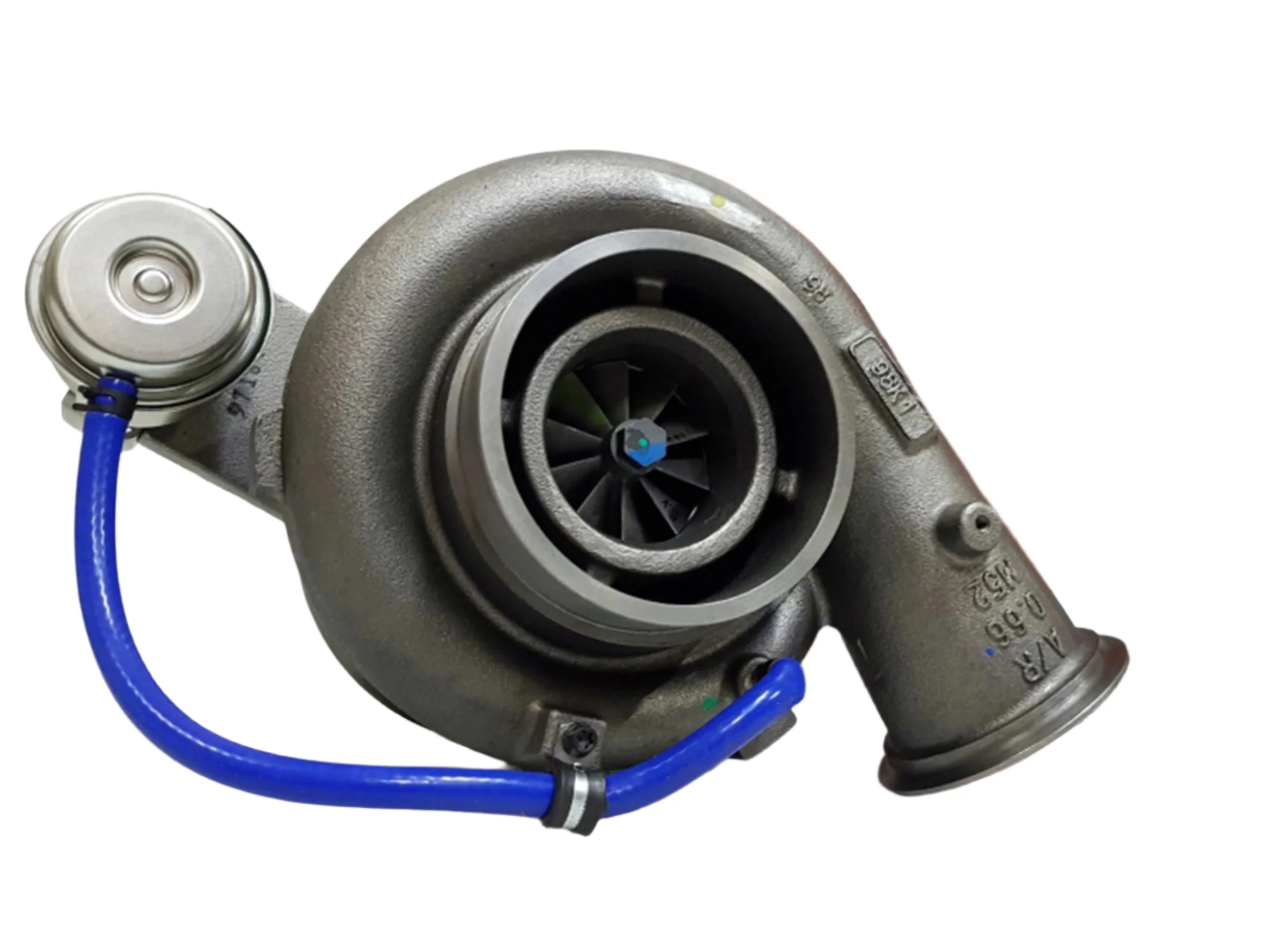

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 762552-5001
Interchangeable Number: 762552-0001, 762552-5001S, 762552-0002, 762552-5002, 762552-5002S, 762552-0003, 762552-5003, 762552-5003S
OEM Number: 247-2957, 2472957, 247-2958, 2472958, 247-2960, 2472960, 247-2962, 2472962, 247-2963, 2472963, 247-2965, 2472965, 247-2967, 2472967, 247-2980, 2472980, 247-2981, 2472981, 256-7737, 2567737, 295-7952, 2957952, 295-7972, 2957972
Serial Number: GLS432-UP
Turbo Model: GTA4594S
Manufacturer: Honeywell-Garrett

Year: 2005-
Engine: C11, C11 Acert, C11 Acert VHP, LRC
Engine Manufacturer: Caterpillar
Displacement: 15.0L
Fuel: Diesel

Actuation: Pressure
Actuator: 451764-0047
Back Plate: 712339-0001 (712339-0002)
Bearing Housing: 712342-0015 (712342-0004, 712342-0016)(Oil Cooled)
CHRA: 712402-0039 (712402-5039S)(257-4323, 2574323, 10R-8259, 10R8259, 20R-1999, 20R1999)
Compressor Cover: 452616-0077
Compressor Wheel: 735657-0011 (722356-0010)(Ind. 70.58 mm, Exd. 102.61 mm, Trim 8.12, 7+7 Blades, Super Back)
Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Heat Shield: 410366-0007 (7C7058)(410366-0003, 410366-0004)
Repair Kit: 709153-0012 (468262-0002, 23514027)(1102045750)
Turbine Housing: 723864-0019
Turbine Wheel: 729838-0002 (Ind. 87.2 mm, Exd. 80.9 mm, Trim 14.02, 12 Blades)

Application:
2005- Caterpillar Genset with C11 Petroleum Engine
2005- Caterpillar Industrial with C11 Petroleum Engine
2005- Caterpillar Off-Highway with C11 Petroleum Engine
Caterpillar 14M Motor Grader with C11 Acert VHP Engine
Caterpillar 966H Wheel Loader with C11 Acert Engine
Caterpillar RM300 Road Reclaimer with C11 Acert Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
