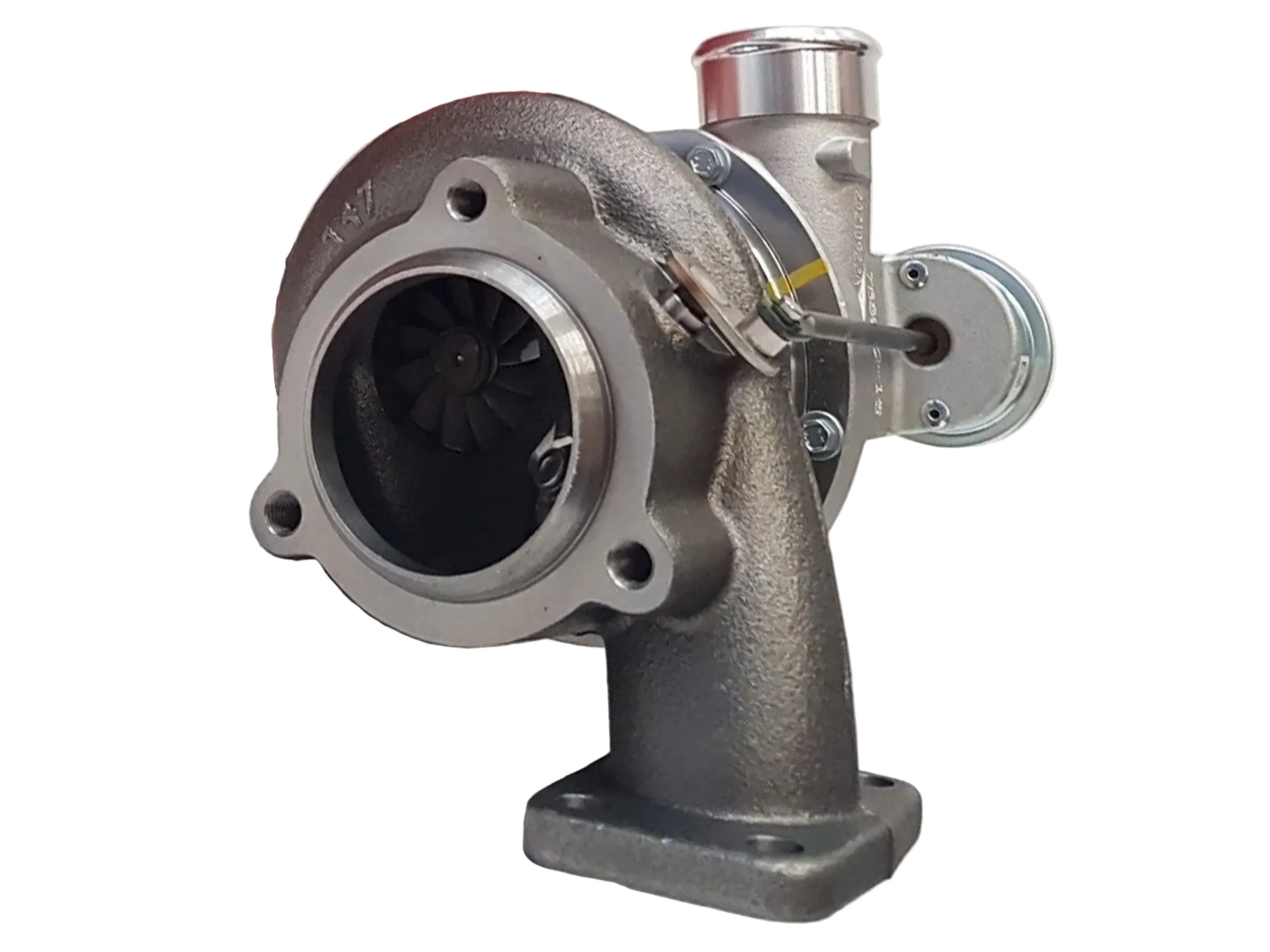

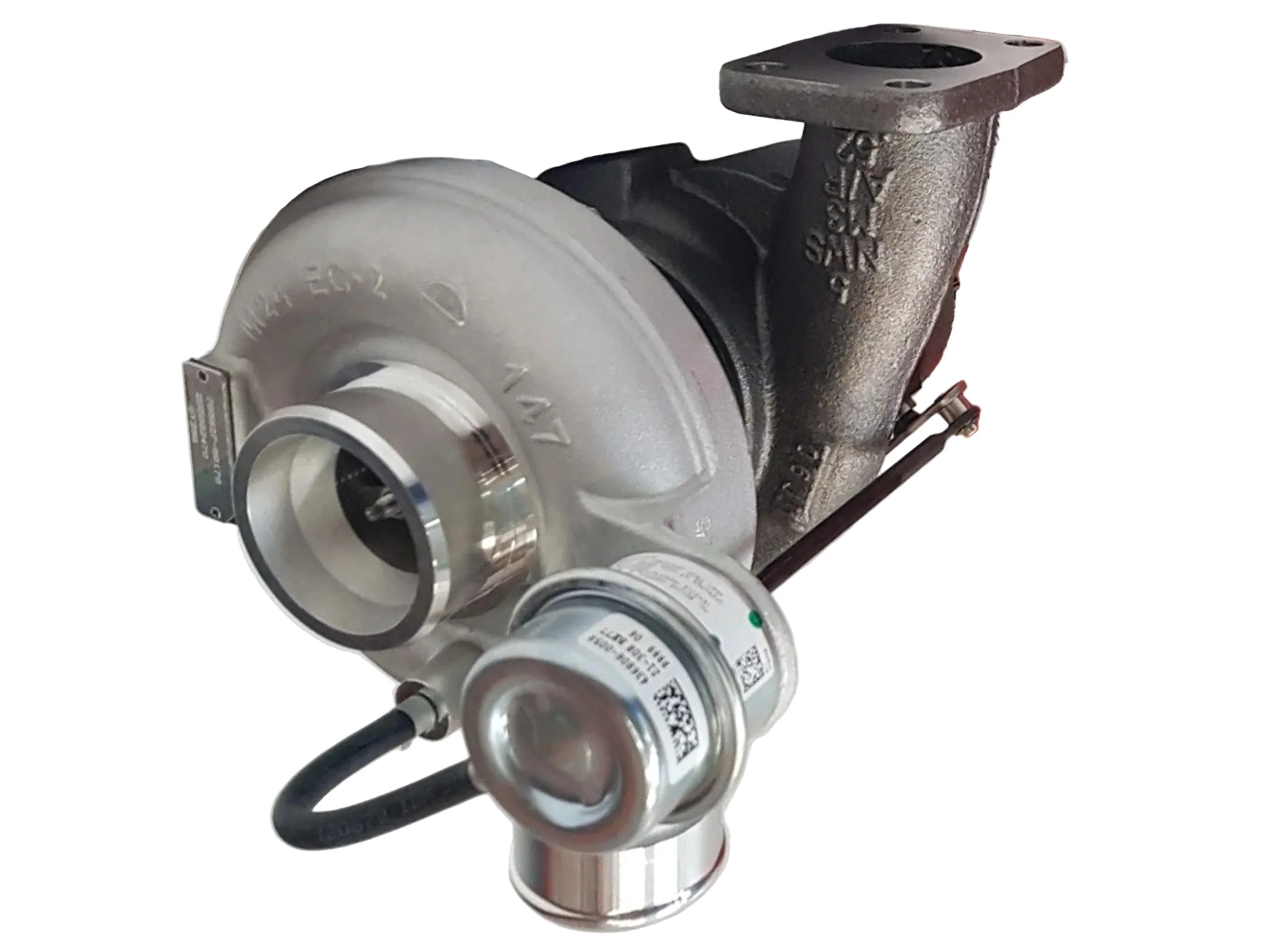

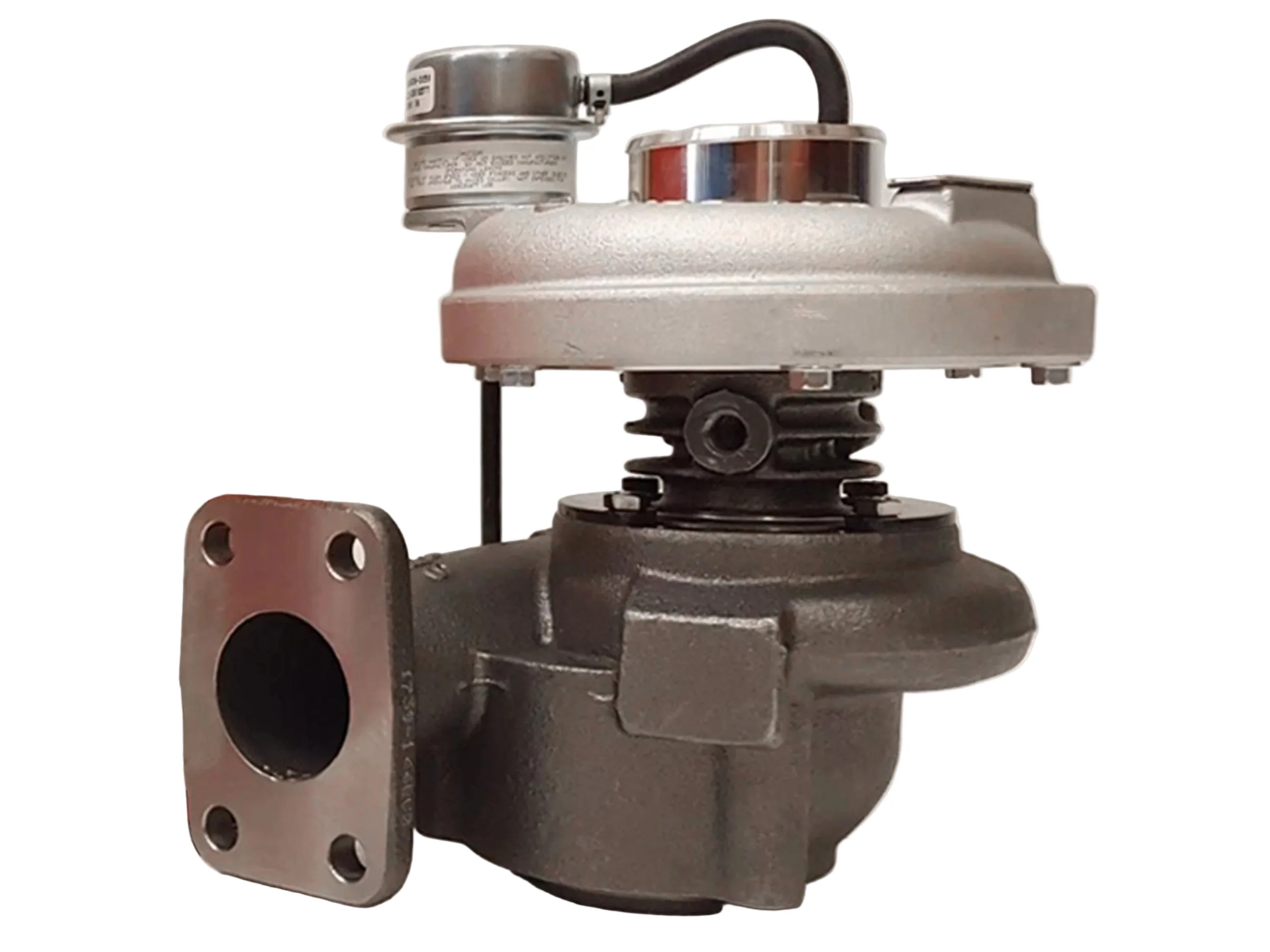

NEW Garrett GT2556S Turbo Forklift Loader Perkins Mechanical Fueling 785827-5017

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 785827-5017
Interchangeable Number: 768524-0017, 785827-0017, 785827-5017
OEM Number: 2674A822
Turbo Model: GT2556S
Brand: Honeywell-Garrett

Engine: EPA Tier 3 Mechanical Fueling
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Fuel: Diesel
Power: 68/74.5/101 kW
Speed: 2200 RPM

Angle α (Compressor Housing): 85°
Angle β (Turbine Housing): 197°
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(1102015450)(Oil Cooled)
Turbine Wheel: 434717-0049 (434717-0013)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades)
Compressor Wheel: 436563-0010 (436563-0003)(Ind. 37.61 mm, Exd. 56.03 mm, 6+6 Blades, Super Back)
Back Plate: 703682-0189
CHRA: 433289-0425 (433289-5425S)(1102025902)
Heat Shield: 434686-0001
Turbine Housing: 711739-0001
Compressor Cover: 768981-0022
Wastegate Settings (Pressure): 1.200-1.260 bar
Wastegate Settings (Lift Shaft): 1.00 mm
Gasket (Turbine Inlet): 210658 (Inox Steel)
Gasket (Oil Outlet): 210553 (Paper)

Application:
2007- Perkins Forklift Truck, Backhoe Loaders, Various with EPA Tier 3 Mechanical Fueling Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
