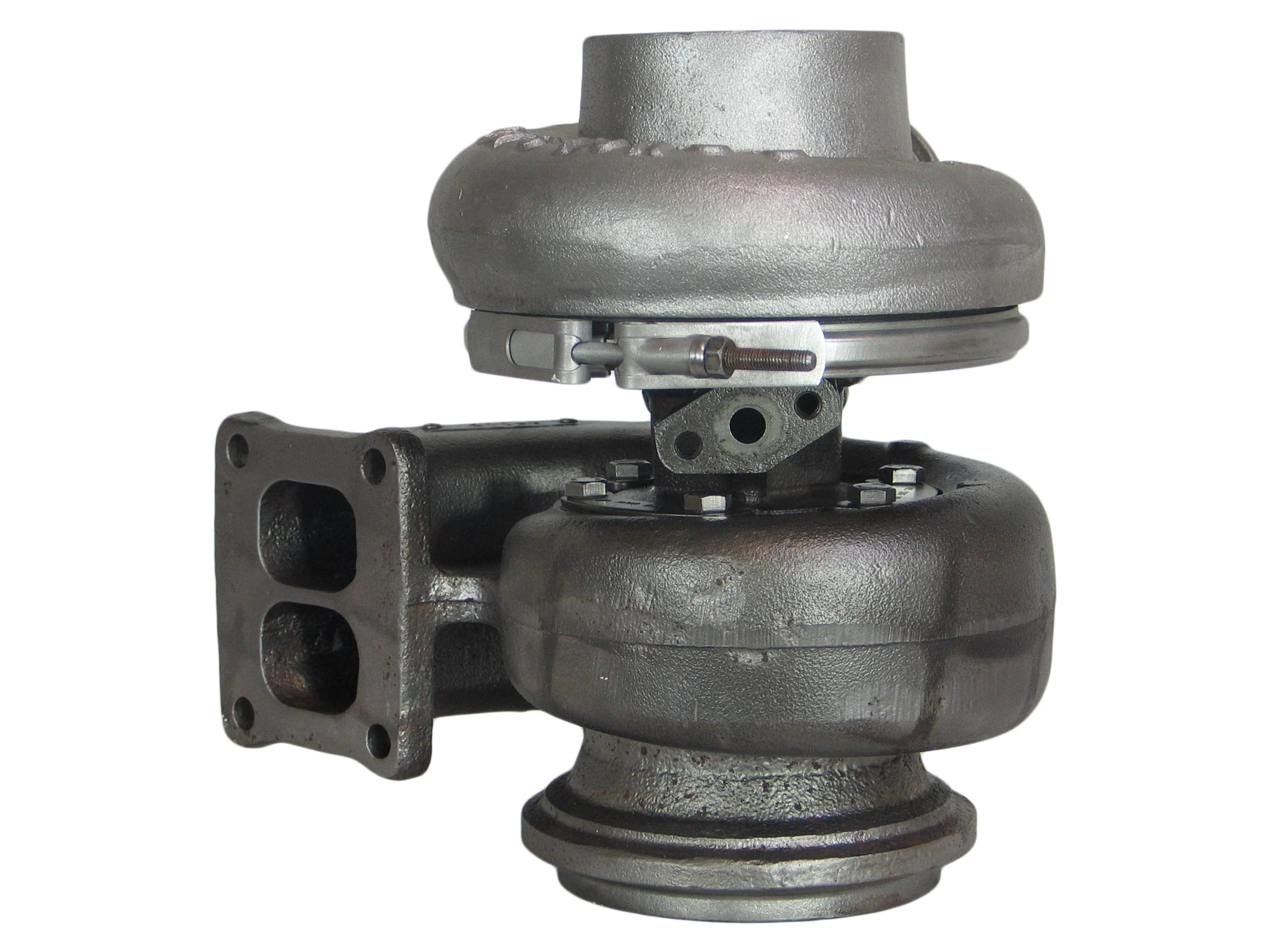

HX50 Turbocharger Freightliner Cummins L10 MV1 Diesel Engine 3803711 3532943

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 3532943
Interchangeable Number: 3531311, 3531465, 3531570, 3531594, 3531596, 3531623, 3532943RX, 3532944
OEM Number: 3803711
Turbo Model: HX50, HX50-E9871BH/X22Q11

Year: 1991-
Engine: MV1, L MV1, CV, 94 L10 MV1
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3533195
CHRA: 3580725
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 99 mm, Trim 46, 7+7 Blades)
Gasket (Oil Outlet): 311496 210021 (148062, 311496)
Gasket (Turbine Inlet): 409123-0002 (310694)
Gasket Kit: 3545576 (1900100058)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3545997/3575015 (1153050751)(4027045)
Turbine Wheel: 3531763 (Ind. 86.5 mm, Exd. 77 mm, 12 Blades)

Application:
1991- Freightliner with Cummins L10 MV1 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
