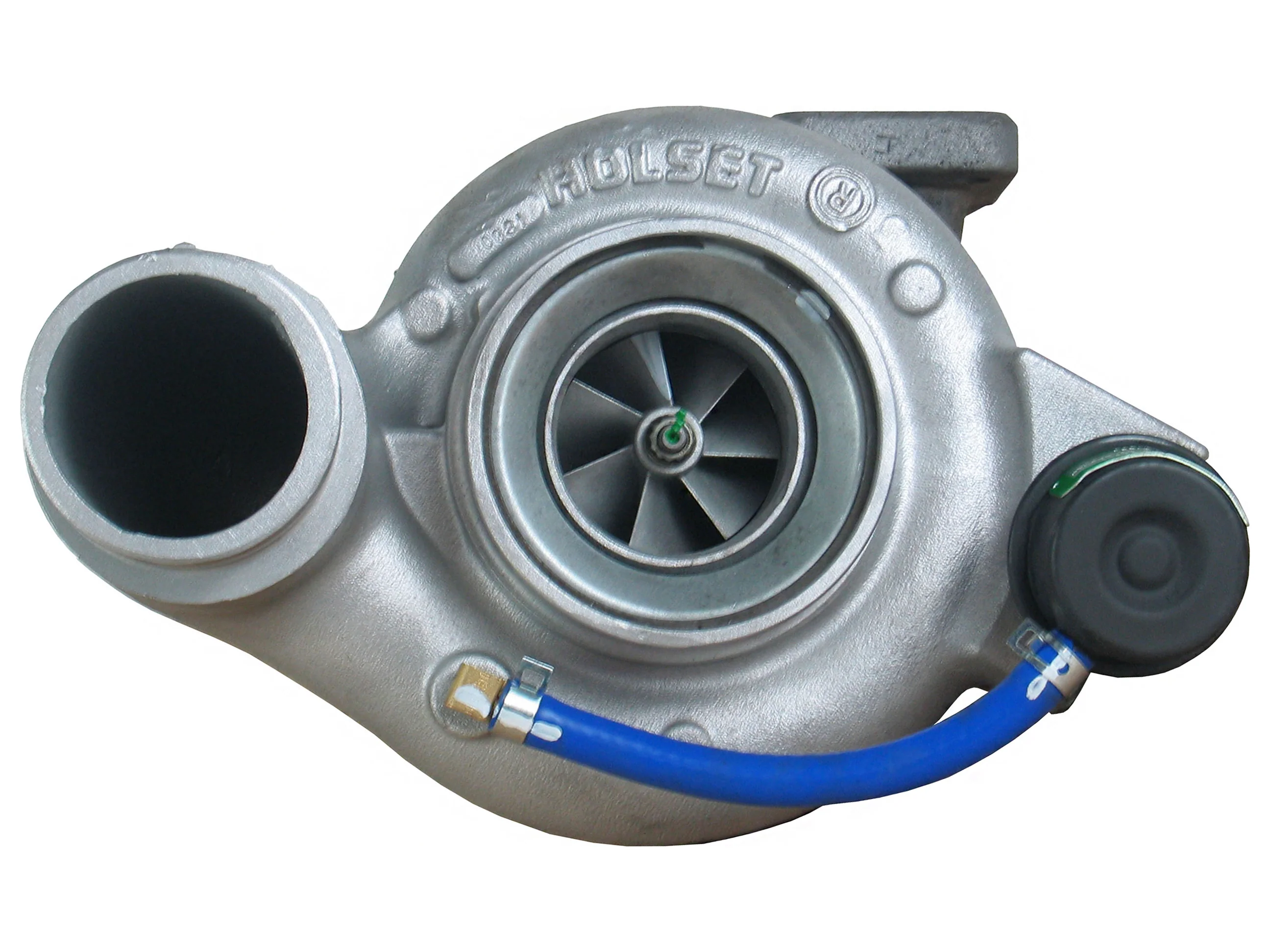

HY35W Turbo Dodge Truck Chrysler Bus Cummins ISB 6.7L Diesel 3599811 4035044

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: There is a core charge of $300 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 4035044
Interchangeable Number: 3593075, 3593076, 3599810, 3599867, 4033667H, 4044050, 4044051H, 4089392, 408939200, 4089392NX, 4089392RX
OEM Number: 3599811, 4033667, 4044051, 4955452, 5086863, 5086863AA, 5086863AB, R5086863, R5086863AA, R5086863AB
Turbo Model: HY35W-E7765AX/P09TXX35, HY35W

Year: 2003-04
Engine: ISB, 6B MY03
Engine Manufacturer: Cummins
Displacement: 6.7L
Fuel: Diesel

Angle α (Compressor Housing): 225°
Angle β (Turbine Housing): 165°
Actuator: 3597785
Back Plate: 3530923 (3530923H)(1154351300)
Bearing Housing: 4031486 (4040124)(Oil Cooled)(1154035450)
CHRA: 4031485 (403148500, 4031485H)(1154035900)
Compressor Wheel: 3532309 (Ind. 56.03 mm, Exd. 76.6 mm, Trim 5.84, 7+7 Blades, Super Back)
Heat Shield: 3519302 (1152301340)
Repair Kit: 4031484 (1154351751)
Turbine Wheel: 4035271 (Ind. 65.5 mm, Exd. 57.96 mm, Trim 10.4, 12 Blades)(1154351435)
Wastegate Settings (Lift Rod): 0 mm
Wastegate Settings (Pressure): 1.750 bar

Application:
2003-04 Dodge Ram 2500, 3500 Truck with Cummins ISB Engine
Chrysler Bus with Cummins ISB Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
