HX25 Turbocharger Iveco TAA TC NEF Engine 4045361 Turbo

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

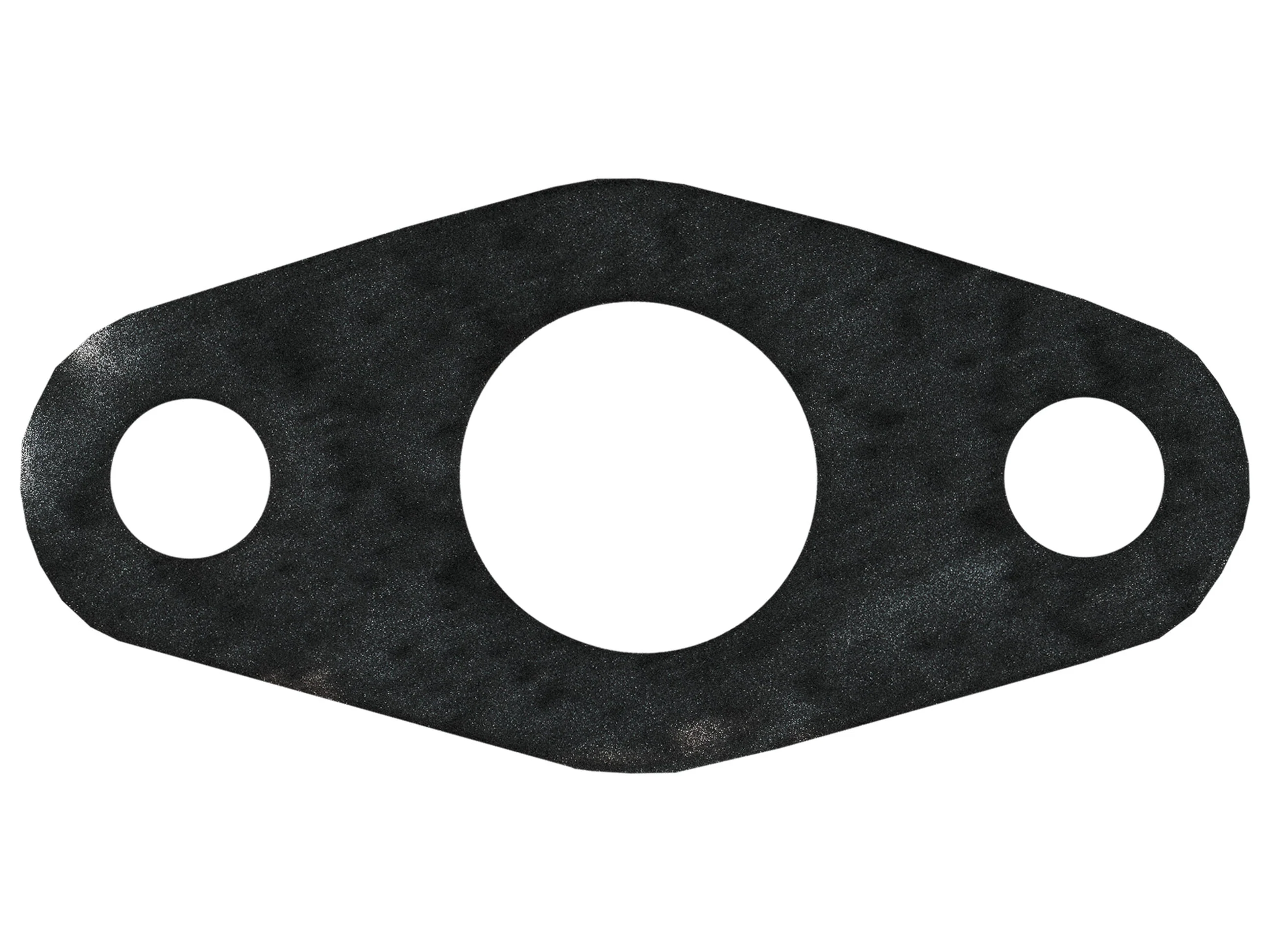

NOTE: This turbocharger package also comes with the gasket.

Fits the following:

Part Number: 4045361
Interchangeable Number: 4033415H, 4045362
OEM Number: 504225294
Turbo Model: HX25

Year: 2006-11
Engine: NEF
Fuel: Diesel
Power: 84-126 HP

Angle α (Compressor Housing): 285°
Angle β (Turbine Housing): 345°
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket Paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: (1153025751)
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)

Application:
2006-11 Iveco TAA/TC with NEF Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
