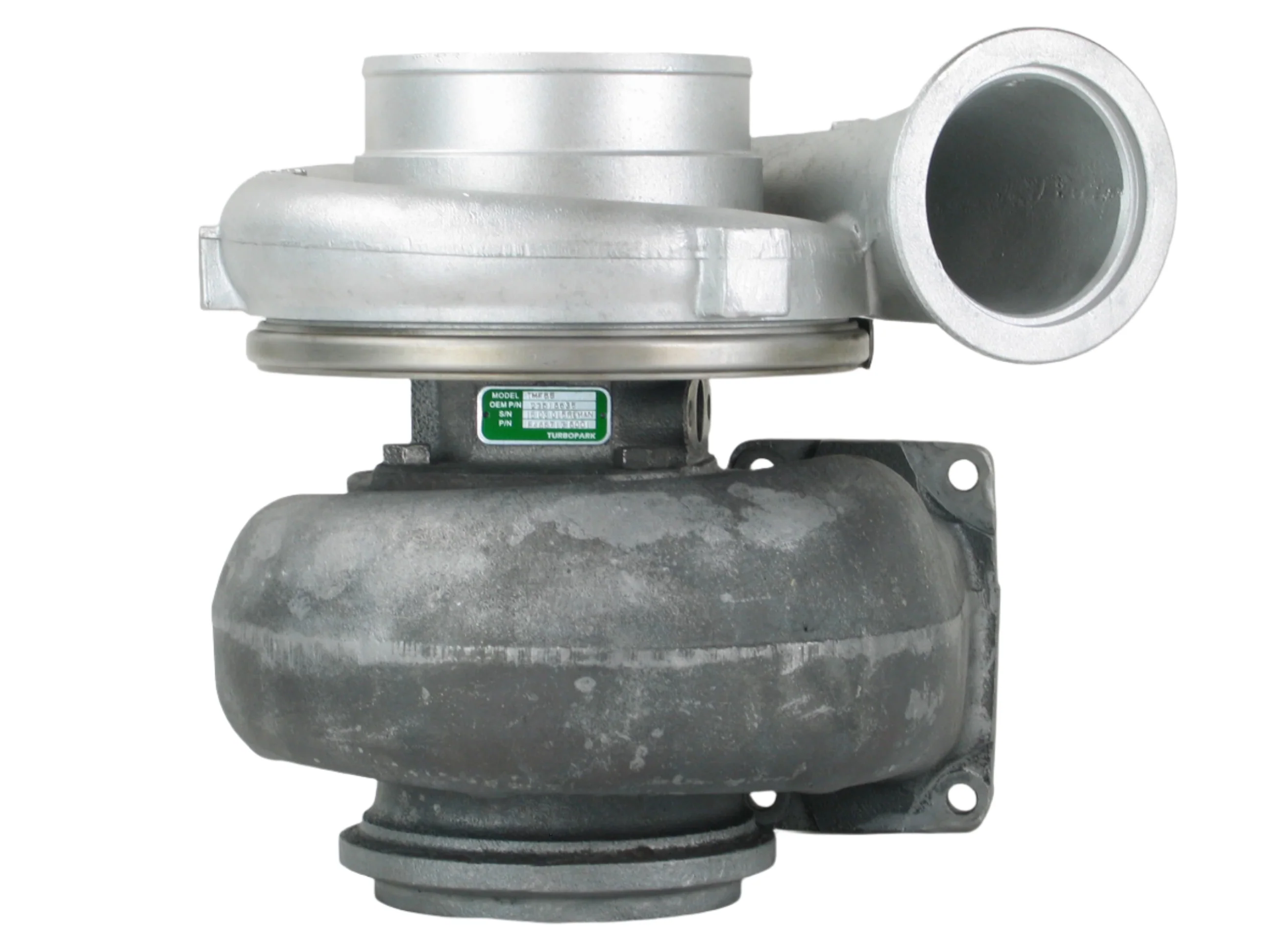

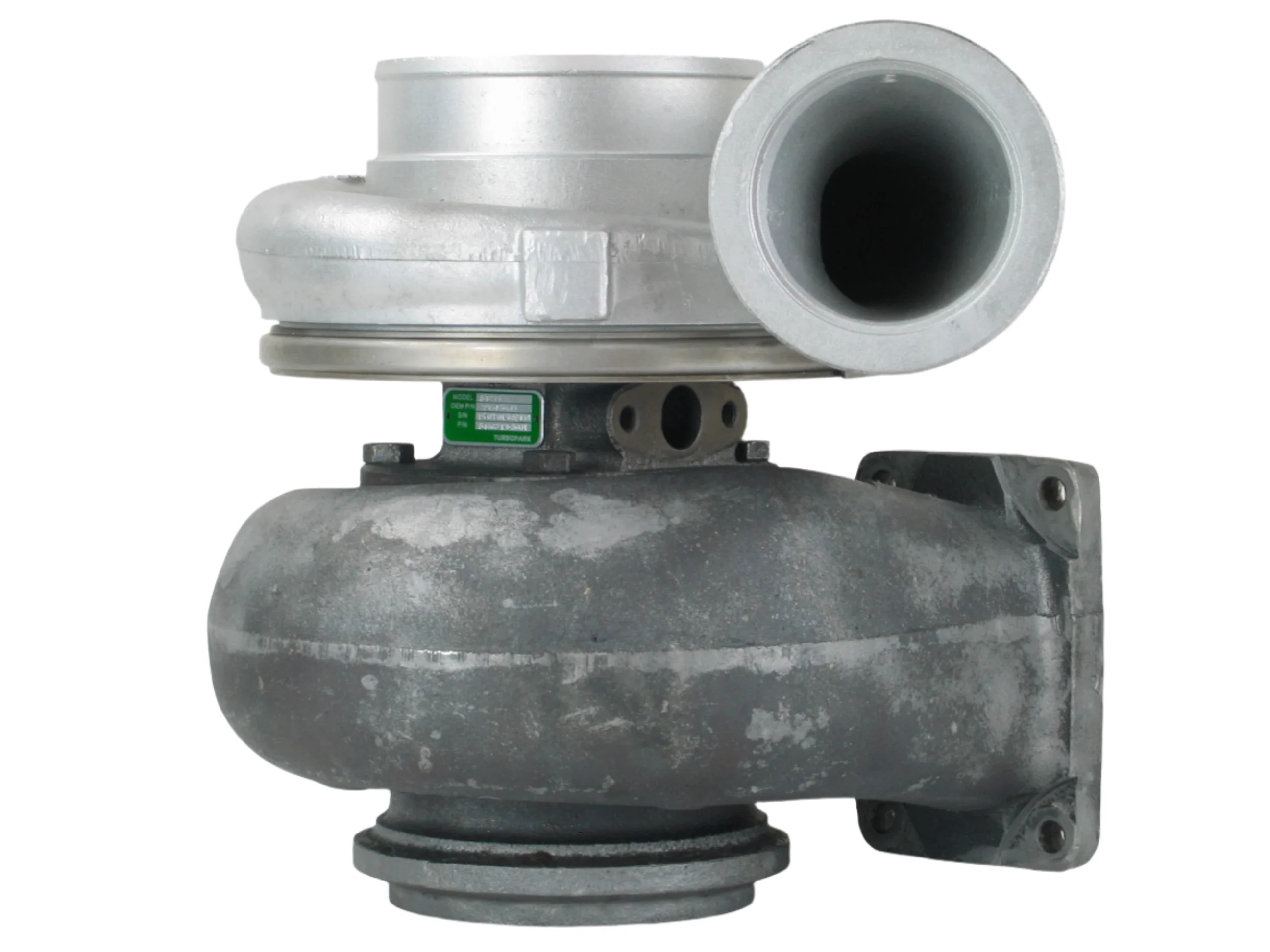

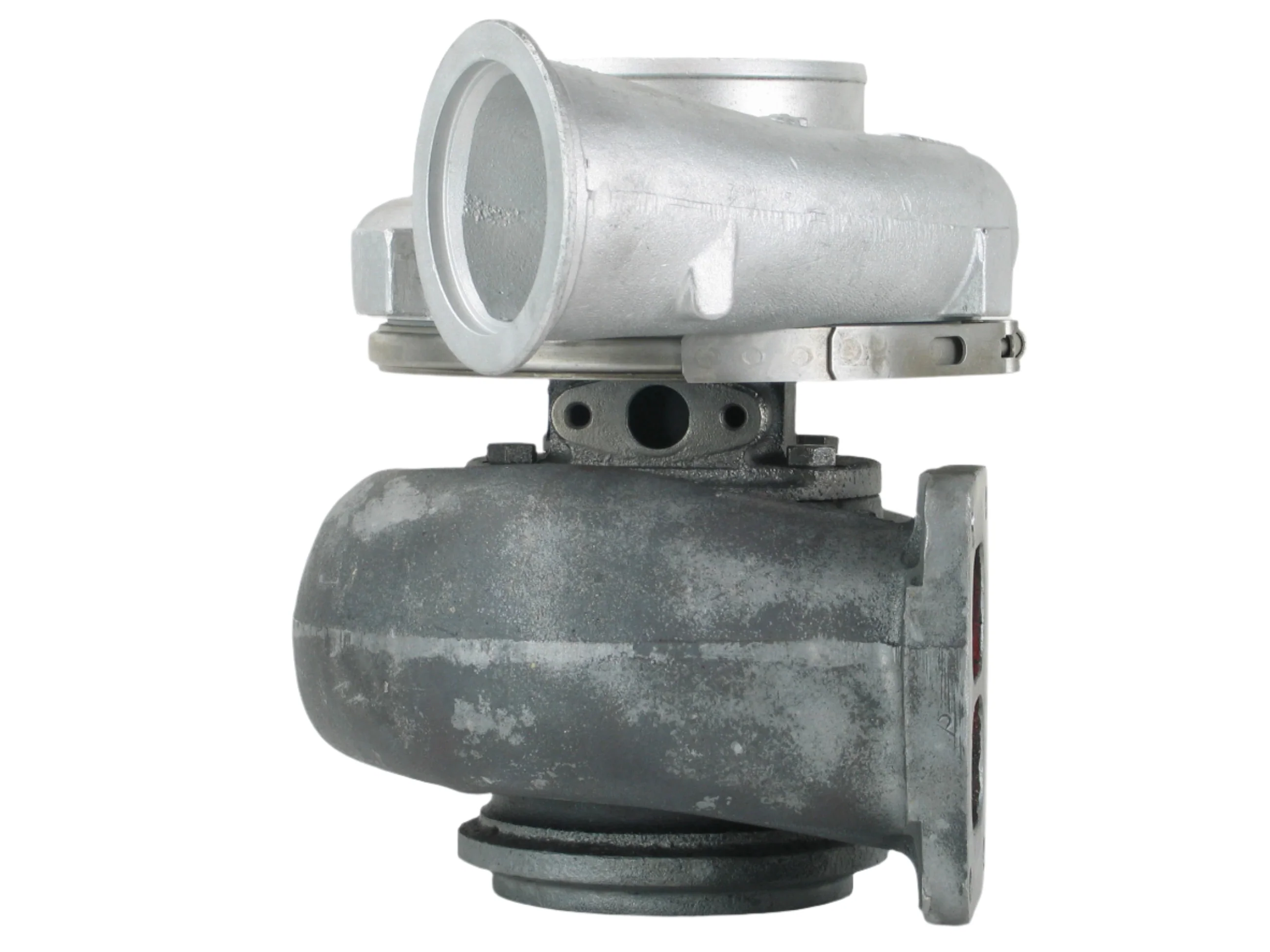

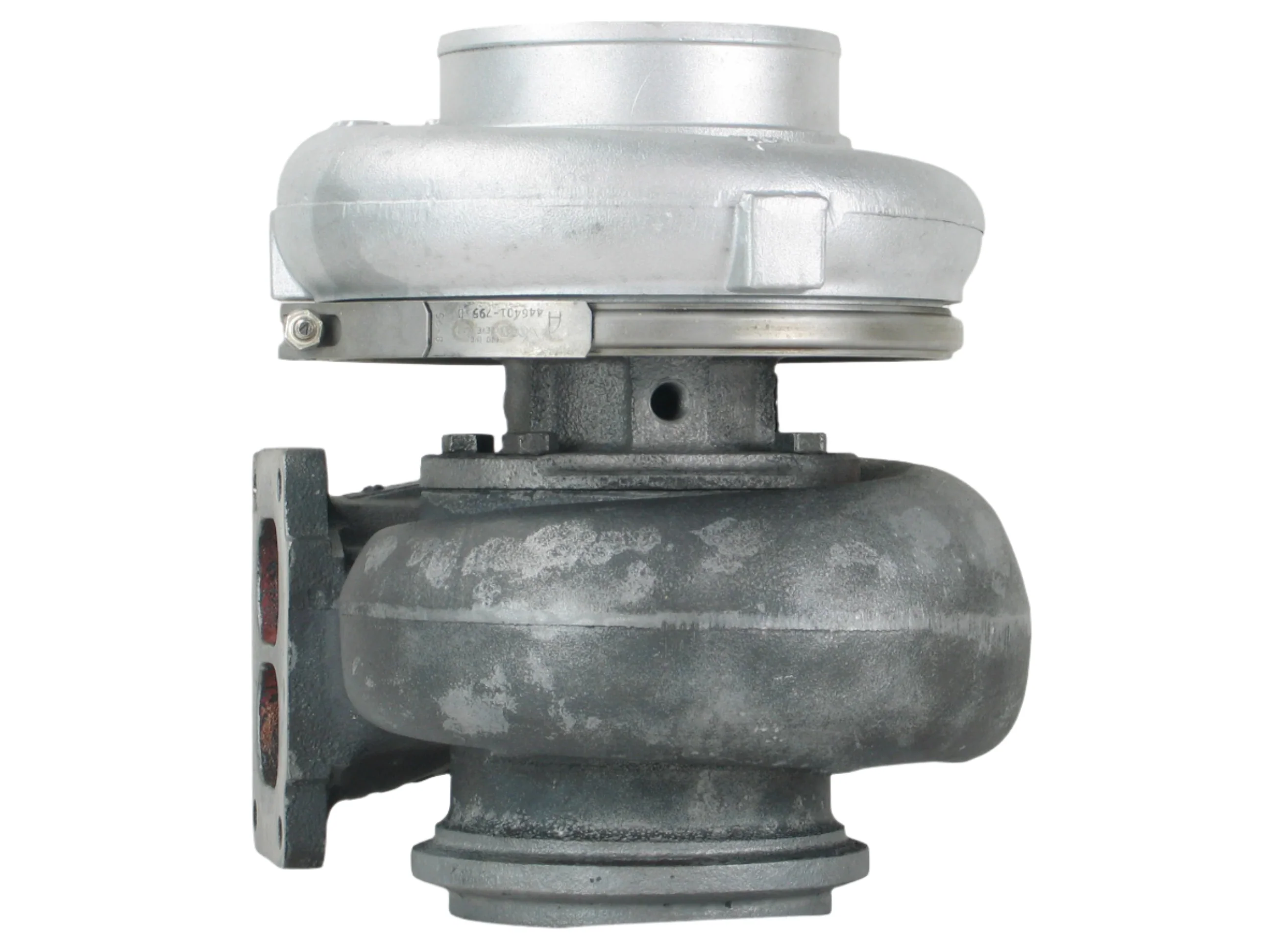

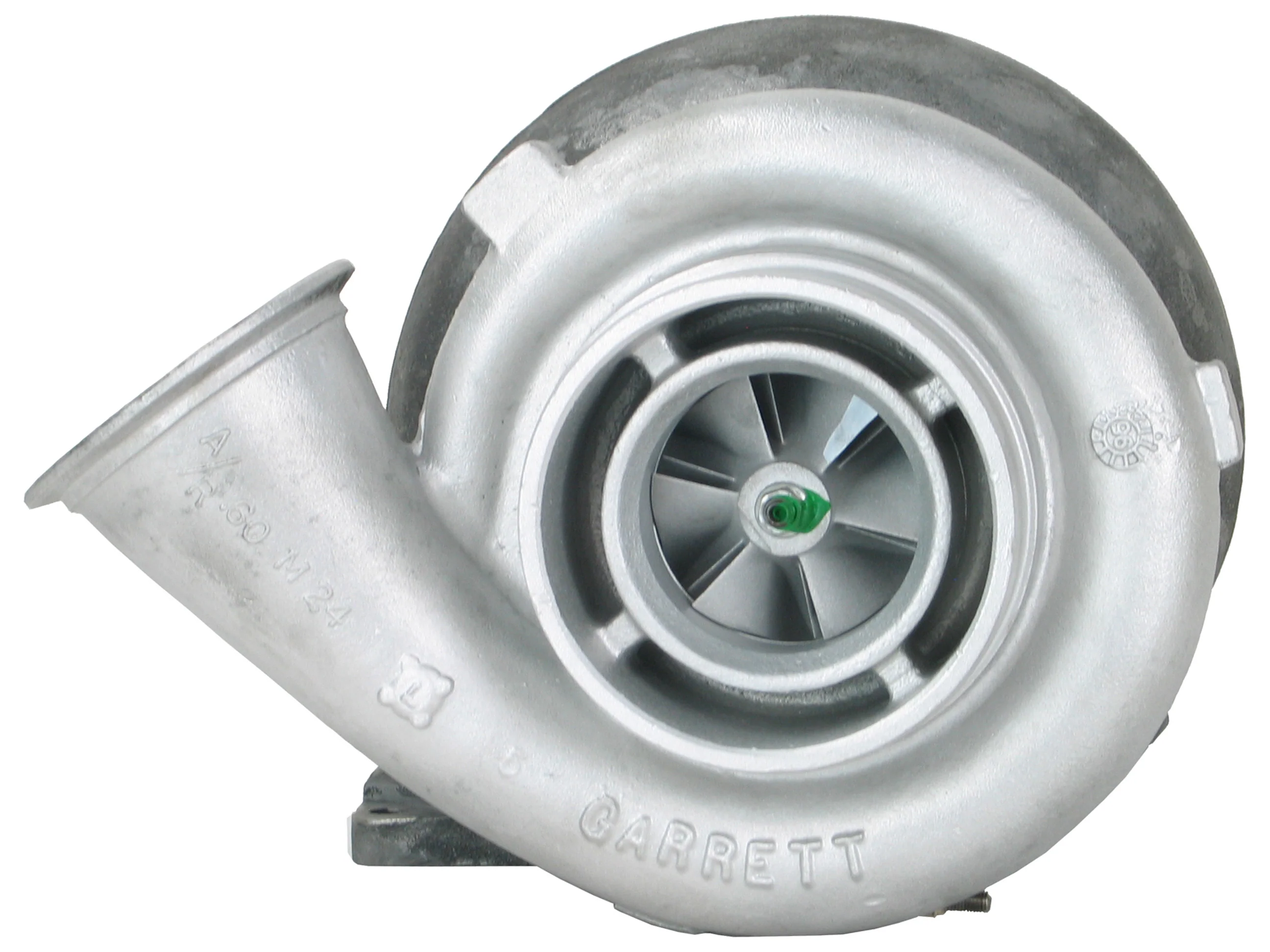

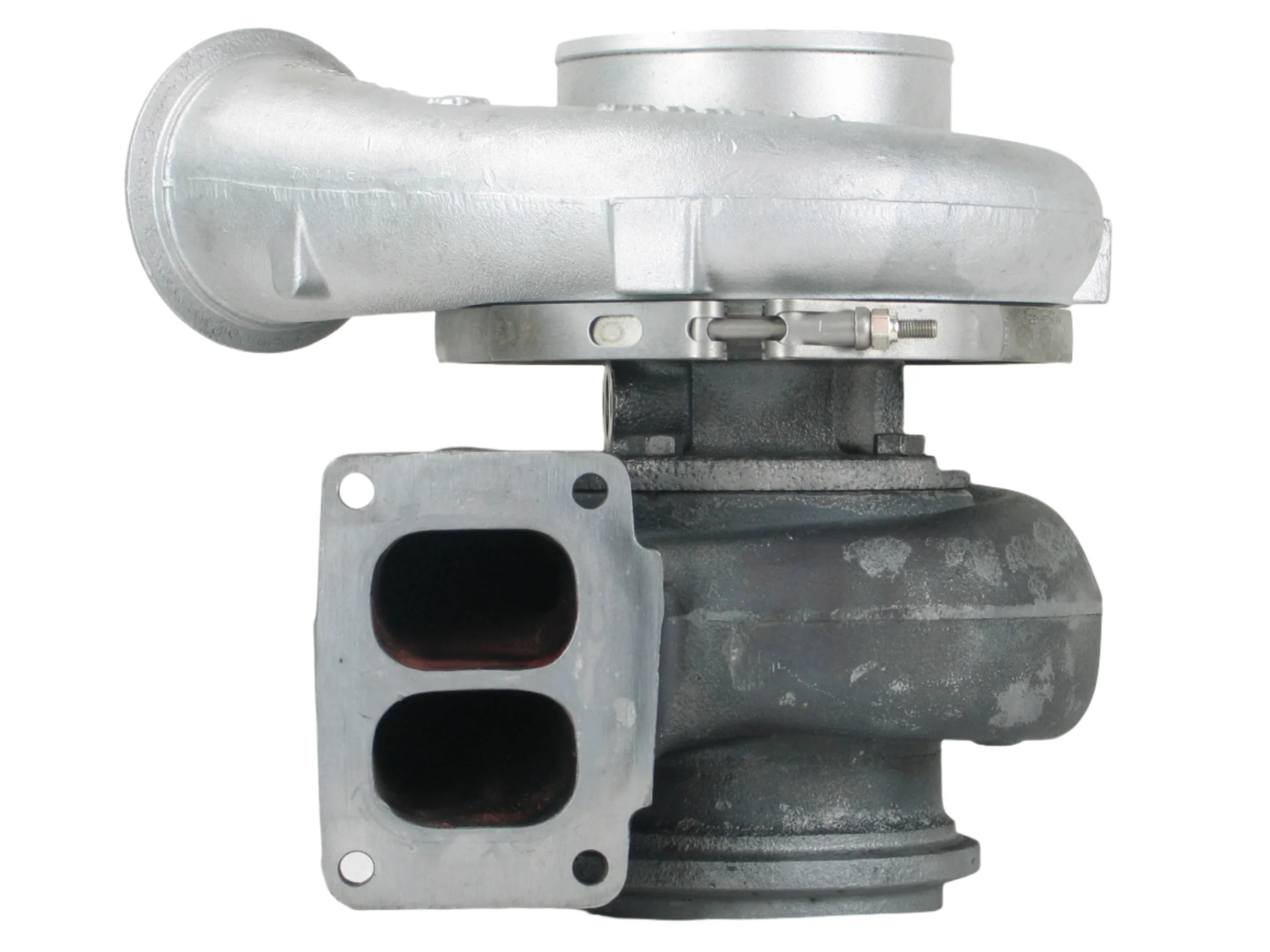

TMF5502 Turbo Truck Detroit Diesel Series 60 12.7L Engine 23515635 466713-5001

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 466713-5001
Interchangeable Number: 466713-0001, 466713-5001S
OEM Number: 23515635
Turbo Model: TMF5502

Year: 1994-
Engine: Series 60
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 12.7L, 12700 ccm, 6 Cylinders
Fuel: Diesel
Power: 380 kW/470 HP
Speed: 2100 RPM

Angle α (Compressor Housing): 338°
Angle β (Turbine Housing): 270°
Back Plate: 449382-0005 (1300016077)
Bearing Housing: 449168-0001 (1900011207)
CHRA: 444964-0002 (444964-5002S, 23515637)(1000010527)
Compressor Cover: 447844-0005 (23515638)
Compressor Wheel: 447407-0004 (Ind. 72.4 mm, Exd. 102.3 mm, Trim 50, 6+6 Blades)(1200016639)
Gasket (Oil Outlet): 210060 (311585, 148062)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002)
Gasket Kit: 215480
Heat Shield: 446864-0001 (2030016096)
Repair Kit: 468262-0002 (23514027)(1102045750)
Turbine Housing A/R: 1.34
Turbine Housing: 444686-0015 (23516928)
Turbine Wheel: 447889-0001 (Ind. 82 mm, Exd. 104.4 mm, 9 Blades)(1100016452)
Turbo Technology: Mixed-Flow Turbine

Application:
1994- Truck with Detroit Diesel Series 60 Engine
Perlini 131.33 Off-Highway and Power Units with Detroit Diesel Series 60 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
