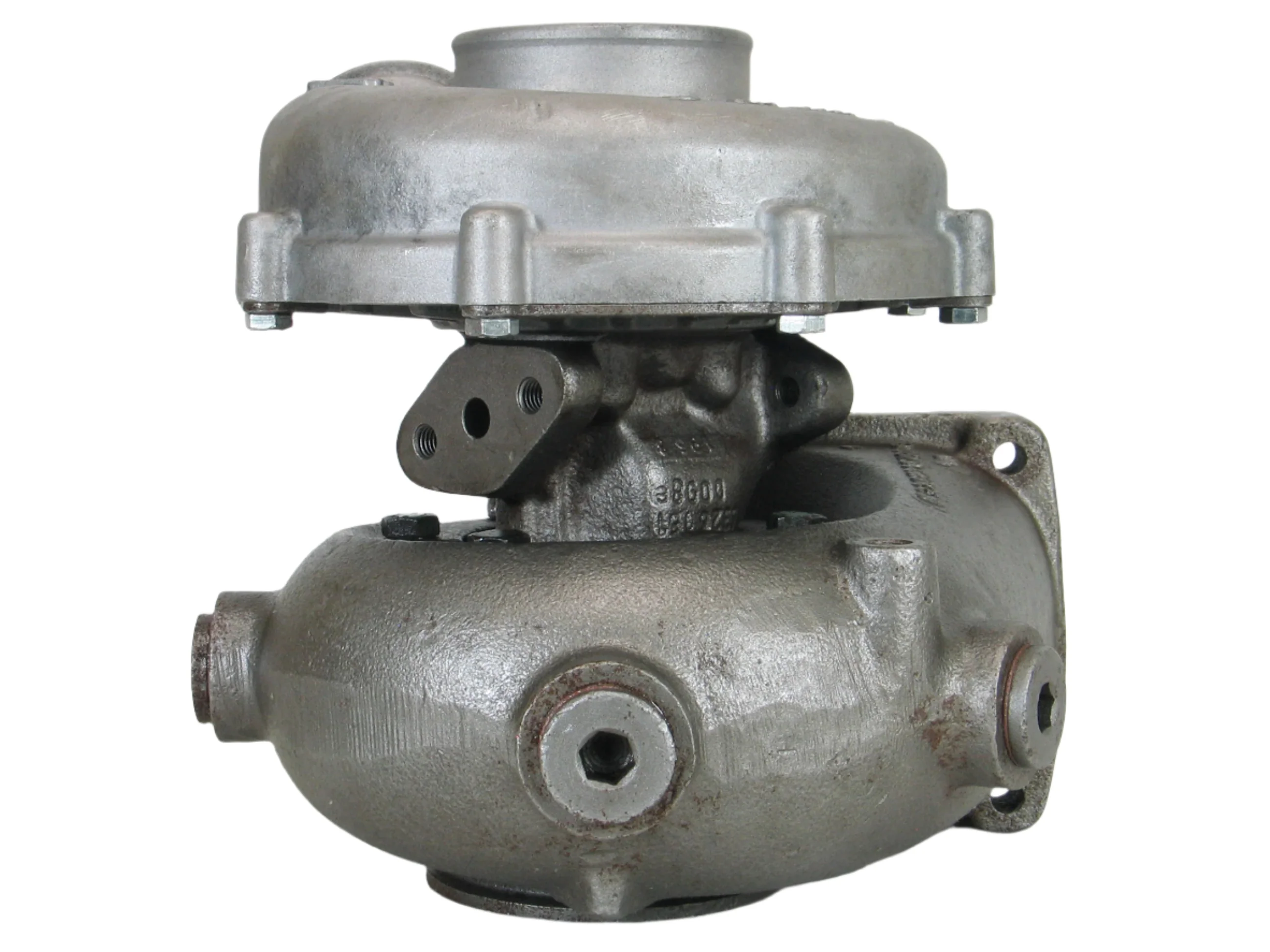

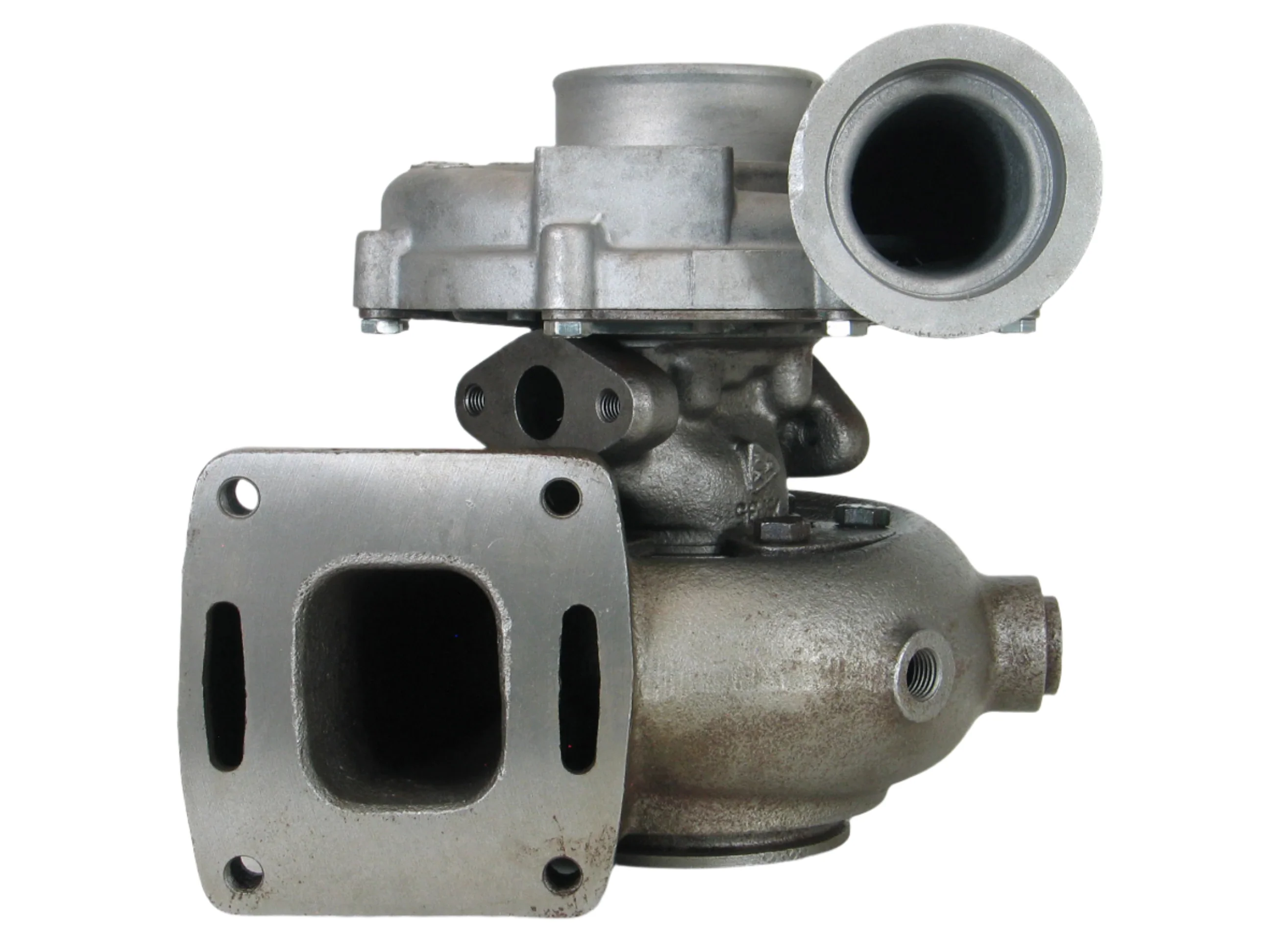

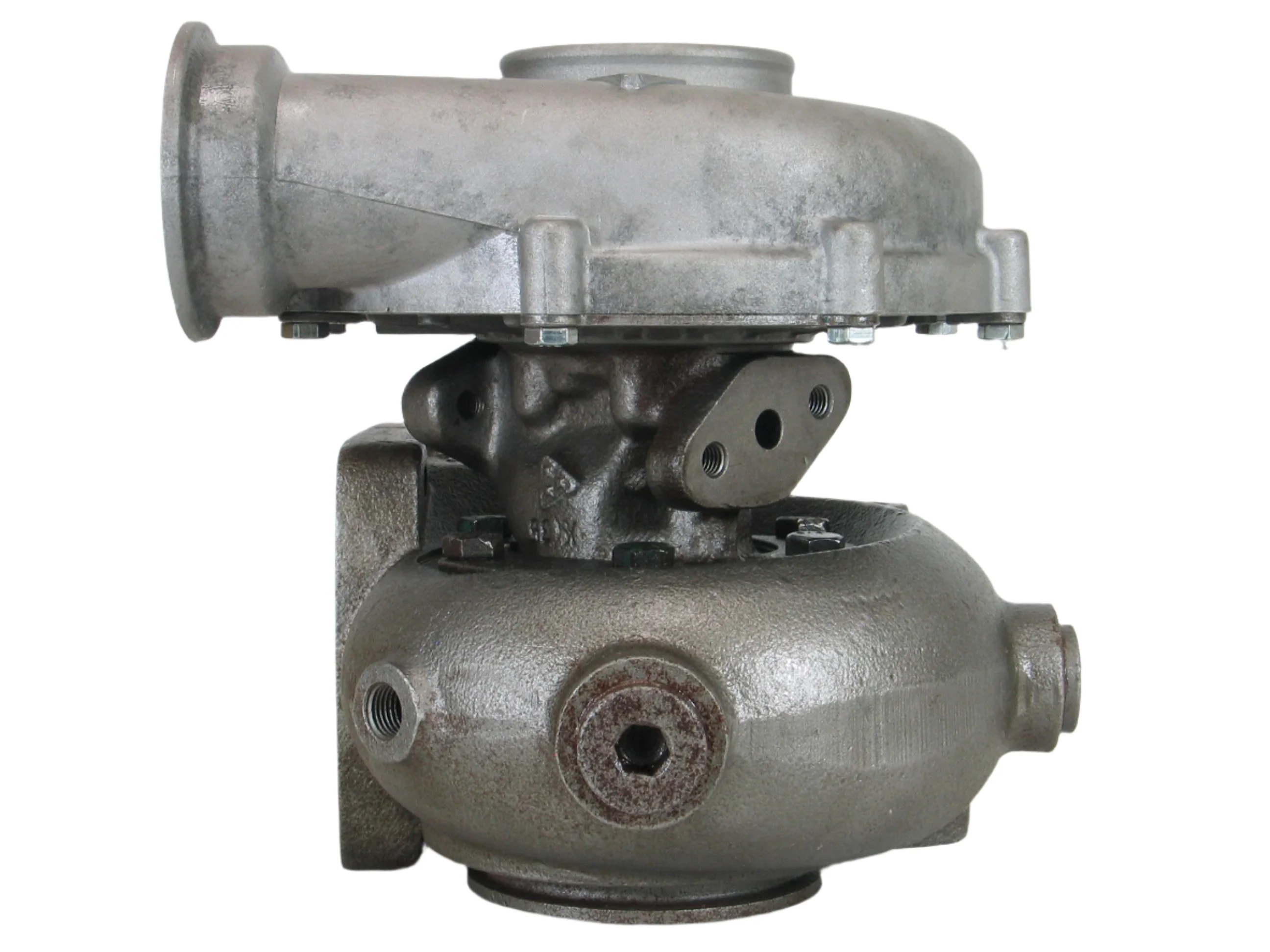

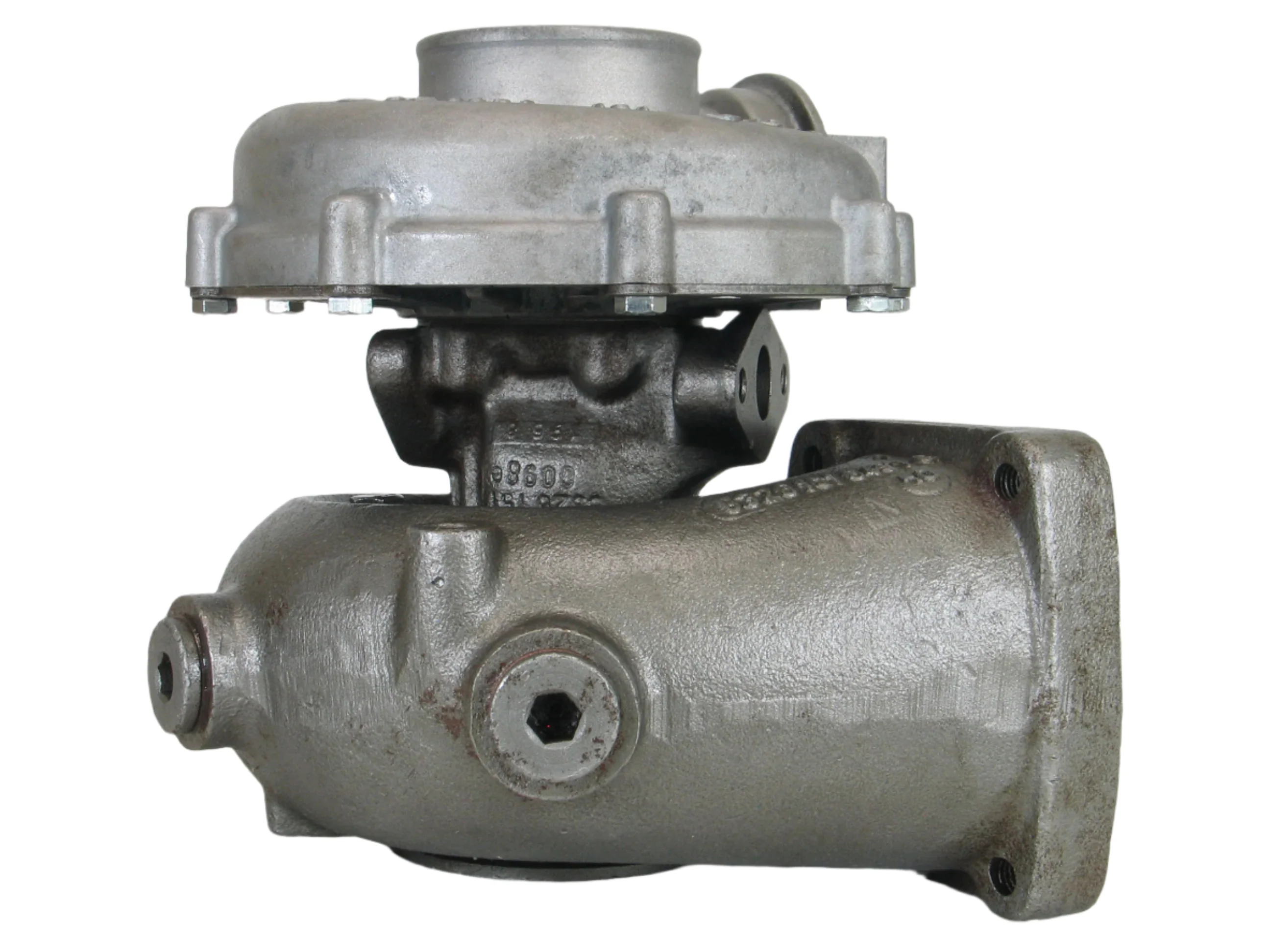

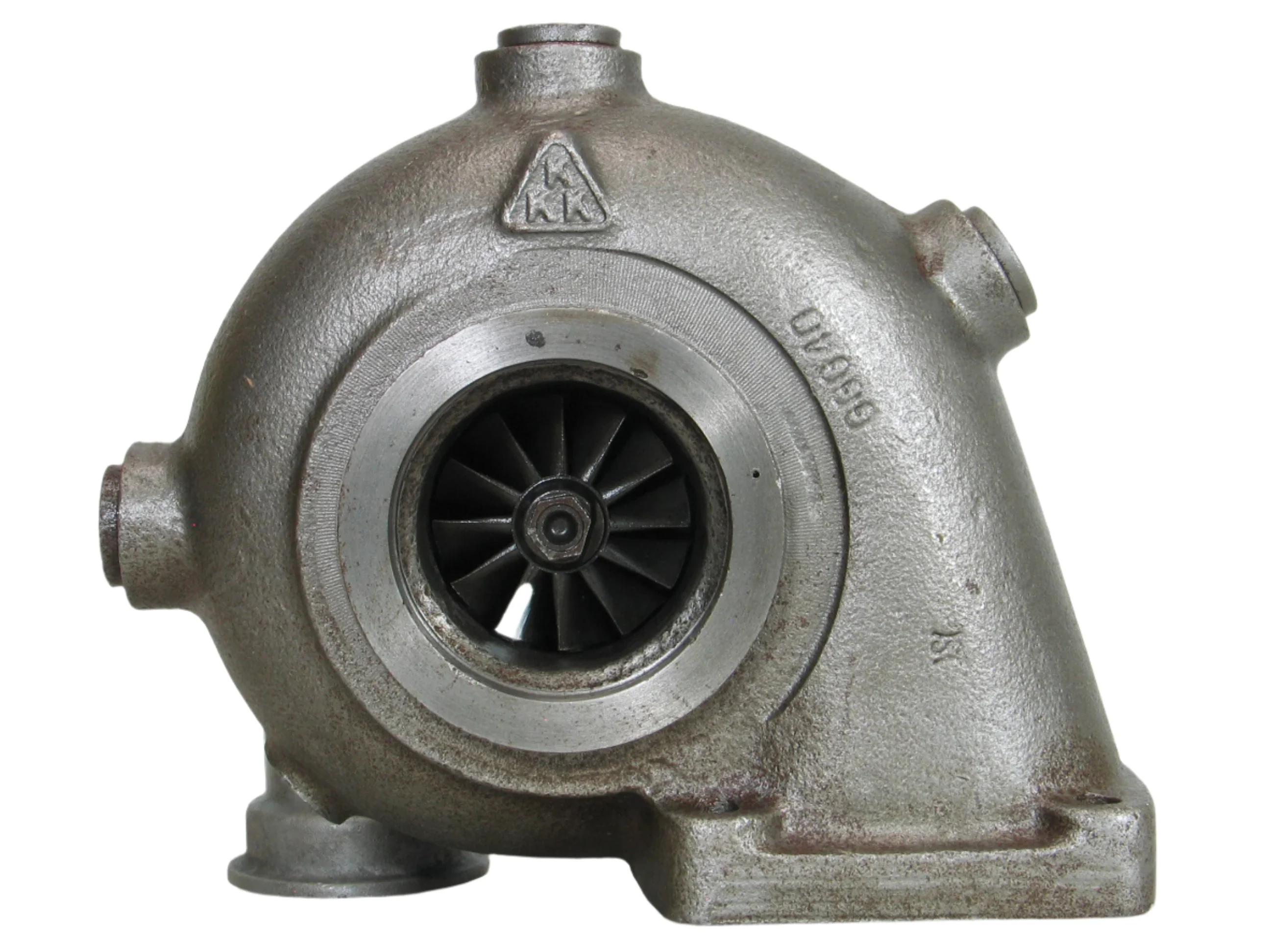

K26 Turbo Volvo Penta Marine Ship AD41 AD41B TAMD41 TMD41 3.59L 53269886290

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 53269886290
Interchangeable Number: 5326-988-6290, 5326 988 6290, 53269706290, 5326-970-6290, 5326 970 6290
OEM Number: 3802061, 838697, 860918
Turbo Model: K26, K26-3262MAA10.71GAAXB

Year: 1986-
Engine: AD41, AD41B, D41B, TAMD41, TAMD41B, TMD41, TMD41B
Displacement: 3.59L, 3590 ccm
Power: 110/145 kW, 150/197 HP
Speed: 3600 RPM

Angle α (Compressor Housing): 43°
Angle β (Turbine Housing): 315°
Back Plate: 53271515738 (53271515739)
Bearing Housing: 53241500004 (858705)(Oil Cooled)
CHRA: 53267100067 (5326-710-0067, 5326-710-0058, 5326-710-0046)
Compressor Cover: 53271015226 (53271015106)
Compressor Wheel: 53271232227 (53271232035, 53271232217)(313713)(Ind. 50.15 mm, Exd. 81 mm, Trim 9.5, 7+7 Blades)(1301027425, 1200016225)
Gasket (Oil Inlet): 210023 (409036-0000, 210023-0000, 55739, 147837)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 210294 (Inox Steel)(Marine)
Heat Shield: 53261652005 (53261652007)(858668)
Repair Kit: 53267110039 (53267110040, 53267110001)(1301026751, 1301026752)
Turbine Housing (water-cooled): 53261006429 (53261006418)
Turbine Housing A/R: 6.0
Turbine Wheel: 53261202124 (53261205001)(Ind. 64.54 mm, Exd. 54.54 mm, Trim 10.1, 12 Blades)(1301026436, 1100016486)

Application:
1986- Volvo Penta Marine, Ship with AD41, TAMD41, TMD41 Engine
1989-93 Volvo Penta Marine, Ship with AD41B Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
