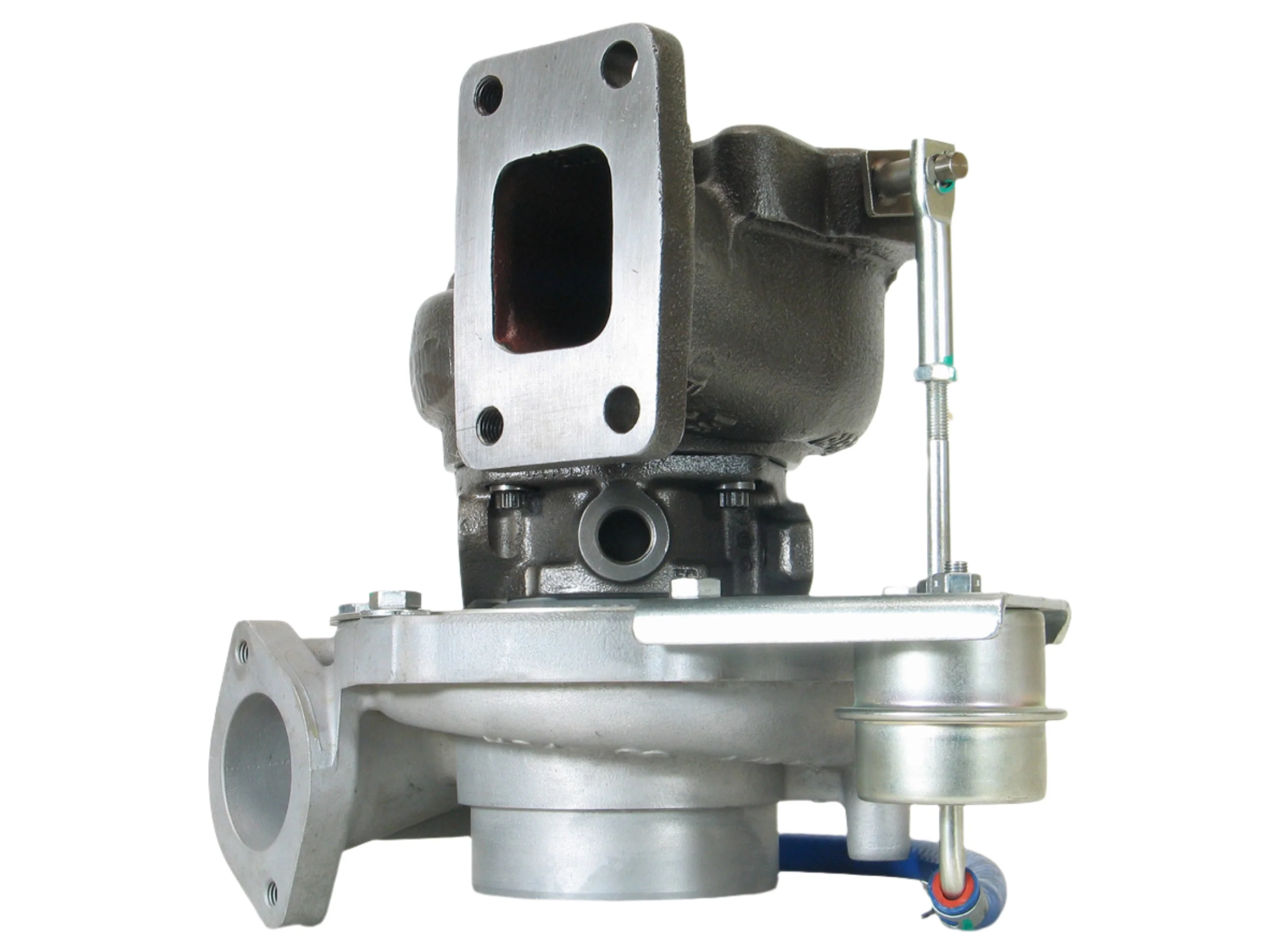

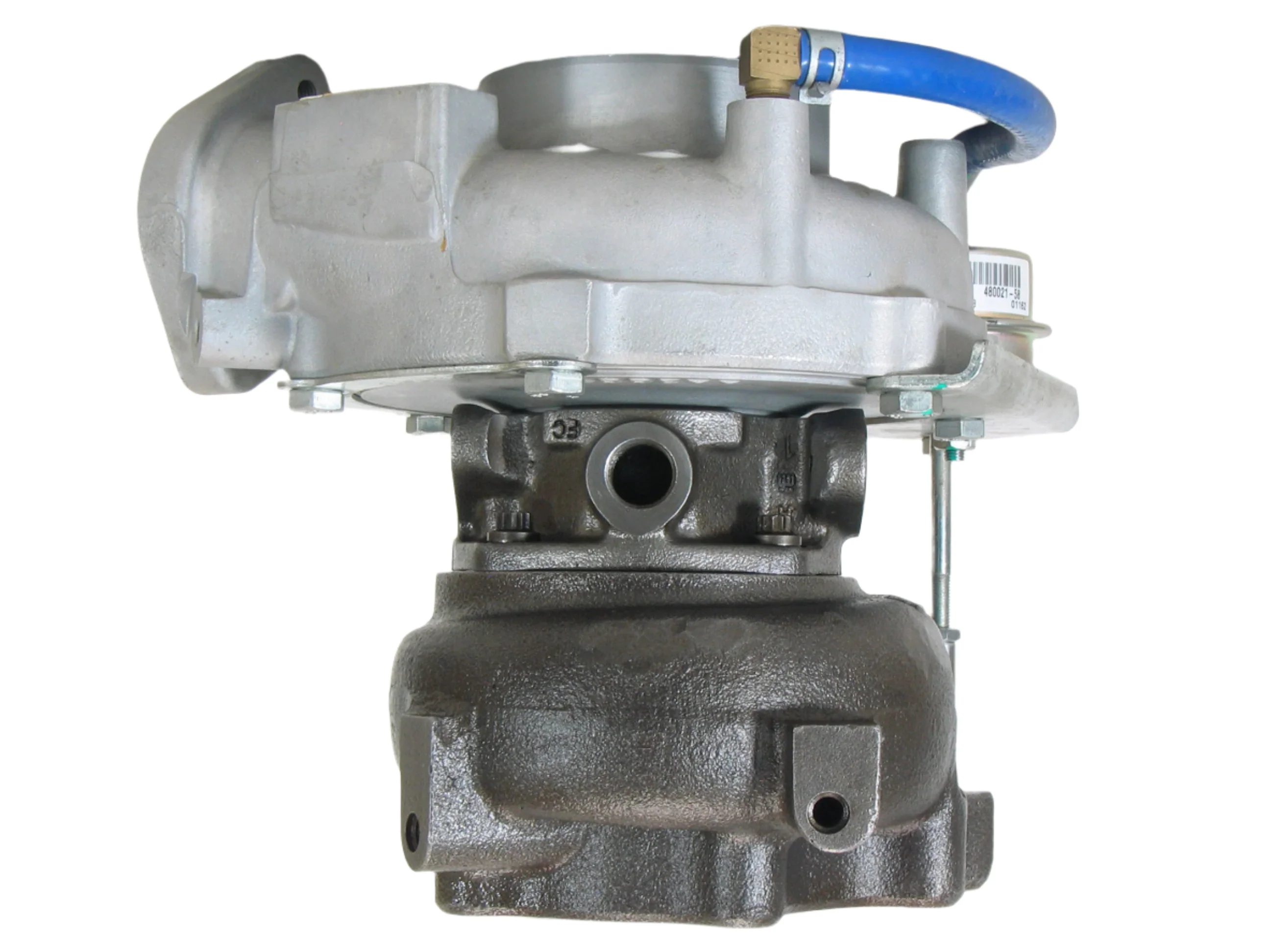

GT32 Turbo Kobelco Construction Equipment Excavator J08E 7.7L Diesel 764247-5001

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Note: The price includes $150.00 refundable core rebate.

Fits the following:

Part Number: 764247-5001
Interchangeable Number: 764247-0001, 764247-5001S, 787846-0001, 787846-5001, 787846-5001S
OEM Number: 24100-4640A, 241004640A, S1760-E0200, S1760E0200
Turbo Model: GT3271LS

Year: 2005-
Engine: J08E
Engine Manufacturer: Hino
Displacement: 7.7L, 7700 ccm, 6 Cylinders
Fuel: Diesel
Power: 177 HP
Speed: 2100 RPM

Angle α (Compressor Housing): 230°
Angle β (Turbine Housing): 285°
Actuation: Pneumatic
Actuator: 480021-0058
Back Plate: 3530923 (1154351300)
Bearing Housing: 479822-0008
CHRA: 700267-0009 (700267-5009S)
Compressor Cover: 733916-0169
Compressor Wheel: 434244-0015 (Ind. 40.06 mm, Exd. 70.97 mm, Trim 32, 6+6 Blades, Super Back)
Heat Shield: 447553-0006
Repair Kit: 709147-0001 (1102032750)
Turbine Housing: 447685-0113
Turbine Wheel: 480231-0002 (Ind. 62 mm, Exd. 54.5 mm, 10 Blades)
Turbo Technology: Wastegate
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 1.767-1.883 bar

Application:
2005- Kobelco Construction Equipment with J08E Engine
2005- Kobelco SK350LC-8, SK330-8 Hydraulic Excavator with J08E Engine
UD Trucks with J08E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
