NEW GTP38 Turbo Billet Compressor Wheel Ford Truck 7.3L Powerstroke MFS3813C

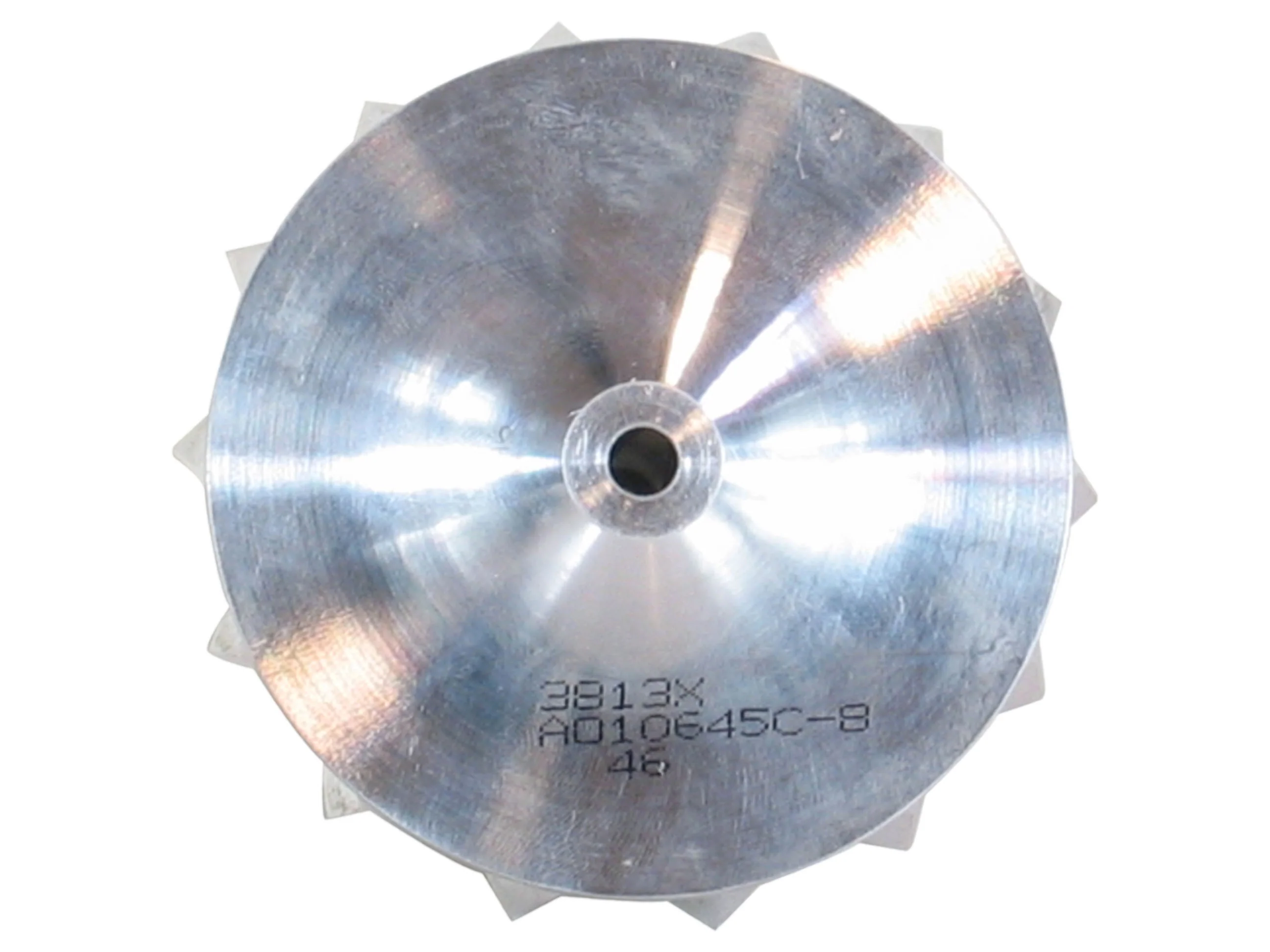

BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL

This is a BRAND NEW TURBOCHARGER BILLET COMPRESSOR WHEEL. This is an exact, direct fit replacement turbo compressor wheel.

Fits the following:

Part Number: MFS3813C
Interchangeable Number: 703697-0001, 170293
Description: Billet Compressor Wheel
Brand: KTS

BCCW Blades: 7+7
Nose Diameter: 15.47 mm
KTS Inducer: 59.87 mm
KTS Base Exducer: 80.07 mm
KTS Tapered Tip Exducer: 86.22 mm
KTS Tip Height: 6.33 mm
Superback: 4.94 mm
Overall Height: 46.80 mm
Bore Size: 6.35 mm
Trailing Angle: 60°
Cutback: 0 mm
SP Height Angle: -4.70°
BCCW Blade Height: 30.63 mm
Splitter Height: 21.35 mm
Tapered Tip Angle: 30°

Racing or Non-Racing: Racing
STD or Custom Size: STD
Bore Type: Threaded-1/4-28G-RHT
OE or Custom Compressor House Fitment: OE
Rotation: Reverse

Fit for Turbo Part Numbers:
702650-0005, 702650-5005, 702650-5005S, 449677-0001 thru -0004, 451975-0009 thru -0012, 702010-0005 thru -0009, 713980-0001, 739624-0001, 739624-0002

Fit for OEM Numbers:
1825878C91, 1825878C92

Fit for Turbo Models:
GTP38

Fit for Applications:
1994-03 Ford Truck, F250, F350, F-Series, Excursion with 7.3L Navistar Power stroke Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
