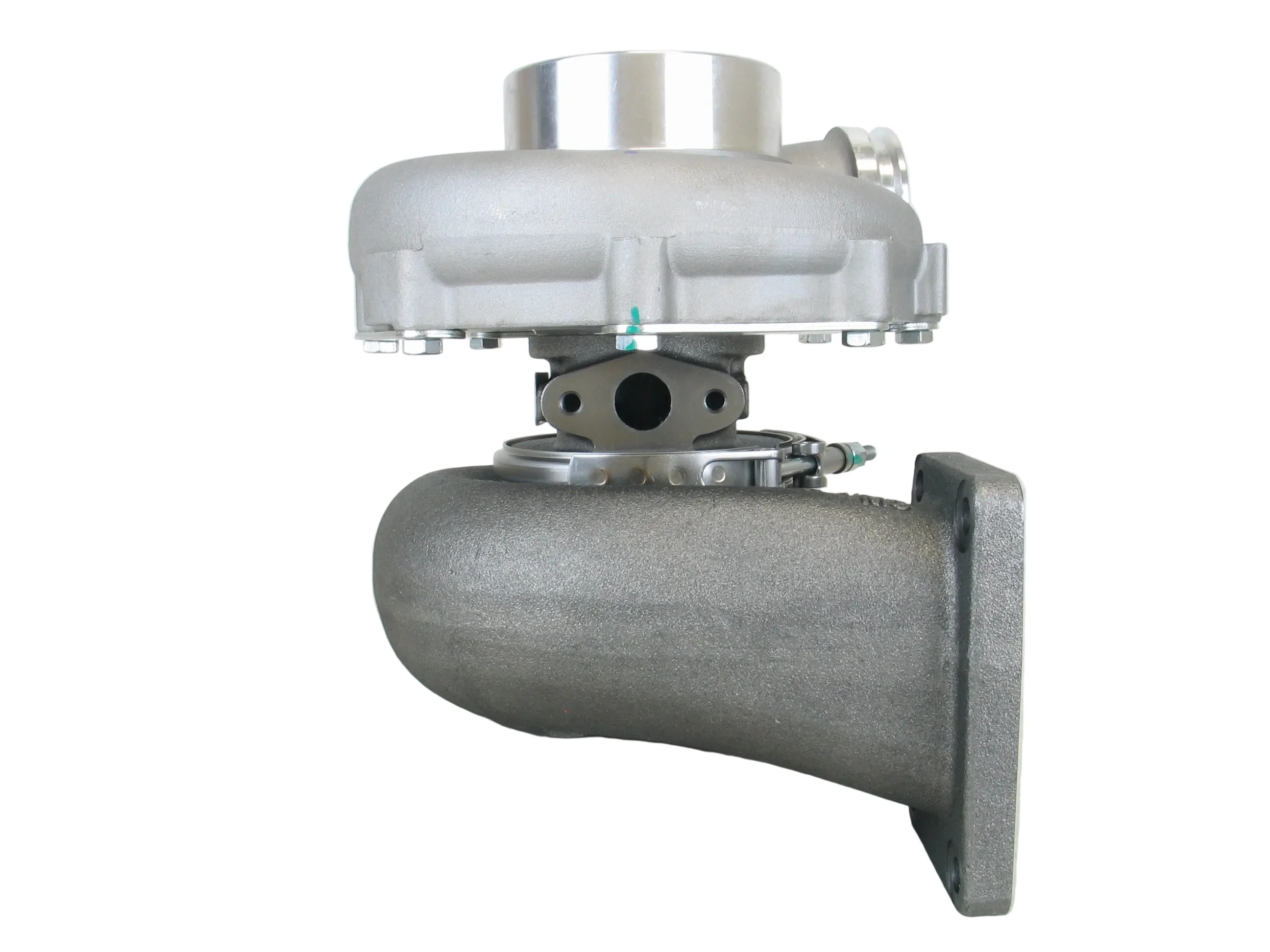

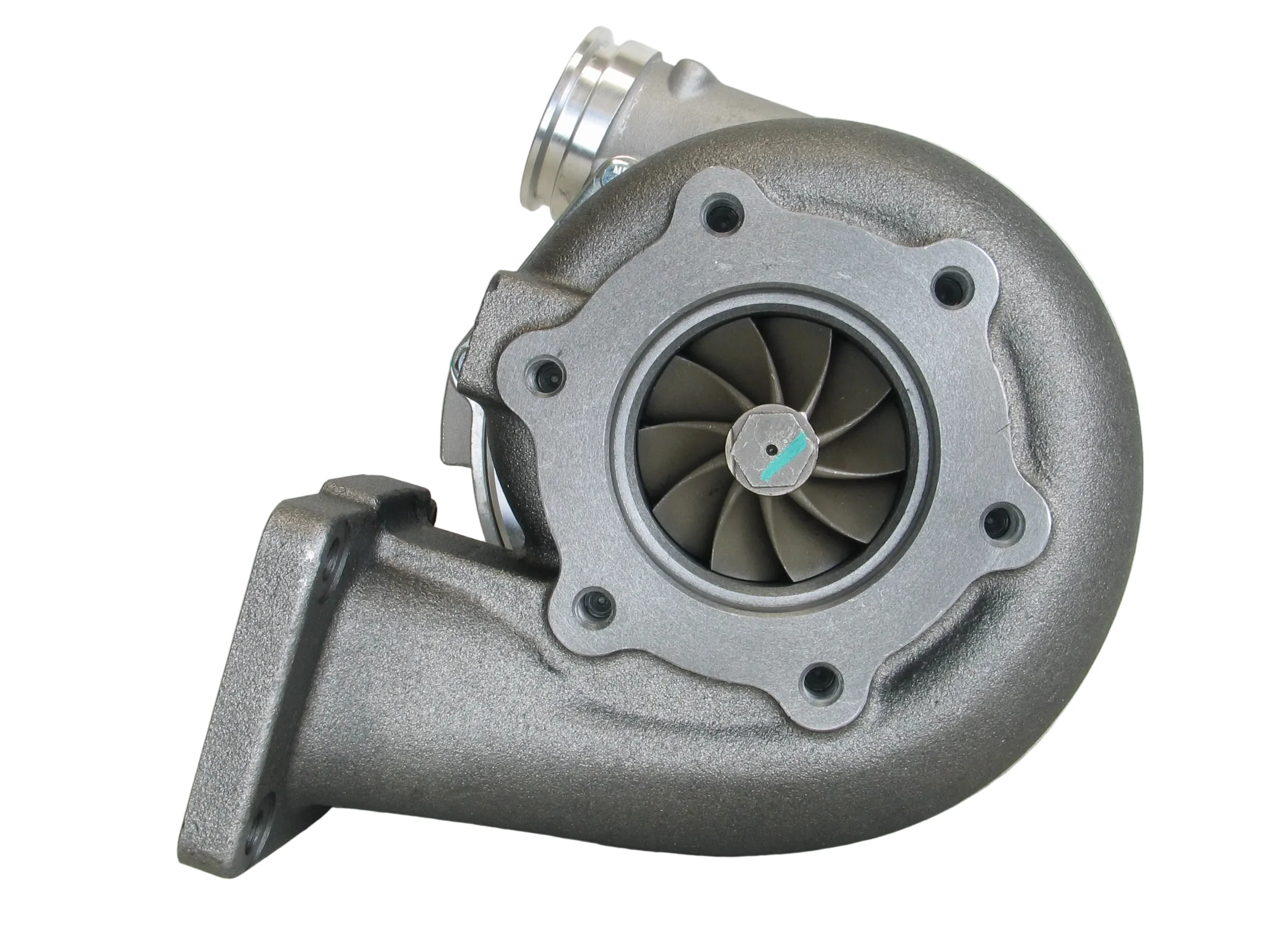

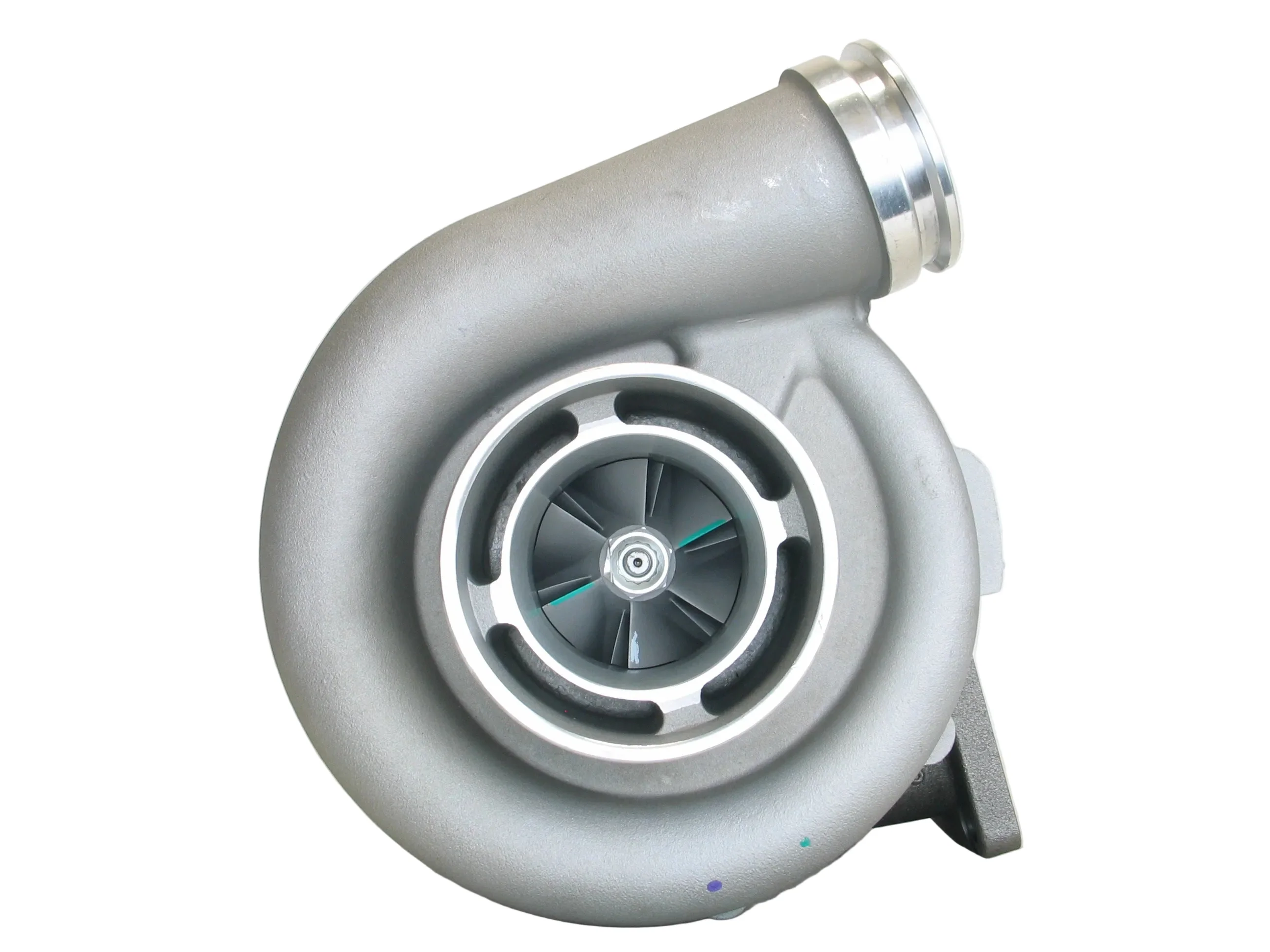

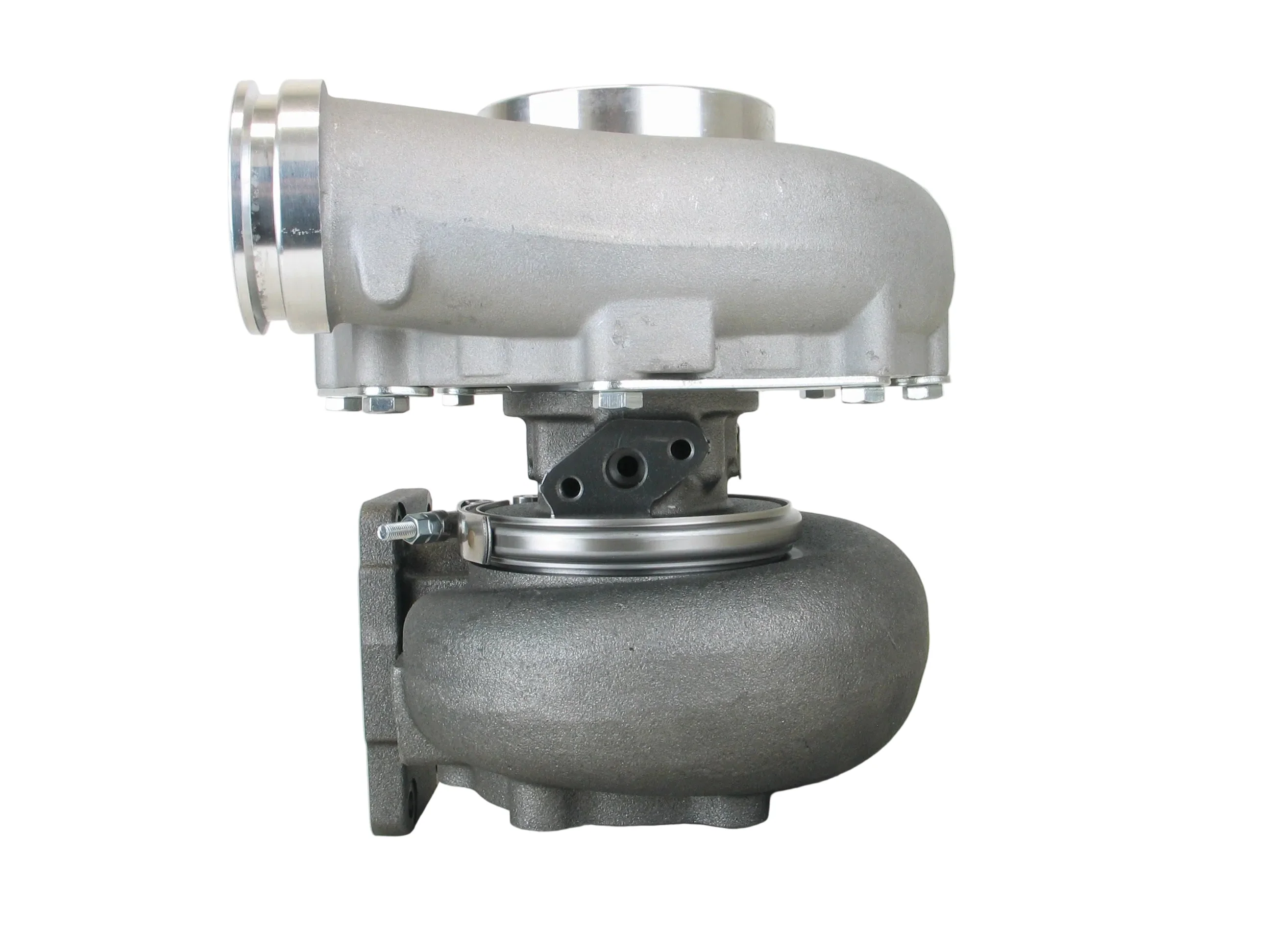

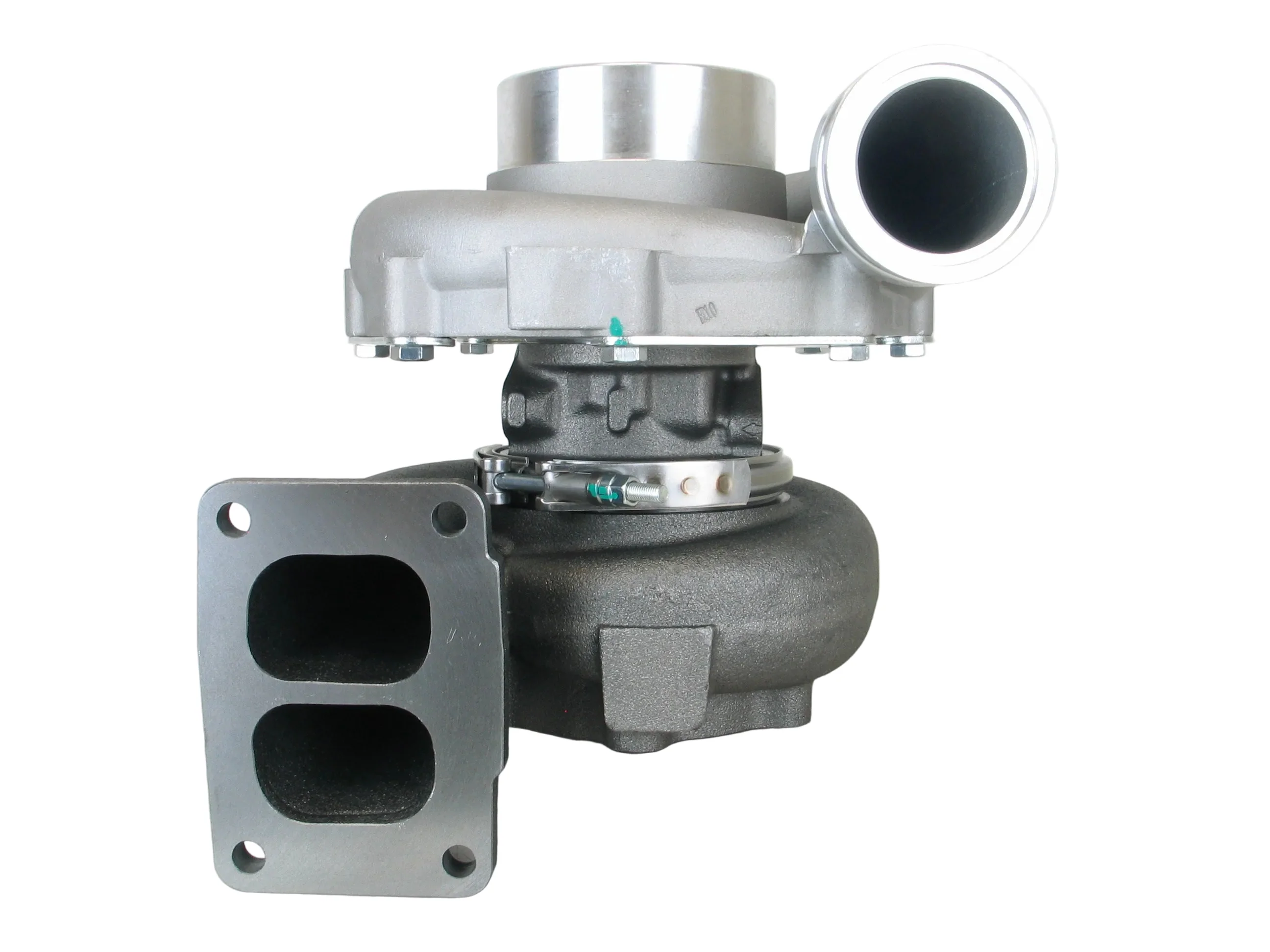

New TA5132 Turbocharger Volvo Earth Moving With TD1230 11.19L Engine 452154-5006

NEW TURBOTURBOS DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: TP01-0250-36
Interchangeable Number: 452154-0001, 452154-0001, 452154-0006, 452154-5001, 452154-5006, 452154-9001, 452154-9006, 4521540001, 4521540006, 4521545001, 4521545006, 4521549001, 4521549006,
OEM Number: 11033744, 1700250117, 9011033744, 11033744, 11127103, 3825106, 1103374
Turbo Model: TA5132

Year: 1995-2001
Engine: TD123, TD123TE
Engine Manufacturer: Volvo
Displacement: 11.19L
Fuel: Diesel

Angle α (Compressor Housing): 282°
Angle β (Turbine Housing): 263°
Back Plate:  434256-0001
Bearing Housing: 441184-0003
CHRA: 441398-0122 (441398-5122S, 441398-0170)
Compressor Wheel: 435769-0002 (Ind. 67.79 mm, Exd. 94. mm, Trm 16.27, 6+6 Blades)
Heat Shield: 410366-0007 (410366-0003, 410366-0004) (2030016005)
Repair Kit (Major): 709153-0005 (468132-0000, 709153-0001, 709153-0002) (1102042750, 5000010045B)
Turbine Housing:  441184-0003
Turbine Wheel:  441194-0008 (441194-0001) (Ind. 75.15 mm, Exd. 82. mm, Trm 15.72, 10 Blades)
Compressor Housing: 448339-0043

Application:
1995- 2001 Volvo Earth Moving A40 Hauler with TD1230 Engine

TurboTurbos Part Number: TP01-0250-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
