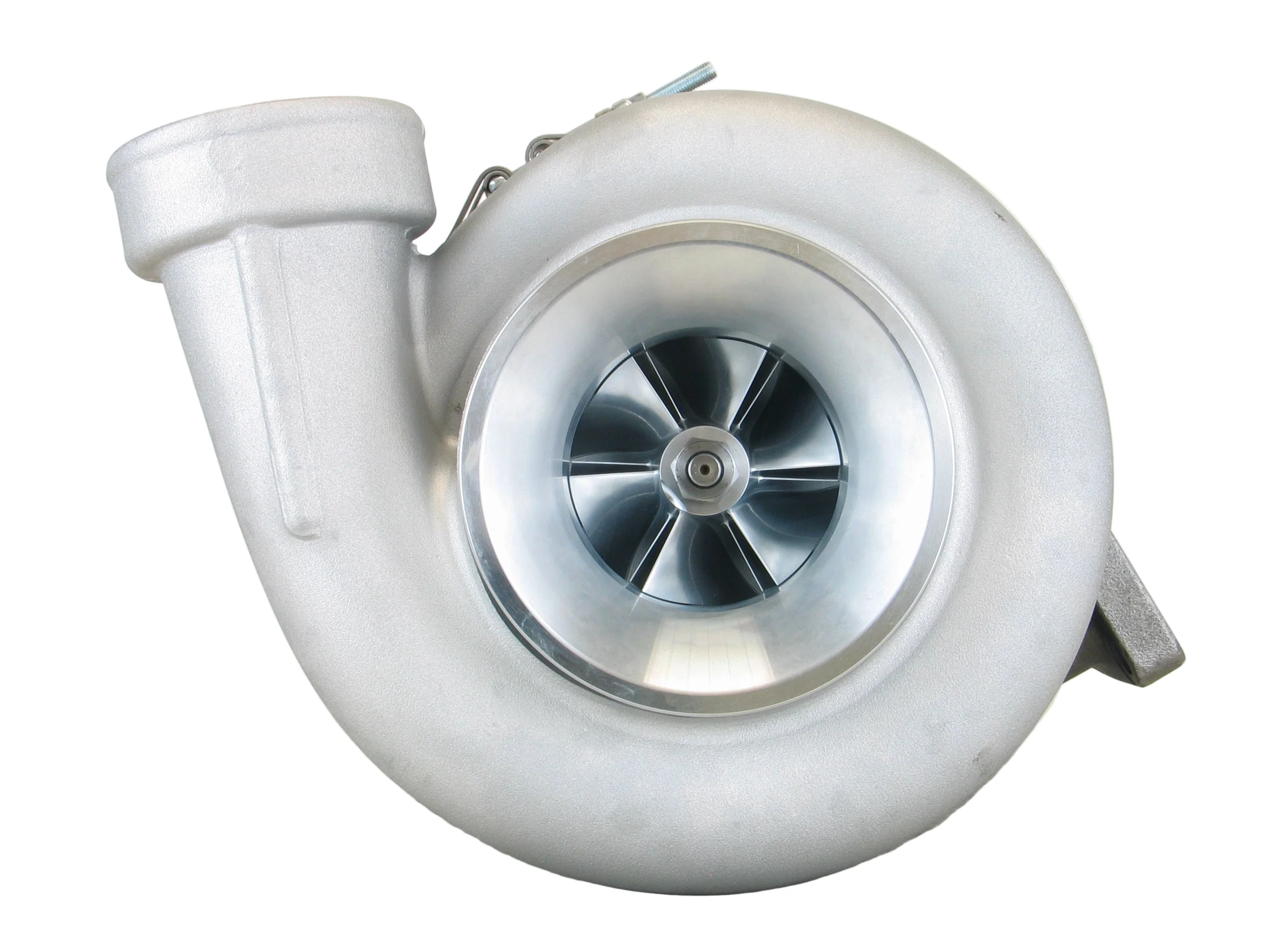

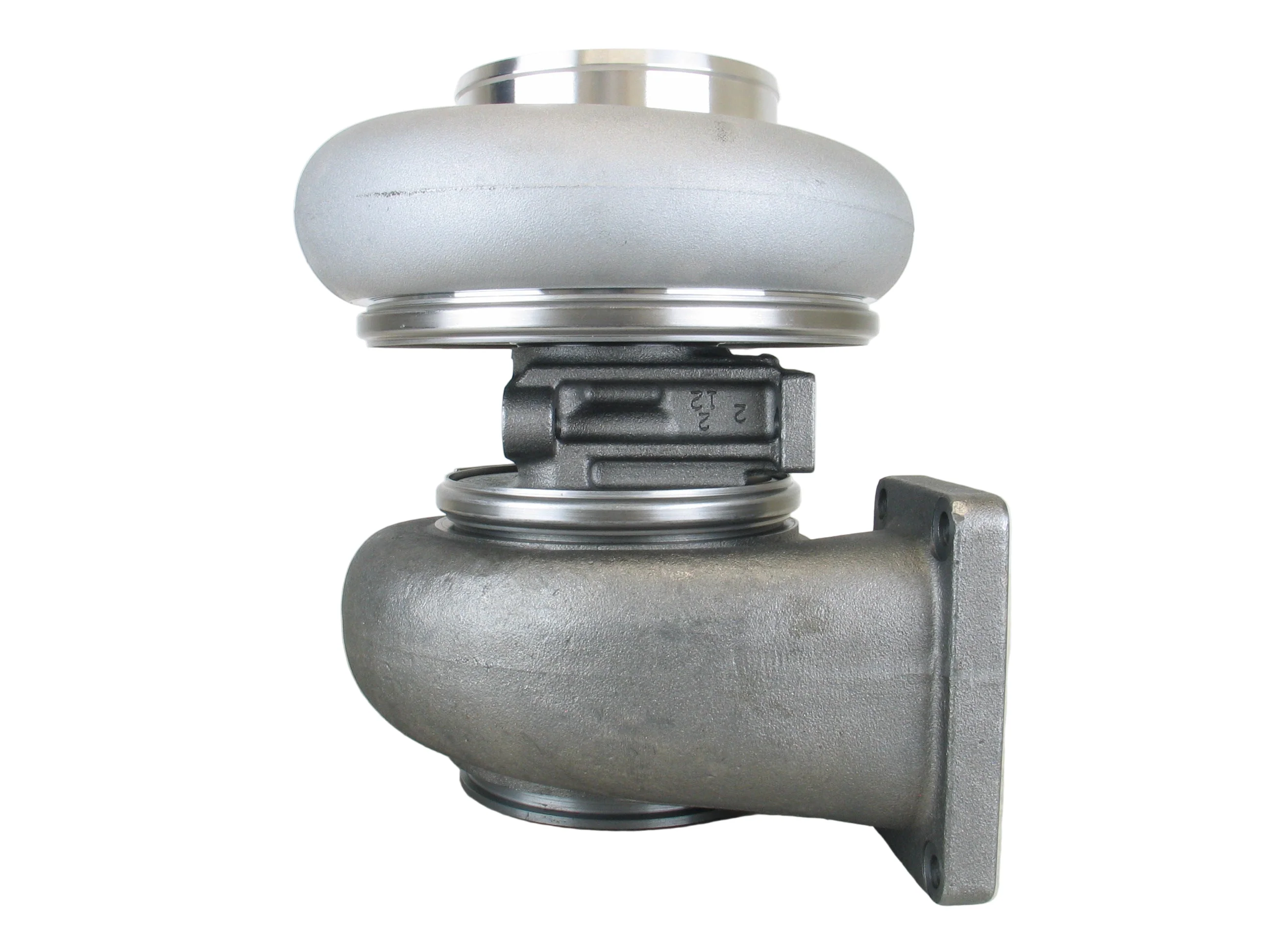

NEW TV7512 Turbo Truck Industrial with Detroit Diesel 8V92TA Engine 465369-5001

NEW TURBOTURBOS DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: TP01-0269-36
Interchange Number: 465369-5001S, 465369-9001S, 465369-0001, 465369-1
OE number: 23501978, R23501978

CHRA: 442032-0017 (442032-5017S, 23502109)
Turbo Model: TV7512
Engine    8V92TA
Displacement: 9046/12062 ccm, V6/V8 Cylinders
Engine Manufacturer: Detroit
Power Rate:  231/350/600/710/735 KW
Fuel: Diesel
Angle α (compressor housing): 22º
Angle β (turbine housing): 67º
Bearing Housing: 442028-0001 (8925742)(Oil Cooled)
Turbine Wheel: 442029-0020 (23502111))(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436)
Comp. Wheel: 443120-0001 (Ind. 70.9 mm, Exd. 102.3 mm, Trm 48*54, 7+7 Blades)(23501285)
Back plate: 442027-0001 (8925746)
Heat shield Number: 407967-0000 (5149173)
Repair Kit: 468267-0000 (1101678752)
Turbine Housing:  443110-0015 (23502110)
Compressor Housing:  442821-0001 (23501514)
Turbine Housing A/R: 1.23
Gasket (turbine inlet):     409038-0001 (7M7273, 132040, 210835-0000, 9749)
Gasket oil inlet: 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)
Gasket (oil outlet): 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)

Applications:
Detroit Diesel Truck (Crash) With 8V92TA V8 Engine
Detroit Diesel Truck, Industrial With 6V92TAB V6 Engine
Detroit Diesel Military With 8V92TA V8 Engine
Detroit Diesel Industrial Snow-Blower With 8V92TA V8 Engine

TURBOTURBOS SKU: TP01-0269-36
