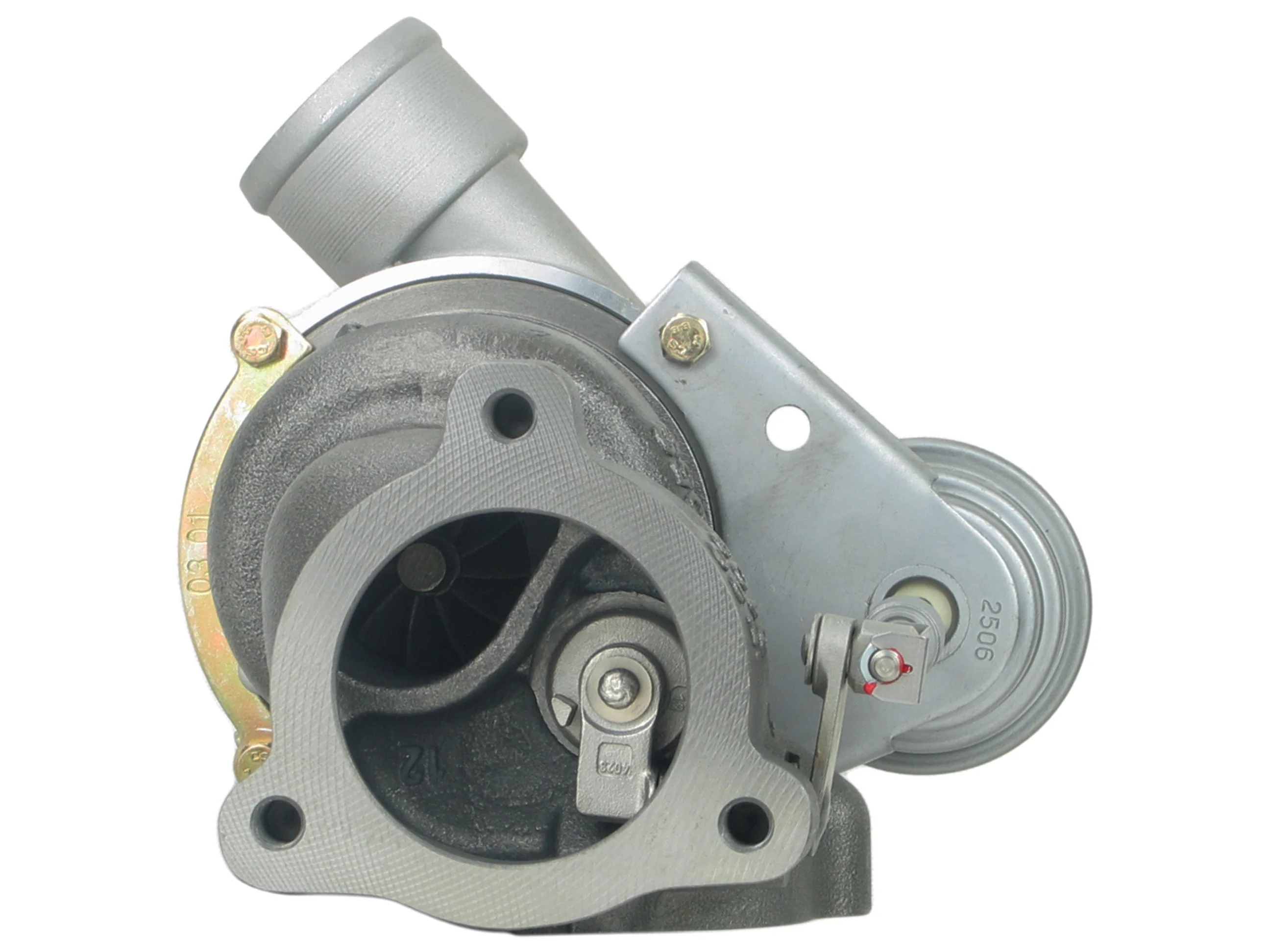

NEW K03 Turbocharger VW Passat Audi A4 A6 1.8T 058145703J 53039880029 Turbo

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 53039880029
Interchangeable Number: 5303-988-0029, 5303 988 0029, 53039700029, 5303-970-0029, 5303 970 0029
OEM Number: 058145703J, 058145703JX, 058145703JV, 058145703N
Turbo Model: K03, K03-2072GAA5.88KCAXK, k03-005

Year: 2000-05
Engine: 1.8-5V longs, along
Displacement: 1.8L, 1781 ccm, 4 Cylinders
Fuel: Gasoline
Power: 110 kW/150 HP
Speed: 550 RPM

Angle α (Compressor Housing): 160°
Angle β (Turbine Housing): 150°
Actuator: 58251104075
Back Plate: 53041515702
Bearing Housing: 53041500006/53041500017
CHRA: 53037100511 (5303-710-0511)
Compressor Cover: 53041015003
Compressor Wheel: 53041232018/53041232007
Gasket (Oil Outlet): 210317
Gasket (Turbine Inlet): 210337
Gasket (Turbine Outlet): 210242
Heat Shield: 53031652000
Repair Kit: 53037110000
Turbine Housing A/R: 5
Turbine Housing: 53031009060
Turbine Wheel: 53031205023/53031205037
Wastegate Settings (Lift Rod): 4.00 mm
Wastegate Settings (Pressure): 0.370 bar

NOTE: Intercooler, water cooled bearing housing, also for 125 kW.

Application:
1996-00 Volkswagen Passat B5 with 1.8T APU, ARK Engine
1998- Audi A6 with 1.8T (C5) APU, ARK Engine
1998-99 Audi A4 with 1.8T (B5) APU, ARK Engine
2000-05 Audi A4 with AMG, AWM, ATW, AUG Engine
2000-05 Volkswagen Passat with AMG, AWM, ATW, AUG Engine
2002-05 Audi A4 with 1.8T (B6) BFB Engine

TurboTurbos Part Number: TP02-0014-02

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
