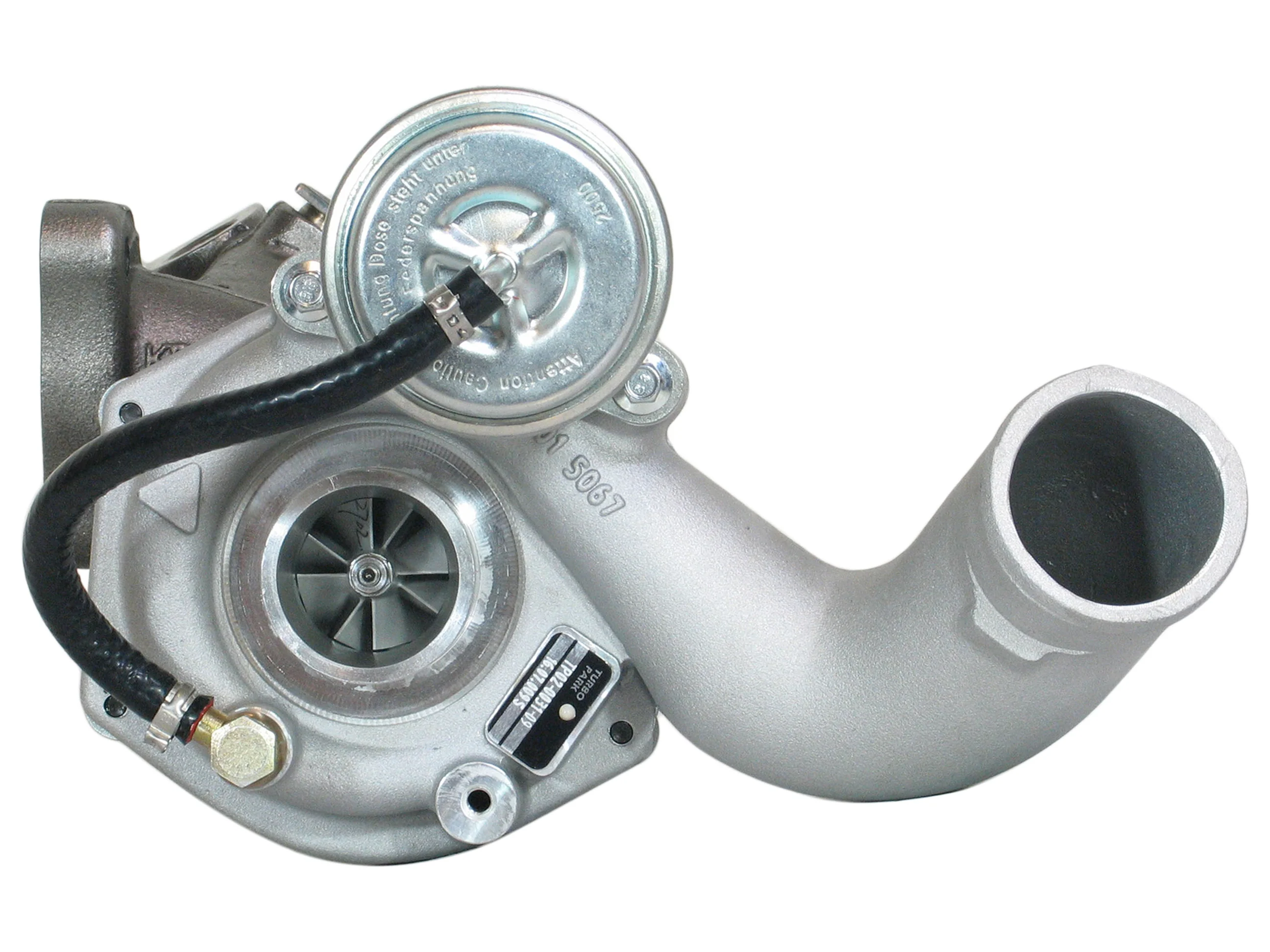

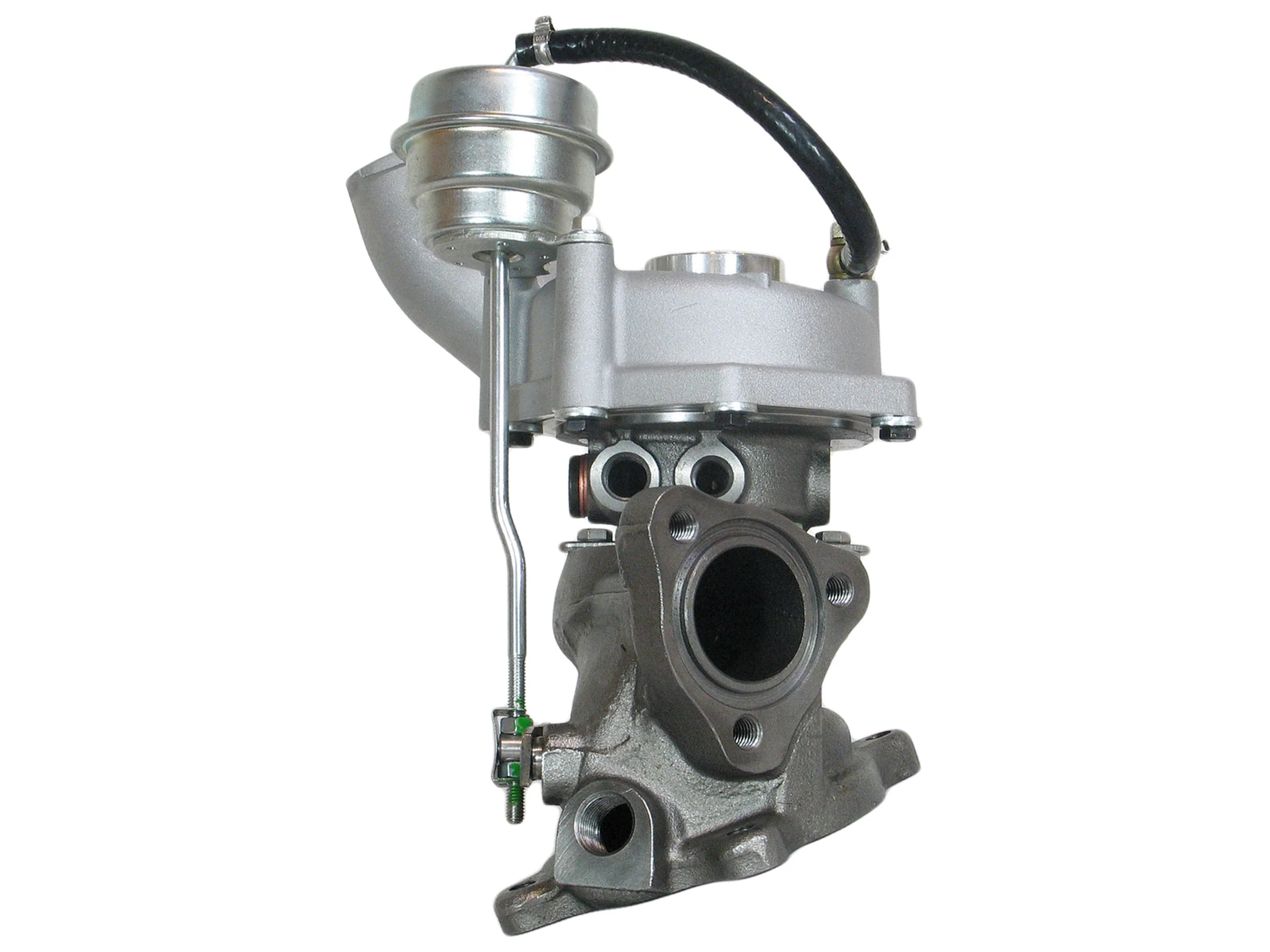

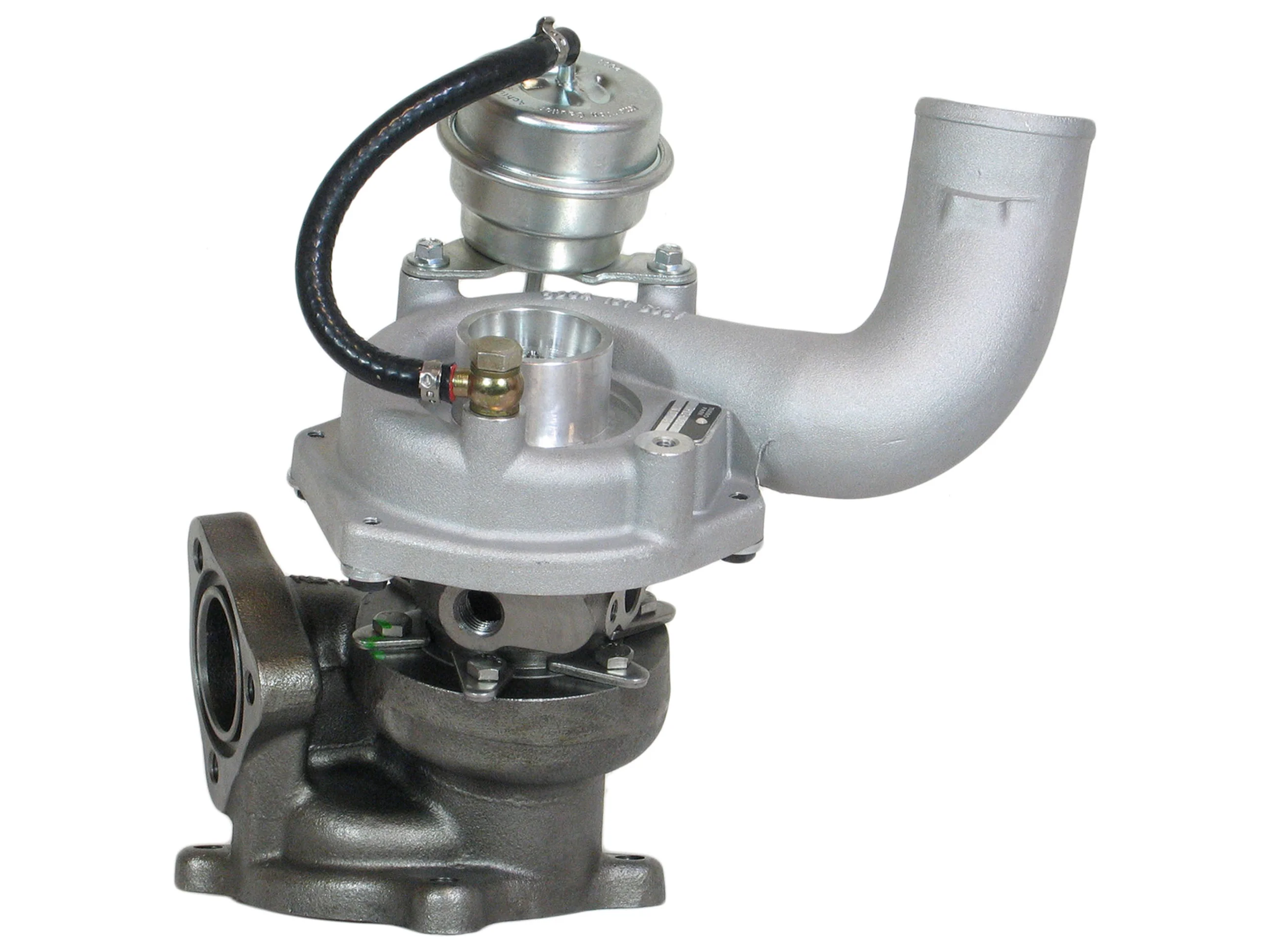

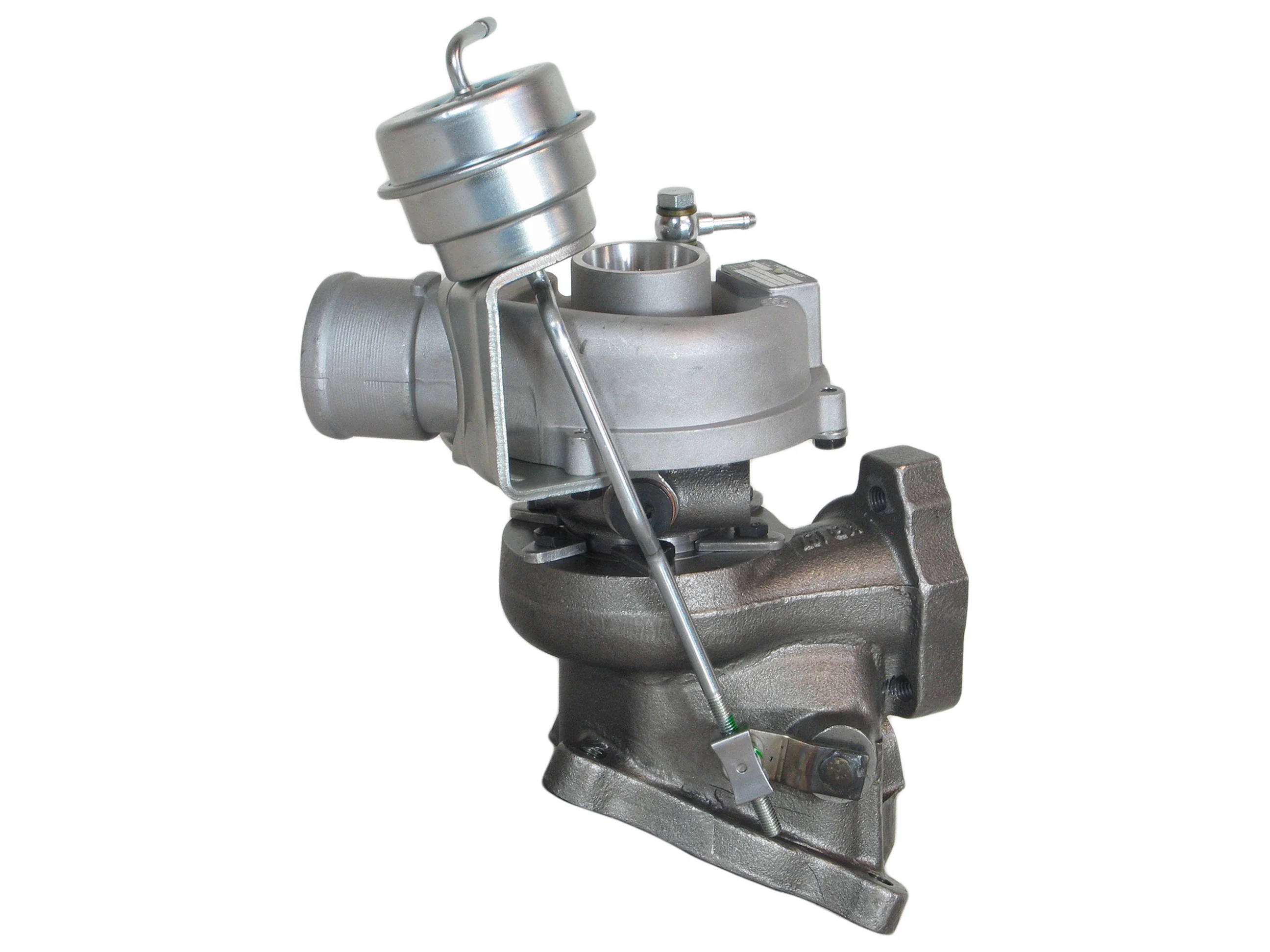

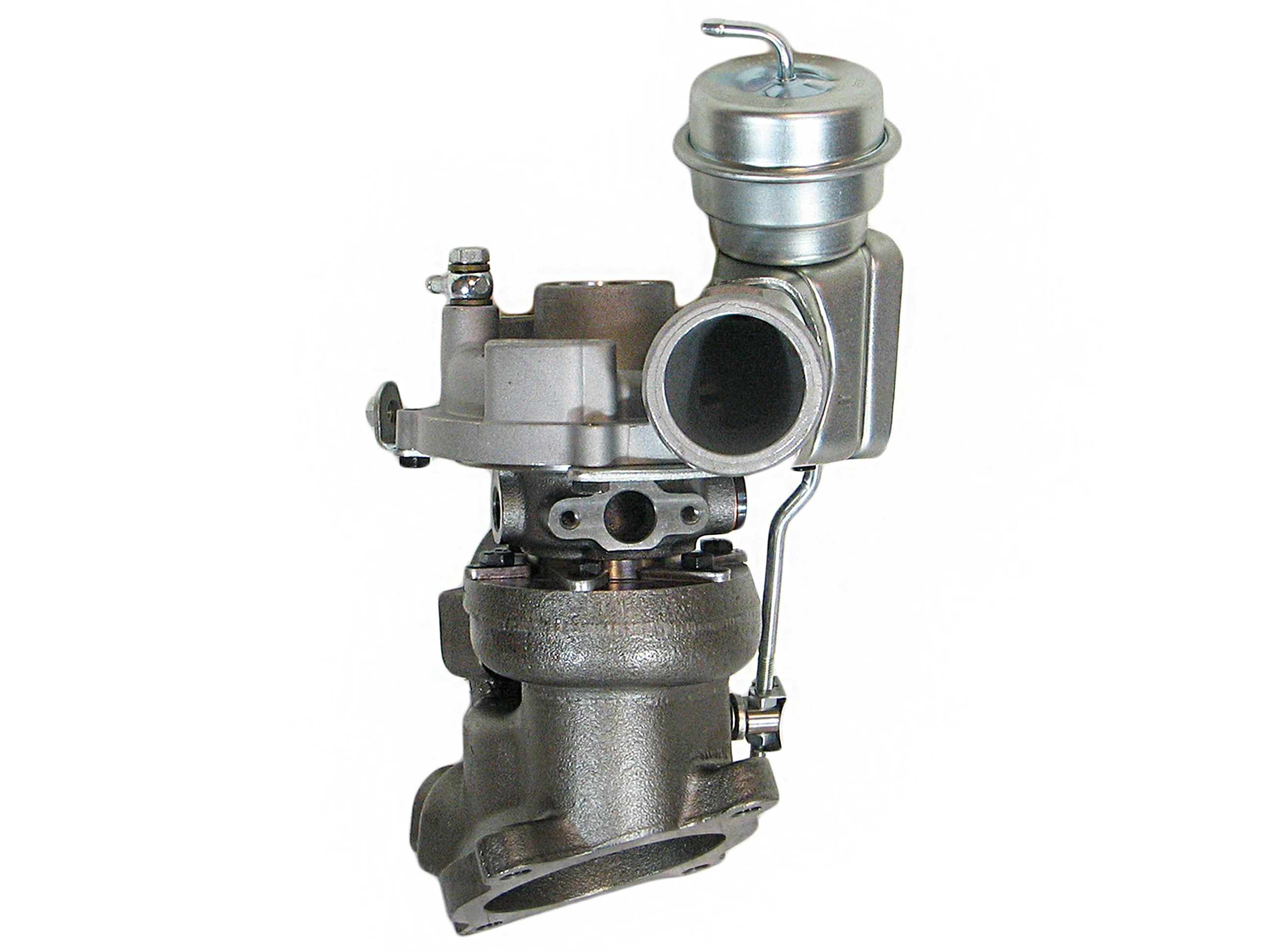

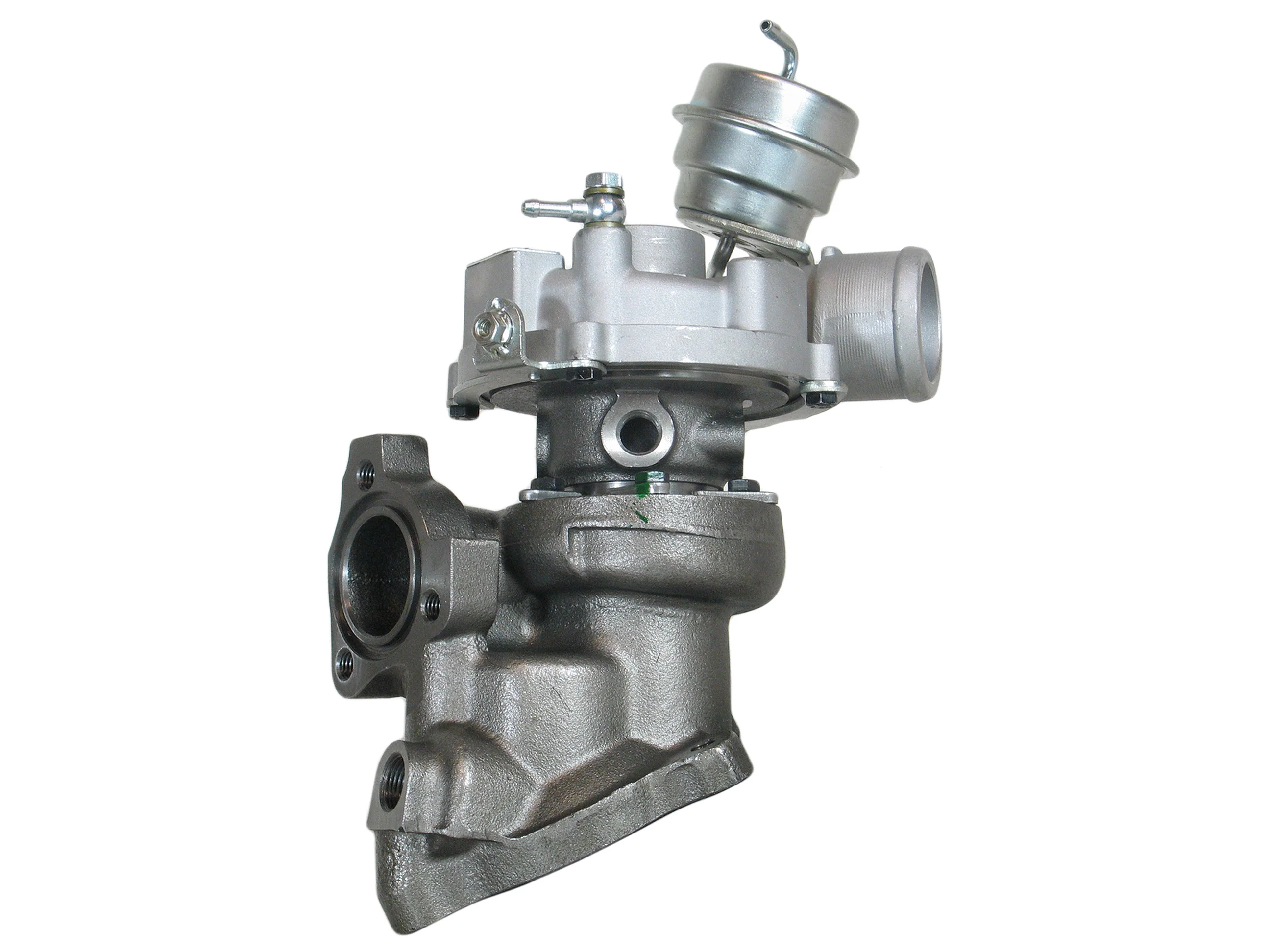

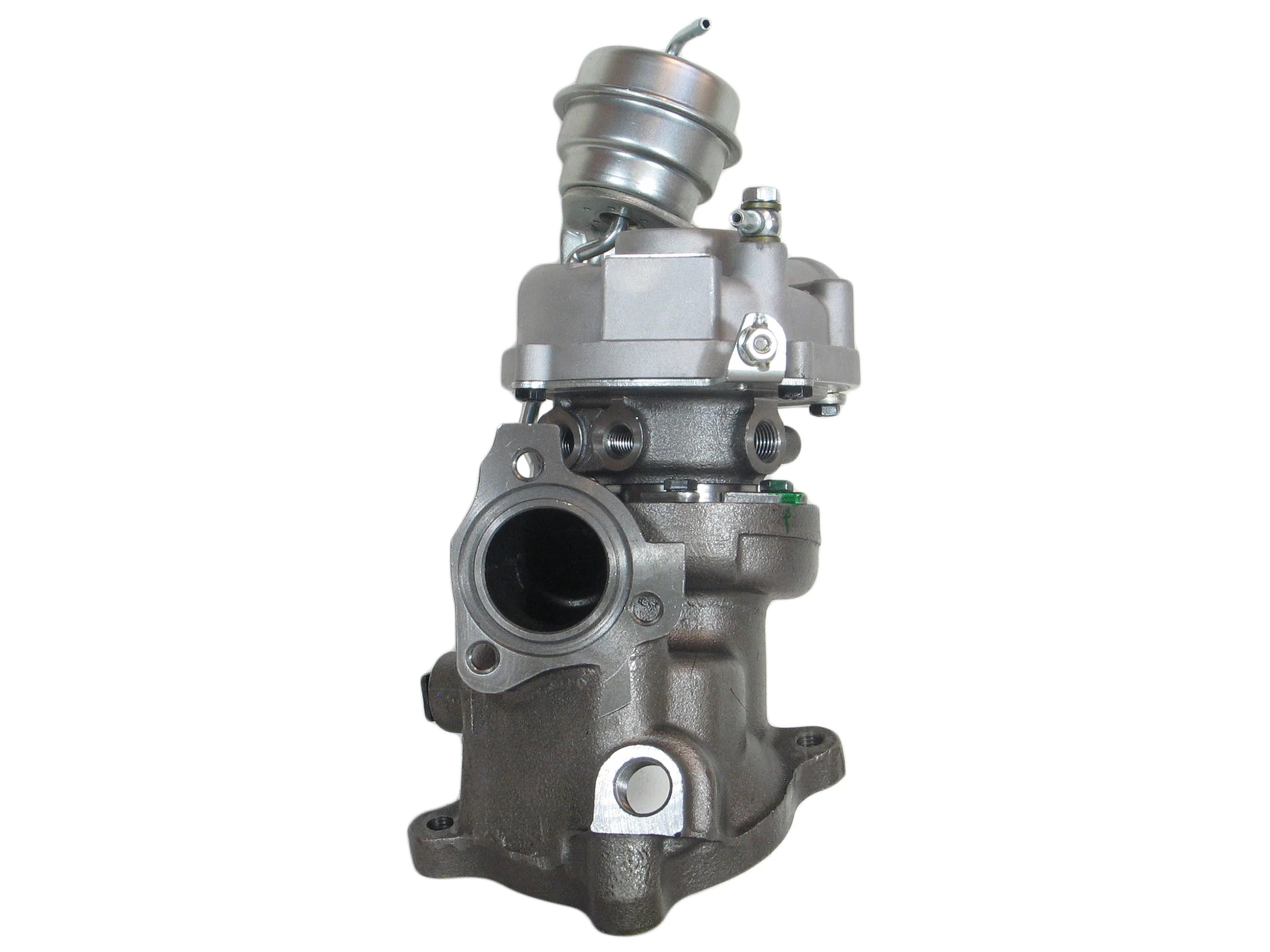

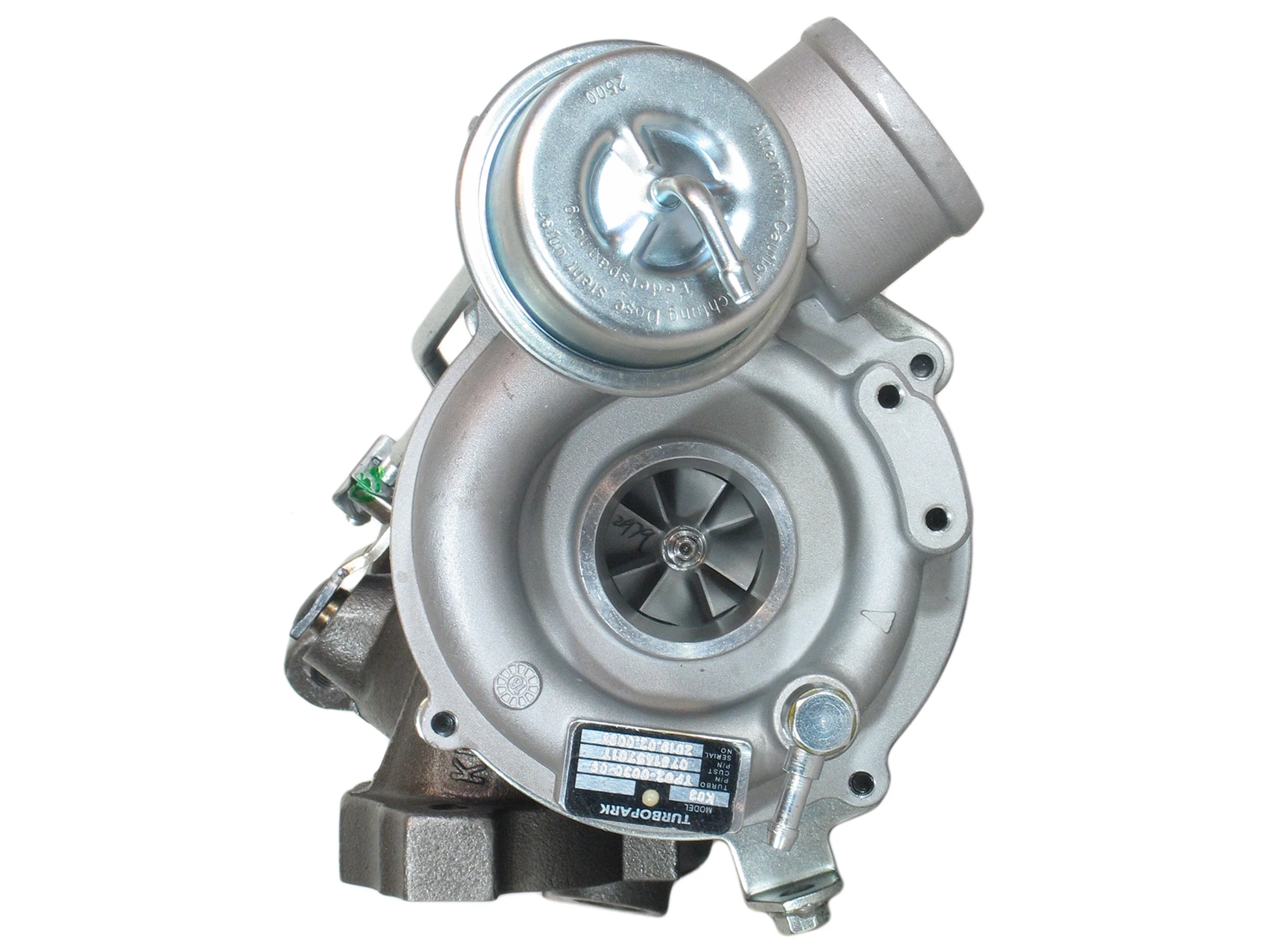

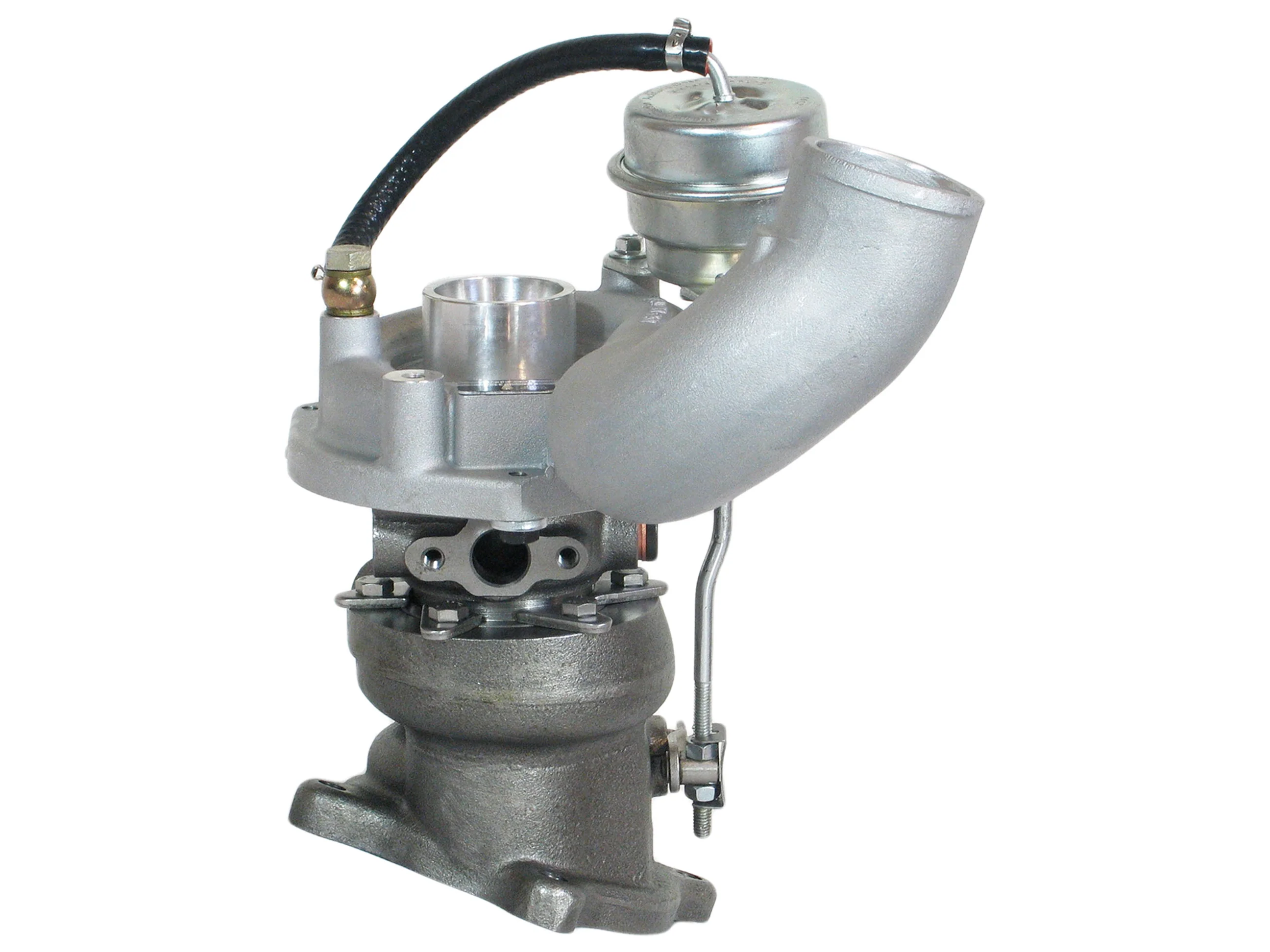

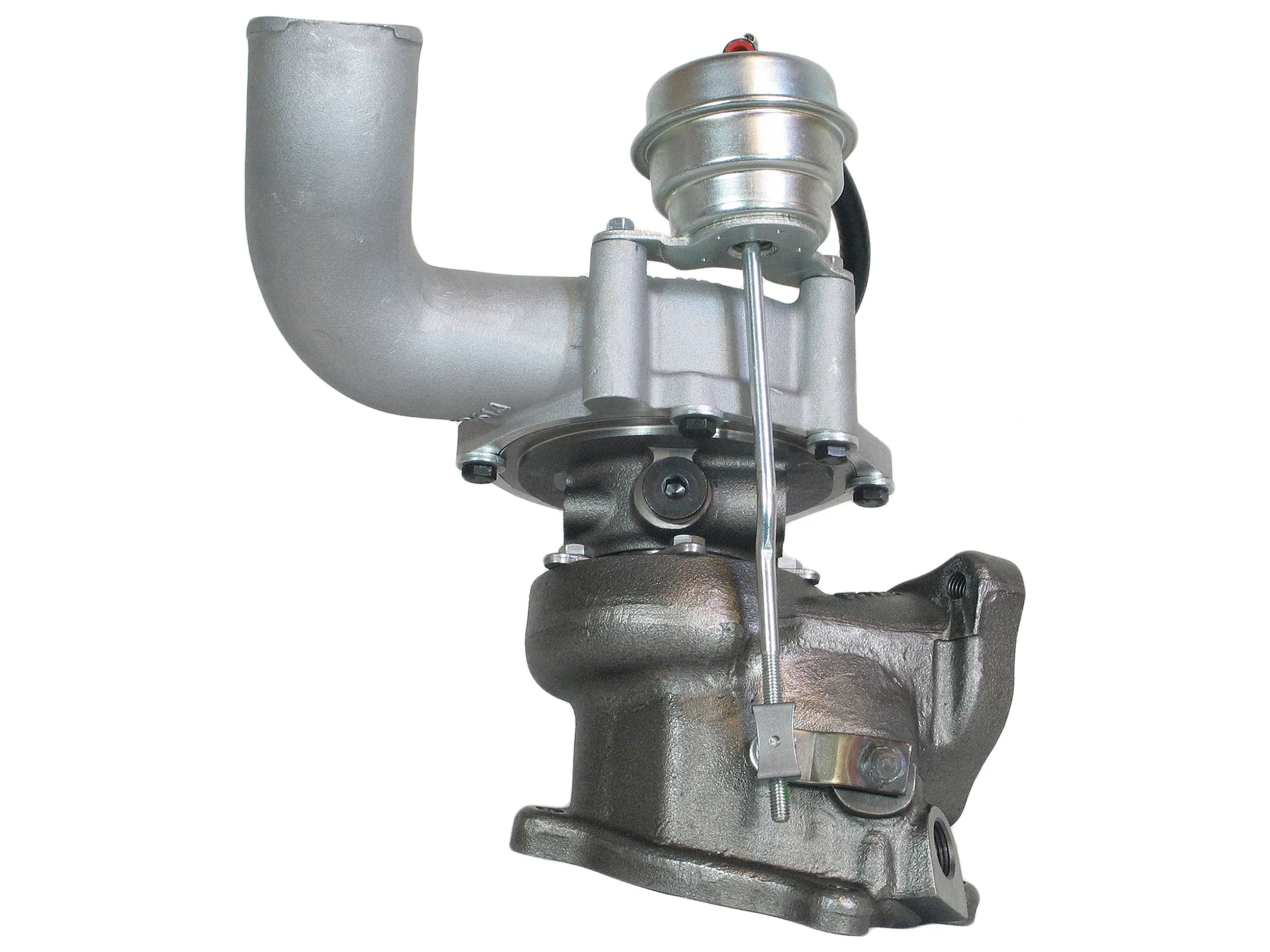

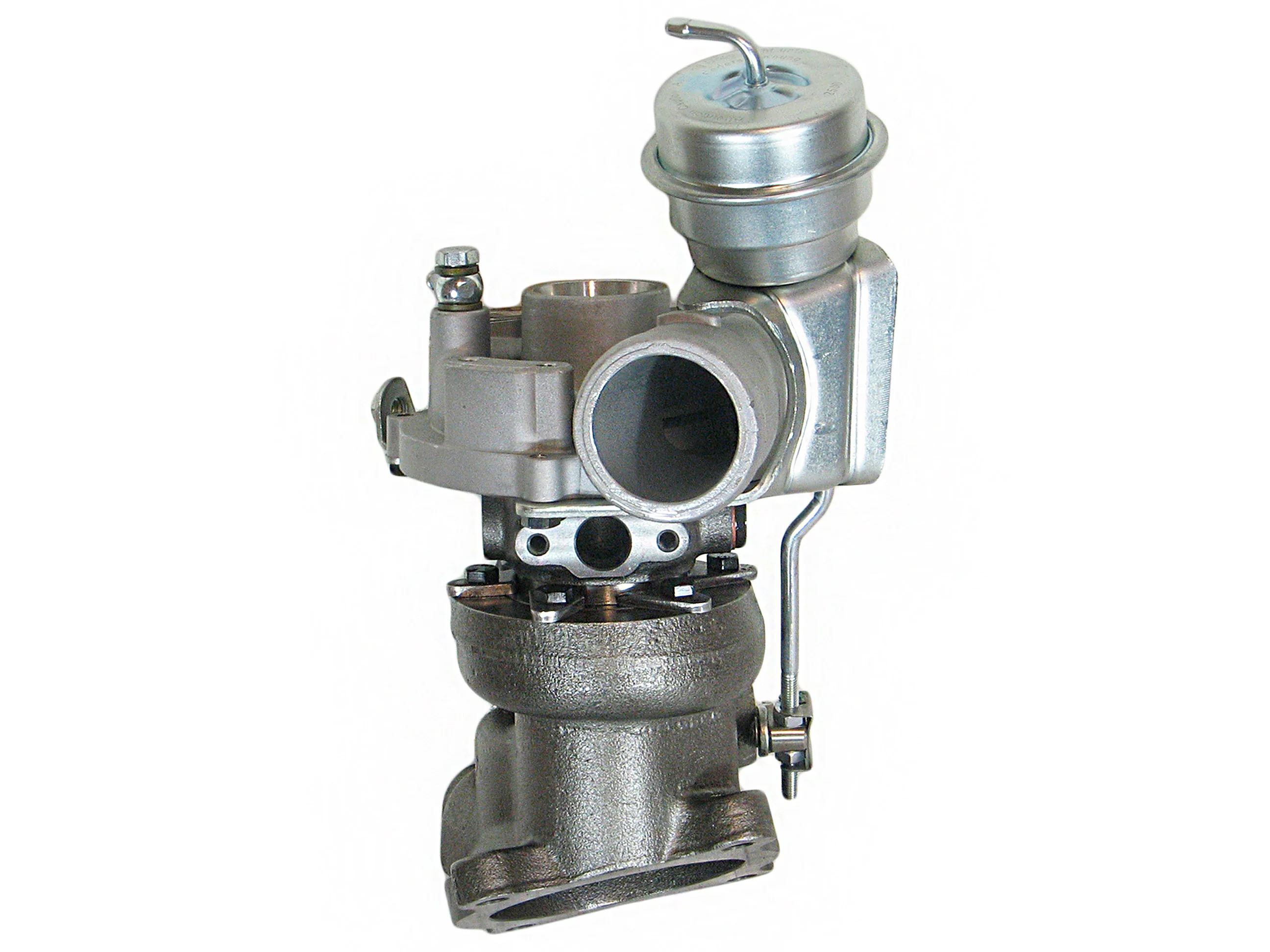

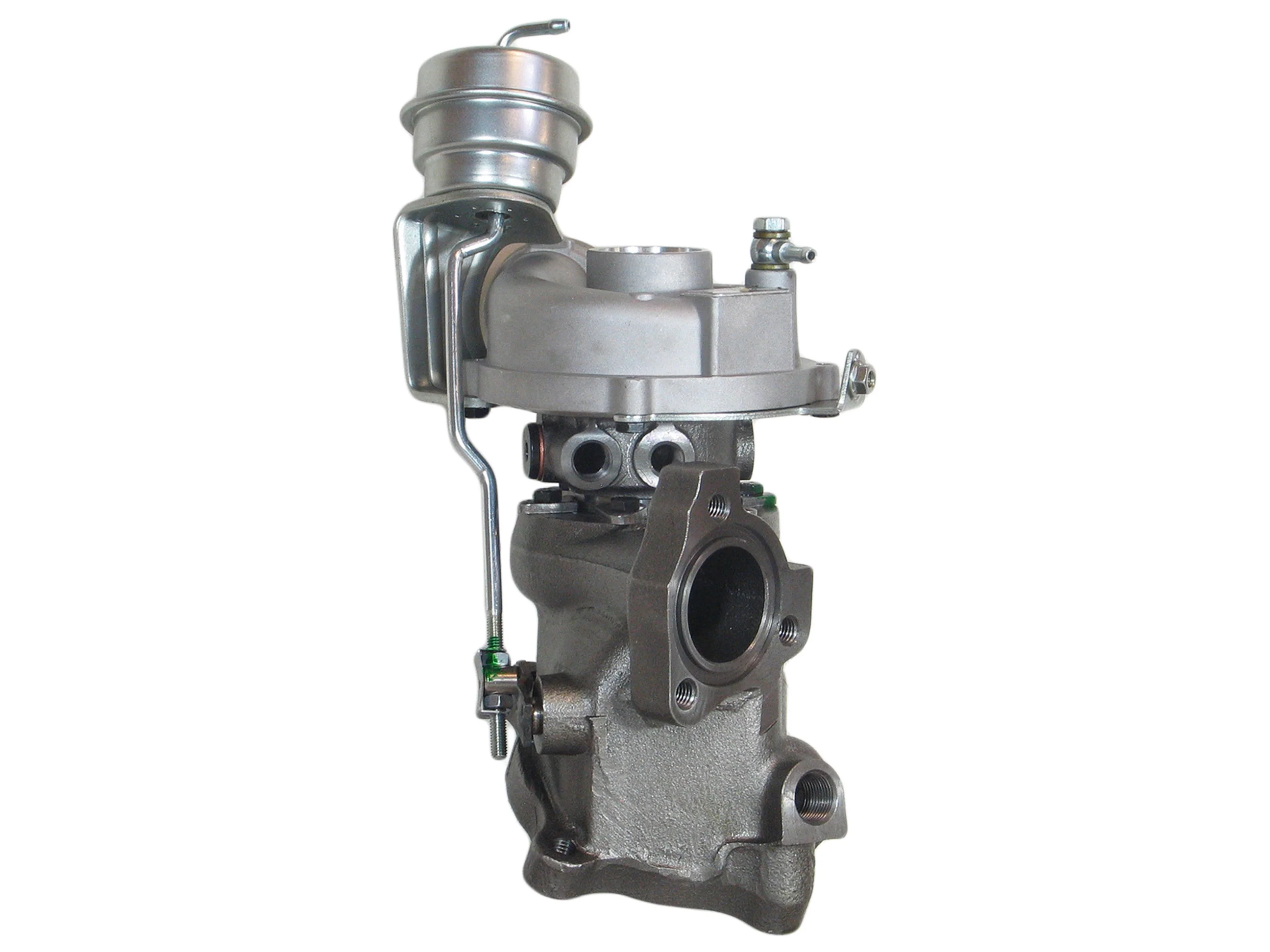

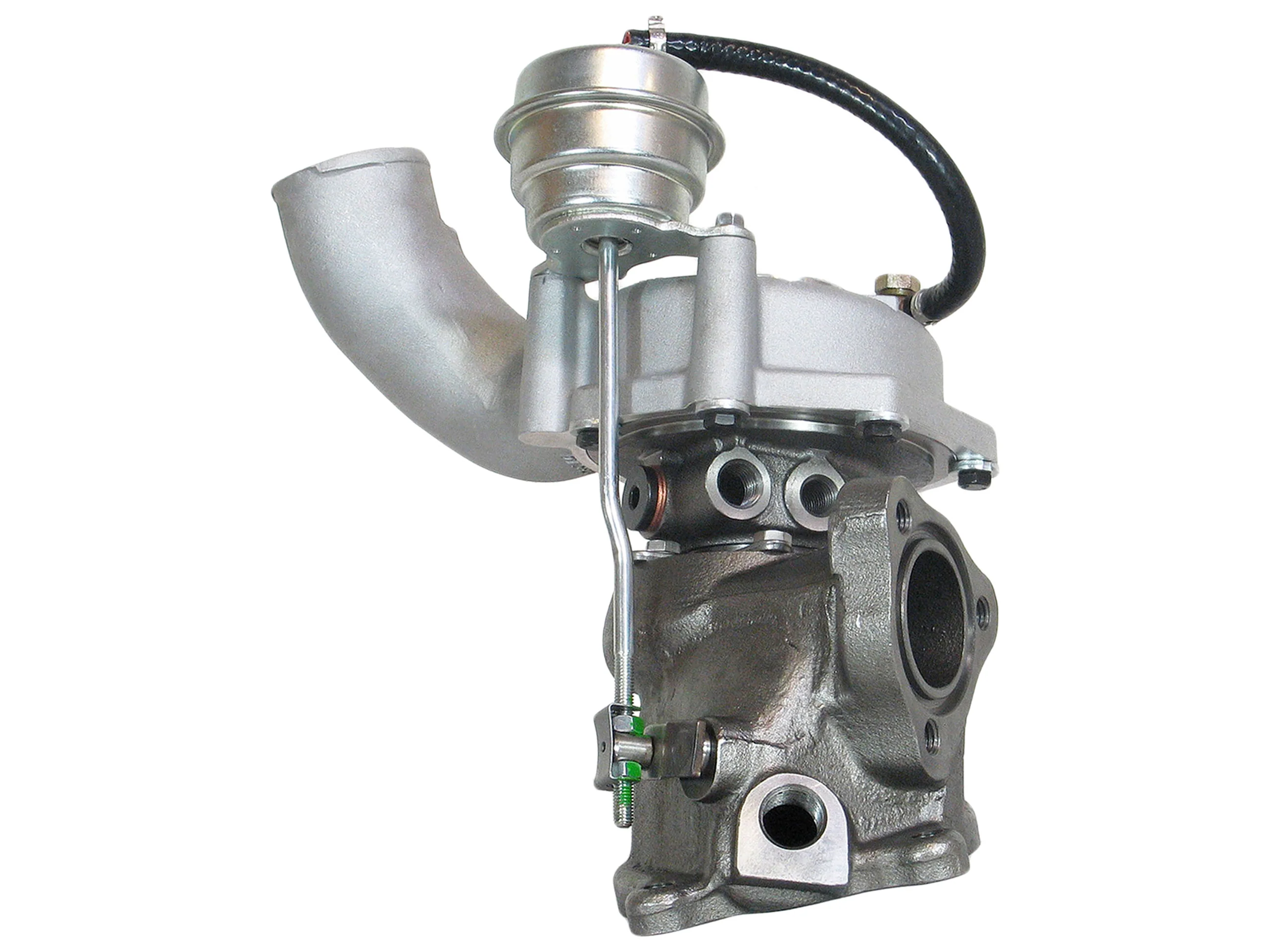

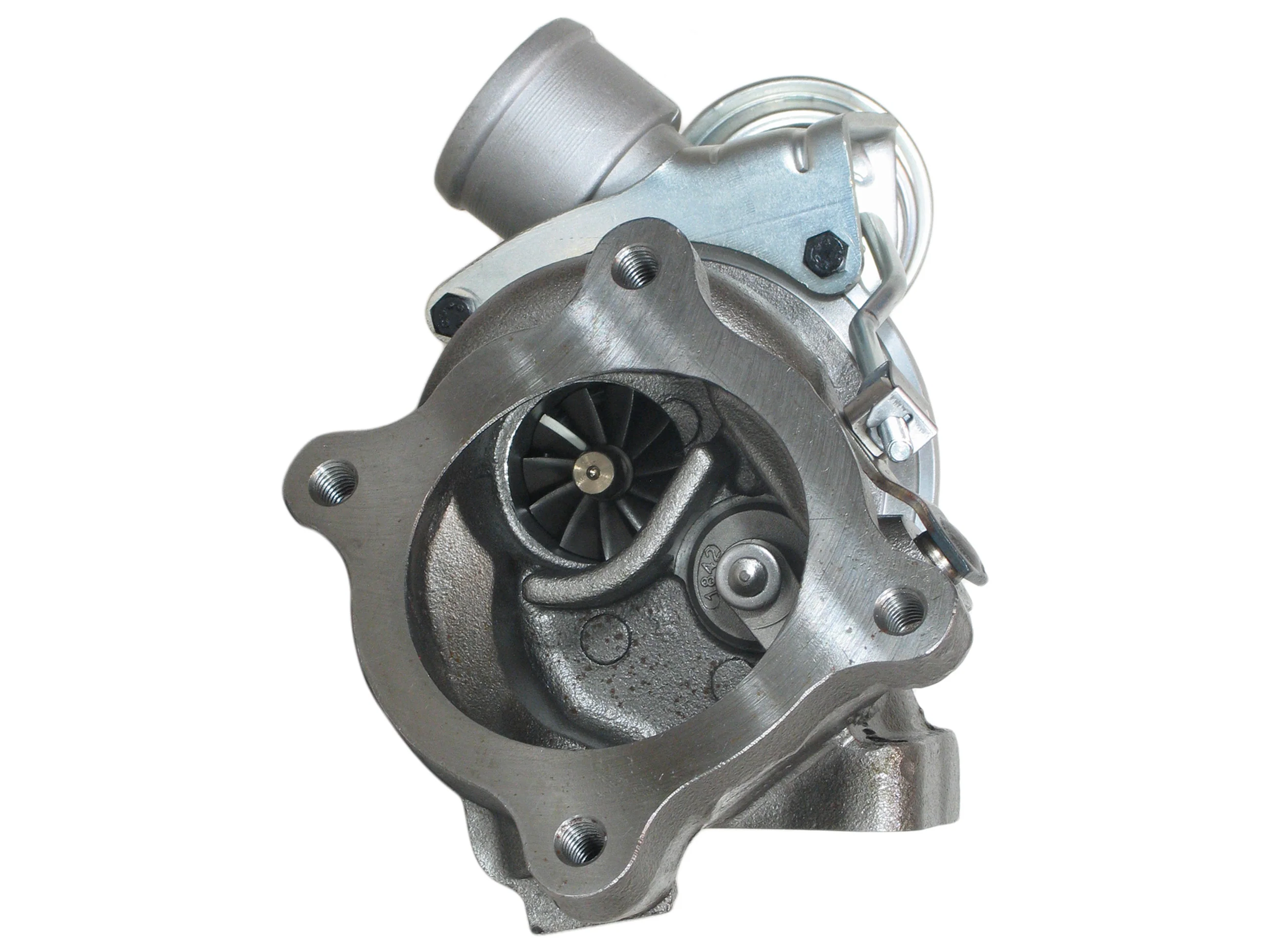

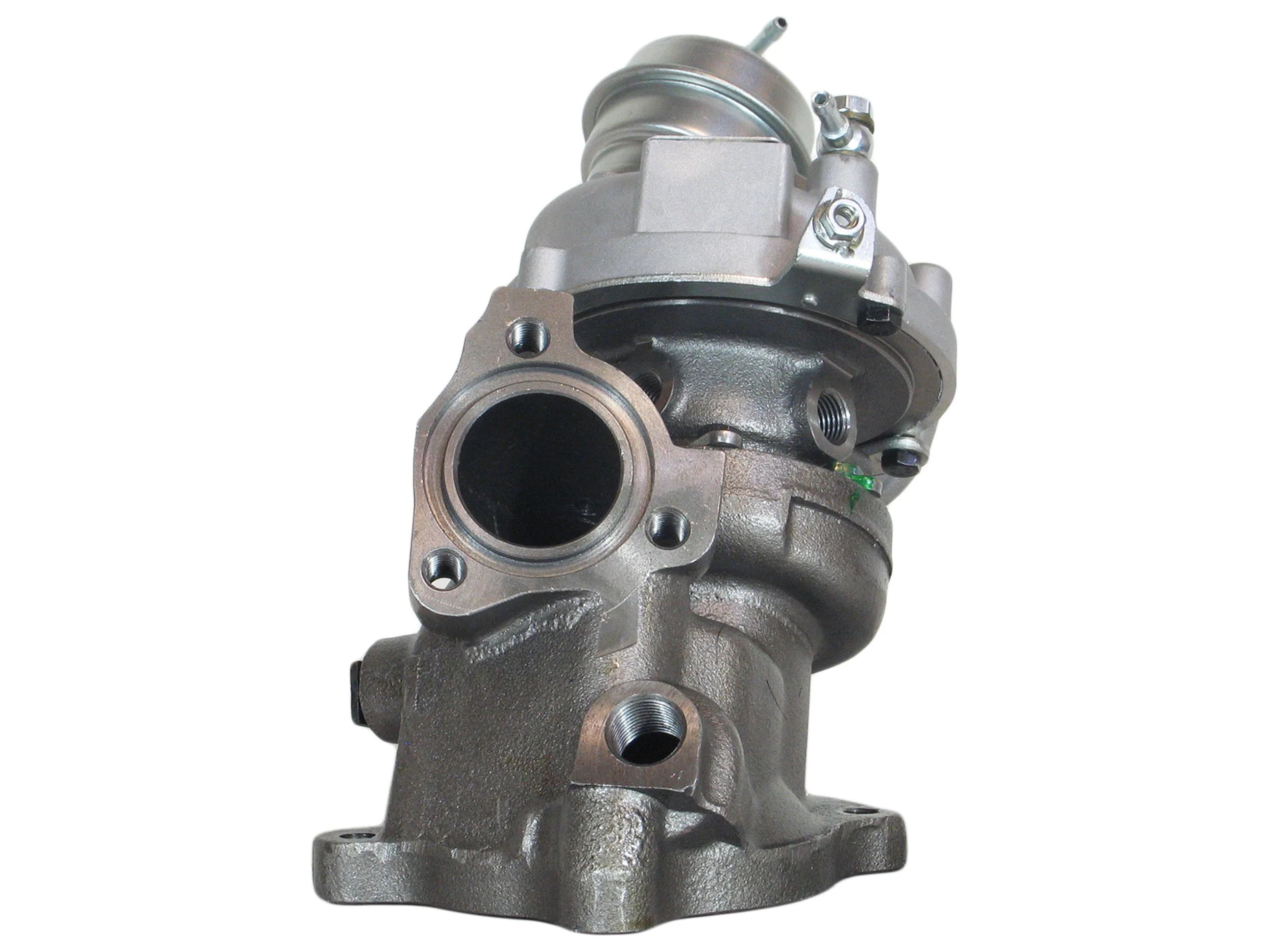

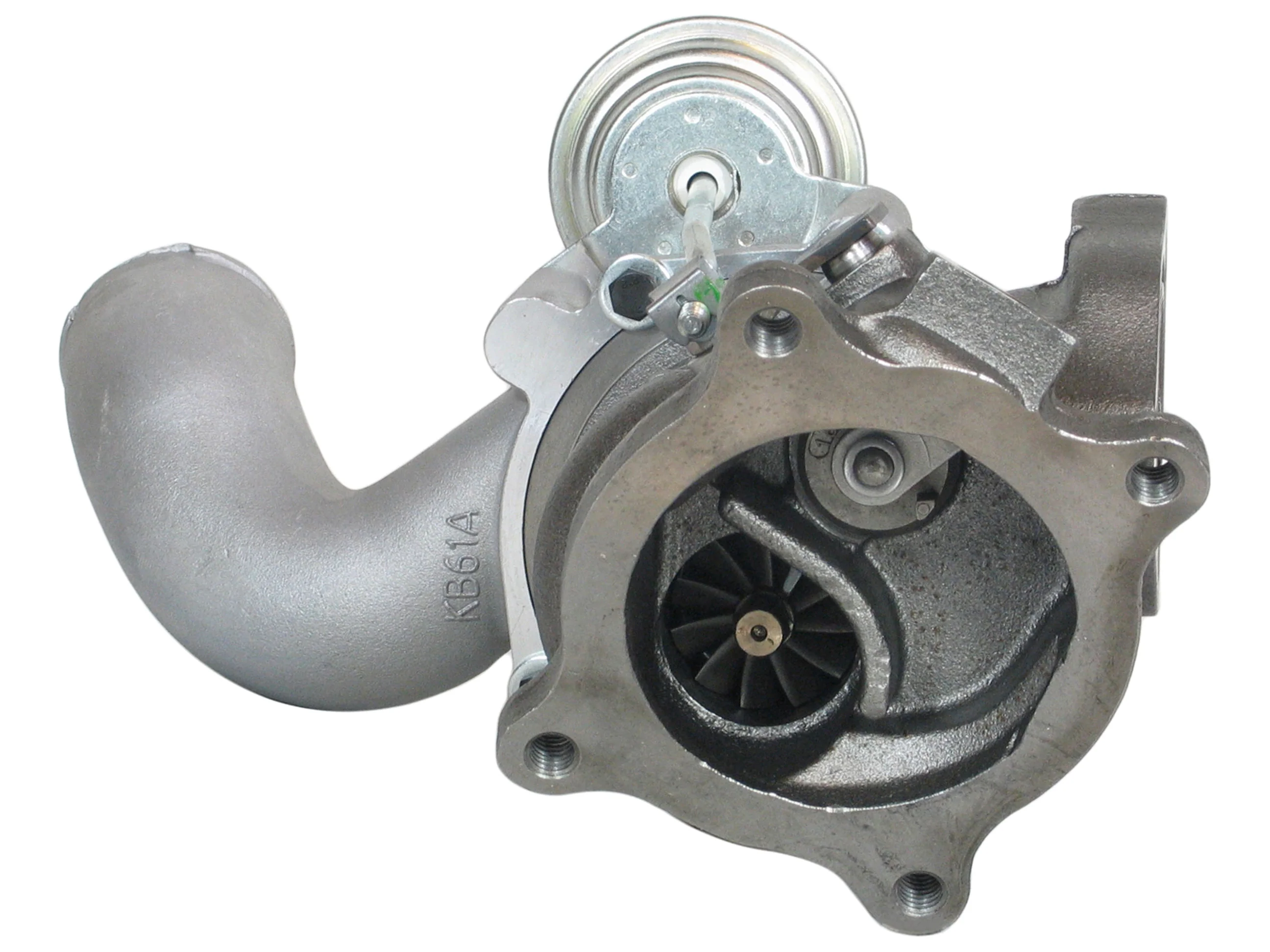

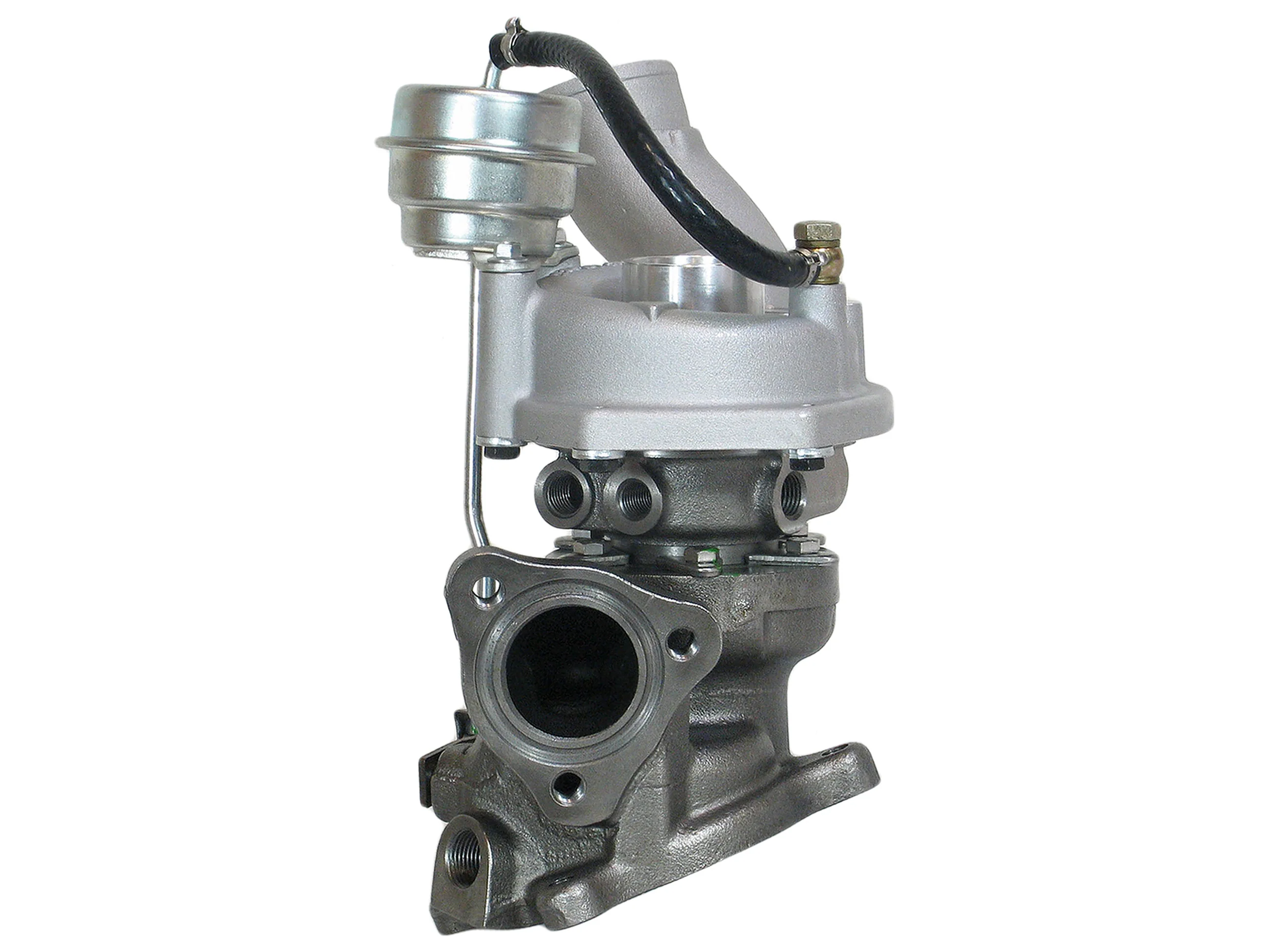

NEW Pair K03 Turbo Audi A6 allroad BES 2.7L Diesel Engine 53039880069-0070

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

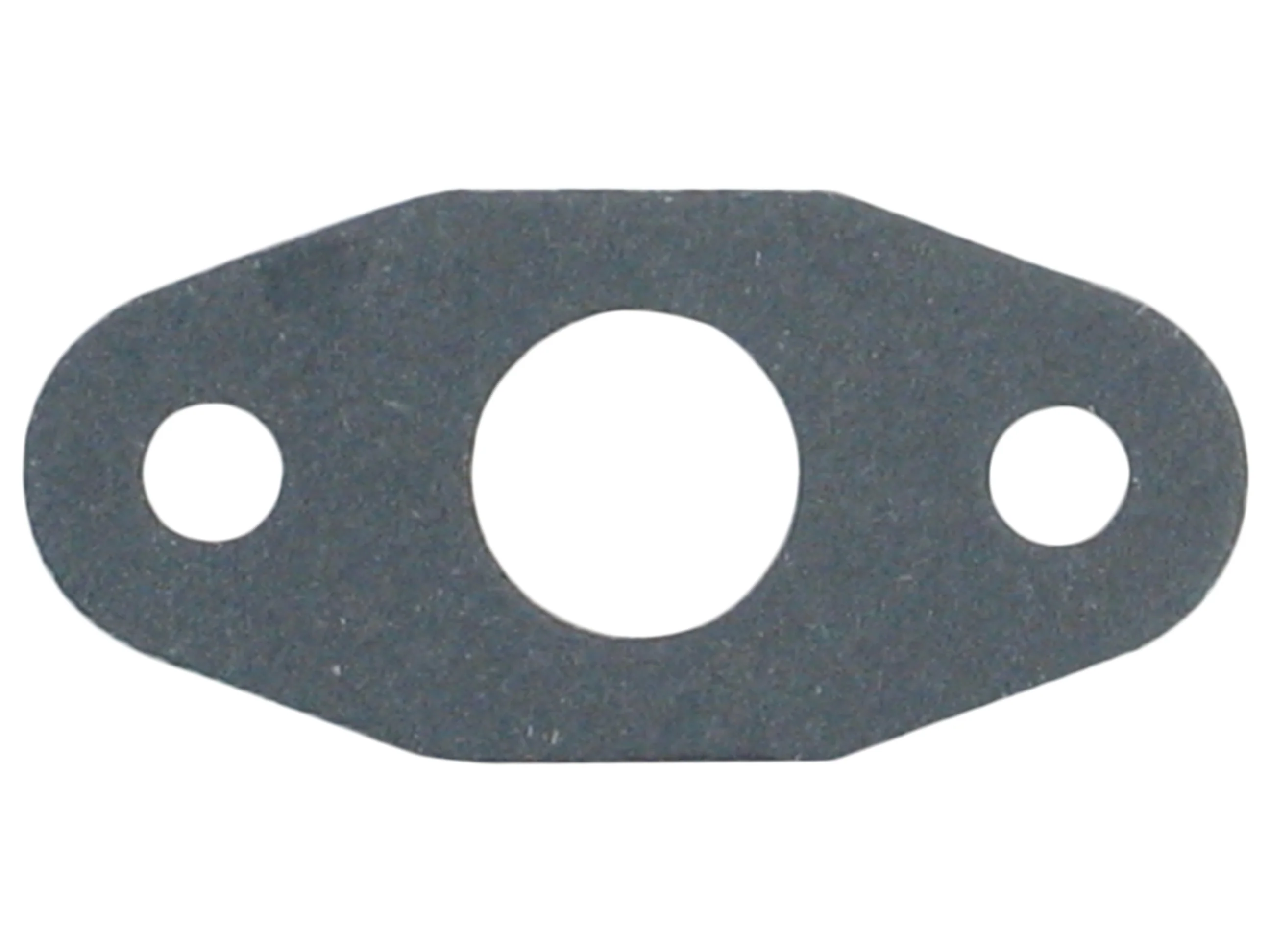

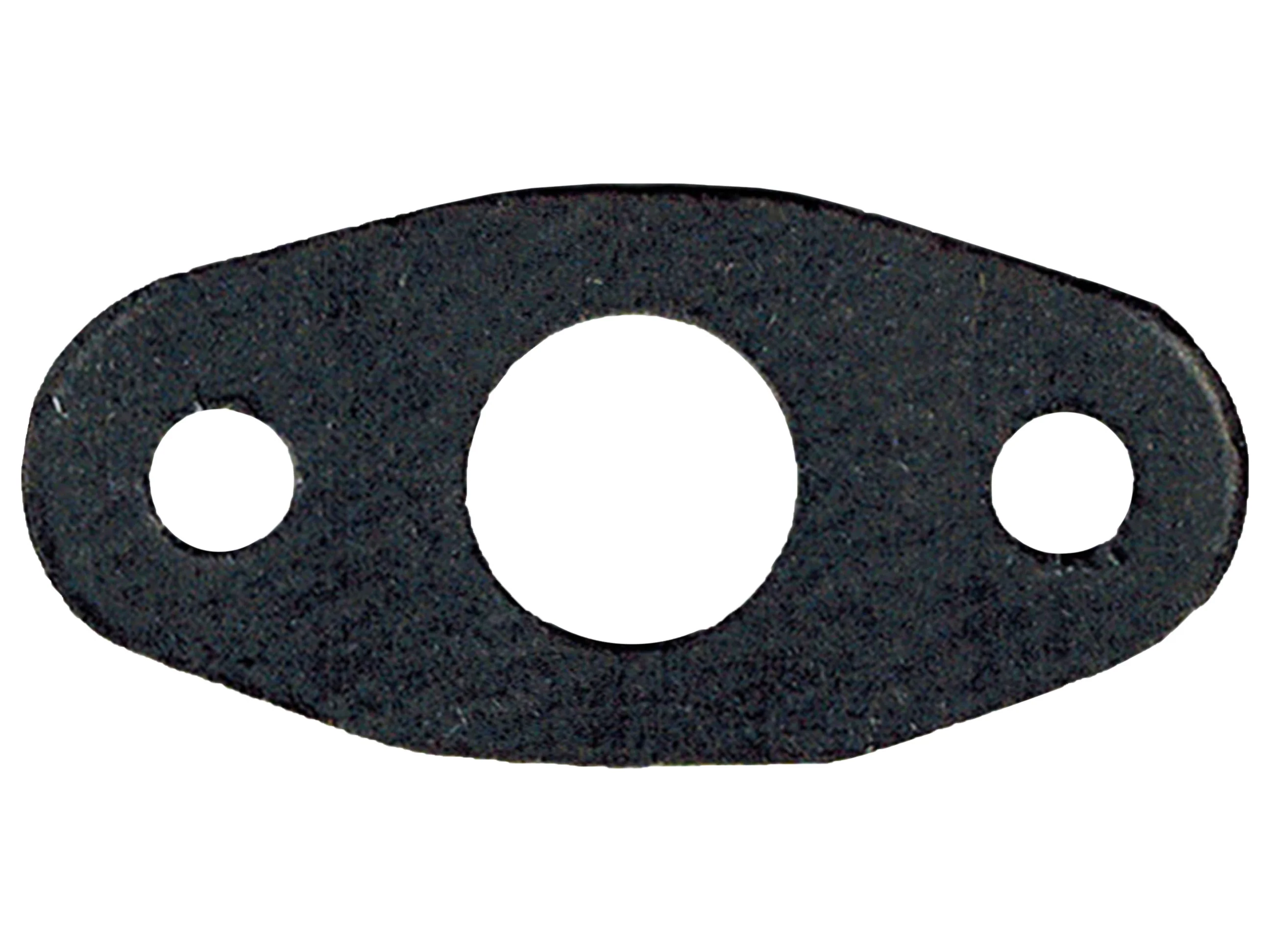

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

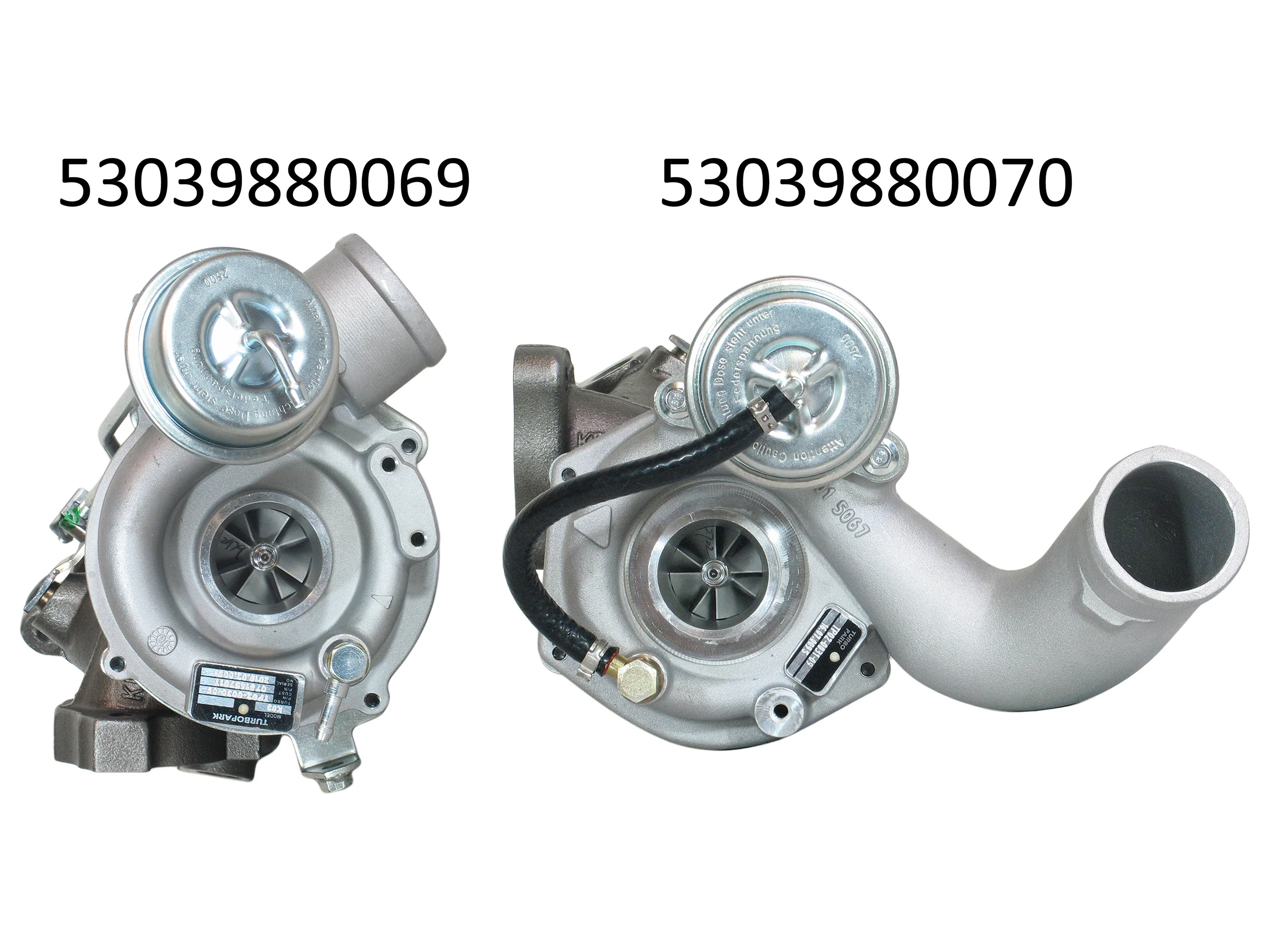

Part Number: 53039880069
Interchangeable Number: 5303 988 0069, 5303-988-0069, 53039700069, 5303 970 0069, 5303-970-0069
OEM Number: 078145701Q, 078145701T, 078145703Q, 078145703T

Angle α (Compressor Housing): 217.1°
Angle β (Turbine Housing): 105.2°
Actuator: 58201104116
Compressor Cover: 53031015005
Turbine Housing: 53031009110

NOTE: Intercooler, water cooled bearing housing, left side. Can be paired with 53039880070 (right side).

Part Number: 53039880070
Interchangeable Number: 5303 988 0070, 5303-988-0070, 53039700070, 5303 970 0070, 5303-970-0070
OEM Number: 078145702Q, 078145702T, 078145704Q, 078145704T

Angle α (Compressor Housing): 214.9°
Angle β (Turbine Housing): 0°
Actuator: 58251104115
Compressor Cover: 53031015013
Turbine Housing: 53031009111

NOTE: Intercooler, water cooled bearing housing, right side. Can be paired with 53039880069 (left side).

Extra Info for Both Turbos:

Turbo Model: K03, K03-1870EXA4.82KCAXK

Year: 2002-
Engine: BES
Displacement: 2.67L, 2671 ccm, V6 Cylinders
Fuel: Diesel
Power: 184 kW/247 HP
Speed: 5600 RPM

Back Plate: 53041515703 (1302003303)
Bearing Housing: 53041500009 (53041500006, 53041500015, 53041500017)(1302003460, 203070002)(Water Cooled)
CHRA: 53037100509 (5303-710-0509)(1302003909)
Compressor Wheel: 53031232011 (53031232003, 53031232004)(Ind. 31.45 mm, Exd. 44.96 mm, 4+4 Blades, Super Back)(1302003401)
Heat Shield: 53031652000 (1302003340, 206030001)
Repair Kit: 53037110000 (706832-0001)(1302003752)
Turbine Housing A/R: 4

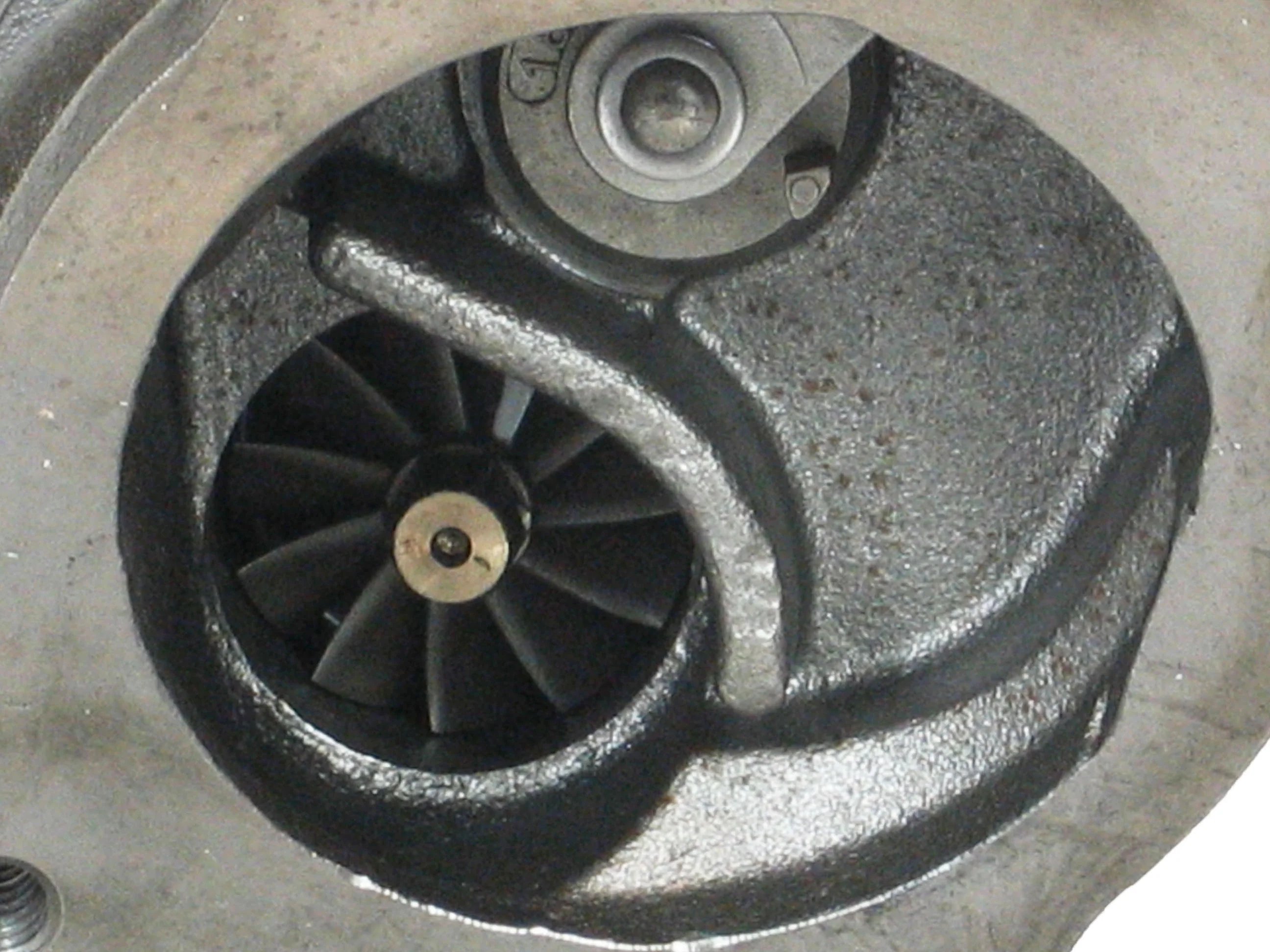

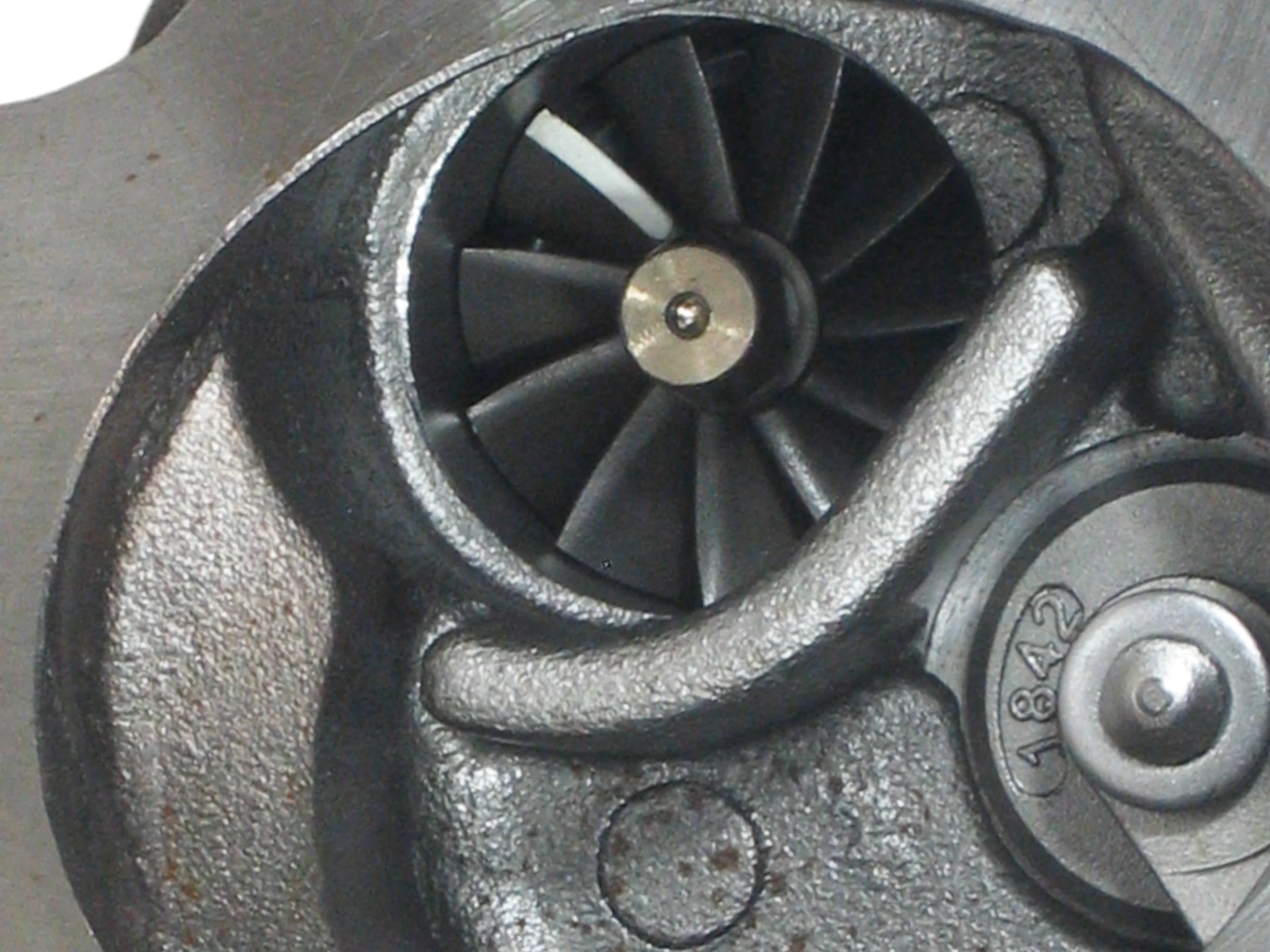

Turbine Wheel: 53031205029 (53031205000, 53031205002, 53031205008, 53031205010, 53031205012, 53031205013, 53031205017, 53031205023, 53031205025, 53031205027, 5303120-5037)(Ind. 45.03 mm, Exd. 37.82 mm, 11 Blades)(1302003438, 201050005)

Application:
2002- Audi A6 with BES Engine
2002- Audi A6 Allroad with BES Engine

TurboTurbos Part Number: TP02-0030-0031-09

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
