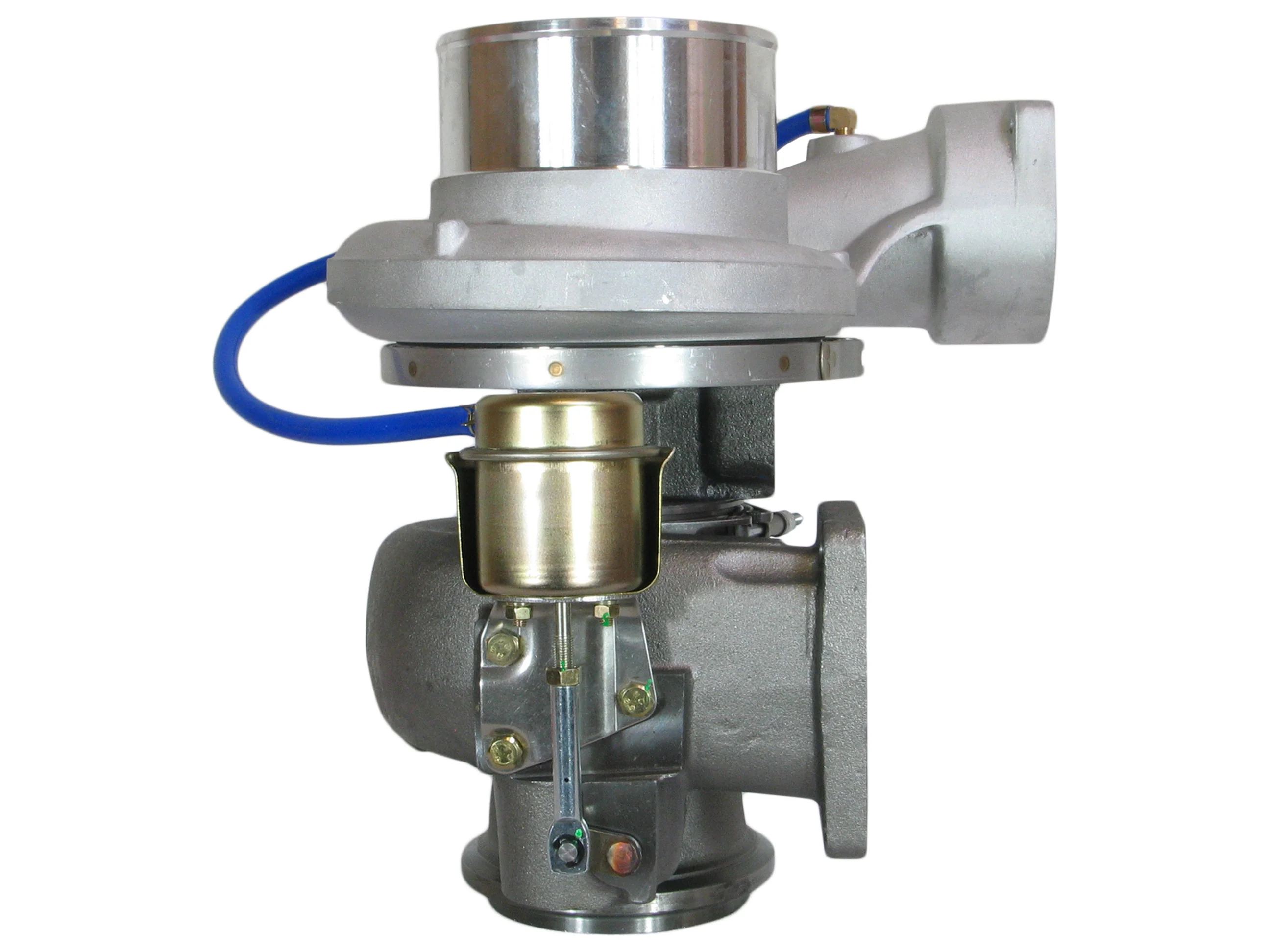

NEW S410G Turbocharger Caterpillar Truck 3406E 3406C C16 Engine 177148 Turbo

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 177148
Interchangeable Number: 169227, 170354, 466445-0015, 466445-5015, 466445-5015S, 466445-0018, 466445-5018, 466445-5018S, 466445-0021, 466445-5021, 466445-5021S, 466445-0023, 466445-5023, 466445-5023S, 471142-0003, 471142-5003, 471142-5003S, 471142-0005, 471142-5005, 471142-5005S, 704604-0007, 704604-5007, 704604-5007S, 704604-0011, 704604-5011, 704604-5011S, 466445-0018    , 466445-5018, 704604-0007, 704604-5007, 704604-5007S, 466445-5021S, 466445-0023, 466445-5023, 732915-5003S, 732915-5003, 222-1133, 704604-5011S, 177148, 169227, 170354, 466445-5018S, 466445-0021, 466445-5021, 466445-5023S, 471142-0003, 471142-5003, 466445-5015S, 466445-0018, 466445-5018, 704604-0007, 704604-5007, 704604-5007S, 466445-5021S, 466445-0023, 466445-5023, 732915-5003S, 732915-5003, 466445-0015, 466445-5015, 471142-5003S, 471142-0005, 14919880017, 732915-5001S, 732915-5001
OEM Number: 0R-6986, 0R6986, 0R-6989, 0R6989, 0R7152, 0R-7201, 0R7201, 0R-7203, 0R7203, 0R-7223, 0R7223, 0R-7299, 0R7299, 0R-7310, 0R7310, 0R-7923, 0R7923, 124-3032, 1243032, 124-3035, 1243035, 136-6390, 1366390, 137-4832, 1374832, 141-8937, 1418937, 141-8939, 1418939, 146-4328, 1464328, 160-6201, 1606201, 166-6752, 1666752, 167-9271, 1679271, 196-5951, 1965951, 222-1133, 2221133, 0R7310, 0R7923, 0R-6986, 0R-6989, 0R-7203, 0R-7223, 0R-7299, 0R-7310, 0R7223, 0R7299, 1243035, 1366390, 1374832, 1418937, 0R-7152, 0R-7201, 1666752, 1679271, 124-3032, 124-3035, 0R-7923, 1243032, 141-8937, 141-8939, 146-4328, 166-6752, 1418939, 1464328, 0R7201, 0R7203, 167-9271, 196-5951, 136-6390, 137-4832, MP177148, 1965951, 10R2962, 2221133, 261-6857, 196-5951

Turbo Model: S410G

Year: 1994-2008
Engine: 3406E, 3406C, C16
Displacement: 14.64L, 14640 ccm
Fuel: Diesel
Power: 317 kW/425 HP, 355 kW/475 HP, 404 kW/550 HP
Speed: 1800 RPM

Actuator: 446131-0046
Back Plate: 451444-0002
Bearing Housing: 451358-0004
CHRA: 174248 (161-6780, 10R-0510, 0R7287, 451686-0016)
Compressor Cover: 447992-0027/704569-0003 (161-6783)
Compressor Wheel: 451936-0001 (4P3818)
Gasket (Oil Inlet): 210019 (129119)
Gasket (Oil Outlet): 210018 (129120)
Heat Shield: 707967-0002
Repair Kit: 176392
Turbine Housing + Actuator: 447990-0099 (221-2104)
Turbine Housing: 702908-0003
Turbine Wheel: 702892-0001

Application:
1994-01 Caterpillar Truck with 3406E Engine
1994-07 Caterpillar Truck, Tractor with 3406E, 3406C, C16 Engine
1996-07 Caterpillar with 3406C (425 HP) Engine
1998-01 Caterpillar Truck with 3406E (435-550 HP), 3406E (455-550 HP) Engine
1998-08 Caterpillar with 3406E (Low HP) Engine
Caterpillar Truck with 3406E (425 HP), 3406E (475 HP) Engine

TurboTurbos Part Number: TP03-0025-04

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
