NEW HX50 Turbo Freightliner Truck Cummins M11 Diesel Engine 3533558 3533557

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

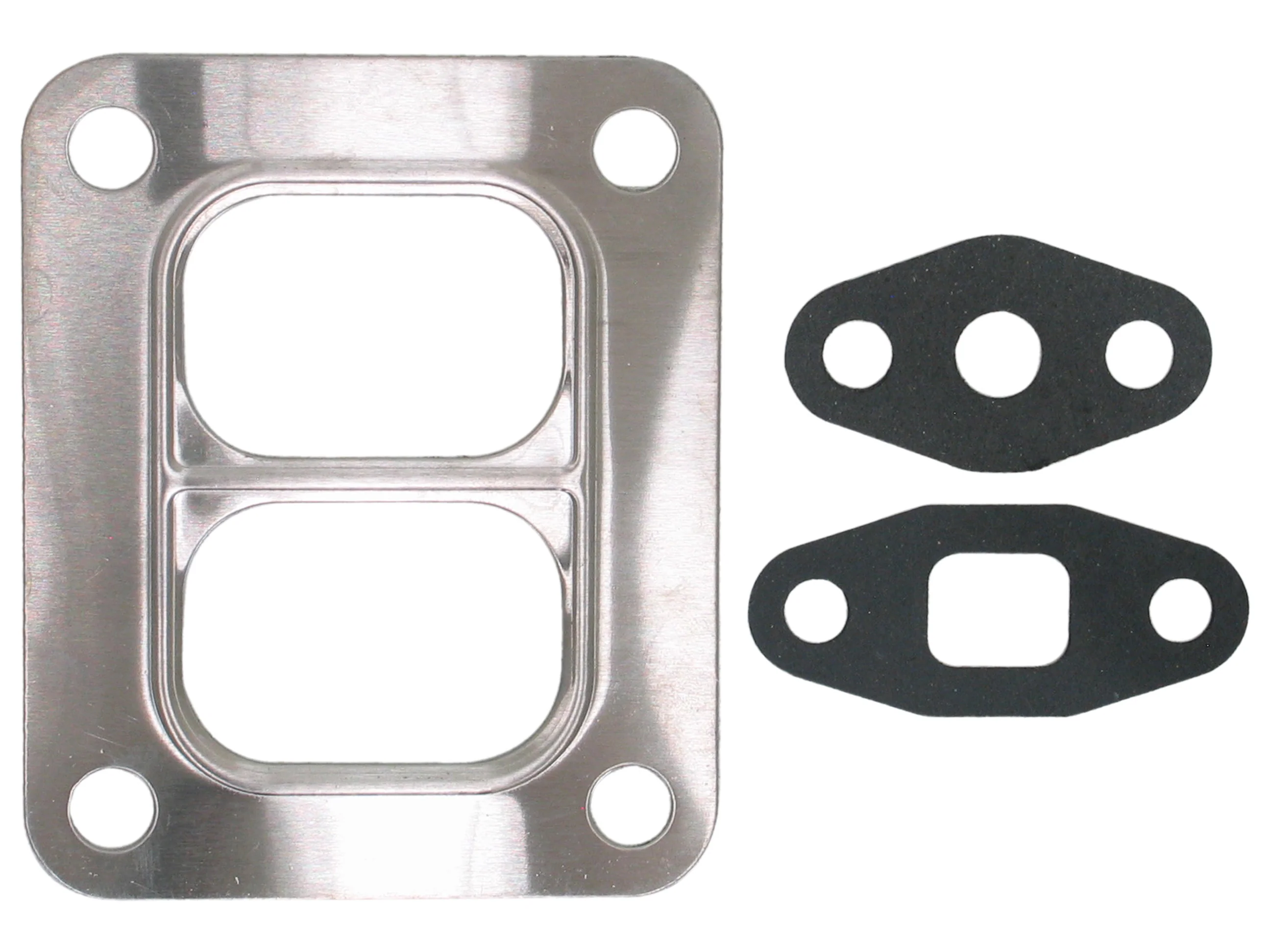

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3533557
Interchangeable Number: 178370, 178370R, 3533558, 3538544, 353854500, 353854500H, 353854500HX, 3538545H, 3538545HX, 380371000, 380371000H, 380371000HX, 3803710H, 3803710HX, 3803710NX, 3803710RX, 478370
OEM Number: 3538545, 3803710
Turbo Model: HX50

Engine: M11
Engine Manufacturer: Cummins
Displacement: 11.0L
Fuel: Diesel
Power: 450 hp
Speed: 1200-1800 rpm

Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 360°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3533195
CHRA: 3580725 (3580725H)
Compressor Housing: 3527932 (3527932H)
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 99 mm, Trim 46, 7+7 Blades)
Gasket (Oil Outlet): 311496, 210021 (148062, 311496)
Gasket (Turbine Inlet): 409123-0002 (310694)
Gasket Kit: 3545576 (1900100058)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit (Major): 3545997H
Turbine Housing: 3533410 (3533410H)
Turbine Wheel: 3531763 (Ind. 86.5 mm, Exd. 77 mm, 12 Blades)
Turbocharger Kit: 3538545H/3538545HX

Application:
1993-03 Freightliner Truck with Cummins M11 Engine
1993-03 Navistar Truck with Cummins M11 Engine

TurboTurbos Part Number: TP05-0218-04

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
