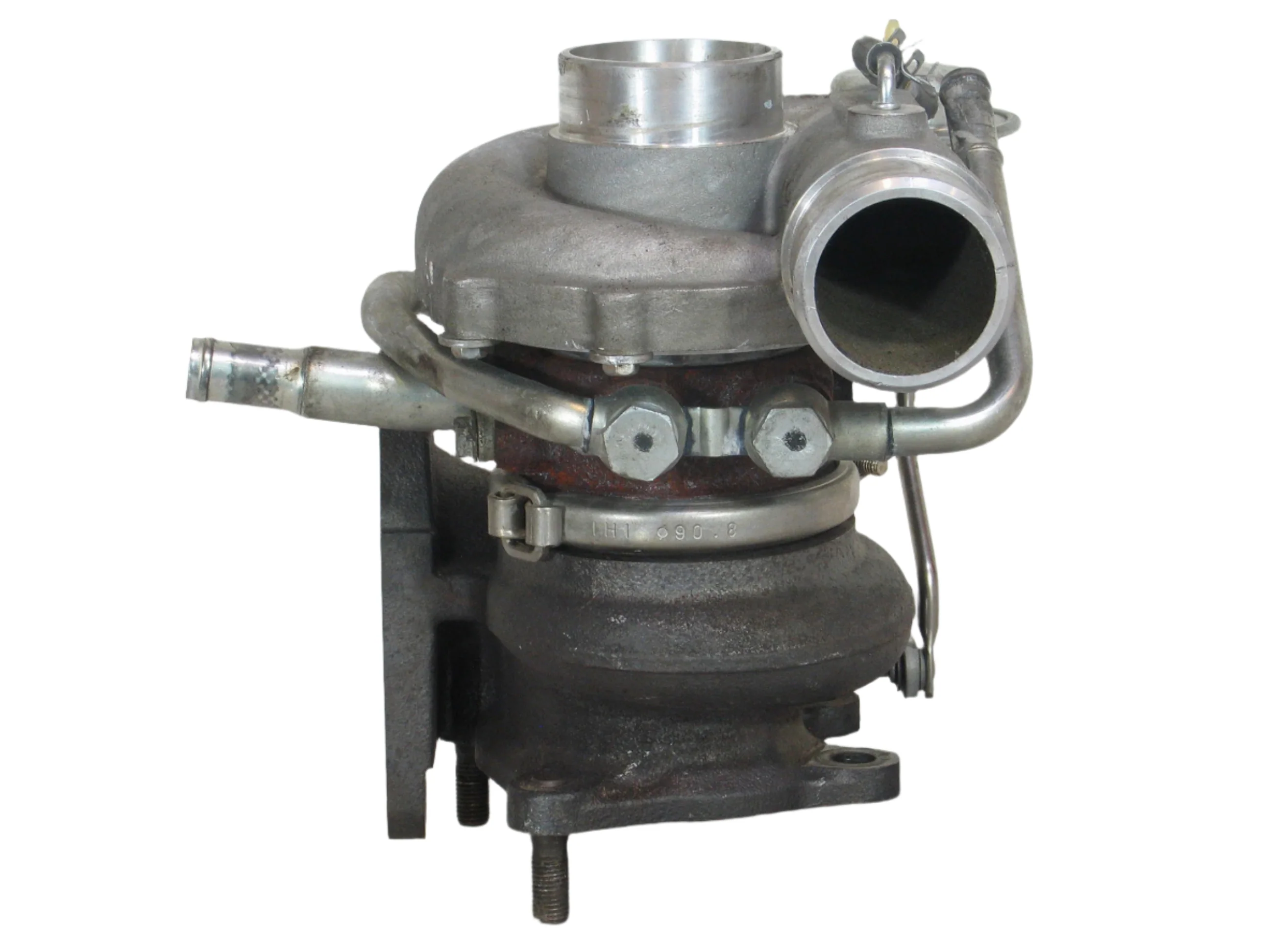

Used OEM IHI RHF55 Turbocharger Subaru Impreza WRX STI VB440057 VF48 Turbo
USED IHI TURBOCHARGER
This is a USED IHI TURBOCHARGER. Working condition or functionality not guaranteed.
NOTE: This turbocharger has been physically checked and is in good condition.
This turbocharger is designed for stock use. Any high performance modifications may void your warranty.
Fits the following:
Part Number: VA440057
Short Spec.: VF48
Interchangeable Number: F56CAD-S0057B, F56CAD-S0057G, VB440057, VC440057
OEM Number: 14411-AA700, 14411AA700
Turbo Model: RHF55, RHF55-94001P18NR5BRL479CBZ
Manufacturer: IHI Turbo
Year: 2002-13
Engine: EJ20, EJ20E, EJ20G, EJ25, EJ25E, EJ25G
Displacement: 2.0L, 2000 ccm, 2.5L, 2500 ccm DOHC
Fuel: Gas
Power: 280 HP
Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 0°
Back Plate: (1450055300, 1300016126)
Bearing Housing: (Oil & Water)(1450055460, 1900011272)
Bearing: Journal
CHRA: (VF30CHRA, 1450055900, 1000040131)
Compressor Wheel: (Ind. 46 mm, Exd. 60 mm, 6+6 Blades, Super Back)(1450055400, 1200016392)
Gasket (Oil Inlet): 210553 (Paper)
Gasket (Turbine Inlet): 210809 (Inox Steel)
Gasket (Turbine Outlet): 210689 (Inox Steel)
Gasket Kit: (1900100277)
Heat Shield: (1450050340, 2030016124)
Repair Kit: NH459801 (NZ852748, 2445094)(1450055753, 5000080052)
Scroll: Single
Turbine Wheel: (Ind. 53.3 mm, Exd. 48 mm, 11 Blades)(1450055435, 1100016284)
Wastegate: Internal
Application:
2002-06 Subaru WRX with EJ20, EJ25 Engine
2004-07 Subaru WRX STI with EJ20, EJ25 Engine
2008-13 Subaru WRX STI with EJ25 Engine (USA STI only, J-Spec STI has different flange type)
2005-09 Subaru Impreza WRX STI with EJ25E, EJ25G Engine
2005-09 Subaru Forester 2.5L with EJ25E, EJ25G Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Change turbocharger at your own risk. We don‚¬„¢t guarantee working condition or functionality on used turbochargers.
