NEW OEM IHI RHF5 Turbo Mazda B2500 J97A Ford Courier Ranger WL85 VI430089 VJ33

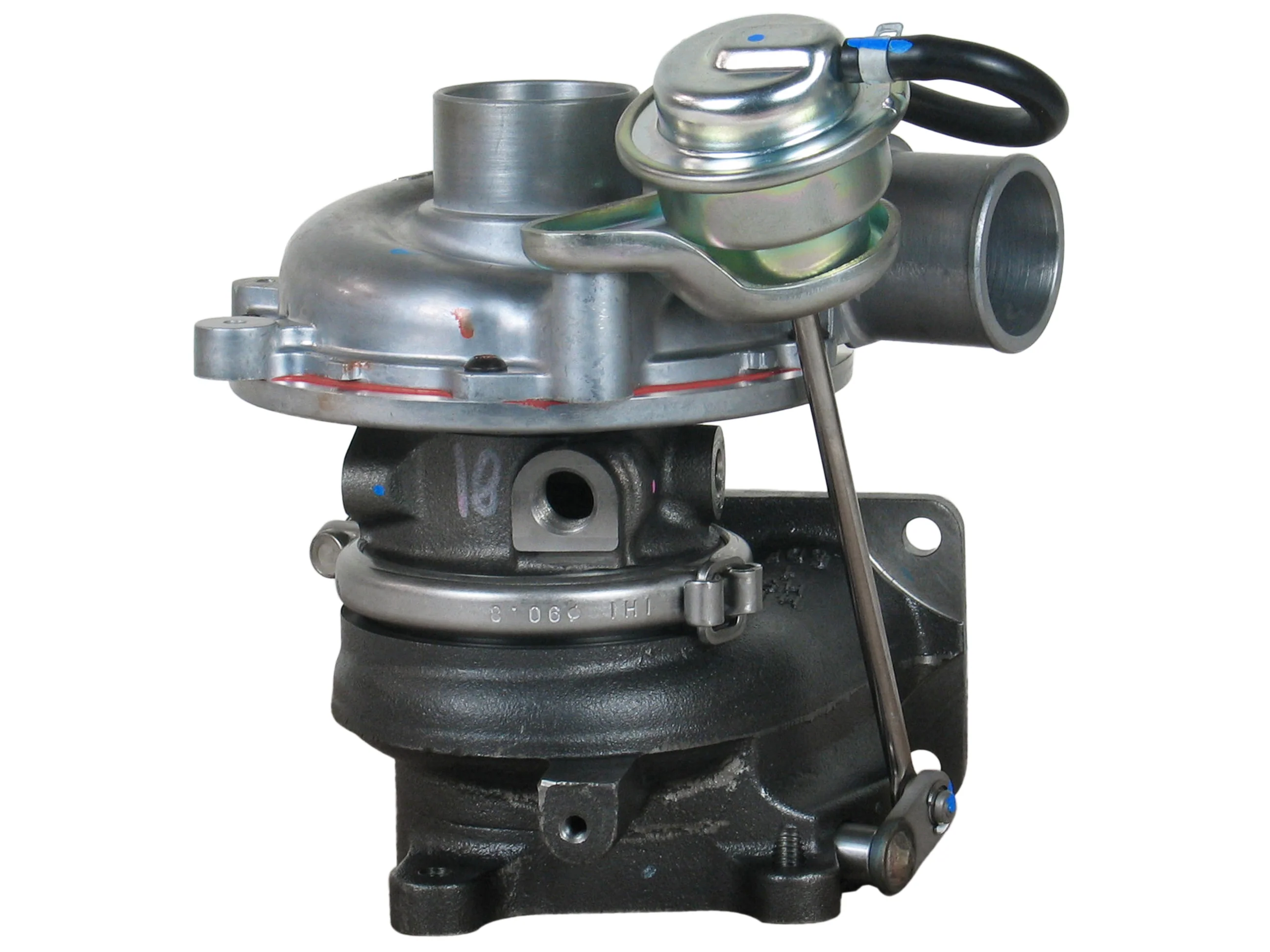

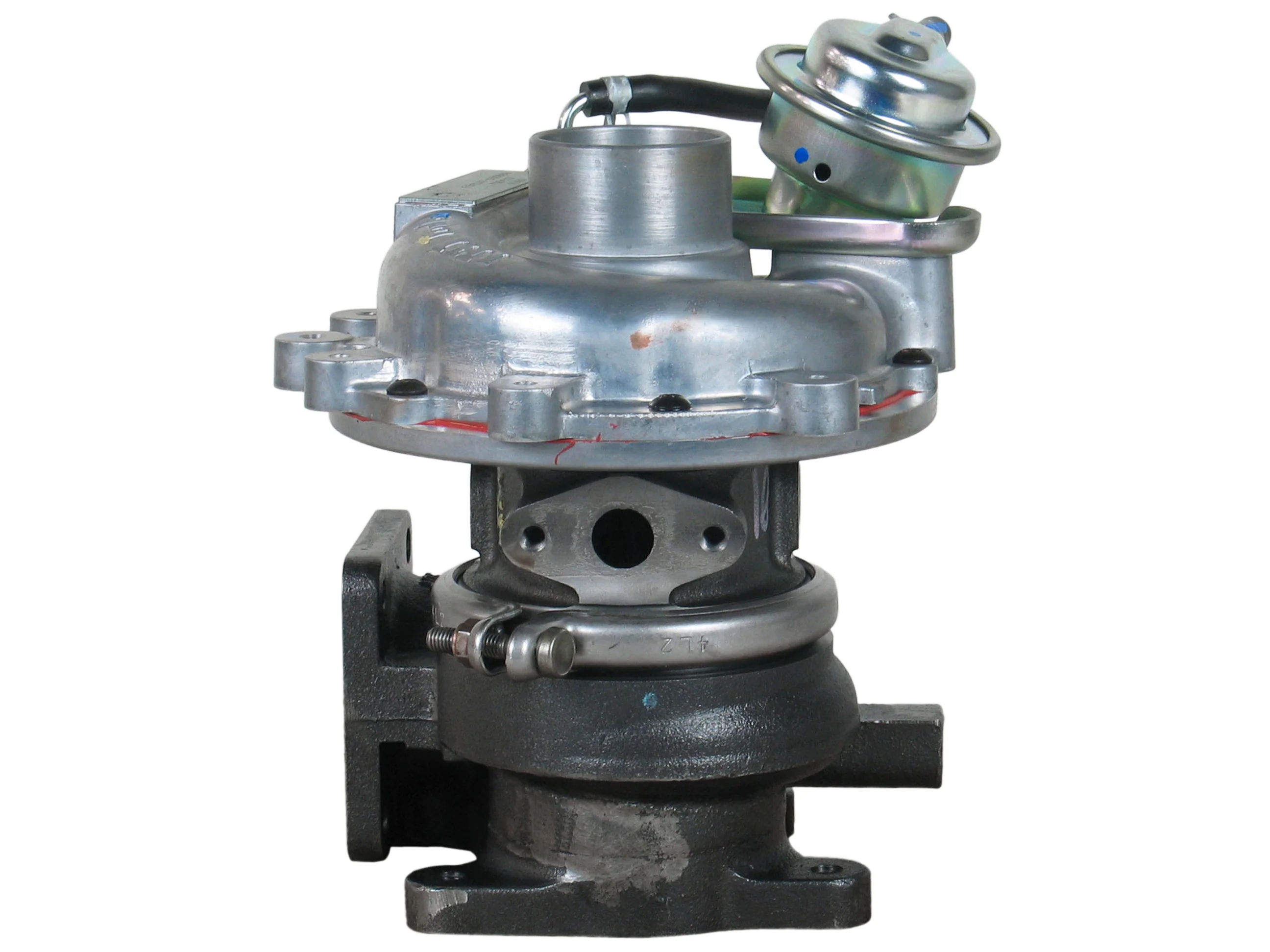

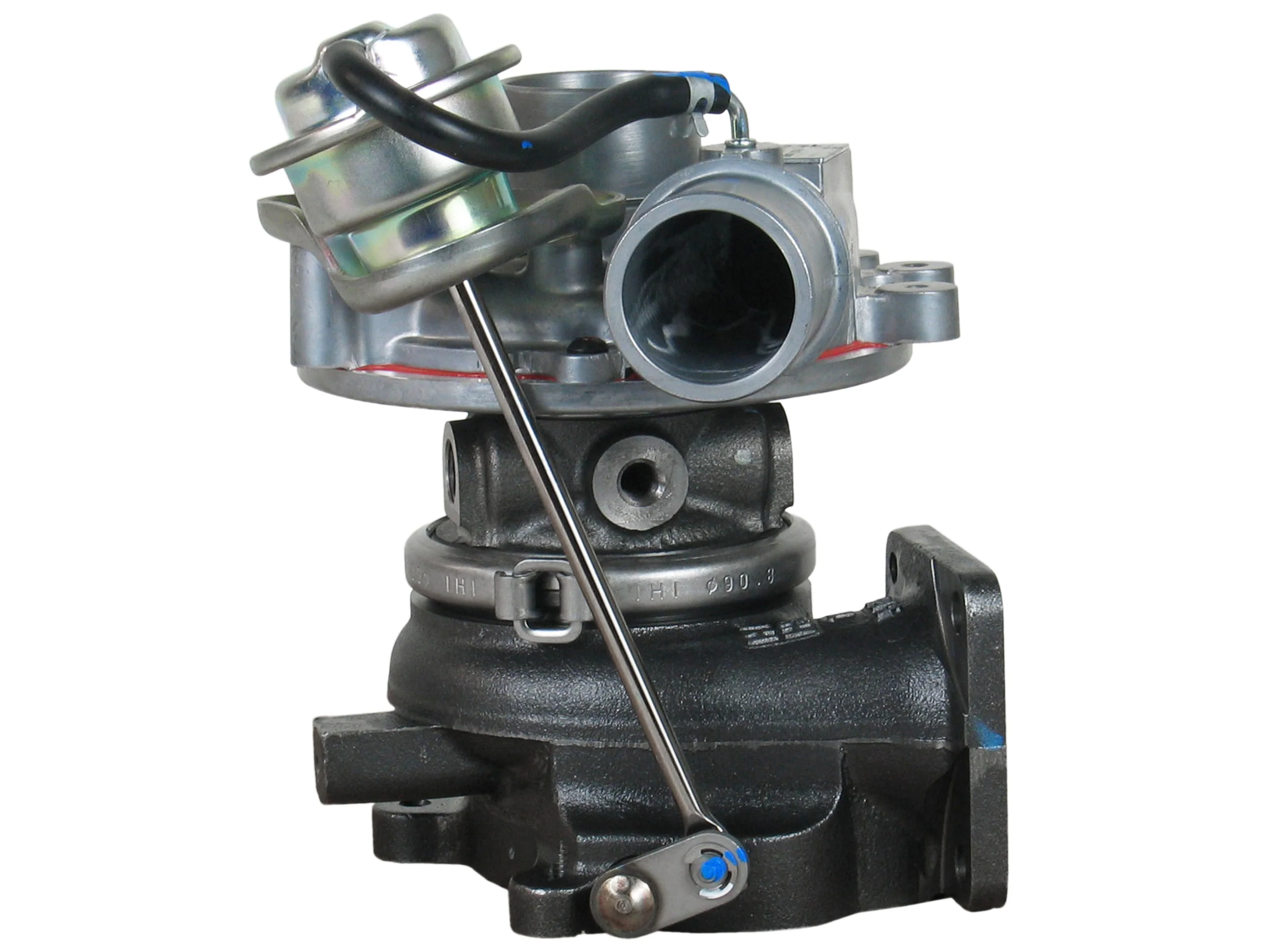

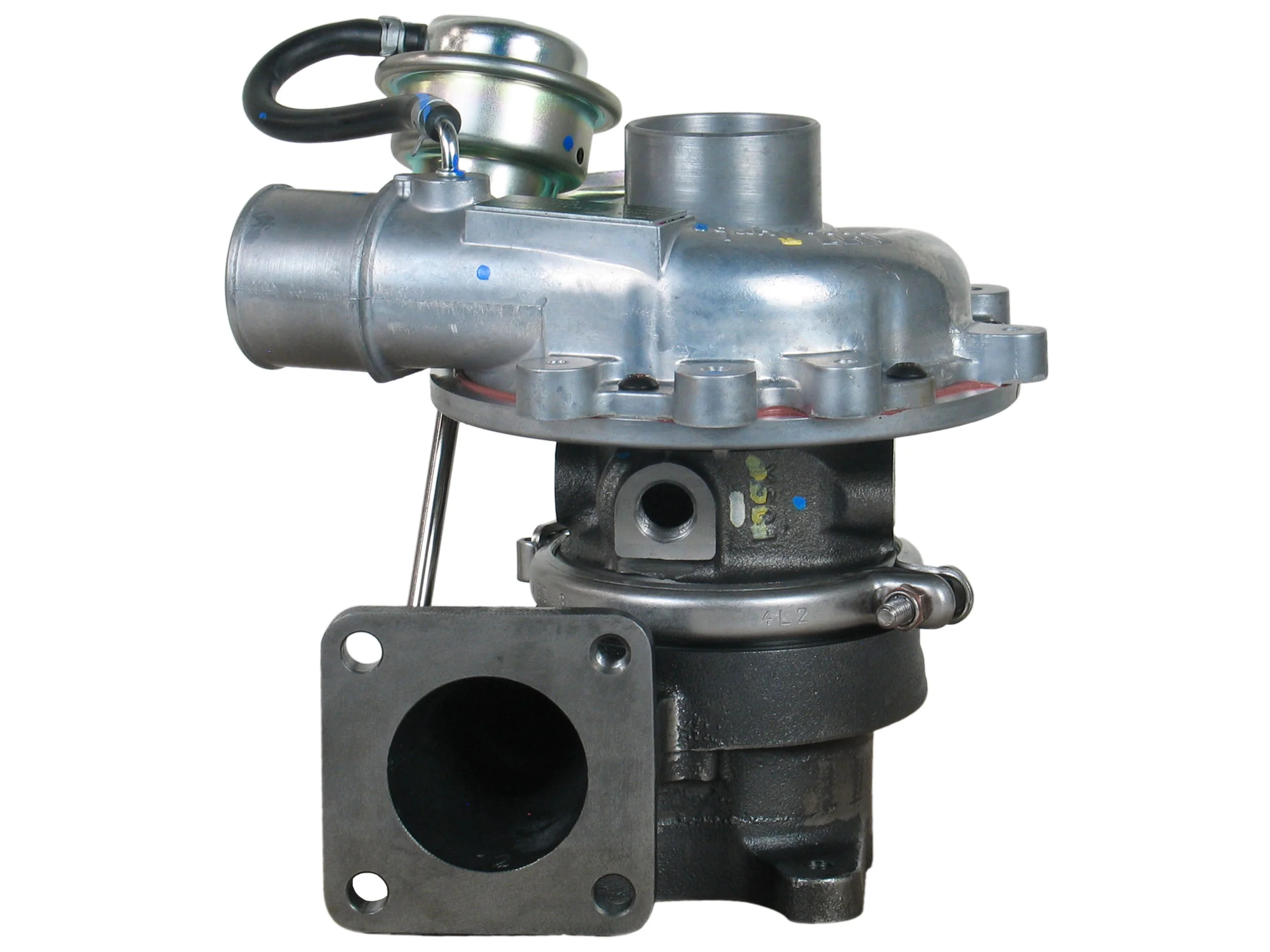

BRAND NEW GENUINE IHI TURBOCHARGER

This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: VI430089
Short Spec.: VJ33
Interchangeable Number: F51CAT-S0089B, VA430089, VA430090, VB40013 VB430089, VB430090, VC430089, VC430090, VD430090, VE430090, VJ26
OEM Number: WL-84, WL-85, WL84, WL84.13.700, WL85, WL85-13700C, XN349G348AB
Turbo Model: RHF5, RHF5-70003P12NHBRL3730CEZ
Manufacturer: IHI Turbo - CloverTurbo

Year: 1996-
Engine: 115 J97A, J97A, WLT
Engine Manufacturer: Mazda
Displacement: 2.5L, 2500 ccm, 4 Cylinders
Fuel: Diesel
Power: 109/118 HP

Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 20°
Actuator: NH961511 (2061016580)
Back Plate: (1300016102)
Bearing Housing: (Water Cooled)(1900011215)
CHRA: VCX50024 (1000040119)
Compressor Cover: NH453322
Compressor Wheel: (Ind. 36.44 mm, Exd. 52.52 mm, 5+5 Blades, Super Back)(1200016340)
Gasket (Oil Inlet): (1203215, 1203715)
Gasket (Oil Outlet): 210636 (2445067)(Paper)
Gasket (Turbine Inlet): 210276 (2445051)(Metal)
Gasket (Turbine Outlet): 210650 (2445330)(Metal)
Gasket (Water): (1203216)
Gasket Kit: 215278 (2505513)
Heat Shield: (2030016082B)
Repair Kit: NH459801 (NZ852748, 2445094)(5000080009)
Turbine Housing A/R: 12
Turbine Housing: NH459109
Turbine Wheel: (Ind. 44.80 mm, Exd. 40.25 mm, 8 Blades)(1100016279)

Application:
1996- Mazda B2500 with J97A Engine
2000- Ford Courier, Ranger Double Cab with WL85 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
