NEW OEM Holset H1C Turbo Industrial Agricultural Cummins 4TA-390 Engine 3522900

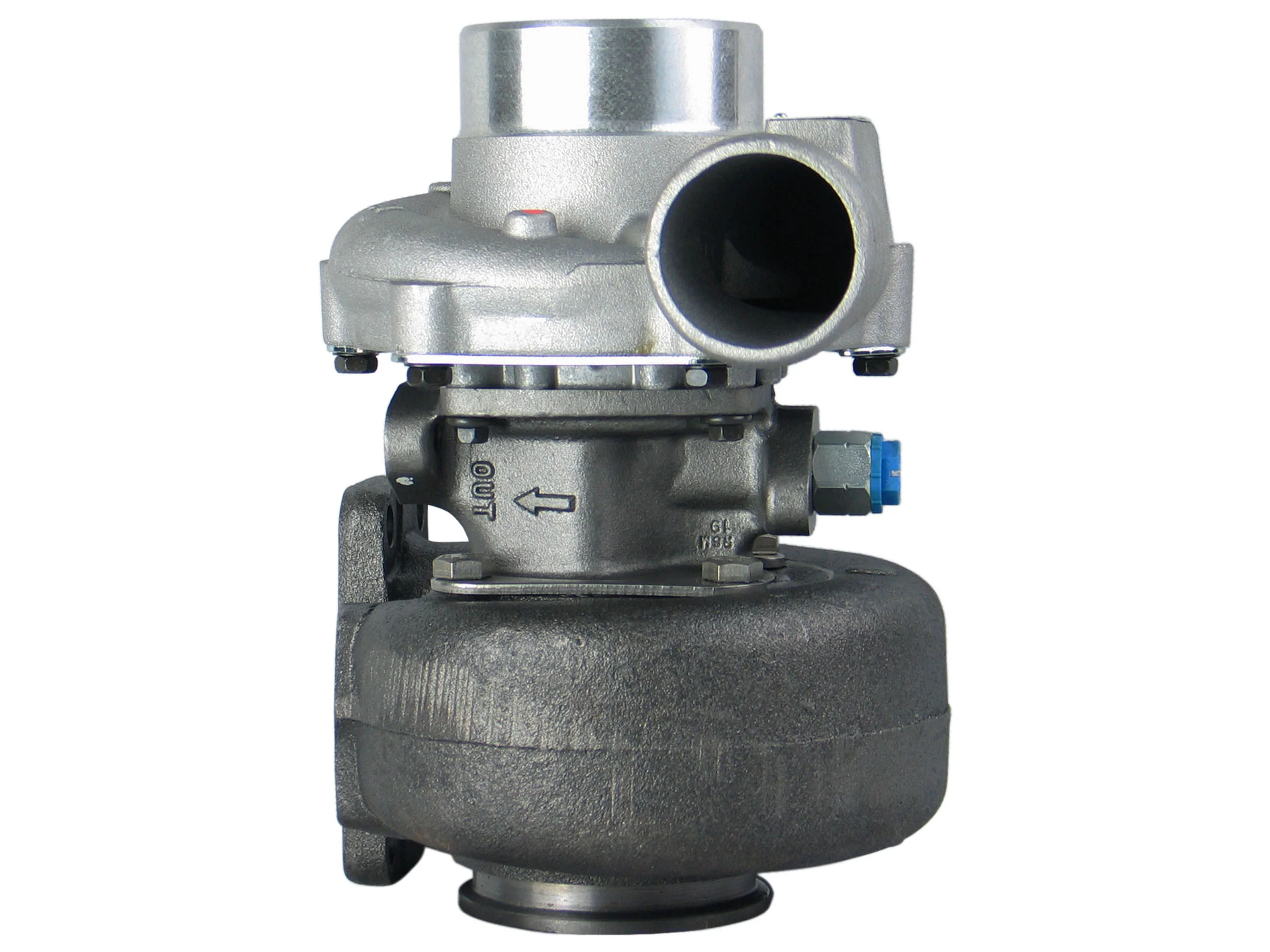

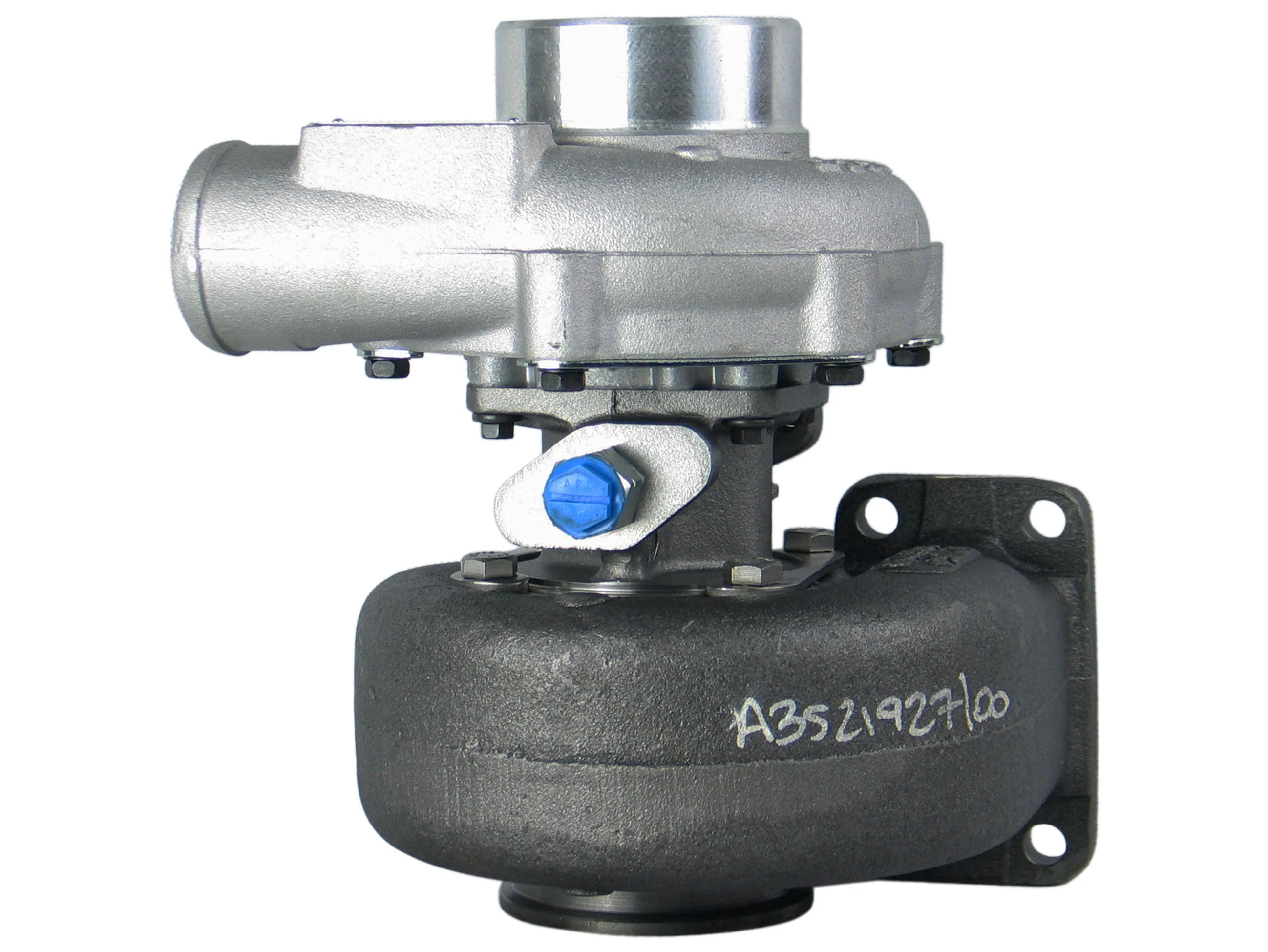

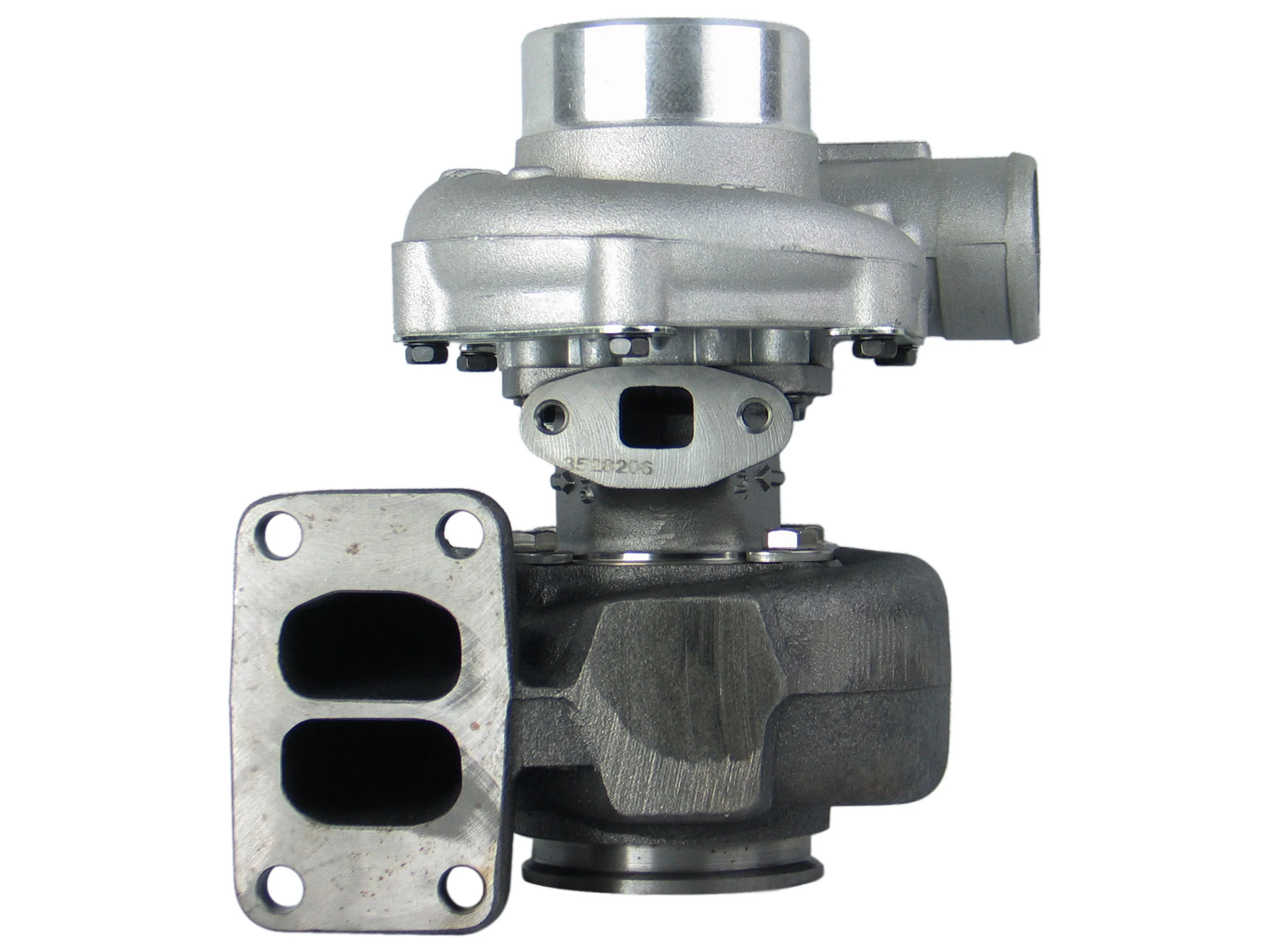

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3522900
Interchangeable Number: 171270, 3519287, 352003000, 3520030H, 3520030HX, 3524121, 352412200, 3524122H, 3528743, 3528755, 3533516, 3533680, 3533743, 3534991, 3534992H, 3535381, 3779713, 3802124, 3802290RX, 3802295NX, 3802295RX, 3802615RX, 3906602, 3908293, 3914130, 3919129, 3919130, 3919133, 3919135, 3919139, 3919145, 451567-0006, 451567-5006, 451567-5006S, 6634834, 6634834REM
OEM Number: 3520030, 3524122, 3528744, 3528756, 3530717, 3530718, 3530719, 3530720, 3530721, 3533519, 3534992, 3535422, 3535423, 3535424, 3535432, 3535433, 3536065, 3536066, 3538840, 3802290, 3802295, 3802615, 3903666, 3903667, J802290, J906602, J908293, J914130, J919129, J919130, J919133, J919135, J919139, JR802290
Turbo Model: H1C, H1C-7234Y/E16DA11
Brand: Holset

Engine: 4TA-390, 4BTA 3.9
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Fuel: Diesel
Power: 390 HP

Angle α (Compressor Housing): 217°
Angle β (Turbine Housing): 0/360°
Back Plate: 3534947
Bearing Housing: 3530591/3530592 (1152301450)
CHRA: 3523322/3523322H
Compressor Housing: 3521848
Compressor Wheel: 3521863 (Ind. 42 mm, Exd. 73 mm, 8+8 Blades, Super Back)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (312617, 2405022, 7C7431)
Gasket Kit: 4032401H
Heat Shield: 3519302 (1152301750)
Repair Kit: 3545652/4027309 (1152301750)
Turbine Housing: 3521927
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 3520030H/3520030HX

Application:
1986-03 Agricultural with Cummins 4TA-390 Engine
1986-03 Industrial with Cummins 4TA-390 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
