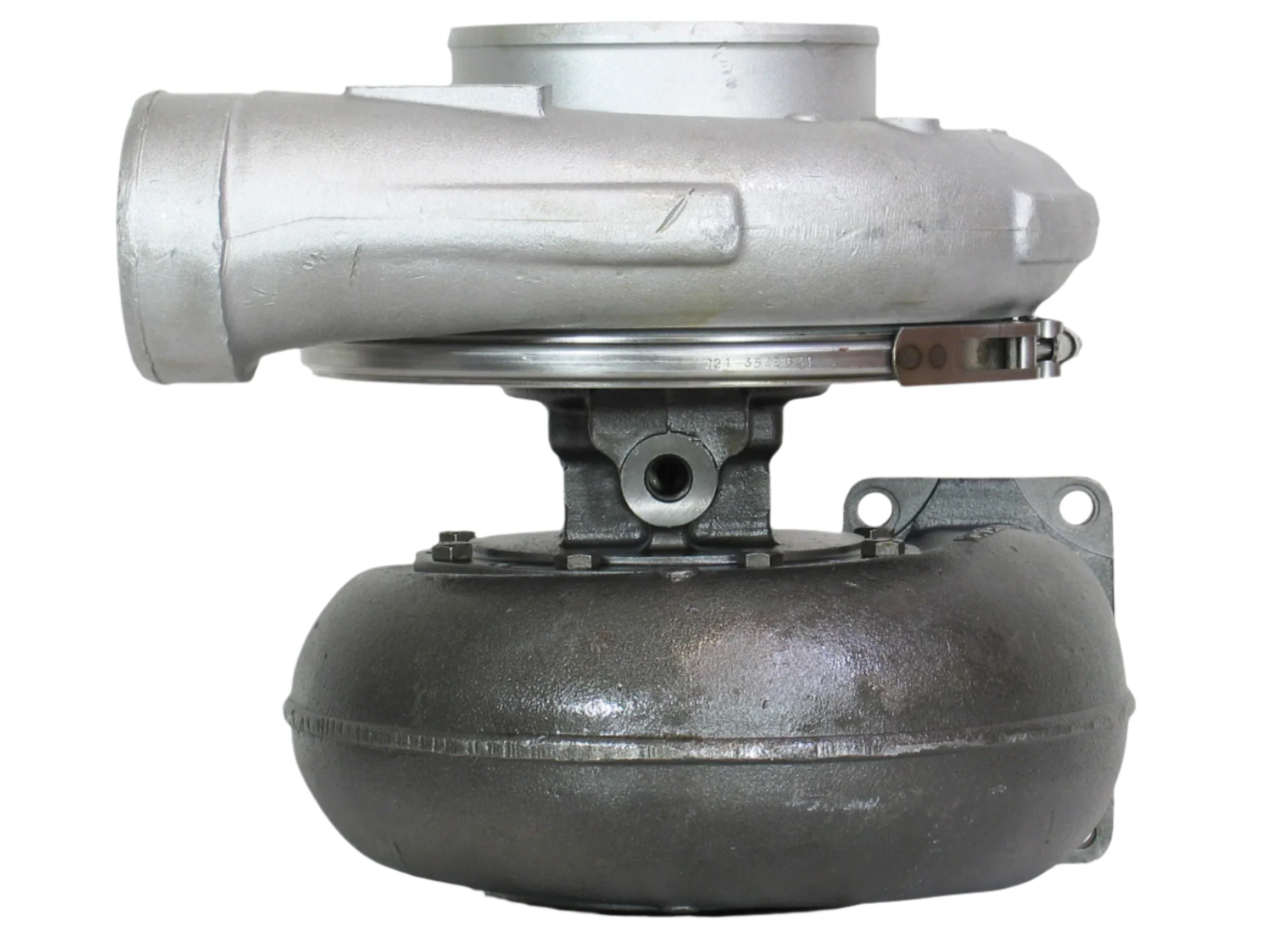

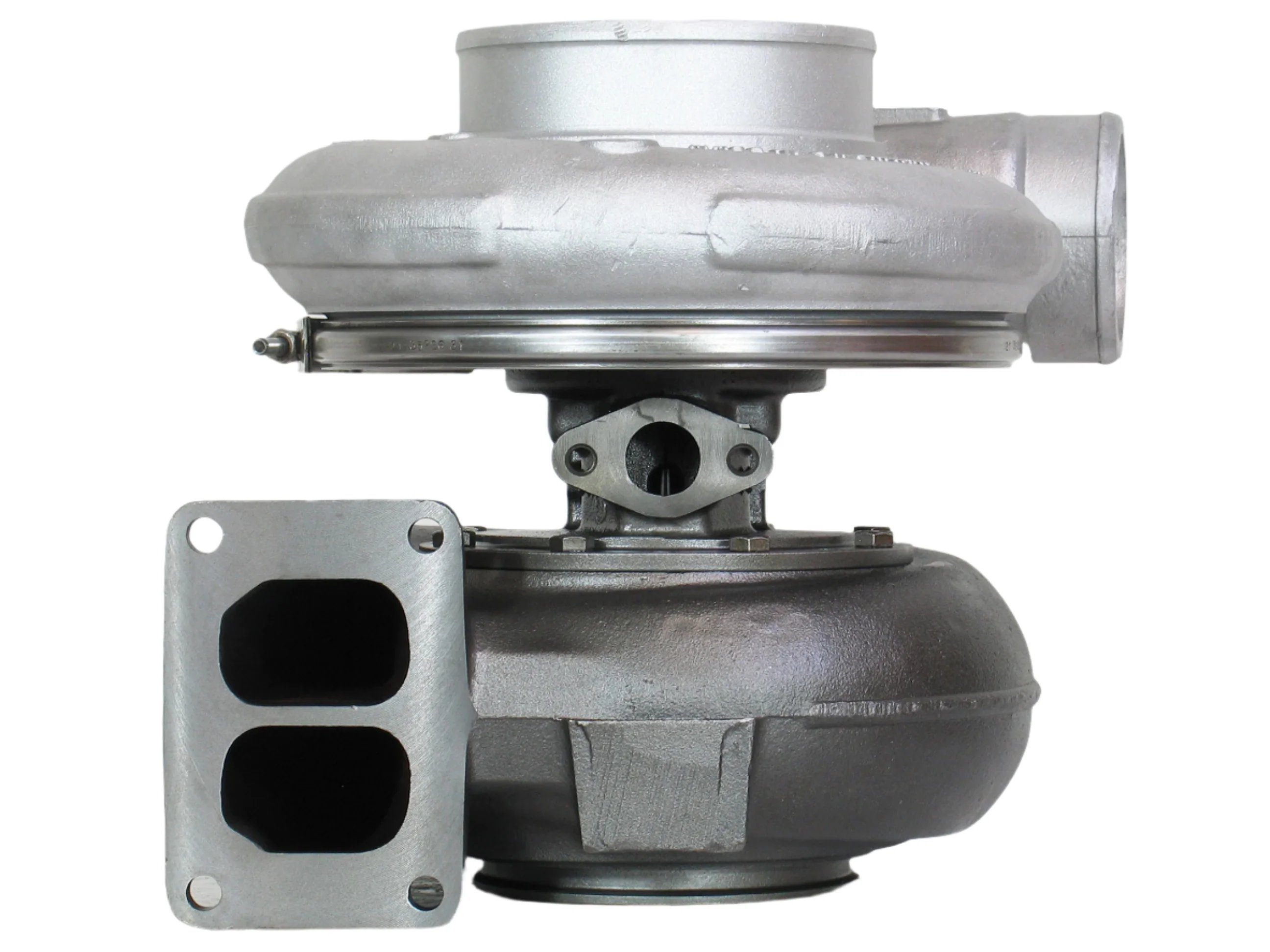

HC5A Turbocharger Cummins KTA38 Diesel Engine 3801884 3594039 3594038 Turbo

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 3594038
Interchangeable Number: 3524450, 3524459, 3594039
OEM Number: 3801884
Turbo Model: HC5A-2741U/F41D3, HC5A

Year: 1985-00
Engine: KTA38
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 8°
Angle β (Turbine Housing): 360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3523429 (352342900)
CHRA: 3545702 (402708400)
Compressor Wheel: 3521918 (Ind. 86.89 mm, Exd. 127 mm, Trim 47, 8+8 Blades)(352191800)
Gasket (Oil Outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002, 1900000004)
Heat Shield: 3519783 (351978300)
Repair Kit: 3545647 (1152105750)
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)

Application:
1985-00 Various with Cummins KTA38 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
