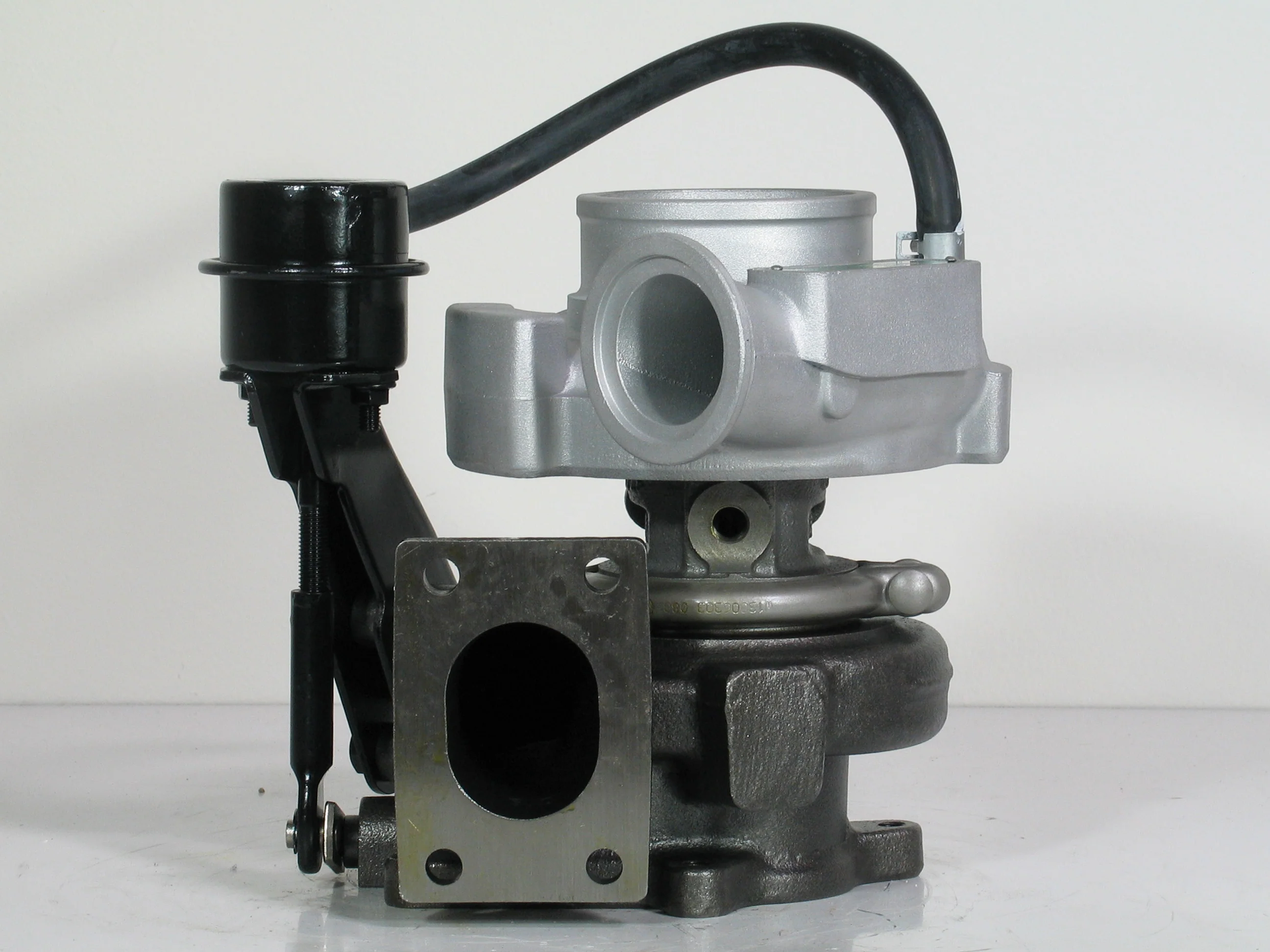

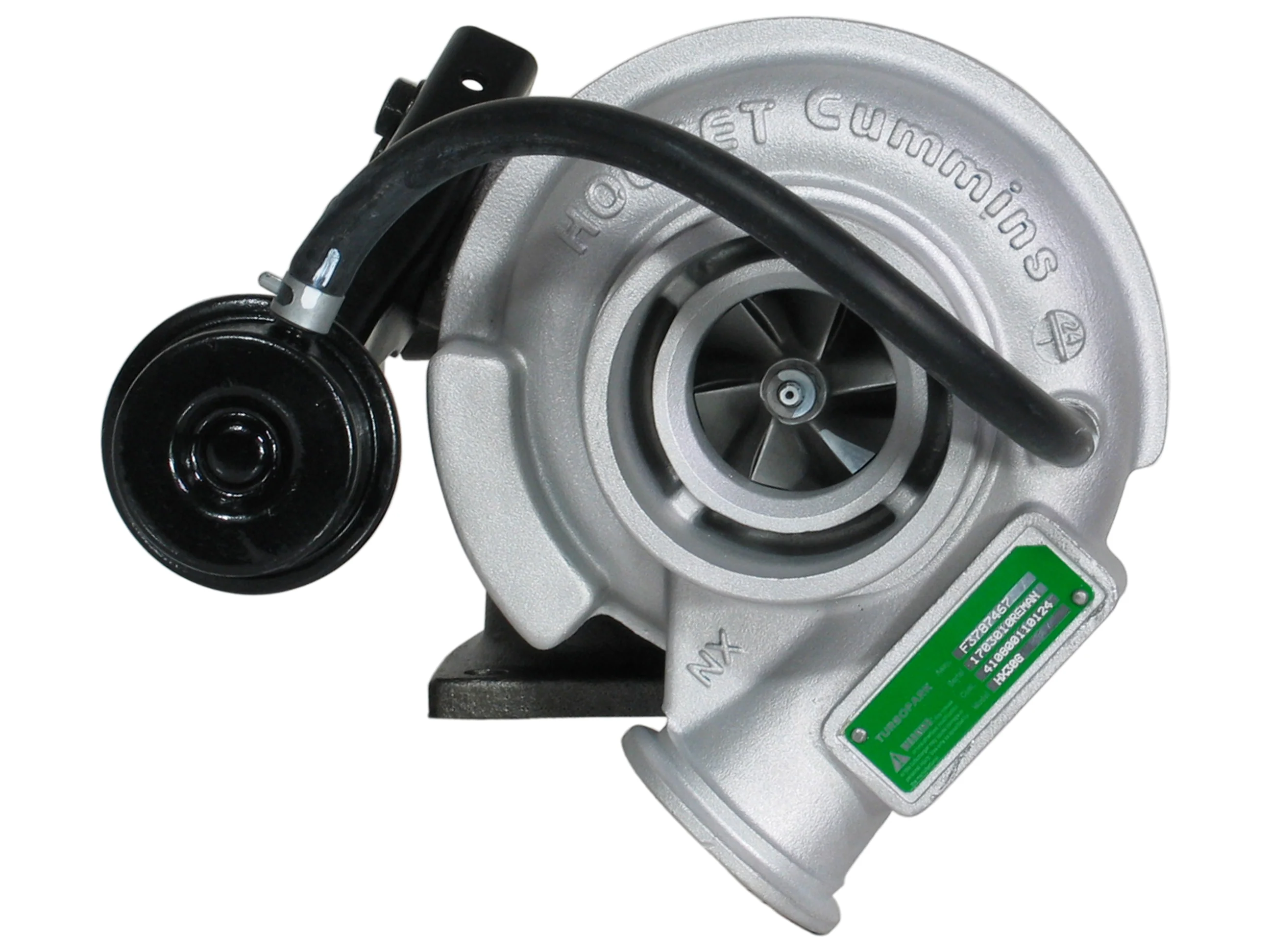

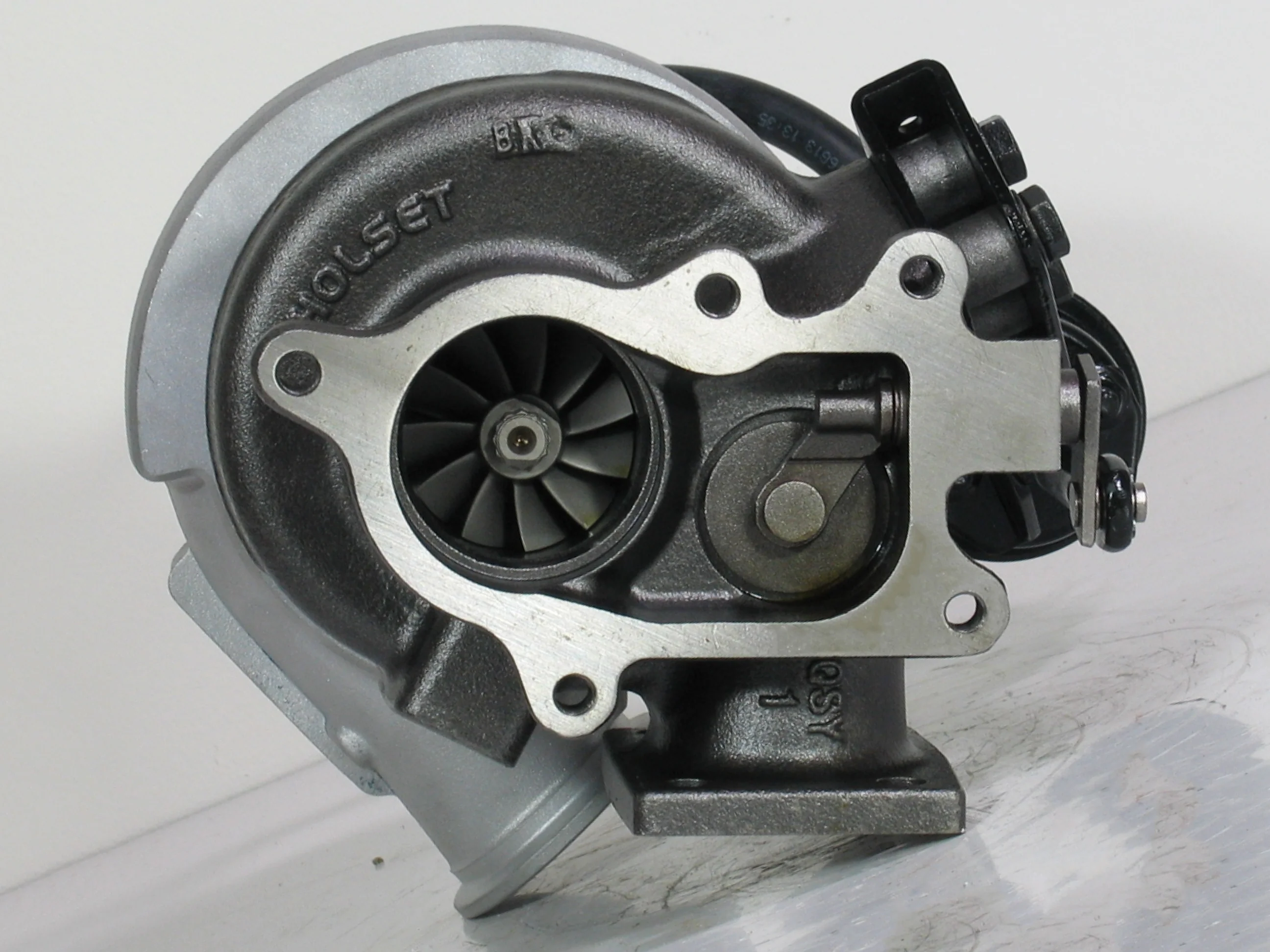

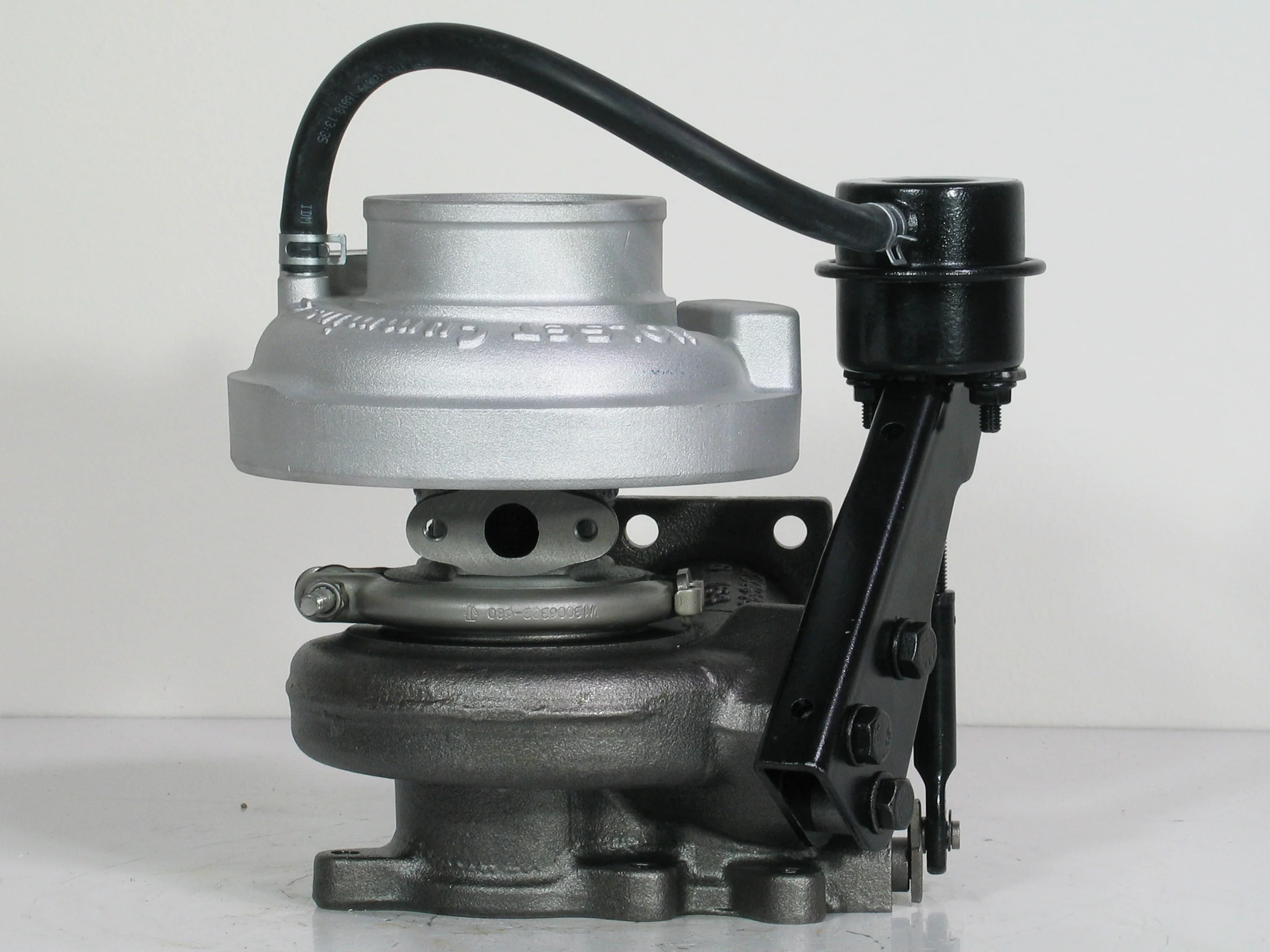

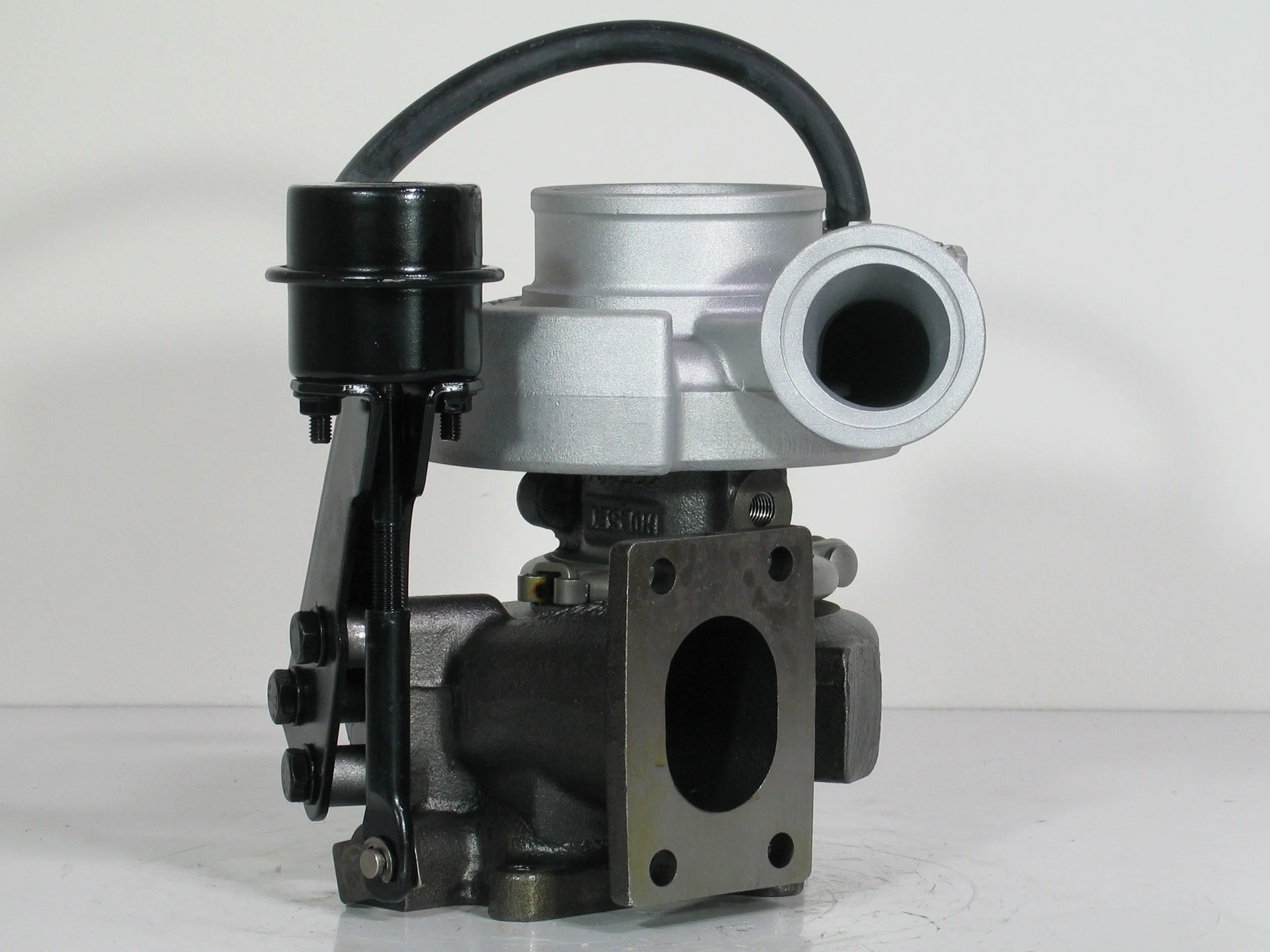

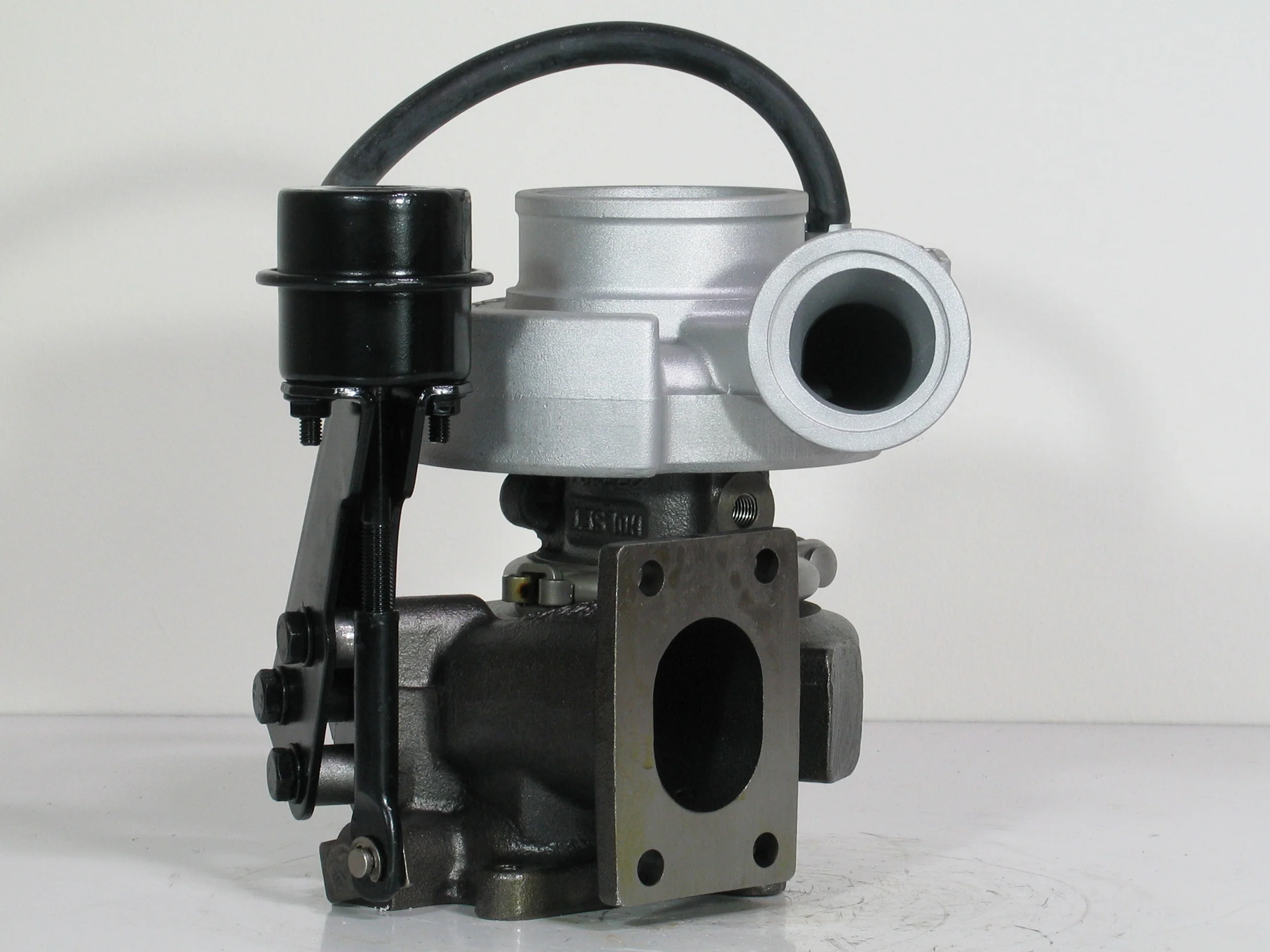

HE200WG Turbocharger Bus Truck Weichai WP5 Cummins ISDe140 4.5L Diesel 3787467

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 3787467
Interchangeable Number: 3787468
OEM Number: 410800110124, 4108000110124A
Serial Number: W1601198006A1
Turbo Model: HE200WG

Engine: WP5, ISDe140
Engine Manufacturer: Weichai, Cummins
Displacement: 4.5L (ISDe140)
Fuel: CNG (WP5), Diesel (ISDe140)

Compressor Housing B/H Connection: 100 mm Circlip
Compressor Housing Outlet Connection: 56.85 mm V-Band
Compressor Housing: (Ind. 41.8 mm)
Impeller: (Ind. 41 mm, Exd. 58 mm)
Turbine Housing A/R: 1.19
Turbine Housing B/H Connection: 77 mm V-Band
Turbine Housing Critical Area: 6 cm sq
Turbine Housing Mtg Flg Bolt Holes: 4 Holes 40 x 73
Turbine Housing Outlet Connection: 4 Hole Bolted
Turbine Housing: (Exd. 44.7 mm)
Turbine Wheel: (Outside Dia. 49 mm, Exd. 44 mm)
Wastegate Checking (Lift): 0.33-1.27 mm
Wastegate Settings (Lift): 0.5-1.04 mm
Wastegate Settings (Pressure): 1.0
Wastegate Spig: 263.0

Application:
Bus, Truck with Weichai Power WP5 Engine
Various with Cummins ISDe140 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
