HX40W Turbo Komatsu PC300-6 Excavator S6D102E Industrial 6C 4035653 4038421

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

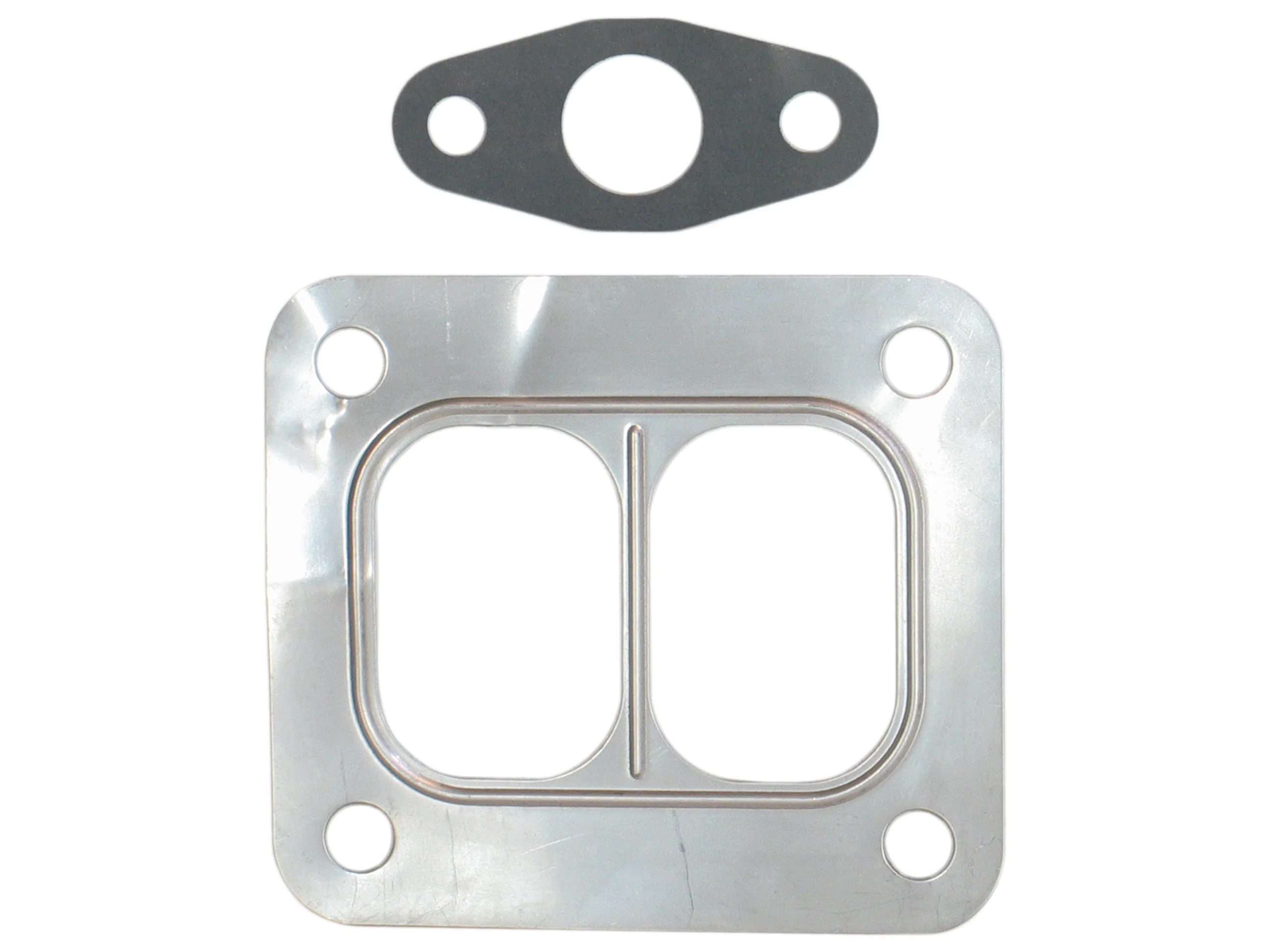

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4038421
Interchangeable Number: 4035653, 4035653H, 4038425, 5358424, 5455700, 5460762
OEM Number: 4089189, 4090015, 6743-81-8040, 6743818040
Turbo Model: HX40W-A82N71GM/B76L84FJB19JD, HX40W

Year: 2004-
Engine: 6C, 6CTAA, SA6D114E, S6D102E
Engine Manufacturer: Cummins, KCEC
Fuel: Diesel

Angle α (Compressor Housing): 178/360°
Angle β (Turbine Housing): 20/360°
Actuator: 3593678
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632 (4027872, 4027869)
CHRA: 4027871 (3535324, 4027612, 4027849)
Compressor Housing: 4039128
Compressor Wheel: 3599592 (3537168)(6743818050)(Ind. 58 mm, Exd. 81.3 mm, 8+8 Blades)
Gasket (Oil Outlet): 210060 (2475013)
Gasket (Turbine Inlet): 409039-0000 (2405022)
Gasket (Turbine Outlet): 3535243
Gasket Kit: 4032424
Heat Shield: 3519302 (194149)(1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 3598051 (4030686)
Turbine Wheel: 3522879 (3535359)(Ind. 76 mm, Exd. 64 mm, 12 Blades)(1152301436)

Application:
2004- Industrial, Truck IR with KCEC 6C Engine
Komatsu PC300-6 Excavator with S6D102E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
