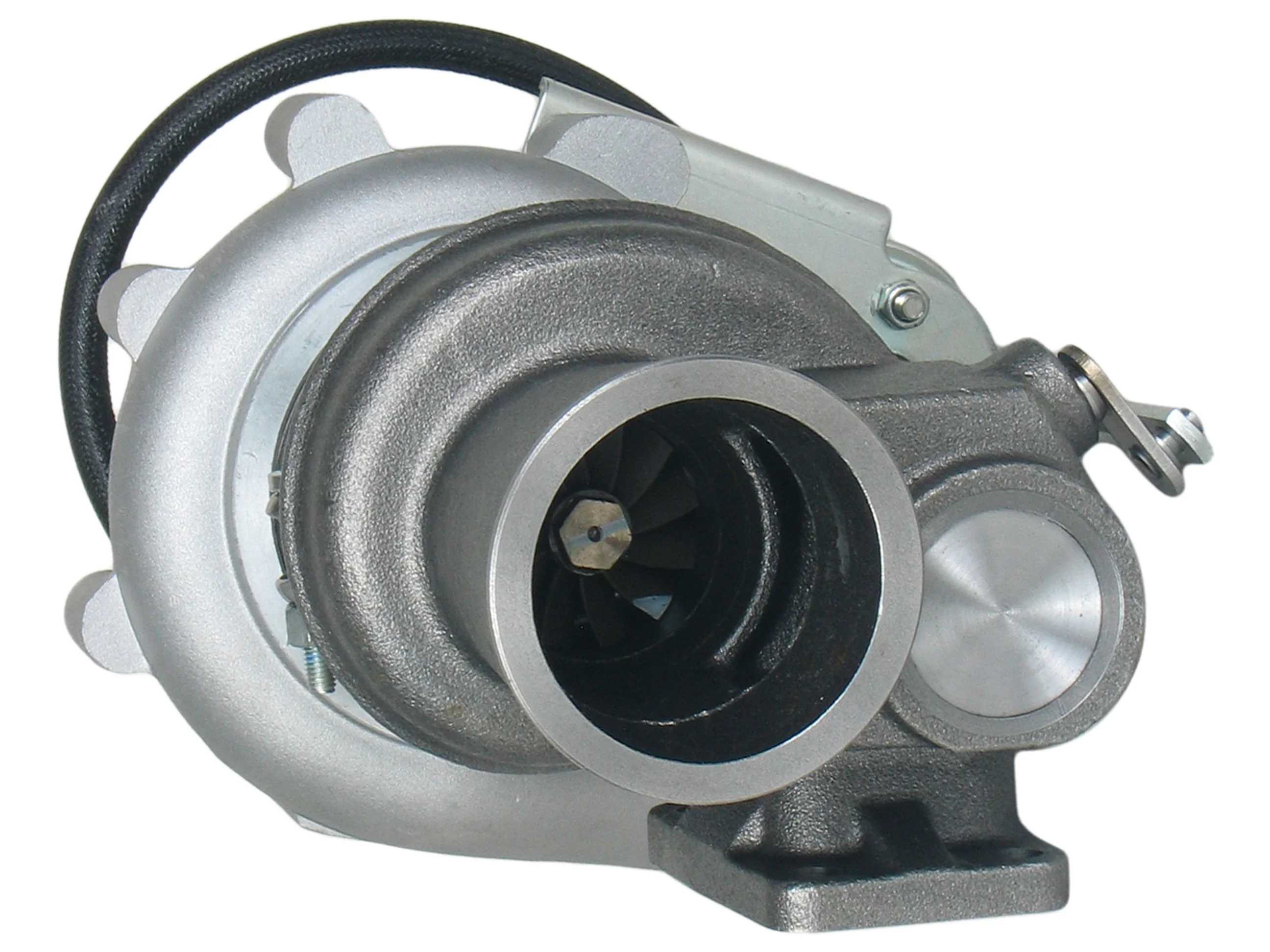

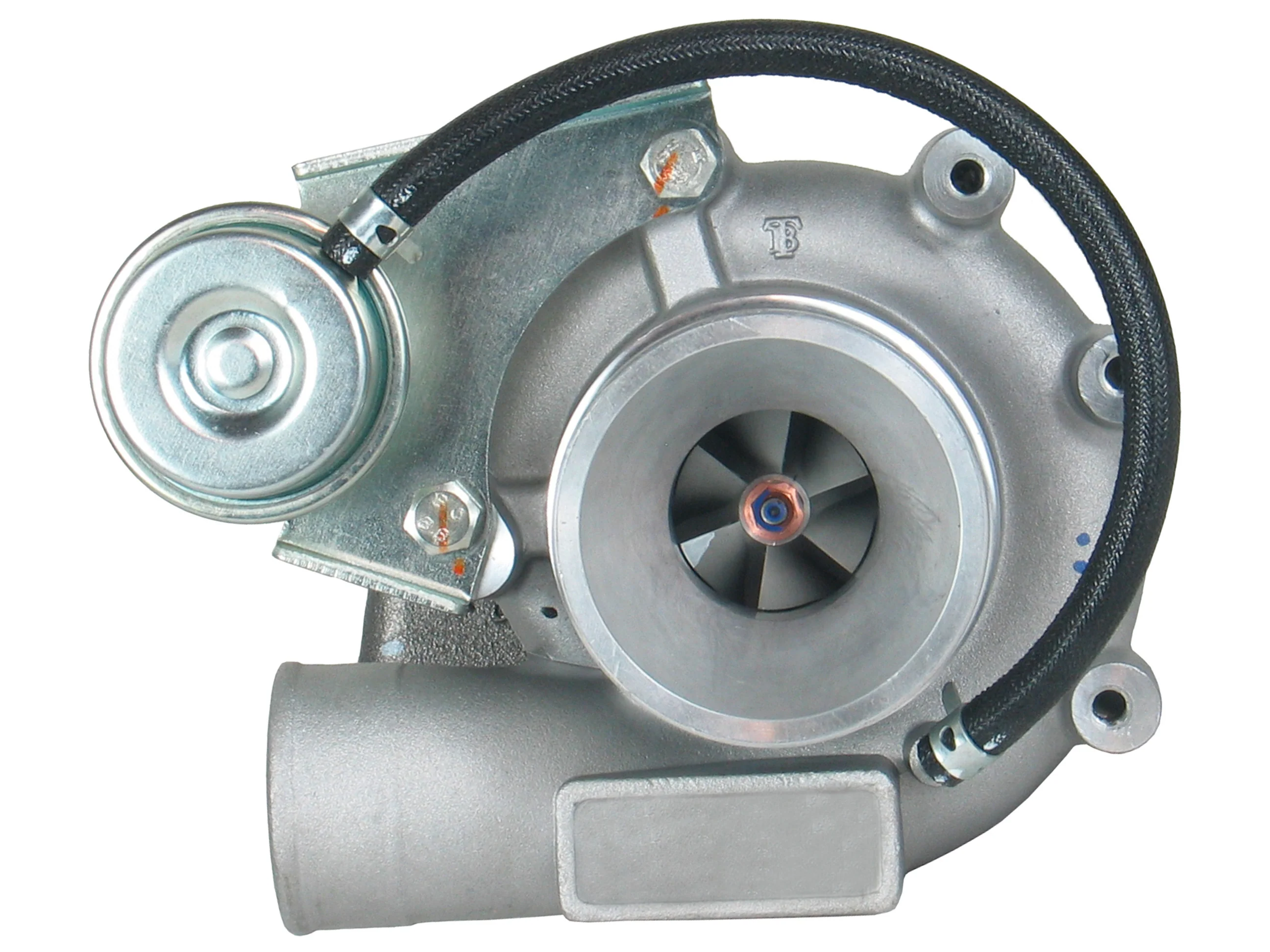

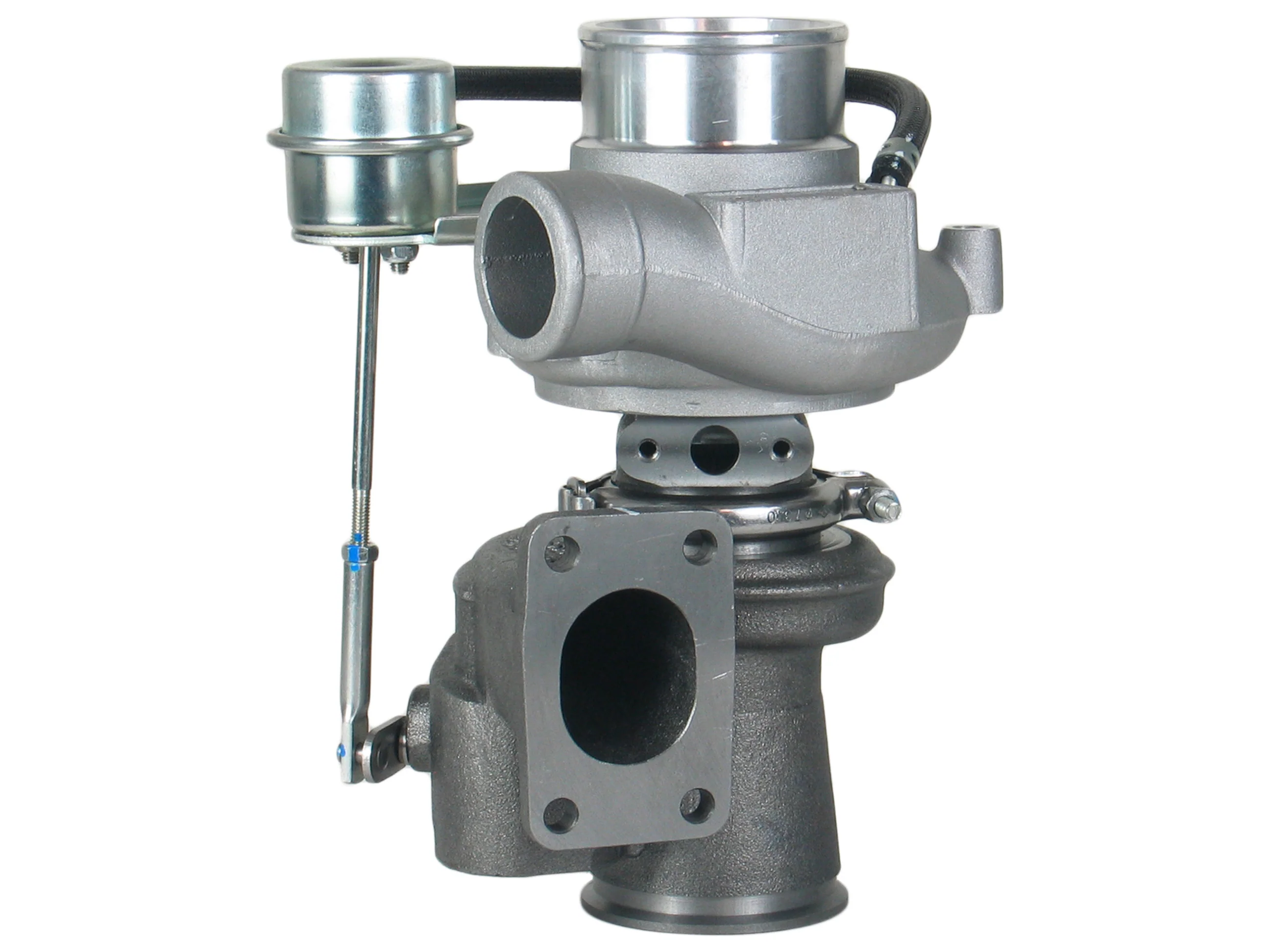

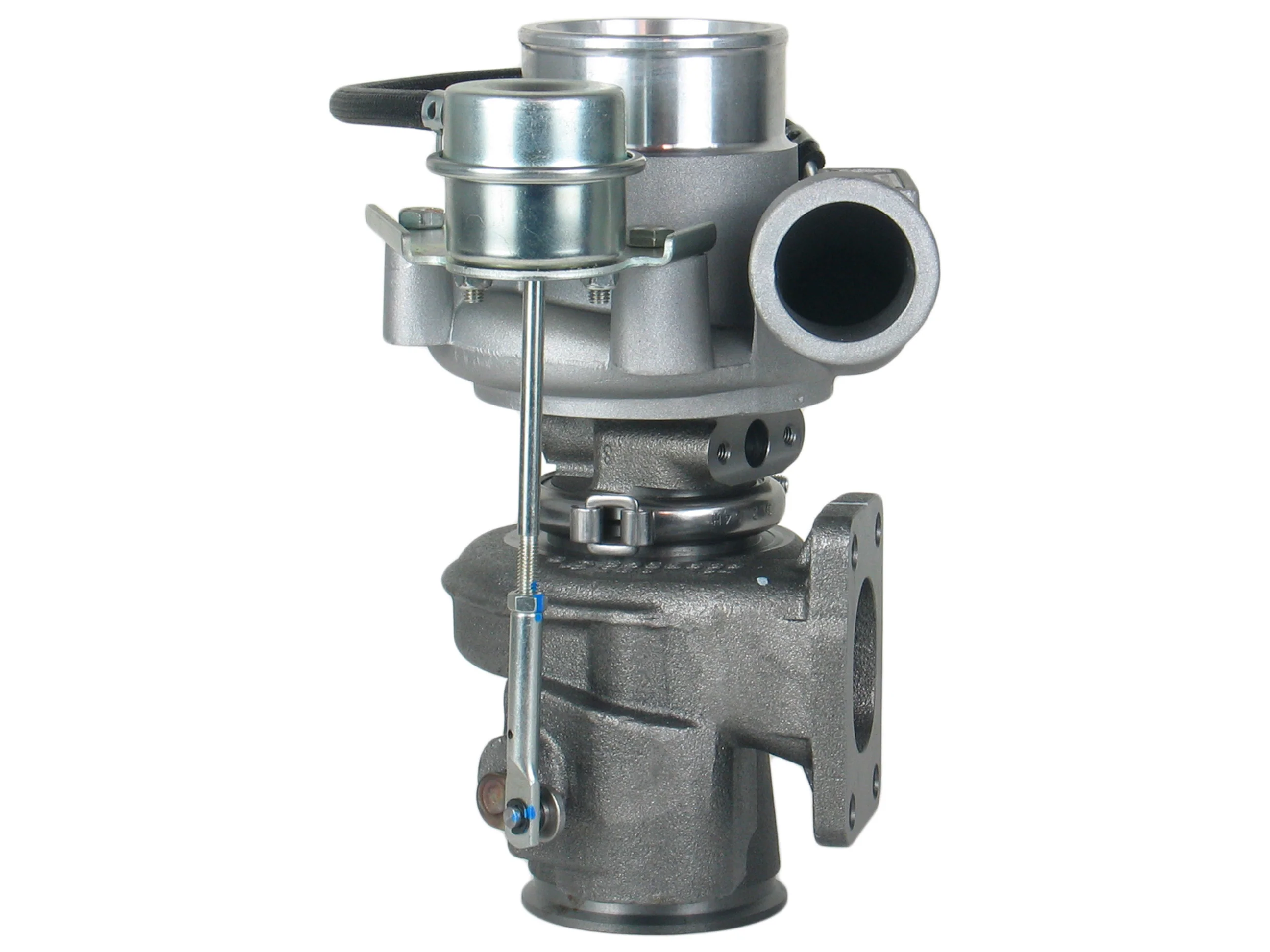

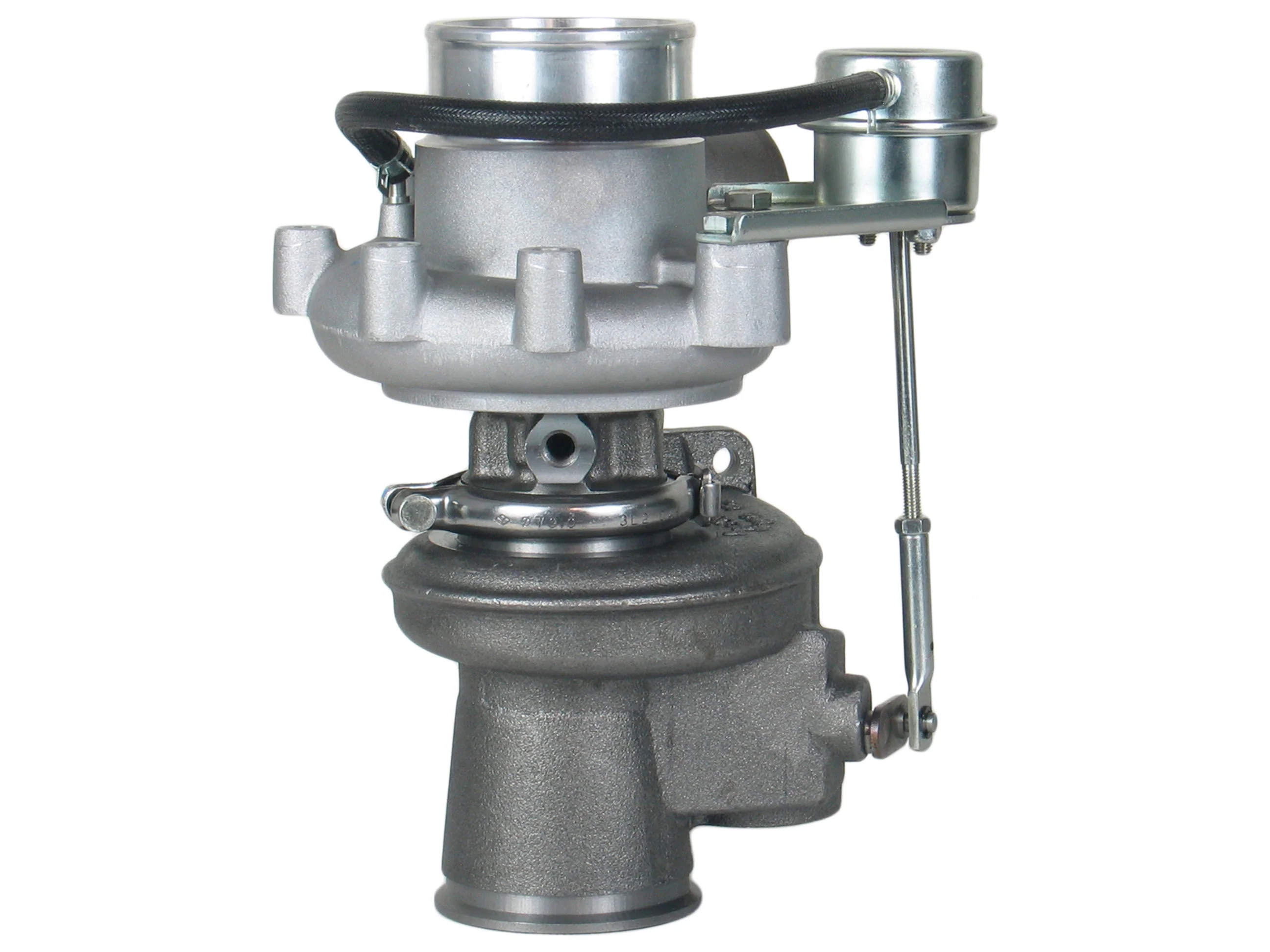

NEW HX25W Turbocharger Komatsu Various 160 Excavator PC100 4039714 4038790 Turbo

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 4038790
Interchangeable Number: 3599355, 3599356, 4033351, 4033351H, 4038791
OEM Number: 4089714, 6737-81-8290
Turbo Model: HX25W-TD04HL-11T-6, HX25W
Manufacturer: Holset

Year: 2004-
Engine: 4B
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 155/285°
Angle β (Turbine Housing): 10/165°
Actuator: 4030795/3599951
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: 1153025751
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)
Wastegate Settings (Lift Shaft): 1.75 mm
Wastegate Settings (Pressure): 0.5-1.04/0.3-1.27 bar

Application:
2004- Komatsu PC100, PC160, PC200, PC128US Excavator, Various with Cummins 4B Engine

TurboTurbos Part Number: TP05-0062-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
