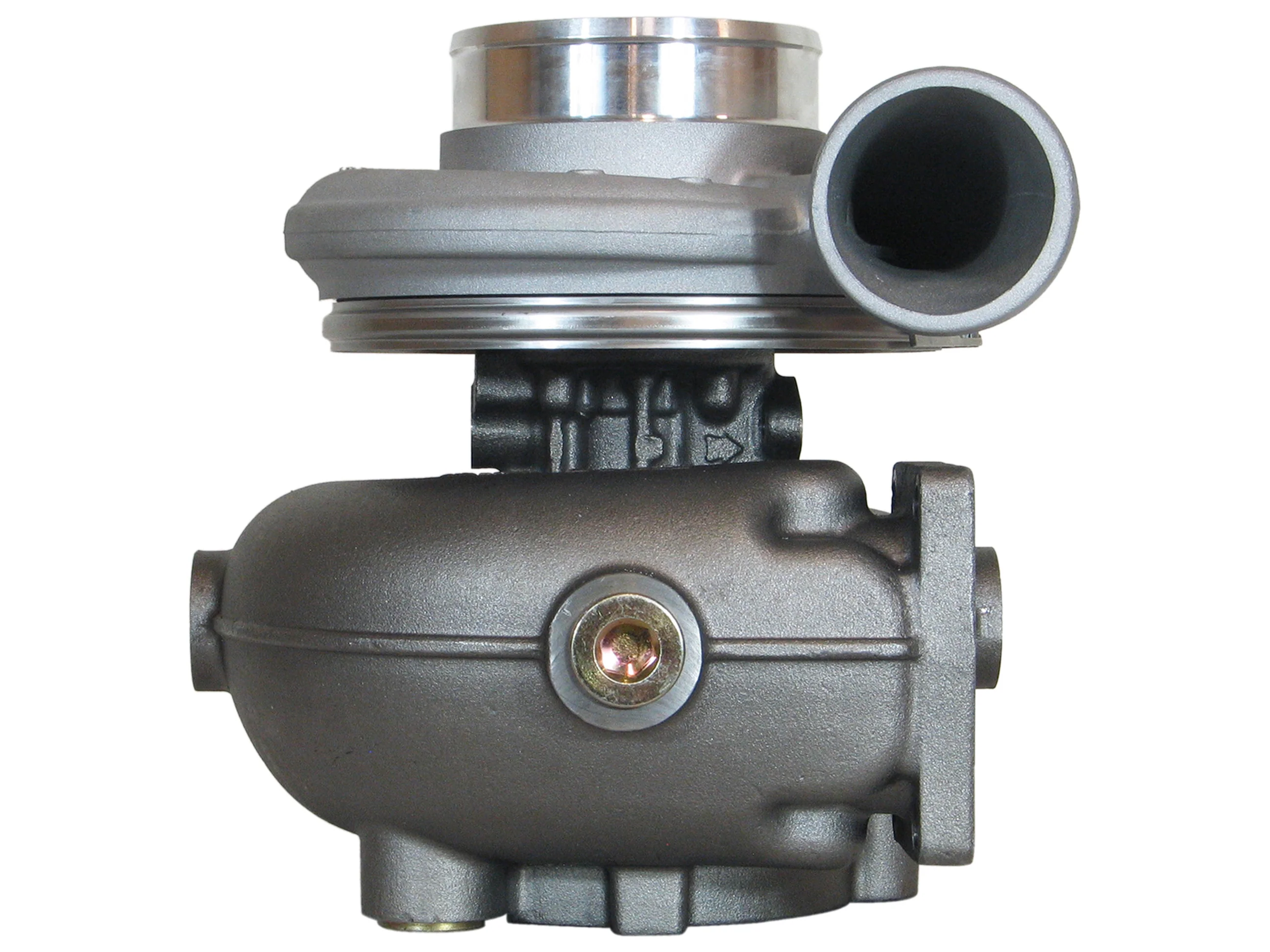

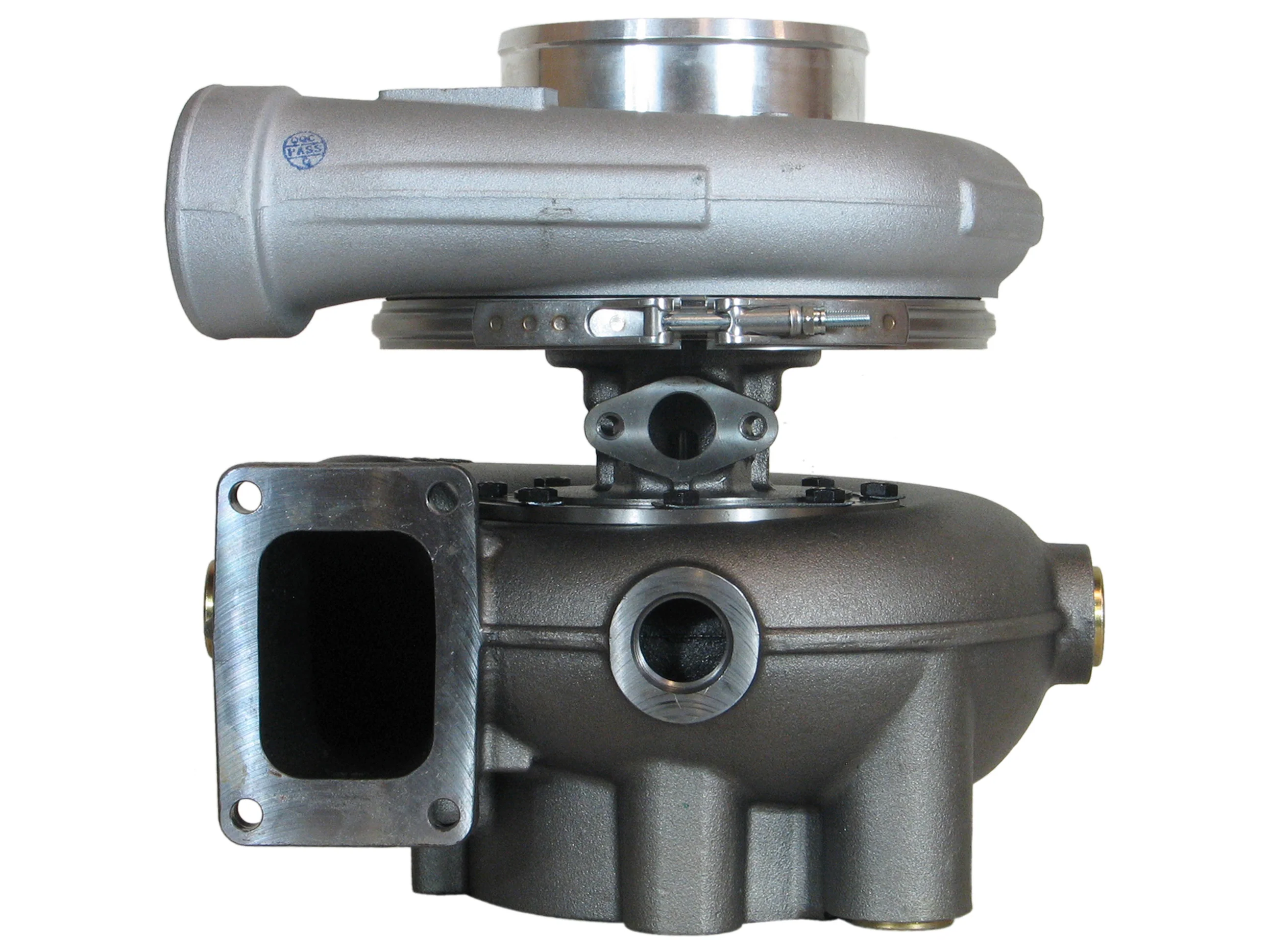

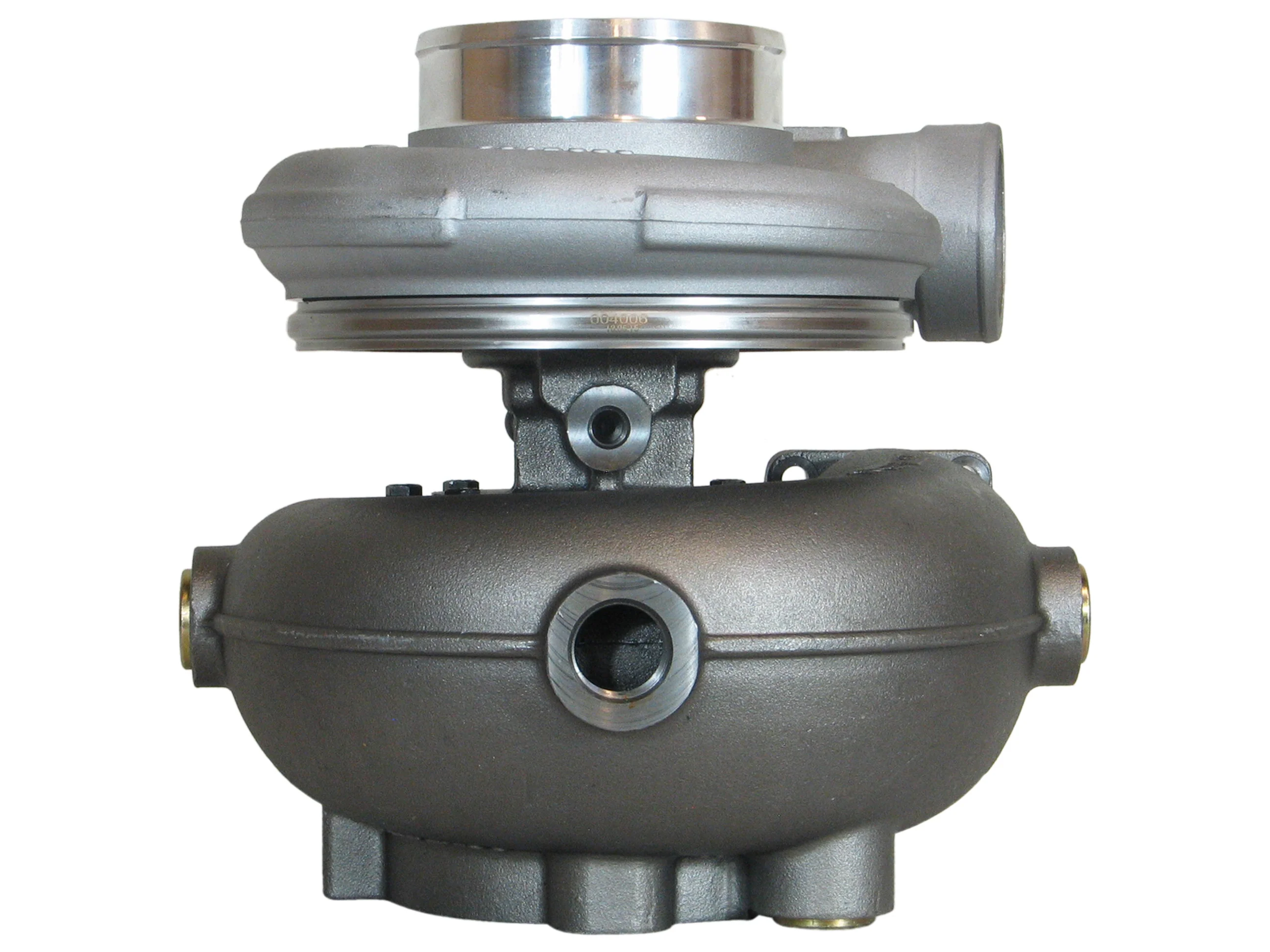

NEW HX80 Turbo Marine Cummins KTA 19 K19 K19-M640 K38 Series 19.0L 3596959

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

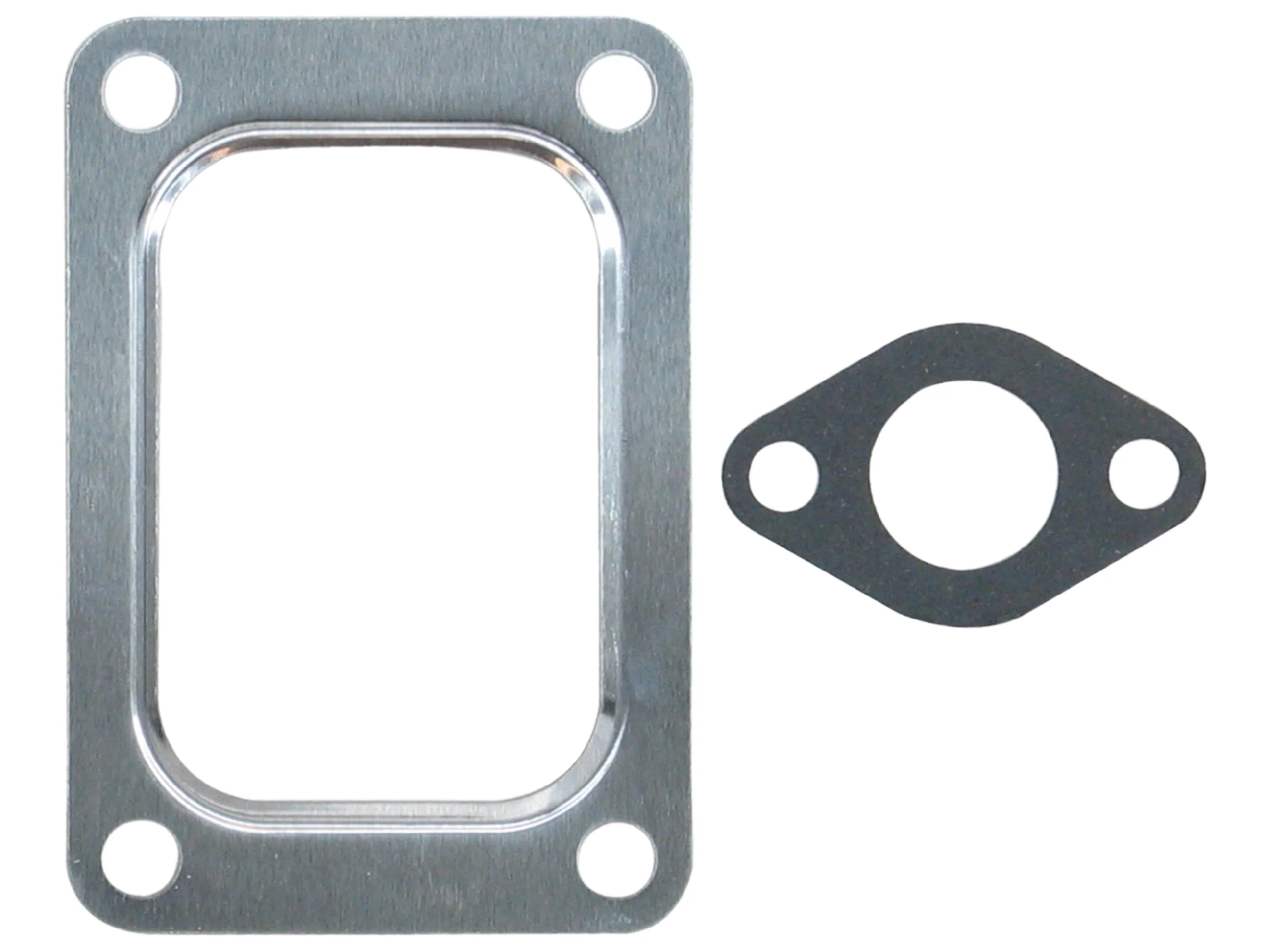

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3596959
Interchangeable Number: 3534625, 3537685, 3537688, 3594139, 3594141, 3594142, 3596960, 3767944, 3767946, 3769996
OEM Number: 2882021, 2882093, 3594140, 3804698, 3804699, 4025301
Replacement Number: 3769994
Serial Number: H02090174
Turbo Model: HX80, HX80M, HX80-3851Z/R36YA3

Year: 2000-14
Engine: K19, K19-M640, K38, KTA 19
Engine Manufacturer: Cummins
Displacement: 19.0L, 19000 ccm
Fuel: Diesel
Power: 640 HP

Angle α (Compressor Housing): 247°
Angle β (Turbine Housing): 360°
Back Plate (Diffuser): 3538455
Bearing Housing: 3595036 (359503600)
CHRA: 4027408

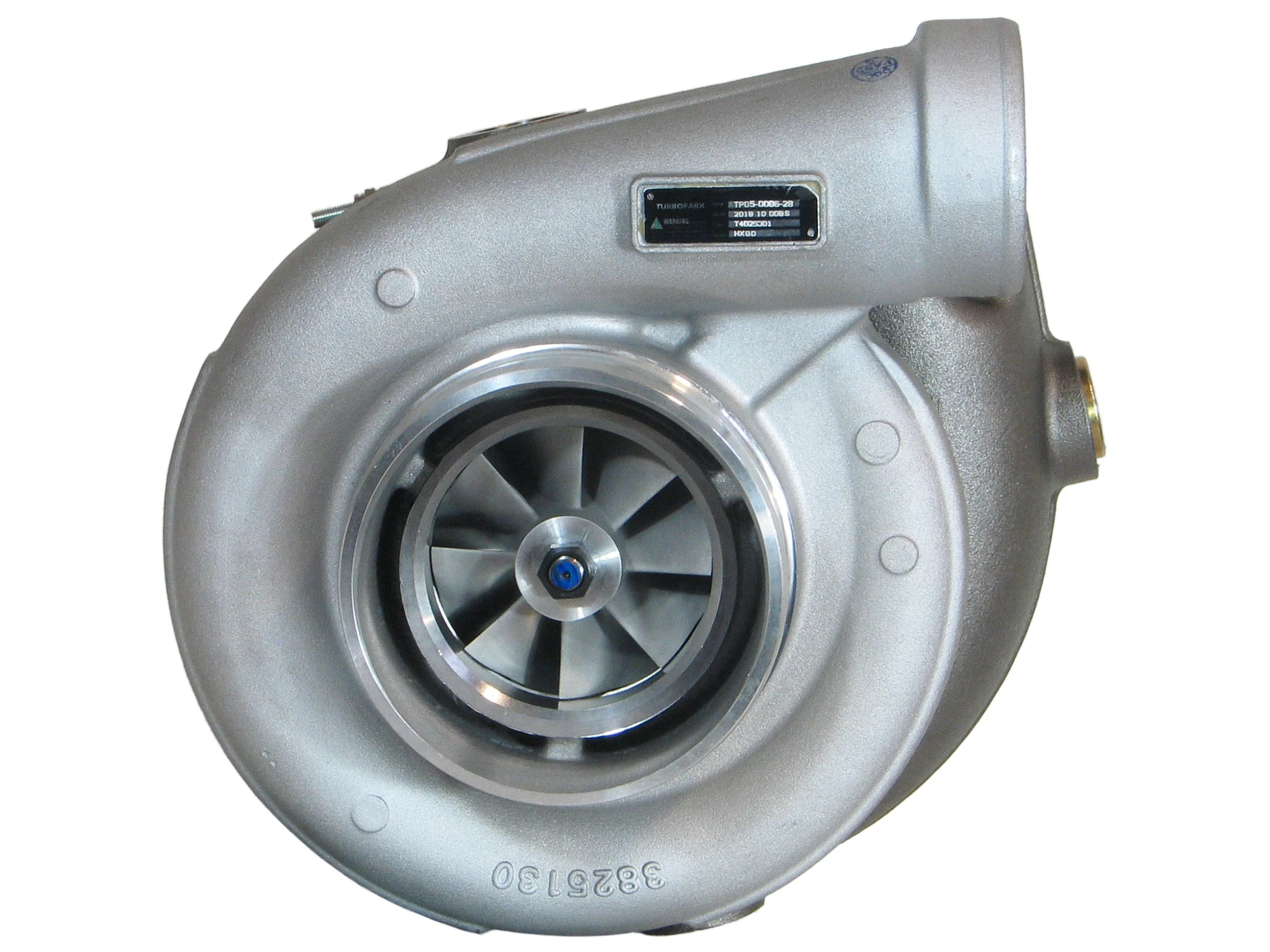

Compressor Cover: 3527369
Compressor Wheel: 3533703 (3535772, 3593182)(Ind. 90.96 mm, Exd. 141.05 mm, Trim 41, 8+8 Blades)
Gasket Kit: 4032473
Heat Shield: 3536588 (1153080340)
Plug (Threaded): 3201583
Repair Kit: 3545647 (3575236, 4027966)(1152105750, 1152105756)
Rotor Assembly: 3575208
Shim (Thrust Bearing)(0.010): 3524418 (316069)(352441800)(1152105250)

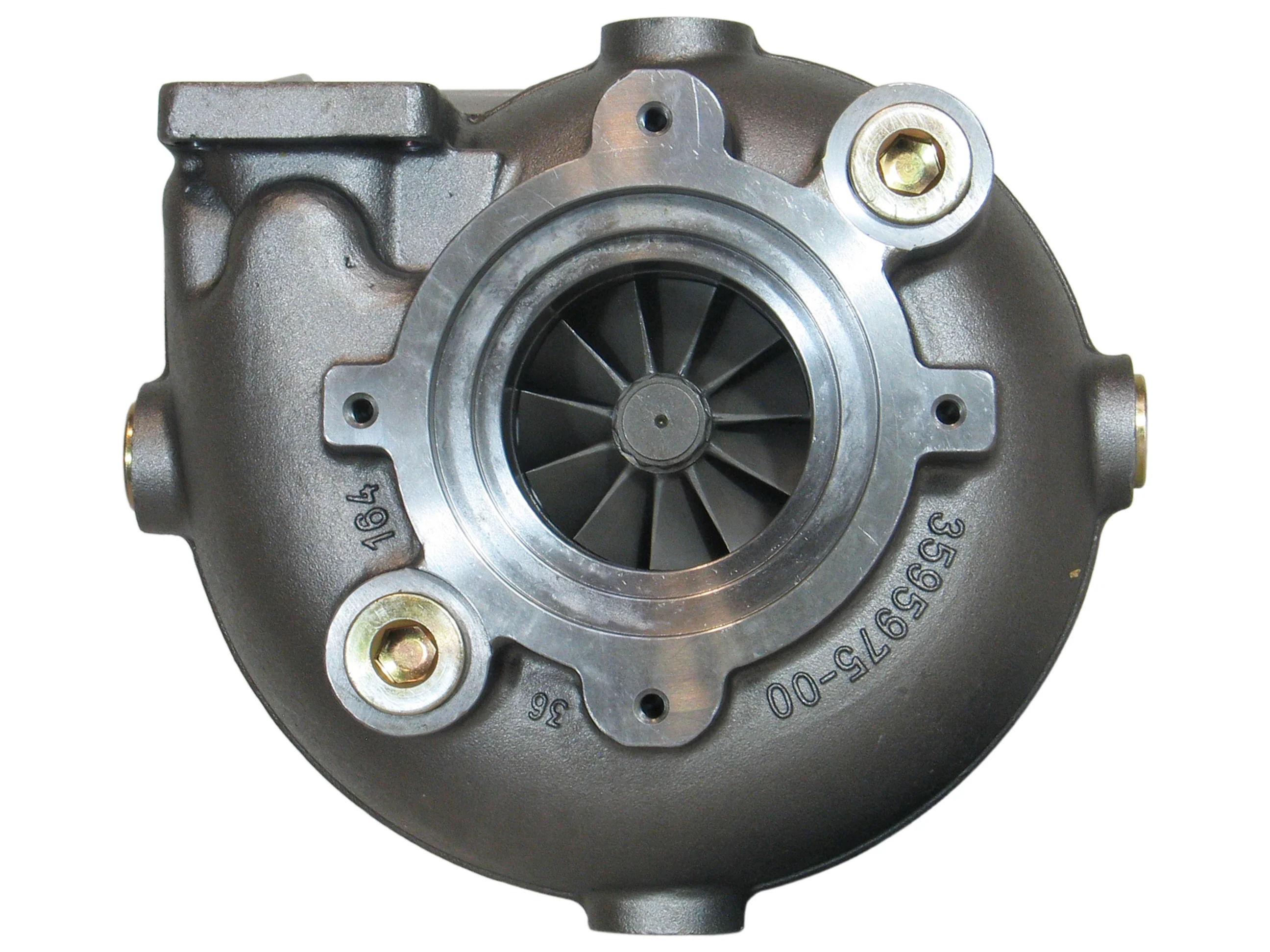

Turbine Housing (Water Cooled): 3595977 (359597700, 3537682)
Turbine Wheel: 3521033 (Ind. 129.0 mm, Exd. 95.4 mm, 11 Blades)(1152105435)

Application:
2000-14 Marine with Cummins K19, K19-M640, KTA 19, K38 Series Engine

TurboTurbos Part Number: TP05-0086-28

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
