NEW HX60W Turbo Truck Industrial Cummins QSX CPL-3088 CM570 ECM 4955813 4047148

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

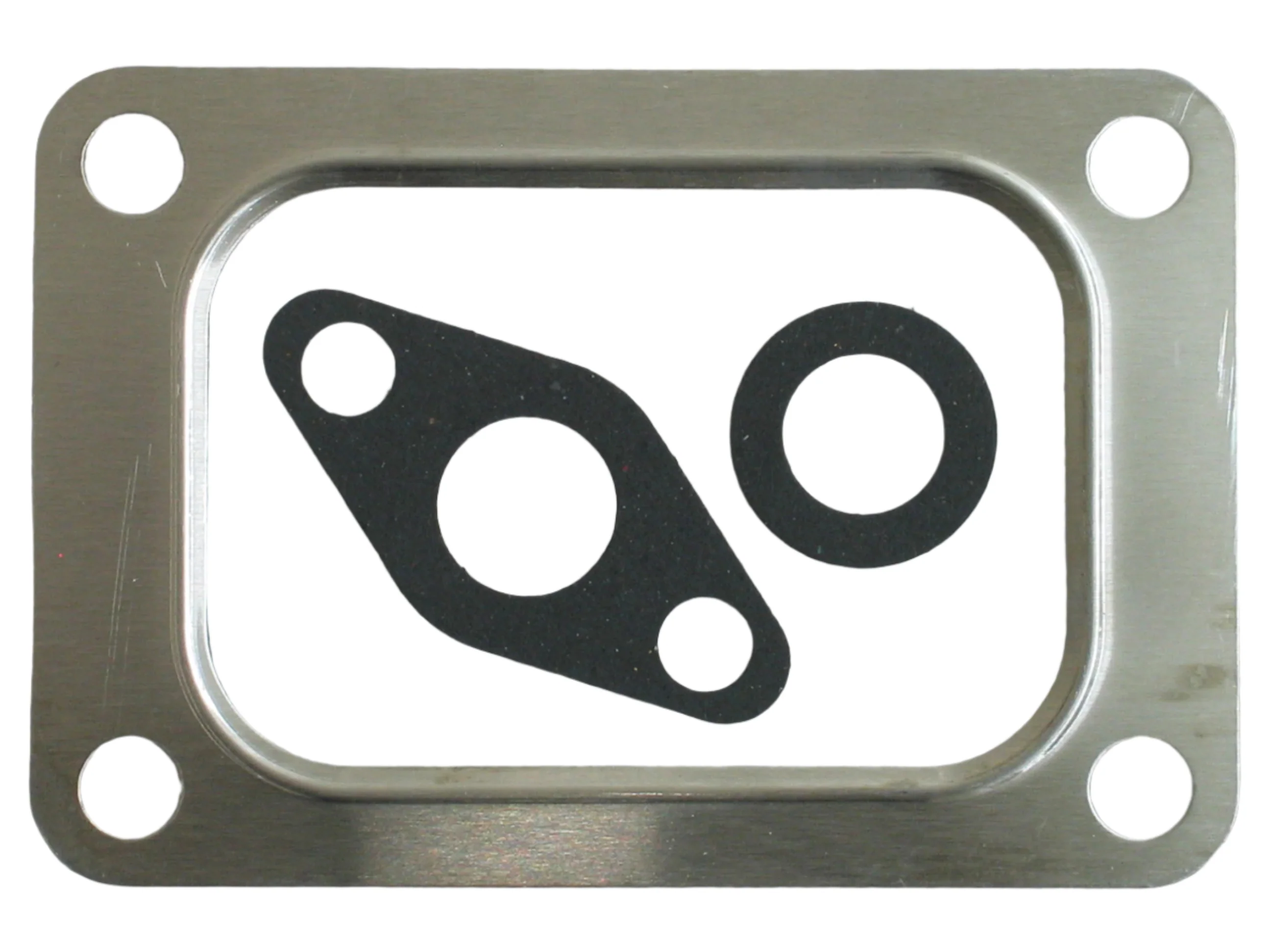

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4047148
Interchangeable Number: 2836723, 2836725H, 2836760, 2836762H, 3593345, 3594488, 3595972, 3598762, 4024936, 4024937NX, 4024937RX, 4025272NX, 4025272RX, 4038498, 4041154, 4047149, 4047153H, 4089298NX, 4089298RX, 4089970NX, 4089970RX, 4955216NX, 4955216RX, 4955813NX, 4955813RX, 495608100, 4956082NX, 4956082RX, 4047155H
OEM Number: 2836725, 2836726, 2836727, 2836762, 3594490, 3594491, 3594492, 3595973, 3598763, 3598764, 3598765, 4024937, 4025272, 4038500, 4038501, 4038502, 4041155, 4041156, 4041157, 4047152, 4047153, 4047154, 4089298, 4089970, 4955216, 4955813, 4956081, 4956082, 4047155, 4955814
Turbo Model: HX60W

Engine: QSX, QSX15
Engine Manufacturer: Cummins
Displacement: 15.0L
Emission Standard: Tier 3
Fuel: Diesel

Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90/137/270°
Actuator Kit (Pneumatic): 4032304H (3593848, 3599836, 4030227, 4044633)
Back Plate: 3531917 (1250403300)
Bearing Housing: 3536802 (Oil Cooled)
CHRA: 4038499 (4038499H, 3768546)
Compressor Housing Kit: 4042570H
Compressor Wheel: 4040285 (3534650, 3534650H, 353465000)(Ind. 80 mm, Exd. 113 mm, Trim 8.74, 8+8 Blades, Super Back)
Gasket Kit: 3545577 (4681920000, 118097-0000, 468189-0000)
Heat Shield: 3519155 (18373)(351915500)
Repair Kit (Major): 4027881H (3545345, 3580568, 4027880)(1153060750)
Turbine Housing Kit: 4047157H
Turbine Wheel: 3533025 (3533025H, 353302500)(Ind. 97 mm, Exd. 86.3 mm, Trim 16.9, 12 Blades)(1153060435)
Turbocharger Kit: 4047153H

Application:
2002-10 Truck with Cummins QSX Engine
Industrial with Cummins QSX, QSX15 Engine
Various with Cummins CM570 ECM (Electronics Control Unit) Engine

TurboTurbos Part Number: TP05-0116-07

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
